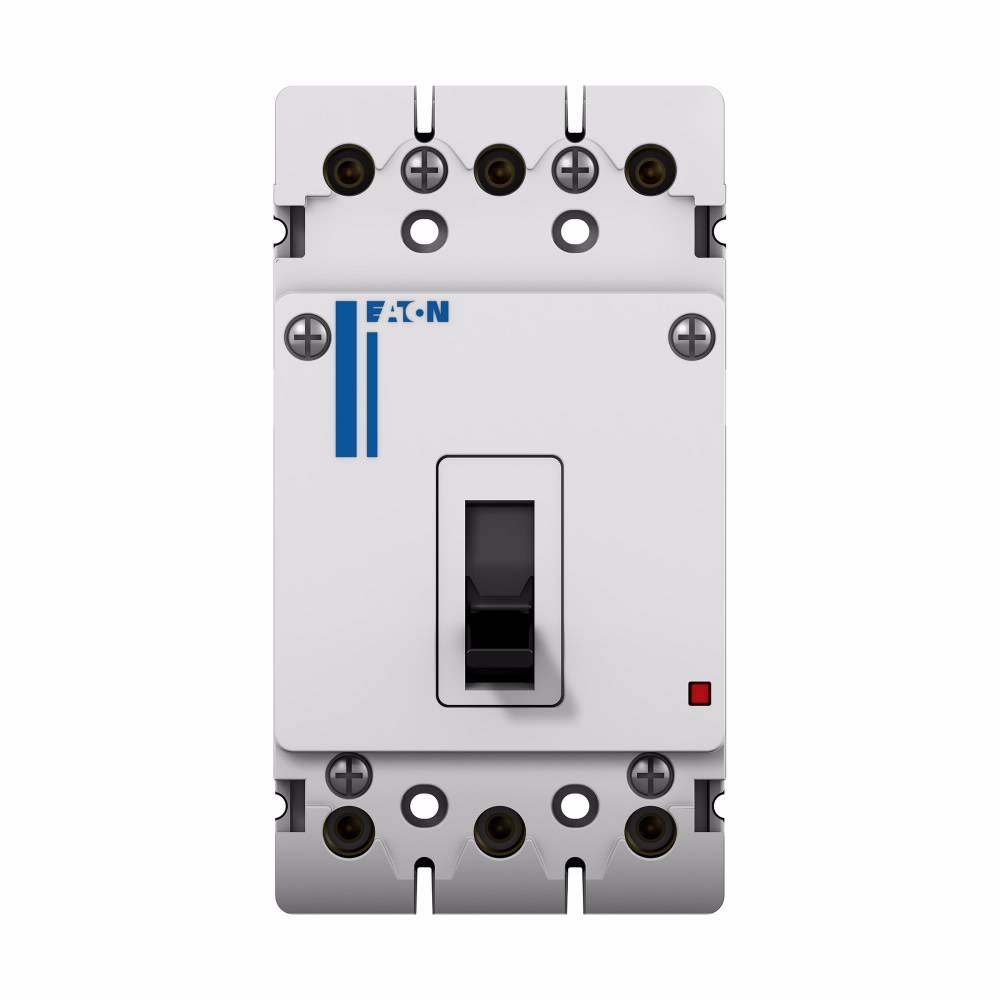

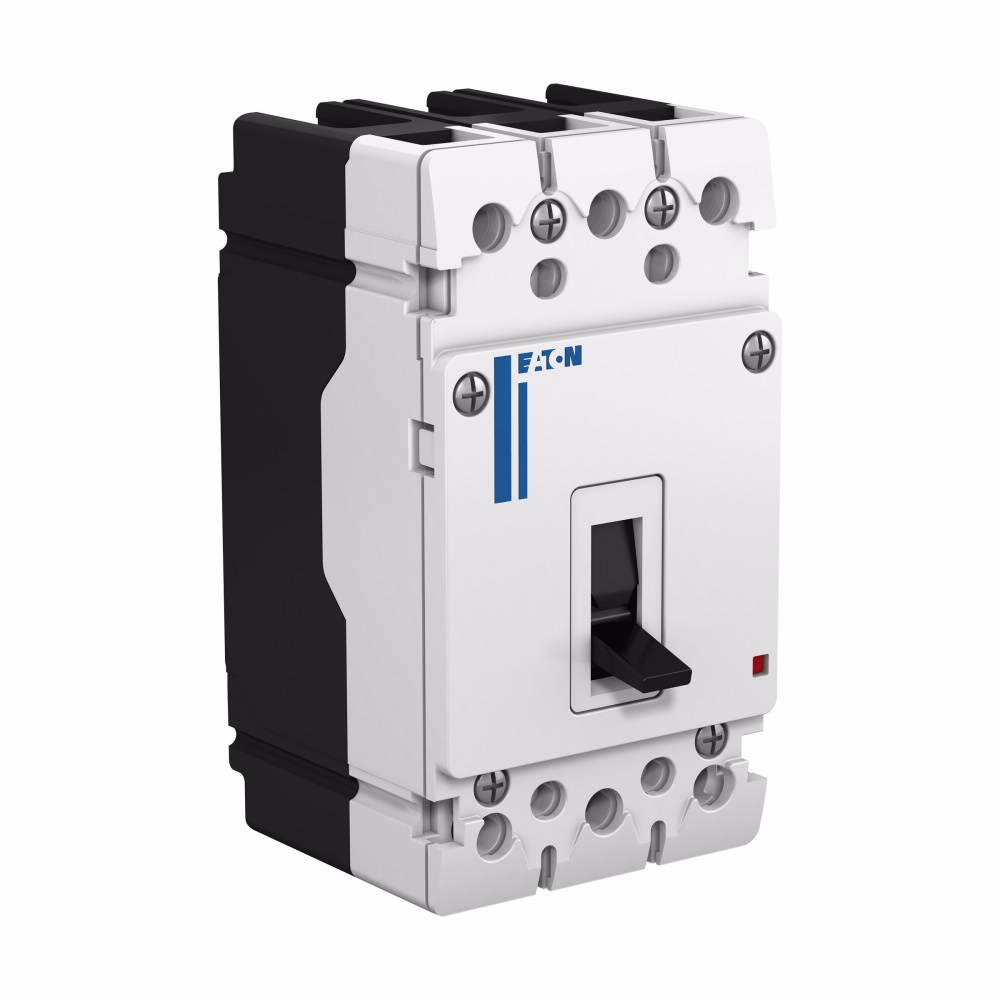

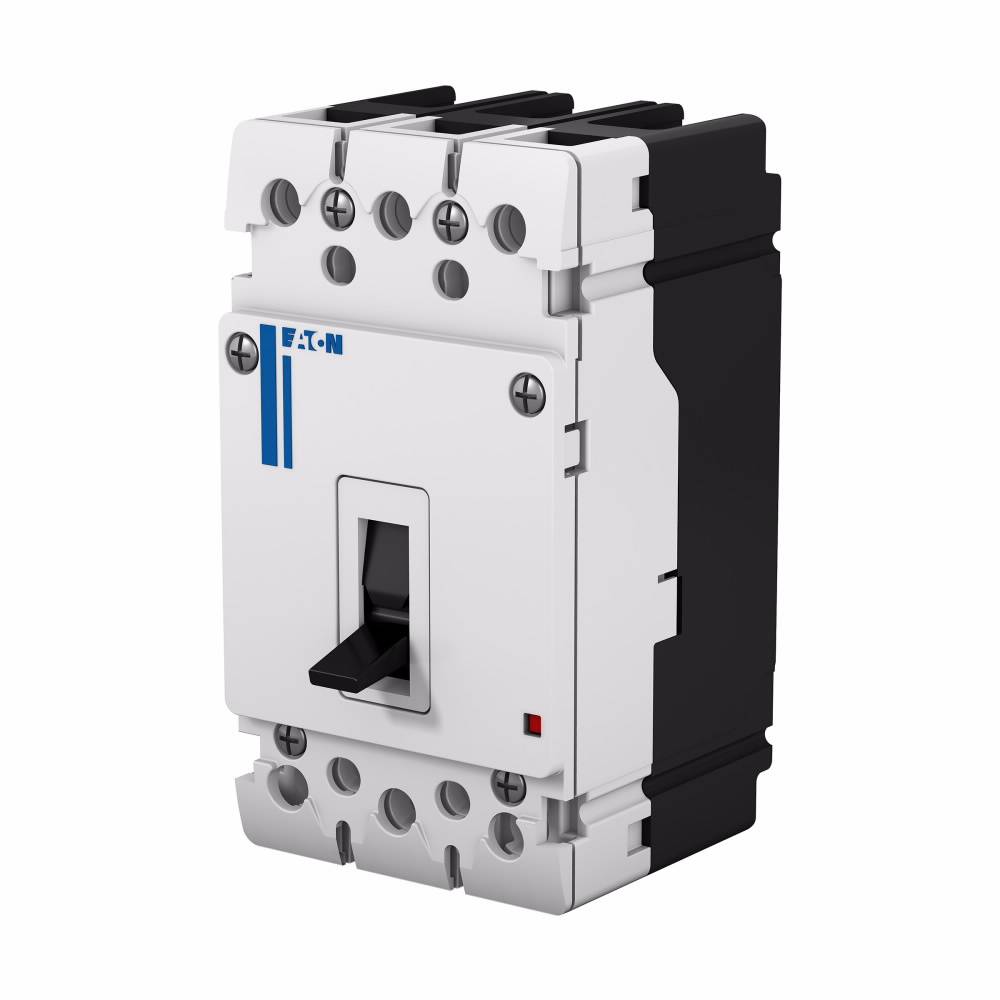

EATON Power Defense™ PDG13F0015TFFJ PDG1 Globally Rated Molded Case Circuit Breaker, 240/480/600 VAC/250 VDC, 15 A, 14/22/25/35 kA Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic Trip

Short Description

The Power Defense molded case circuit breaker portfolio is globally rated in a small footprint for easy adaptability no matter the application or project requirement. A circuit breaker with communicating electronic trip units and the ability to generate the data to help you optimize your facilities' performance, and to help keep your employees, customers and end-users safe by reducing the risk of arcflash events.

EATON Power Defense™ Molded Case Circuit Breaker, Globally Rated, Series, 240/480/600 VAC/250 VDC, Amperage Rating, A 15,

MFG #: PDG13F0015TFFJ

EECO #: CHPDG13F0015TFFJ

Brand: Eaton
UPC #: 786679246900
Attributes
Features
Documents
Product Information
Attributes
Frame
Size 1
UNSPSC
39121616
Approval
UL, CSA, CCC, IEC, GB
Material
Glass Polyester
Trip Type
Fixed Thermal/Fixed Magnetic
Wire Size
14 to 3/0 AWG
Application
Circuit Protection, Power Distribution, Current Limiting and Reverse Feed Applications
Power Rating
<=4.3
Terminal Type
Line and Load
Current Rating
15 amp
Enclosure Type
IP30
Voltage Rating
240/480/600 VAC/250 VDC
Connection Type
Line/Load Terminal
Number Of Poles
3
Frequency Rating
50/60
Temperature Rating
-20 to 70
Interrupting Rating
25 Kiloamp at 480 Volt
Size
2.99 Inch Length x 3 Inch Width x 5.5 Inch Height
Type
Globally Rated
Series
PDG1
Warranty
1 Year
Dimensions
139.7 mm H x 76.2 mm W x 75.95 mm D
Amperage Rating
15
Features
  • Modular design
  • Connect to your network or the cloud with built-in communication capability
  • Mitigate arc flash to keep your employees, customers and end users safe
  • 35 kA at 240 VAC, 25 kA at 480 VAC, 14 kA at 600 VAC, 22 kA at 250 VDC
Eaton_21652_3_OTHER1
Eaton_21667_1_3_OTHER2
Qty Unit price
Ea
1 $447.50

Slqt
1 $447.50

Stpk
1 $447.50

Unit
1 $447.50
