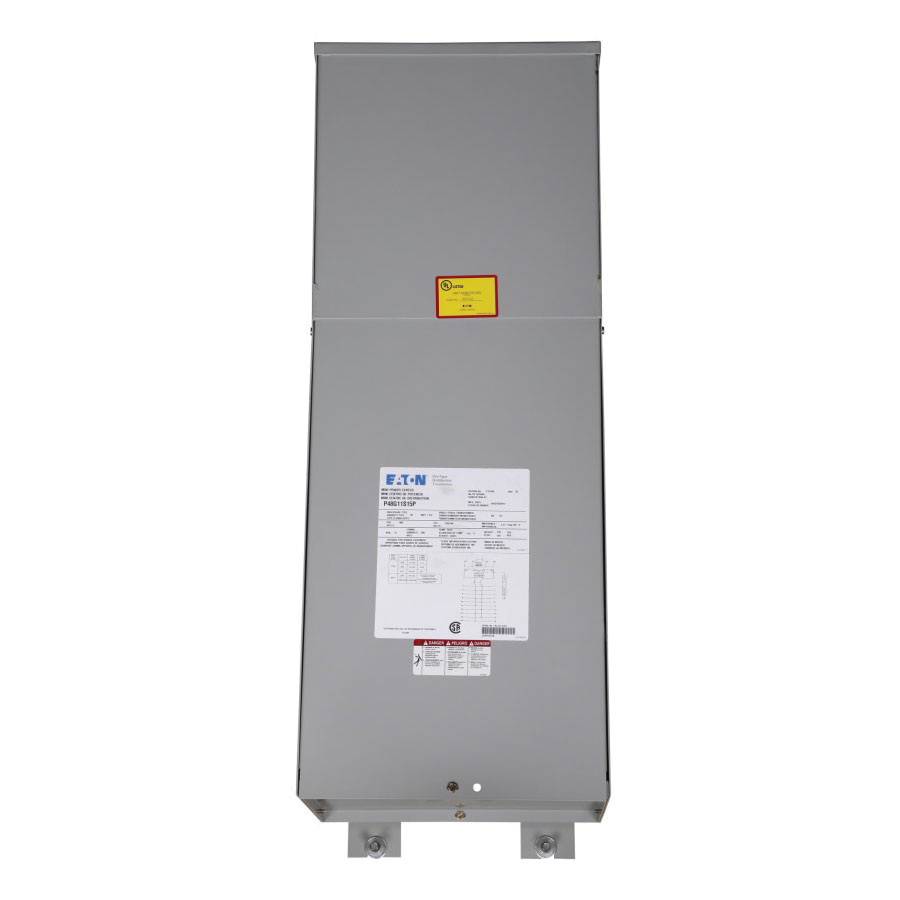

EATON P48G11S05S6 3-in-1 Design Dry Mini-Power Center, 480 V Primary, 120/240 V Secondary, 5 kVA Power Rating, 60 Hz, 1 ph Phase

Short Description

EATON mini-power center incorporates an encapsulated transformer, interior, primary and secondary main circuit breakers in to a single assembly. Mini-power centers are ideally suited for applications where 120 VAC are required at a remote location, such us parking lots, workbenches and temporary power on construction sites.

EATON Mini-Power Center, 3-in-1 Design Dry, 480 V Primary, 120/240 V Secondary, 5 kVA Power, 60 Hz Frequency, 1 ph, 20 A Maximum, 2 Taps, 284 Frame Circuit, Class F/180 deg C Insulation, NEMA 3RX Enclosure, 115 deg C, 316 Stainless Steel Housing Material, 8.9 in L x 11.9 in W x 29.5 in H Dimensions
MFG #: P48G11S05S6

EECO #: CHP48G11S05S6

Brand: Eaton
UPC #: 786680087684
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121105
Application
Industrial Plant Assembly Lines, Plant Expansions, Test Equipment, Temporary Construction Site Power, Sewage Disposal Plants, Warehouses, Car Washes, Parking Lots, Commercial, Institutional Buildings, Structures, Indoor and Outdoor Applications
Circuit Type
284 Frame
Power Rating
5
Enclosure Type
NEMA 3RX
Number of Taps
2.0000
Frequency Rating
60
Housing Material
316 Stainless Steel
Temperature Rating
115
Type
3-in-1 Design Dry
Includes
Ground Bar
Warranty
1 year
Dimensions
8.9 in L x 11.9 in W x 29.5 in H
Primary Voltage
480
Secondary Voltage
120/240
Features
  • Padlockable hinged cover prevents removal of feeder breakers
  • All interconnecting wiring is performed at the factory, saving on installation costs
  • Ground bar is supplied to permit grounding of individual secondary circuits
  • Wiring compartment includes ample space for conduit entry
  • Cores are grounded with a copper lead
  • All live parts enclosed for personnel safety
  • Neutral bar is grounded to case
  • Branch circuits can be easily added or changed using type BR plug-in breakers and type BR plug-in and type BAB bolt-on
  • Short term overload capability as required by ANSI
  • Meet NEMA ST-20 sound levels
  • Maximum wiring gutter space is provided for ease of wiring
  • Simplified design includes two keyholes for easy mounting and leveling
  • Aluminum winding
  • EHD primary main circuit breaker
  • 2 at -5% FCBN taps
