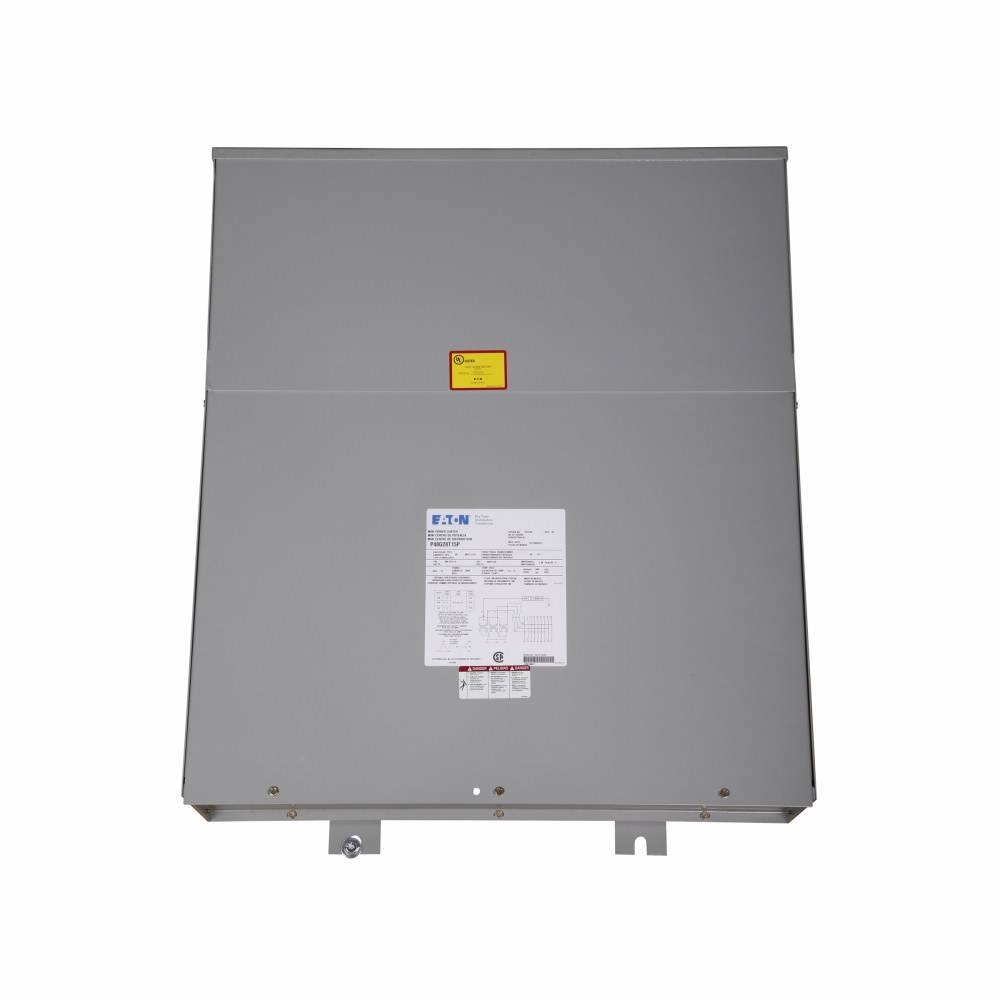

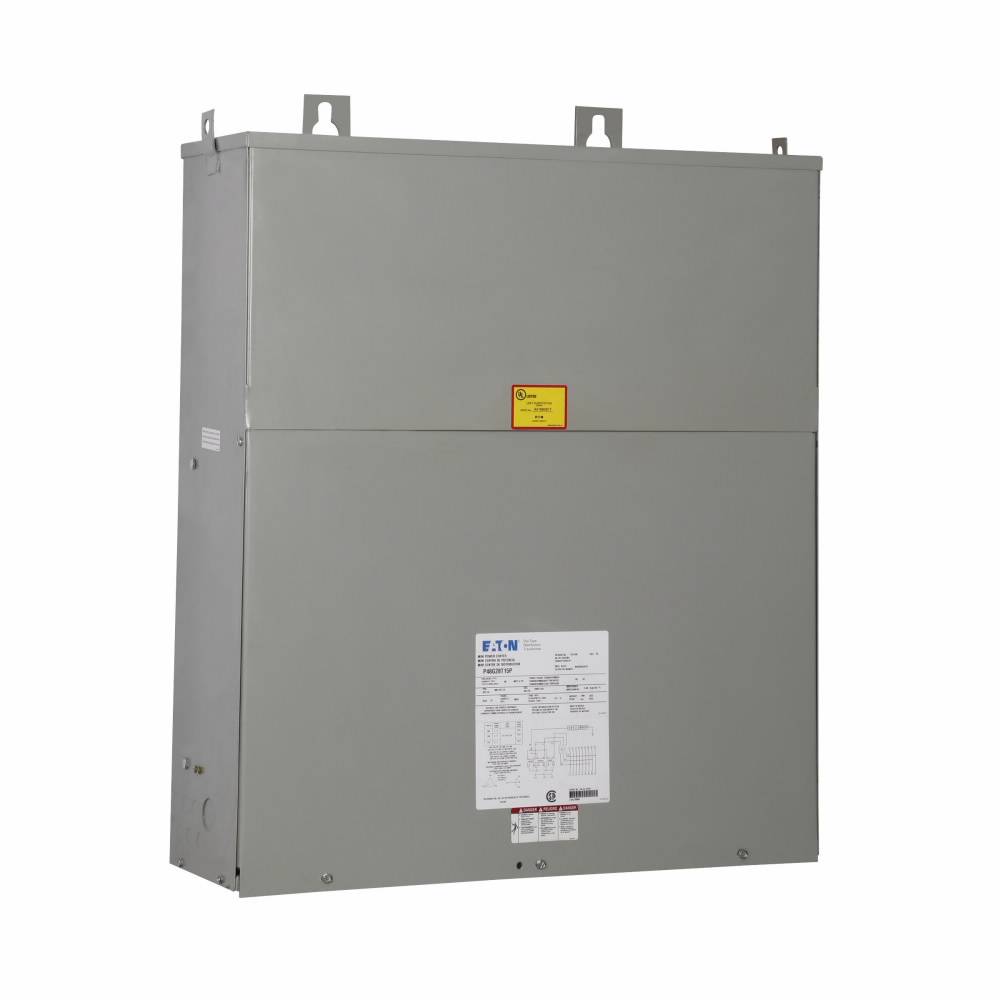

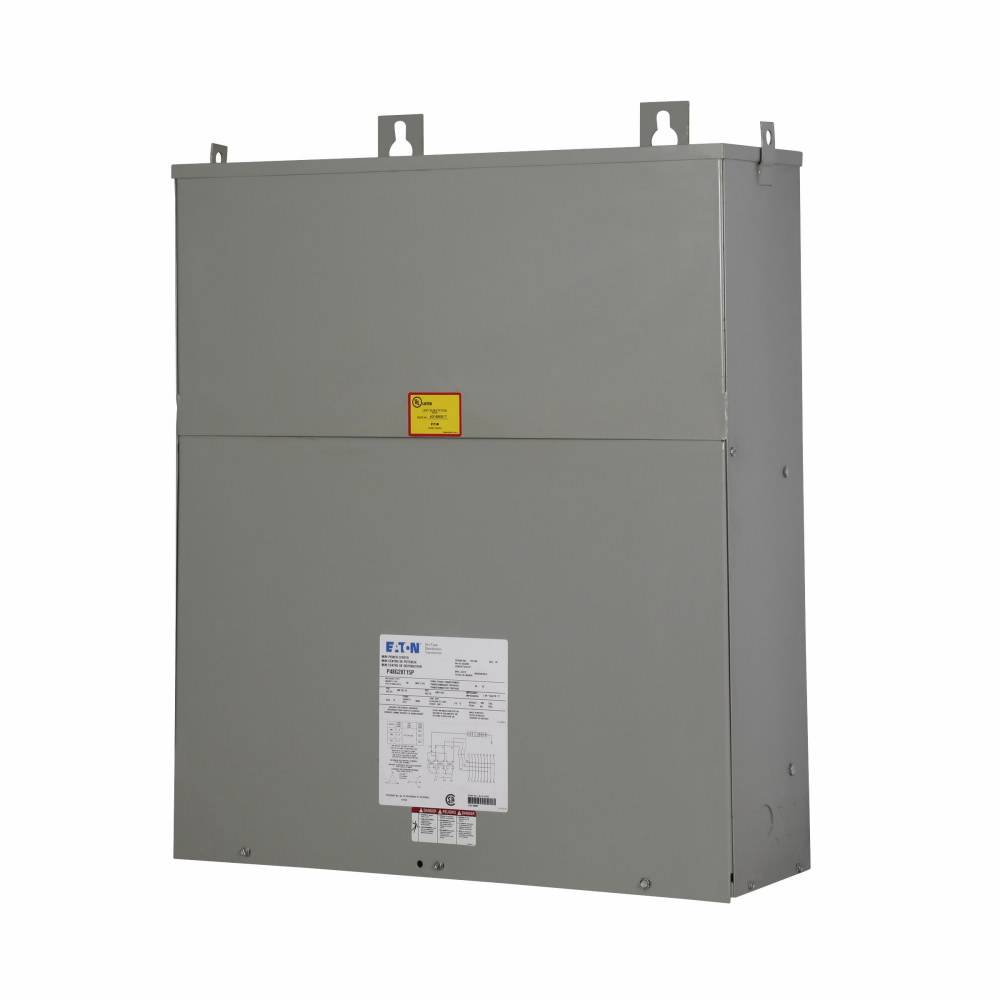

EATON P38G28T15XCUB 3-in-1 Design Dry Mini Power Center, 380 VAC Primary, 208Y/120 VAC Secondary, 15 kVA Power Rating, 50/60 Hz, 3 Phase

Short Description

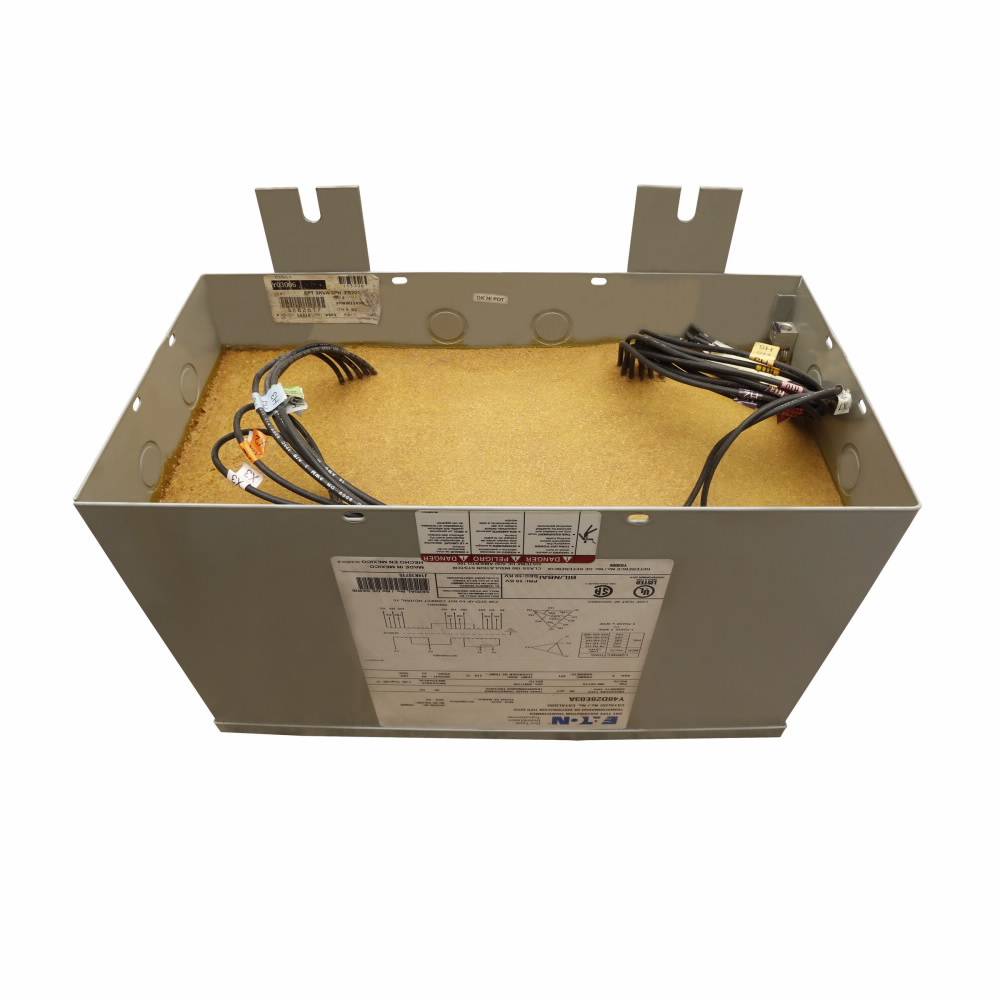

EATON mini-power center incorporates an encapsulated transformer, interior, primary and secondary main circuit breakers in to a single assembly. Mini-power centers are ideally suited for applications where 120 VAC are required at a remote location, such us parking lots, workbenches and temporary power on construction sites.

EATON Mini Power Center, 3-in-1 Design Dry, 380 VAC Primary, 208Y/120 VAC Secondary, 15 kVA, 50/60 Hz, 3 Phase, 2 Taps, 289A Frame, Class F/180 deg C, NEMA 3R, 115 deg C, Steel Housing, 9.38 in L x 28.75 in W x 36.12 in H
MFG #: P38G28T15XCUB

EECO #: CHP38G28T15XCUB

Brand: Eaton
UPC #: 786680068164
Attributes
Features
Documents
Product Information
Attributes
Phase
3
UNSPSC
39121105
Application
Industrial Plant Assembly Lines, Plant Expansions, Test Equipment, Temporary Construction Site Power, Sewage Disposal Plants, Warehouses, Car Washes, Parking Lots, Commercial Buildings and Indoor/Outdoor Applications
Circuit Type
289A Frame
Power Rating
15
Enclosure Type
NEMA 3R
Number of Taps
2.0000
Frequency Rating
50/60
Housing Material
Steel
Temperature Rating
115
Type
3-in-1 Design Dry
Includes
Ground Bar
Warranty
1 year
Dimensions
9.38 in L x 28.75 in W x 36.12 in H
Primary Voltage
380
Secondary Voltage
208Y/120 VAC
Features
  • Padlockable hinged cover prevents removal of feeder breakers
  • All interconnecting wiring is performed at the factory, saving on installation costs
  • Ground bar is supplied to permit grounding of individual secondary circuits
  • Wiring compartment includes ample space for conduit entry
  • Cores are grounded with a copper lead
  • All live parts enclosed for personnel safety
  • Neutral bar is grounded to case
  • Branch circuits can be easily added or changed using type BR plug-in breakers and type BR plug-in and type BAB bolt-on
  • Short term overload capability as required by ANSI
  • Meet NEMA ST-20 sound levels
  • Maximum wiring gutter space is provided for ease of wiring
  • Simplified design includes two keyholes for easy mounting and leveling
  • Copper windings
  • Bolt-on breakers
  • 2 at -5% FCBN taps
