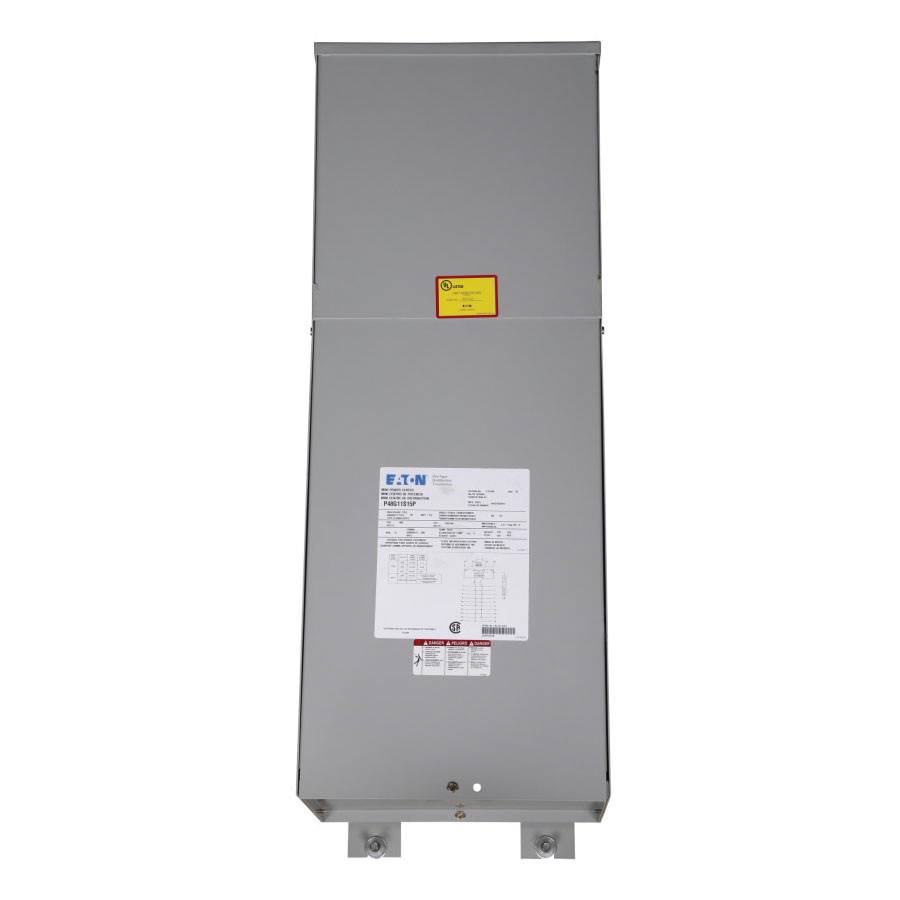

EATON P27G11S1020 3-in-1 Plug-in Mini-Power Center, 277 V Primary, 120/240 V Secondary, 10 kVA Power Rating, 60 Hz, 1 Phase
Share Share Print Print
Eaton

EATON P27G11S1020 3-in-1 Plug-in Mini-Power Center, 277 V Primary, 120/240 V Secondary, 10 kVA Power Rating, 60 Hz, 1 Phase

Short Description

EATON's mini-power center incorporates an encapsulated transformer, interior, primary and secondary main circuit breakers in to a single assembly. Mini-power centers are ideally suited for applications where 120 V are required at a remote location, such us parking lots, workbenches and temporary power on construction sites.

EATON Mini-Power Center, 3-in-1 Plug-in, 277 V Primary, 120/240 V Secondary, 10 kVA Power, 60 Hz, 1 ph, 2 at -5% Taps, M27G11G Connection, FR286 Frame Circuit, Wall Mounting, 180 deg C Insulation, NEMA 3R Enclosure, 115 deg C, Steel Housing Material, 11.87 in L x 13.47 in W x 38.13 in H
MFG #: P27G11S1020

EECO #: CHP27G11S1020

Brand: Eaton
UPC #: 786680229114
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121105
Application
Commercial, Institutional Buildings, Industrial Plant Assembly Lines, Plant Expansions, Test Equipment, Temporary Power at Construction Sites, Sewage Disposal Plants, Warehouses, Car Washes, Parking Lots and Irrigation Systems
Circuit Type
FR286 Frame
Power Rating
10
Mounting Type
Wall
Enclosure Type
NEMA 3R
Connection Type
M27G11G
Frequency Rating
60
Housing Material
Steel
Temperature Rating
115
Type
3-in-1 Plug-in
Dimensions
11.87 in L x 13.47 in W x 38.13 in H
Primary Voltage
277
Secondary Voltage
120/240
Features
  • A variety of concentric knockouts on the sides and bottom
  • Wiring compartment includes ample space for conduit entry
  • Maximum wiring gutter space is provided for ease of wiring in compliance with NEC® requirements
  • Simplified design includes two keyholes for easy mounting and leveling
  • Aluminum wound transformer and loadcenter chassis standard
