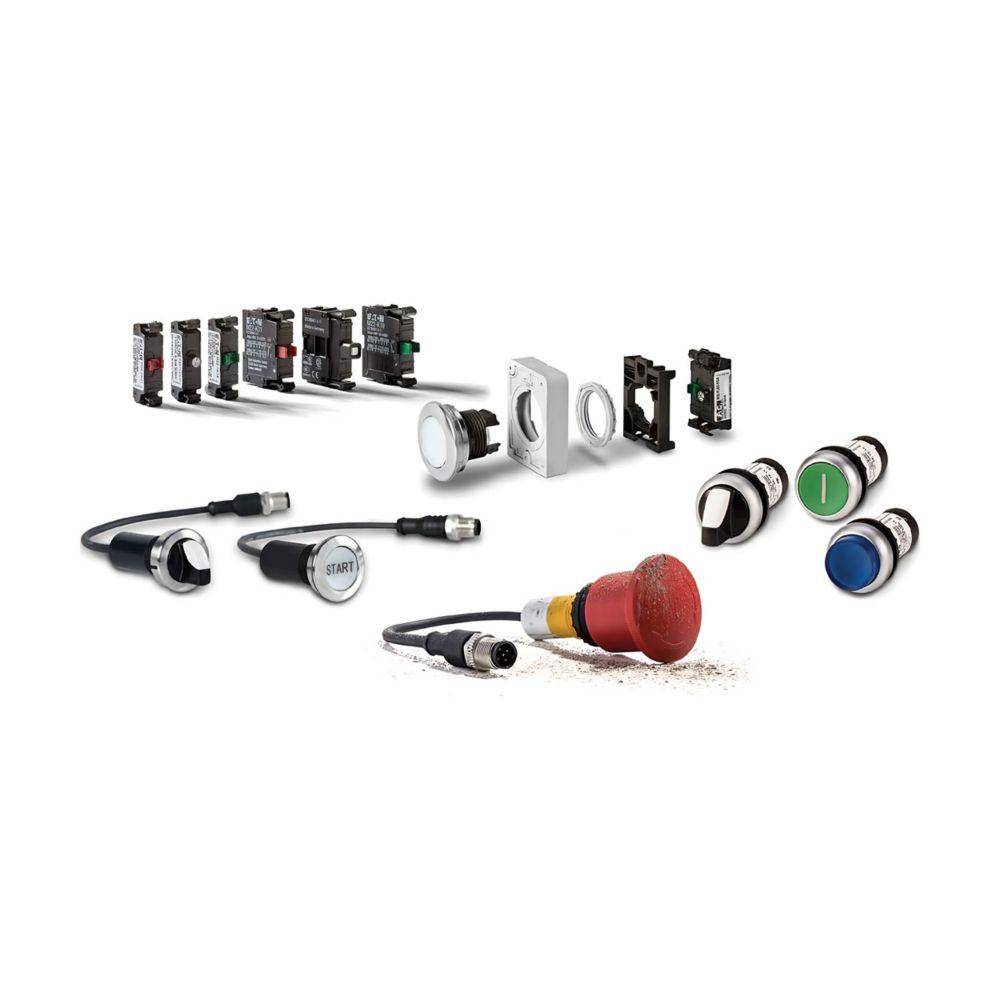

EATON m22s-t-a-w M22 Modular Pushbotton, 22.5 mm

Short Description

This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.

EATON, m22s-t-a-w, Pushbotton, Modular, Series: M22, 22.5 mm Size, Button Actuator, Environmental Conditions: NEMA 4X/13/IP67/IP69K
MFG #: m22s-t-a-w

EECO #: CHM22STAW

Brand: Eaton
UPC #: 786689242695
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122216
Application
For Electrical Assemblies, Panels and EOEMs Applications, Panels and EOEMs
Actuator
Button
Environmental Conditions
NEMA 4X/13/IP67/IP69K
Size
22.5
Type
Modular
Series
M22
Features
  • Modular and flexible
  • Plastic construction with silver, black and metal bezel options
  • Stackable contact blocks
  • Spring-cage terminal blocks
  • Traditional contact elements (M22-K) and indicating lights (M22-LED) with 45 mm depth
  • Flat contact elements (M22-FK) and indicating lights (M22-FLED) with 29.5 mm depth
  • Multi-color indicating lights (M22-FLED-RGB and M22-FLED-RG) with up to 7 colors with a single sku IP65/66/67/69K
  • Flat design
  • Modern look, smooth transition between the machine and the operator, stainless steel (M30I) and chrome bezel options (M30C)
  • Modular construction
  • Compatible with existing M22 contact blocks and indicating lights
  • Sustainable inventory management
  • Space-saving design
  • Compatible with the new flat contact blocks and indicating lights for optimized footprint
  • Rugged and reliable
  • IP69K protection, protection against vandalism
  • Easy and secure installation
  • AFX mounting system, push-in terminals
