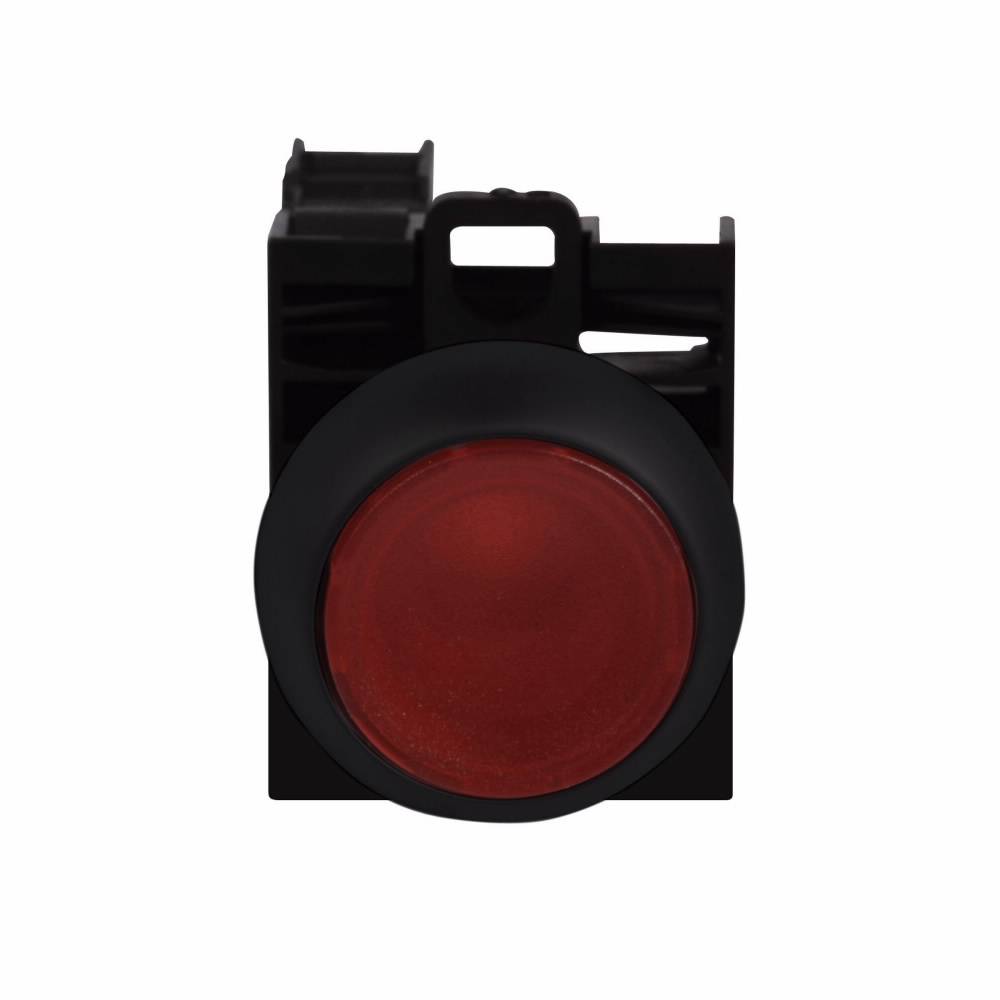

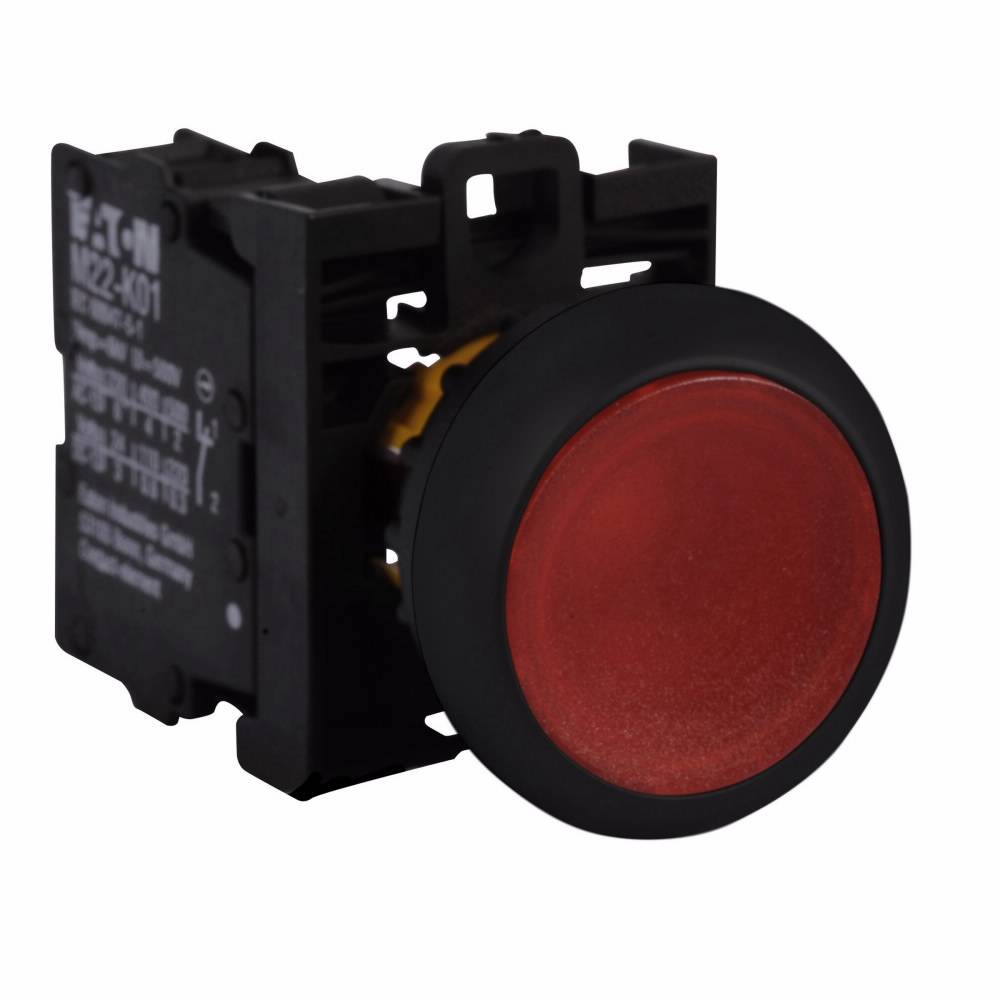

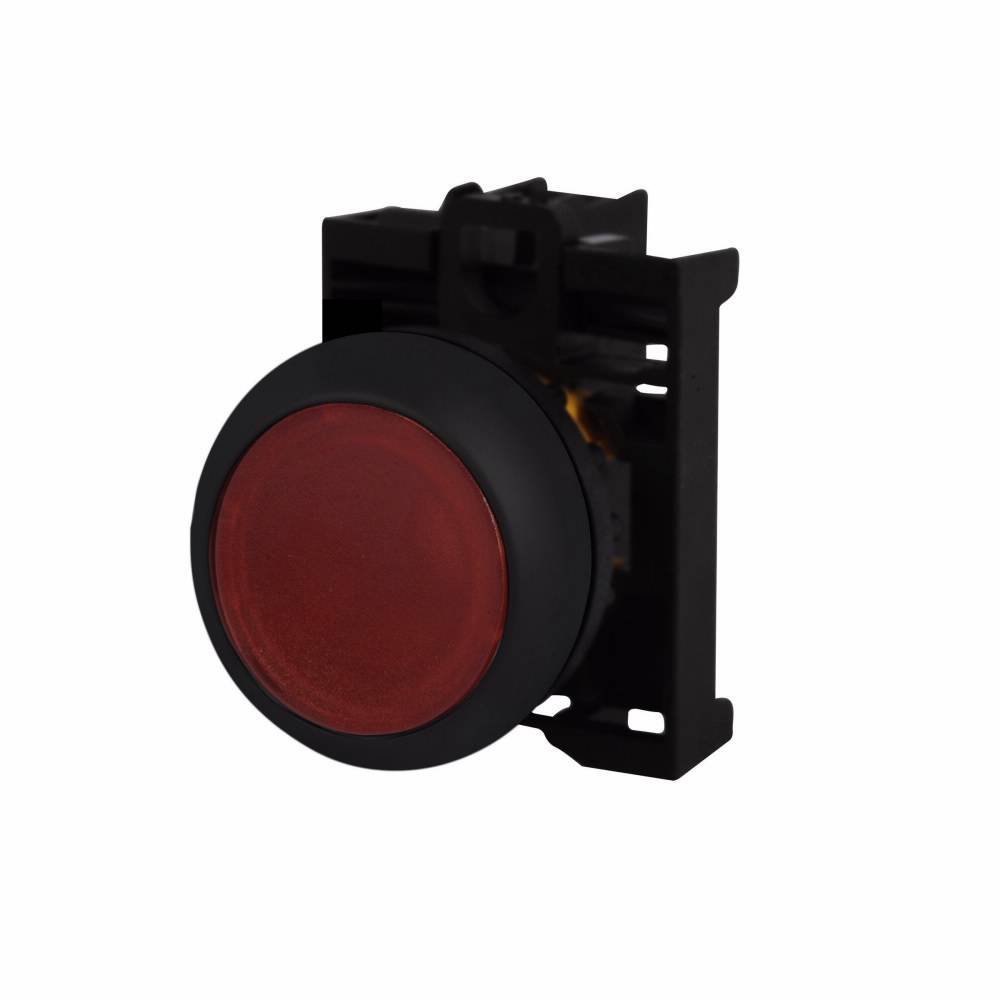

EATON M22S-DL-R-K11-R RMQ-Titan M22 Modular Illuminated Pushbutton, 22.5 mm, 1NC-1NO Contact, Flush Button Operator, Red

Short Description

EATON M22 pushbutton line is a complete, modular and versatile offering. From field convertible maintained operators to customizable laser engraved buttons, the M22 pushbutton line provides endless opportunity for flexibility and reduced inventory. Each operator type provides options for ordering as complete or component parts allowing for a perfect fit for each application. All of This flexibility comes in a very rugged design.

EATON Illuminated Pushbutton, Modular, Series: RMQ-Titan M22, 22.5 mm Size, 1NC-1NO Contact Configuration, Momentary Contact Mode, 12 to 30 VAC/VDC Contact, Flush Button Operator, LED Lamp, Bezel/Housing: Black Plastic Bezel, NEMA 4X/13/IP67/IP69K Enclosure, Red, Environmental Conditions: -13 to 158 deg F Ambient

MFG #: M22S-DL-R-K11-R

EECO #: CHM22SDLRK11R

Brand: Eaton
UPC #: 786685274232
Attributes
Features
Documents
Product Information
Attributes
Color
Red
UNSPSC
39122216
Lamp Type
LED
Application
Electrical Assemblies, Panels and EOEMs Applications
Operator Type
Flush Button
Contact Rating
12 to 30
Enclosure Type
NEMA 4X/13/IP67/IP69K
Contact Configuration
1NC/1NO
Environmental Conditions
-13 to 158 deg F Ambient
Size
22.5
Type
Modular
Series
RMQ-Titan M22
Warranty
1 year
Features
  • Field convertible from maintained to momentary operation
  • Customizable laser engraving on all buttons
  • LED offering only for improved brightness quality and up to 100000 hrs of operation
  • More than 500000 mechanical operations on momentary and 100000 on maintained illuminated pushbuttons
  • Modular construction makes assembly fast and simplifies stocking of components and complete devices
  • Capable of communicating via ASi protocol with ASi adapter modules
