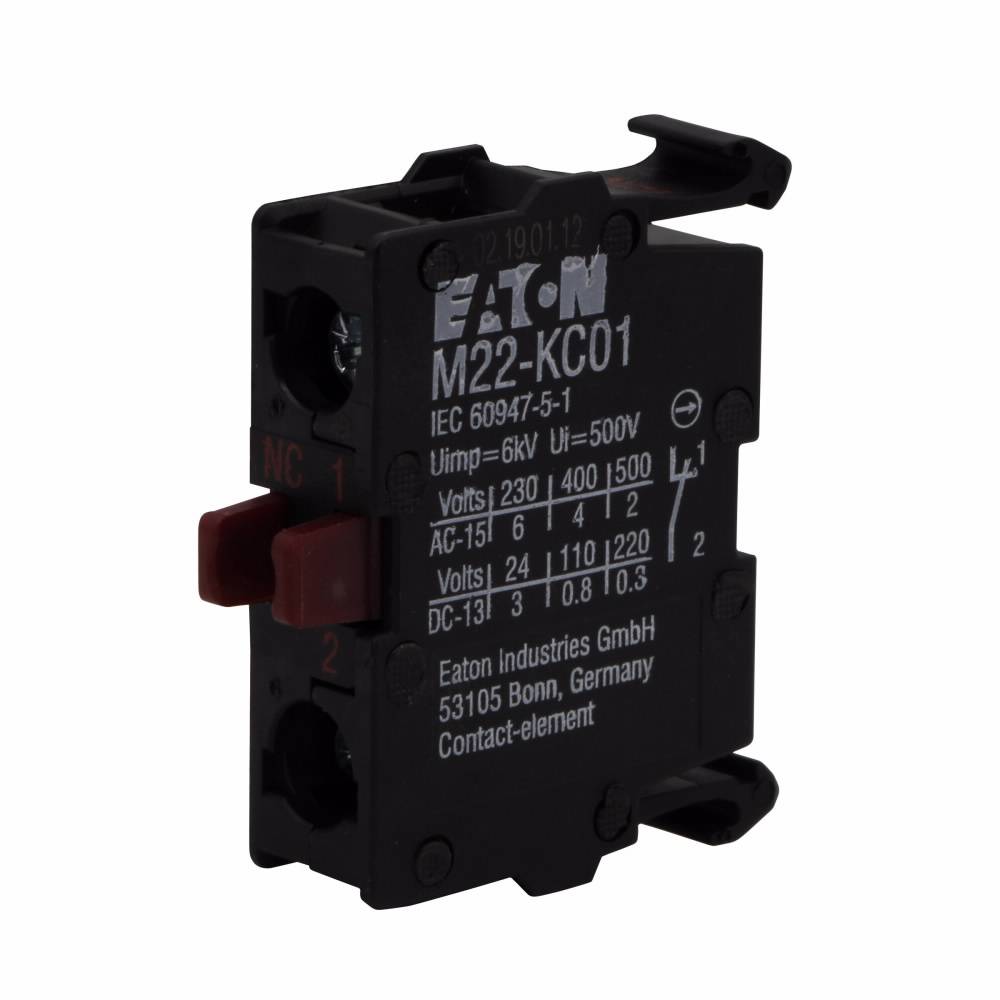

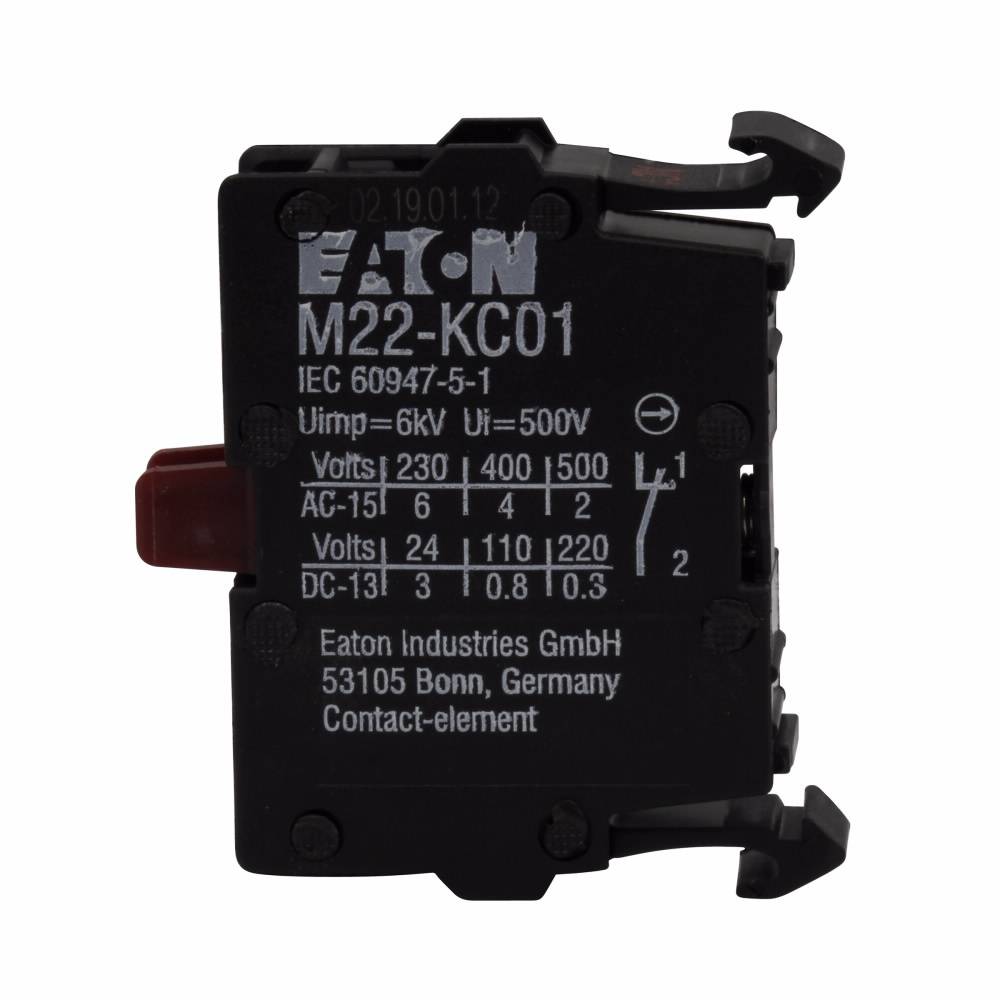

EATON RMQ-Titan® M22-KC01-B100 Emergency Stop Non-Illuminated Contact Block, 22.5 mm, 1NC Contact, 6 A at 240 VAC, 3 A at 24 VDC Contact, Black

Short Description

This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.

EATON RMQ-Titan® Contact Block, Emergency Stop Non-Illuminated, Series: M22, 22.5 mm Size, 1NC Contact Configuration, 6 A at 240 VAC, 3 A at 24 VDC Contact, Pushbutton Operator, NEMA 4X/13 NEMA Rating, IP20/IP65 Enclosure, Screw Terminal, Base Mounting, Black, 1.46 in L x 1.18 in W x 1.03 in H Dimensions
MFG #: M22-KC01-B100

EECO #: CHM22KC01B100

Brand: Eaton
UPC #: 786685278216
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121522
Application
Stationary Machinery, Equipment Outside Factory and Other Applications
Mounting Type
Base
Operator Type
Pushbutton
Terminal Type
Screw
Contact Rating
6 A at 240 VAC, 3 A at 24 VDC
Enclosure Type
IP20/IP65
Contact Configuration
1NC
Size
22.5
Type
Emergency Stop Non-Illuminated
Series
M22
Warranty
1 year
Dimensions
1.46 in L x 1.18 in W x 1.03 in H
Features
  • 6 A at 115/220/230/240 VAC, 4 A at 380/400/415 VAC, 2 A at 500 VAC, 3 A at 24 VDC, 1.7 A at 42 VDC, 1.2 A at 60 VDC, 0.8 A at 110 VDC, 0.3 A at 220 VDC
  • NC contact blocks are positively driven
