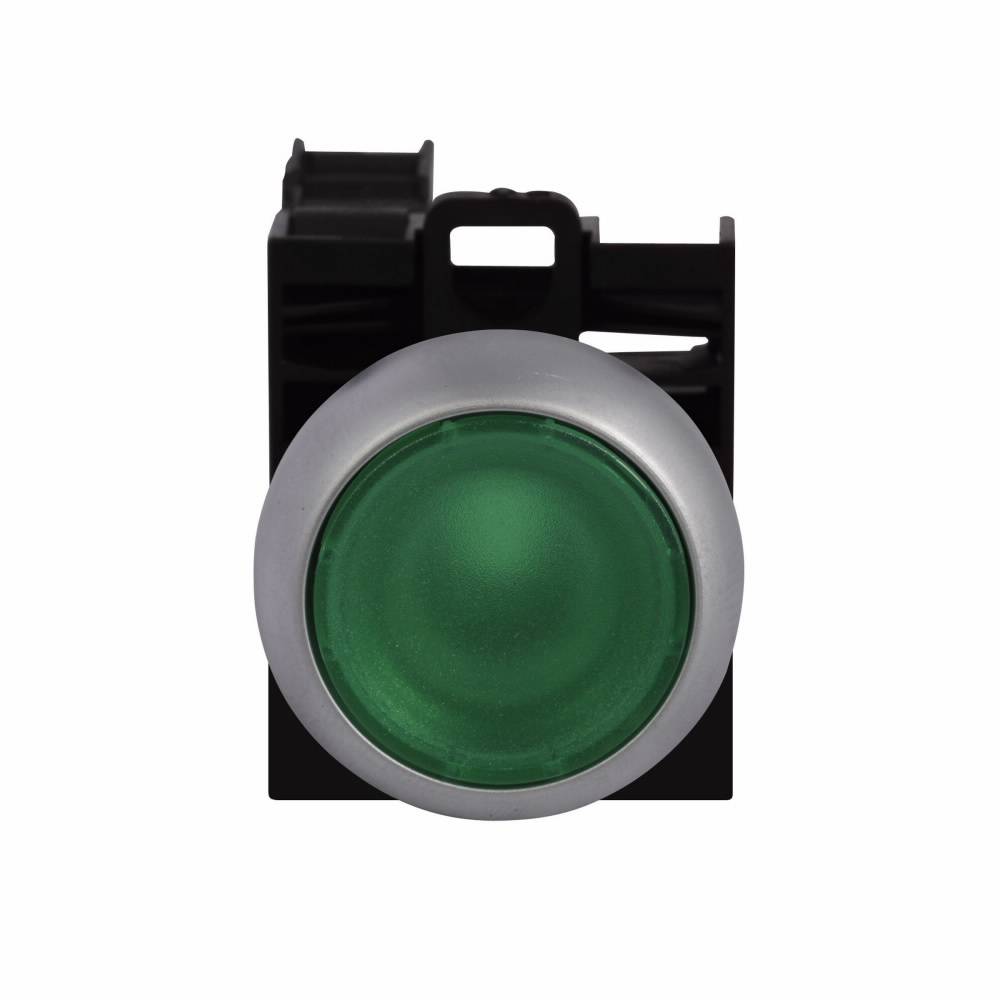

EATON M22-DL-G-X1-K10-G Modular Illuminated Pushbutton, 22.5 mm, 1NO Contact, Mushroom Head/Flush Button Operator, Green

Short Description

EATON M22 Illuminated Pushbutton line is a complete, modular and versatile offering. From field-convertible maintained operators to customizable laser engraved buttons, the M22 Illuminated Pushbutton line provides endless opportunity for flexibility and reduced inventory. Each operator type provides options for ordering as complete or component parts allowing for a perfect fit for each application. All of this flexibility comes in a very rugged design.

EATON Illuminated Pushbutton, Modular, Series: M22, 22.5 mm, 1NO, Momentary Contact Mode, Mushroom Head/Flush Button Operator, X1 Legend, Bezel/Housing: Silver Bezel, Screw Terminal, NEMA 4X/13/IP67/IP69K, Green

MFG #: M22-DL-G-X1-K10-G

EECO #: CHM22DLGX1K10G

Brand: Eaton
UPC #: 786685846255
Attributes
Features
Documents
Product Information
Attributes
Color
Green
Frame
LG
Phase
3
Legend
X1
UNSPSC
39121534
Trip Type
Adjustable Magnetic/Fixed Thermal
Application
Electrical Assemblies, Panels and OEMs Applications
Mounting Type
DIN Rail/Panel
Operator Type
Mushroom Head/Flush Button
Terminal Type
Screw
Enclosure Type
NEMA 4X/13/IP67/IP69K
Voltage Rating
600
Connection Type
Line/Load Side Lug
Frequency Rating
50/60
Contact Configuration
1NO
Size
22.5
Type
Modular
Series
M22
Includes
Frame, Trip Unit, Standard Terminals and Mounting Hardware
Warranty
1 year
Dimensions
4.09 x 5.48 x 5.48
Actuator Type
Toggle
Amperage Rating
400
Features
  • Field convertible from maintained to momentary
  • Customizable laser engraving on all buttons
  • LED offering only for improved brightness quality and up to 100000 hr of operation
  • More than 5 million mechanical operations on momentary and 1 million on maintained illuminated pushbuttons
  • Modular construction makes assembly fast and simplifies stocking of components and complete devices
  • Capable of communicating via ASi protocol with ASi adapter modules
