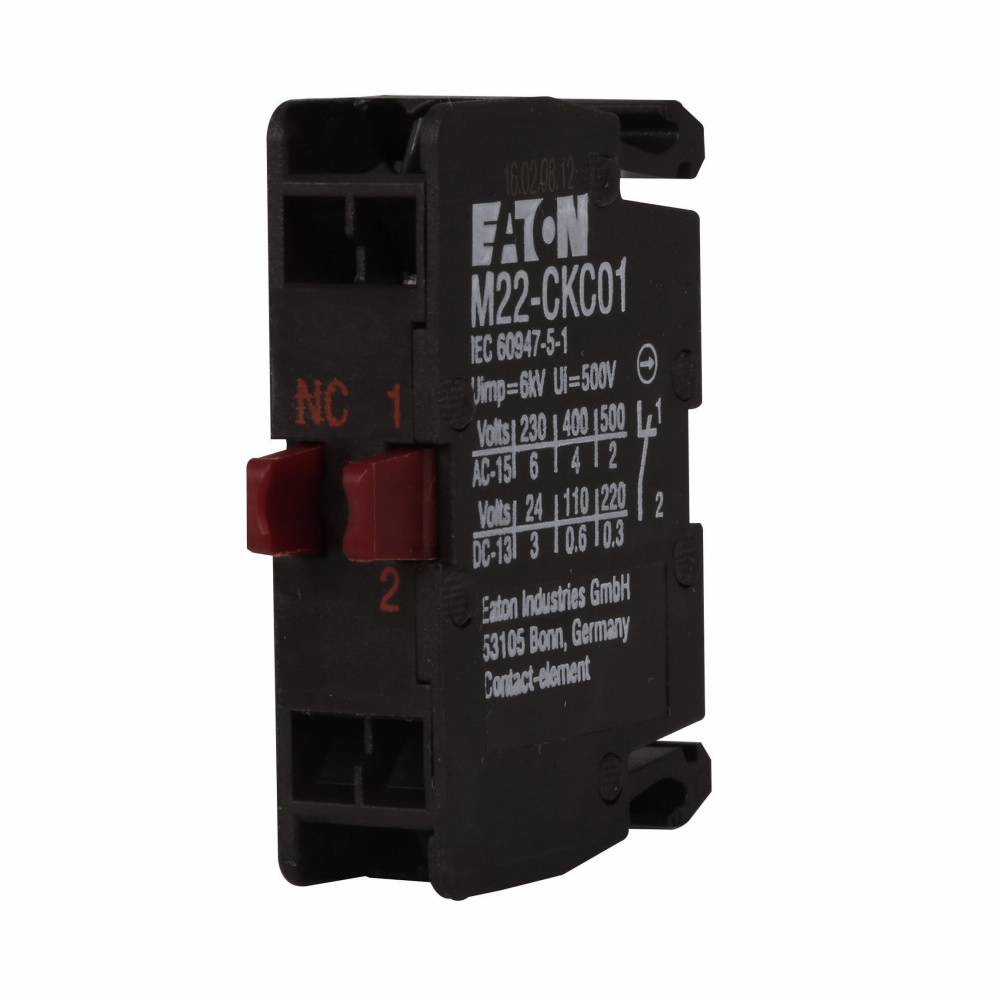

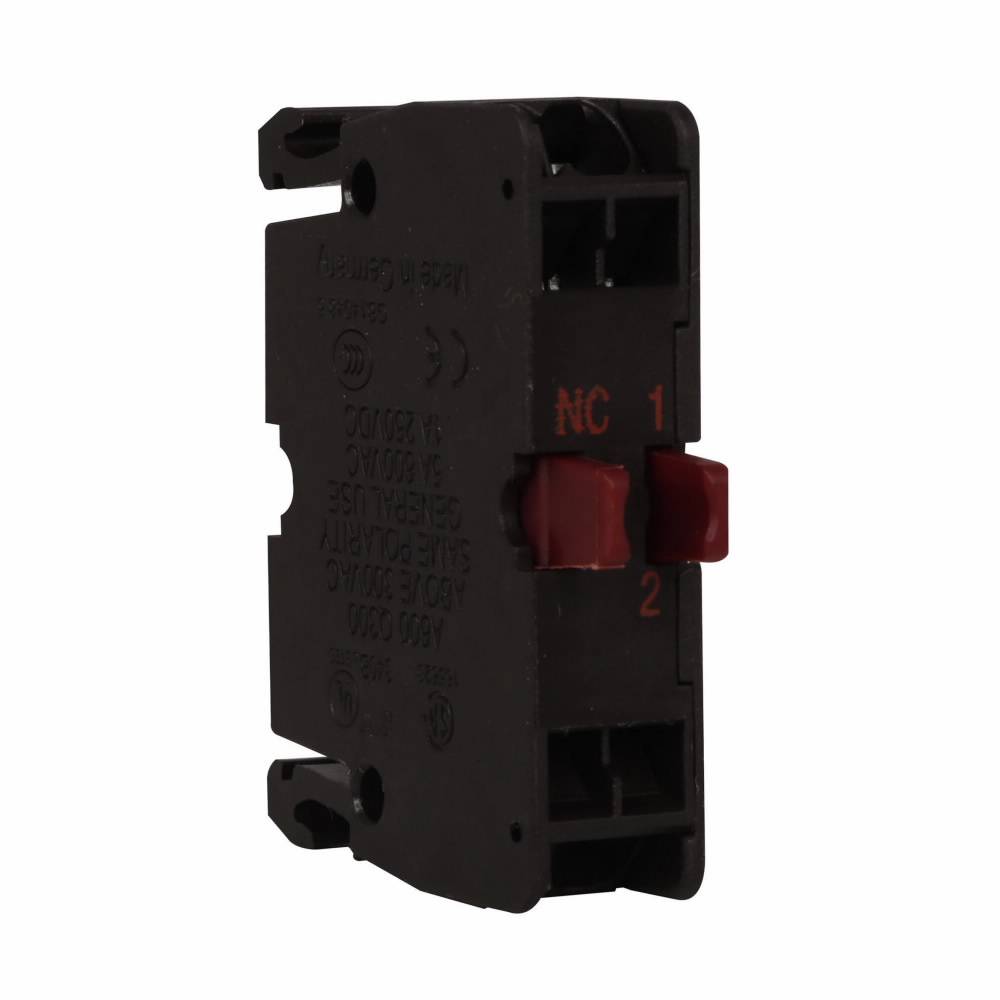

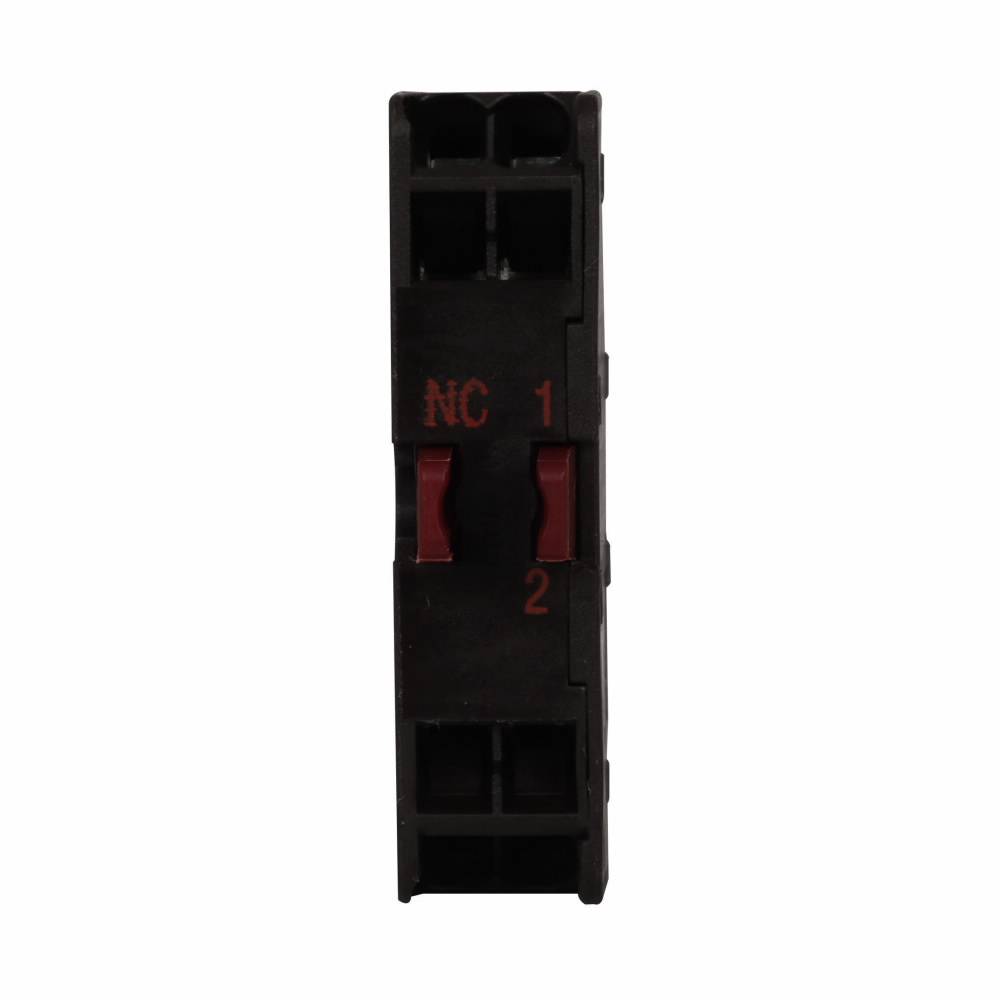

EATON RMQ-Titan® M22-CKC01 Emergency Stop Non-Illuminated Contact Block, 22.5 mm, 1NC Contact, 6 A at 240 VAC, 3 A at 24 VDC Contact, Black

Short Description

22.5 MM, NC, Black, Spring Cage Terminal, Base Mount, Pushbutton Contact Block

EATON RMQ-Titan® Contact Block, Emergency Stop Non-Illuminated, Series: M22, 22.5 mm Size, 1NC Contact Configuration, 6 A at 240 VAC, 3 A at 24 VDC Contact, Pushbutton Operator, NEMA 4X/13 NEMA Rating, IP20/IP65 Enclosure, Cage Clamp Terminal, Base Mounting, Black, 1.03 in L x 1.18 in W x 1.54 in H Dimensions

MFG #: M22-CKC01

EECO #: CHM22CKC01

Brand: Eaton
UPC #: 786685278070
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121522
Application
Stationary Machinery, Equipment Outside Factory and Other Applications
Mounting Type
Base
Operator Type
Pushbutton
Terminal Type
Cage Clamp
Contact Rating
6 A at 240 VAC, 3 A at 24 VDC
Enclosure Type
IP20/IP65
Mounting
Base
Contact Configuration
1NC
Size
22.5
Type
Emergency Stop Non-Illuminated
Series
M22
Warranty
1 year
Dimensions
1.03 in L x 1.18 in W x 1.54 in H
Accessory Type
Contact Blocks
Features
  • 6 A at 115/220/230/240 VAC, 4 A at 380/400/415 VAC, 2 A at 500 VAC, 3 A at 24 VDC, 1.7 A at 42 VDC, 1.2 A at 60 VDC, 0.8 A at 110 VDC, 0.3 A at 220 VDC
  • NC contact blocks are positively driven
MOELLEE26626_1
MOELLEINST00081
CUTHMRE03342_V7T1_112
IDW_DOCUMENT_77a4b9989dd8a2babca7d8895452a9c197abd9a284a7a3a390642a6278e36b2c
IDW_DOCUMENT_f19304a106ea9e79557e7ebbbe69fbc96d463662da77d7aeada57f107c1b464c
Qty Unit price
Ea
1 $22.90

Slqt
1 $22.90

Stpk
1 $22.90

Unit
1 $22.90
