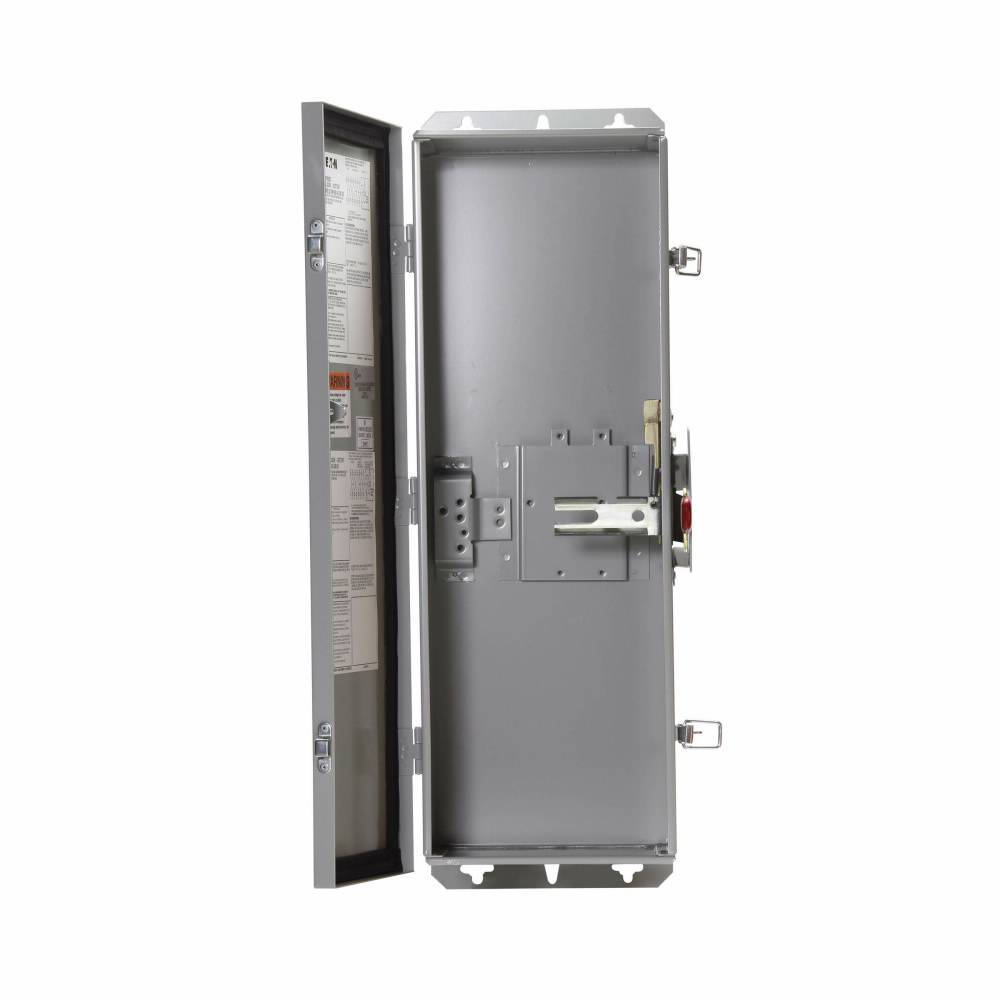

EATON JFDN225 C Series Dustproof Circuit Breaker Enclosure, 9.16 in W x 9.31 in D x 10 in H, NEMA 3R/4/4X/5/12, Stainless Steel

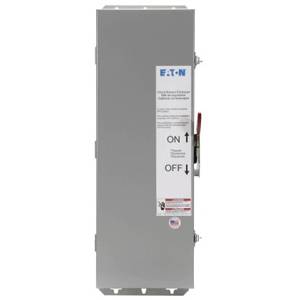

EATON JFDN225 C Series Dustproof Circuit Breaker Enclosure, 9.16 in W x 9.31 in D x 10 in H, NEMA 3R/4/4X/5/12, Stainless Steel

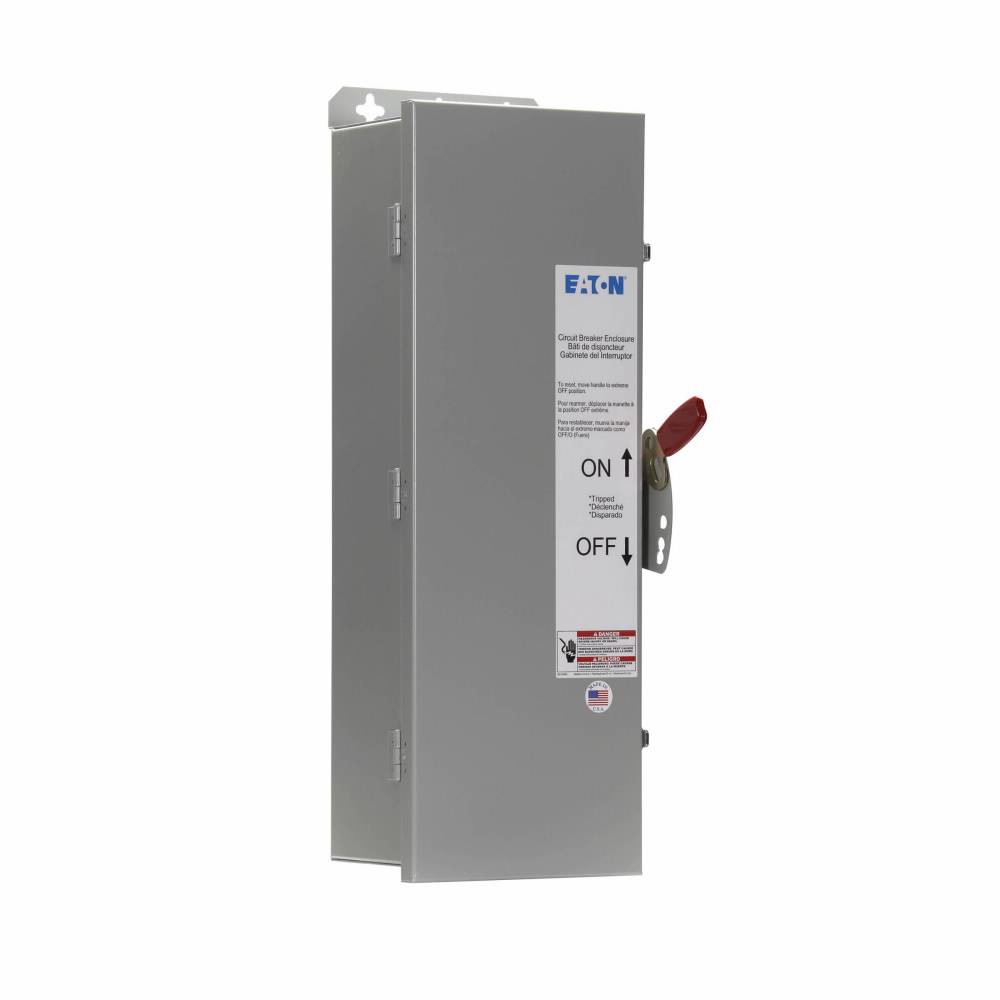

EATON JFDN225 C Series Dustproof Circuit Breaker Enclosure, 9.16 in W x 9.31 in D x 10 in H, NEMA 3R/4/4X/5/12, Stainless Steel

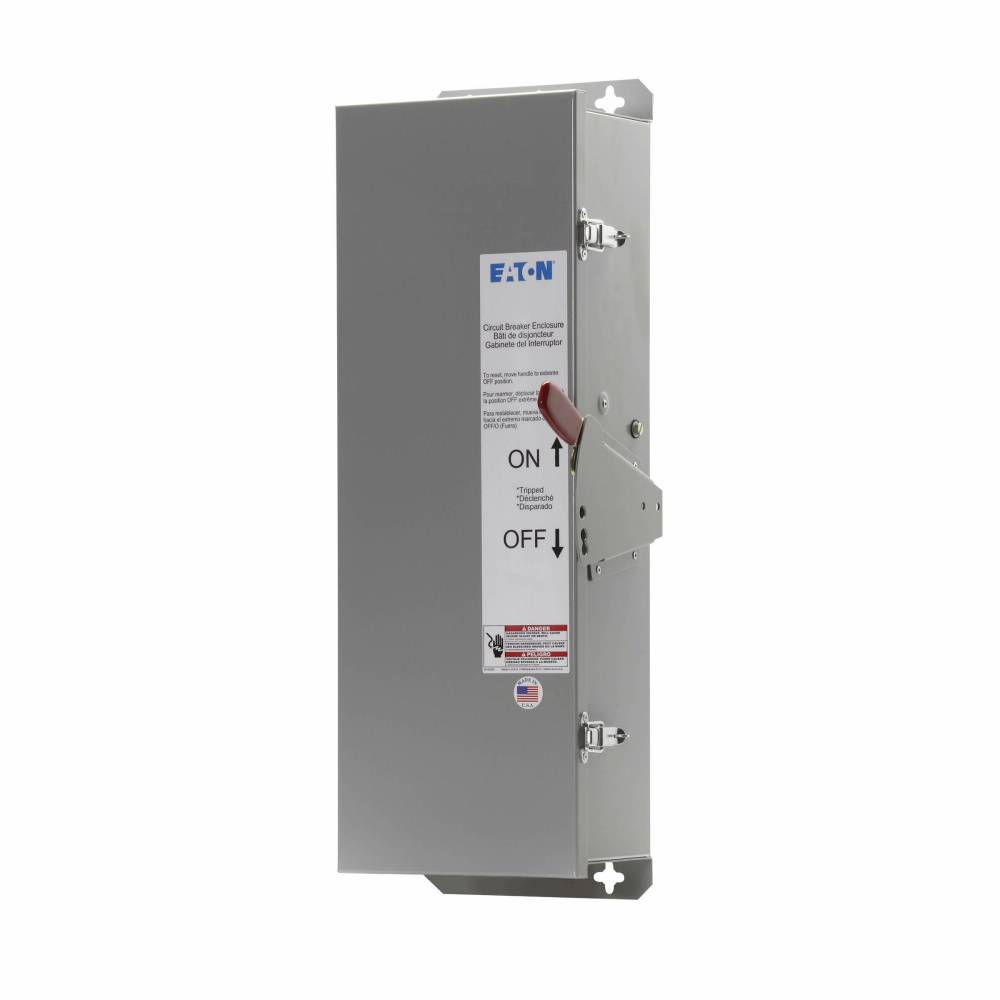

EATON JFDN225 C Series Dustproof Circuit Breaker Enclosure, 9.16 in W x 9.31 in D x 10 in H, NEMA 3R/4/4X/5/12, Stainless Steel

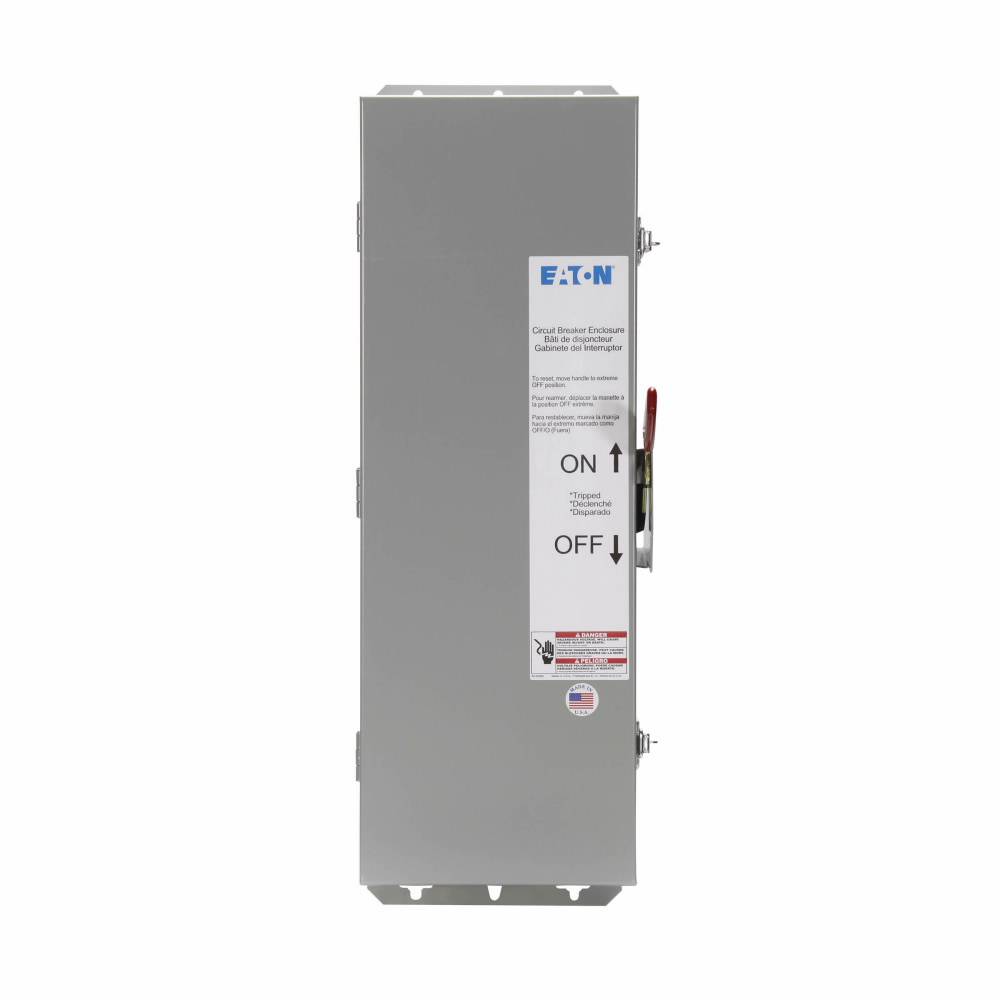

EATON JFDN225 C Series Dustproof Circuit Breaker Enclosure, 9.16 in W x 9.31 in D x 10 in H, NEMA 3R/4/4X/5/12, Stainless Steel
EATON JFDN225 C Series Dustproof Circuit Breaker Enclosure, 9.16 in W x 9.31 in D x 10 in H, NEMA 3R/4/4X/5/12, Stainless Steel
EATON JFDN225 C Series Dustproof Circuit Breaker Enclosure, 9.16 in W x 9.31 in D x 10 in H, NEMA 3R/4/4X/5/12, Stainless Steel
EATON JFDN225 C Series Dustproof Circuit Breaker Enclosure, 9.16 in W x 9.31 in D x 10 in H, NEMA 3R/4/4X/5/12, Stainless Steel
EATON JFDN225 C Series Dustproof Circuit Breaker Enclosure, 9.16 in W x 9.31 in D x 10 in H, NEMA 3R/4/4X/5/12, Stainless Steel
EATON JFDN225 C Series Dustproof Circuit Breaker Enclosure, 9.16 in W x 9.31 in D x 10 in H, NEMA 3R/4/4X/5/12, Stainless Steel
Share Share Print Print
Eaton

EATON JFDN225 C Series Dustproof Circuit Breaker Enclosure, 9.16 in W x 9.31 in D x 10 in H, NEMA 3R/4/4X/5/12, Stainless Steel

Short Description

9.31" x 9.16" x 25.66", 225 A, Surface Mount, FD/FDB/FDC/HFD, Circuit Breaker Enclosure

EATON Circuit Breaker Enclosure, Dustproof, Series: C Series, 9.16 in Width, 9.31 in Depth, 10 in Height, NEMA 3R/4/4X/5/12, FD/FDB/HFD/ED/EDH/EDC/FDC Frame, 125 to 225 A, Surface Mount, Stainless Steel

MFG #: JFDN225

EECO #: CHJFDN225

Brand: Eaton
UPC #: 786679002353
Attributes
Features
Documents
Product Information
Attributes
Frame
FD/FDB/HFD/ED/EDH/EDC/FDC
UNSPSC
39121318
Approval
UL 489, CSA-C22.2
Material
Stainless Steel
Application
Electrical Assemblies, Panels and OEMs Applications
Nema Rating
NEMA 12
Mounting Type
Surface
Mounting
Surface
Size
9.31 Inch Length x 9.16 Inch Width x 25.66 Inch Height
Type
Dustproof
Depth
9.31
Width
9.16
Height
10
Series
C Series
Warranty
1 year
Breaker Type
FD/FDB/FDC/HFD
Breaker/Switch Current Rating
225 Amp
Features
  • Designed in line with specifications for special industry application where unusually severe conditions involving oil, coolant, dust and other foreign materials exist in the operating atmosphere
  • The handle padlocks in the OFF position and the cover is interlocked with the handle mechanism to prevent opening the cover with the circuit breaker in the ON position
  • Without knockouts
