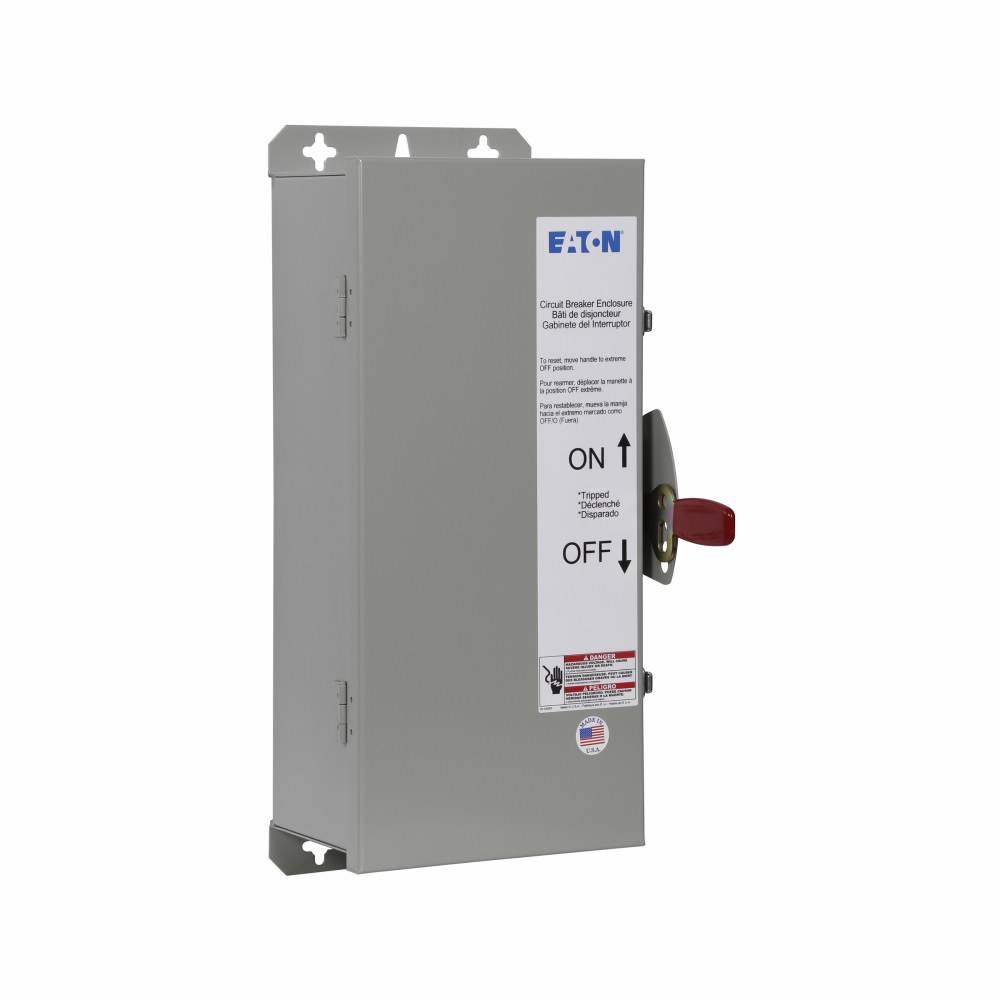

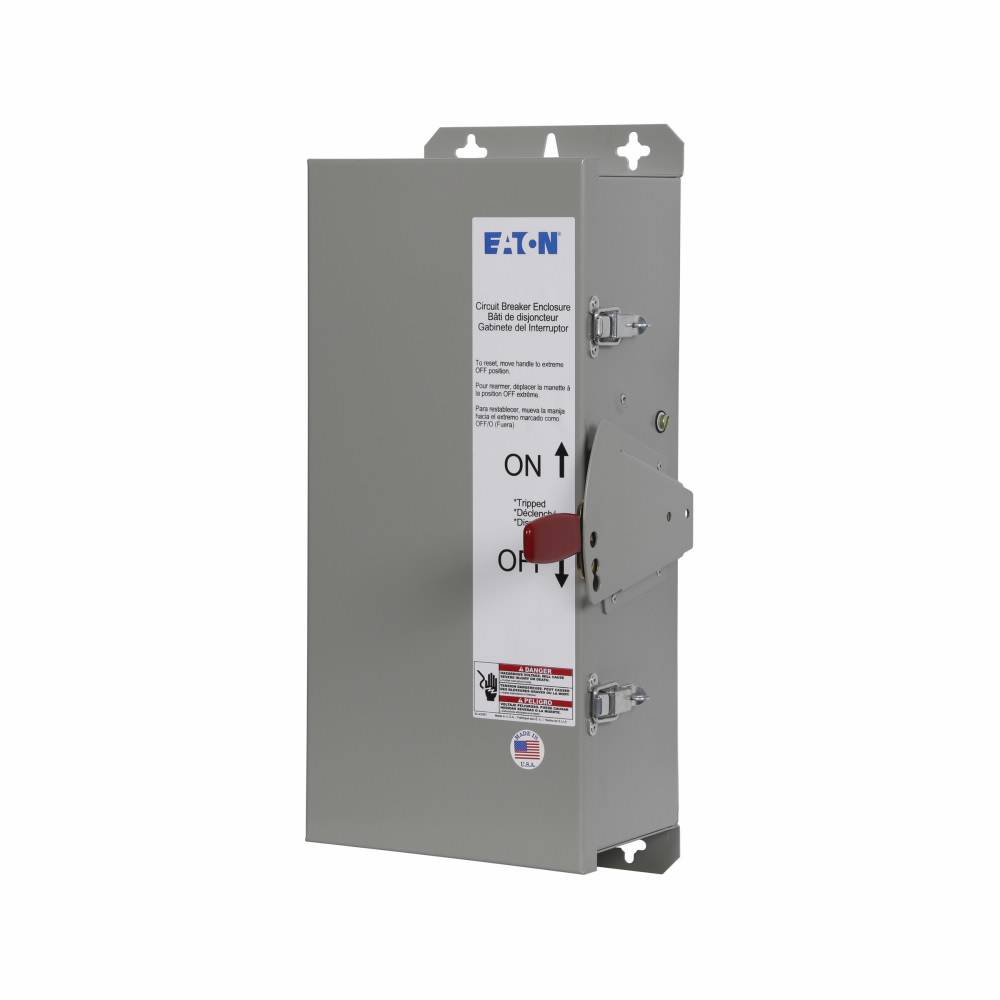

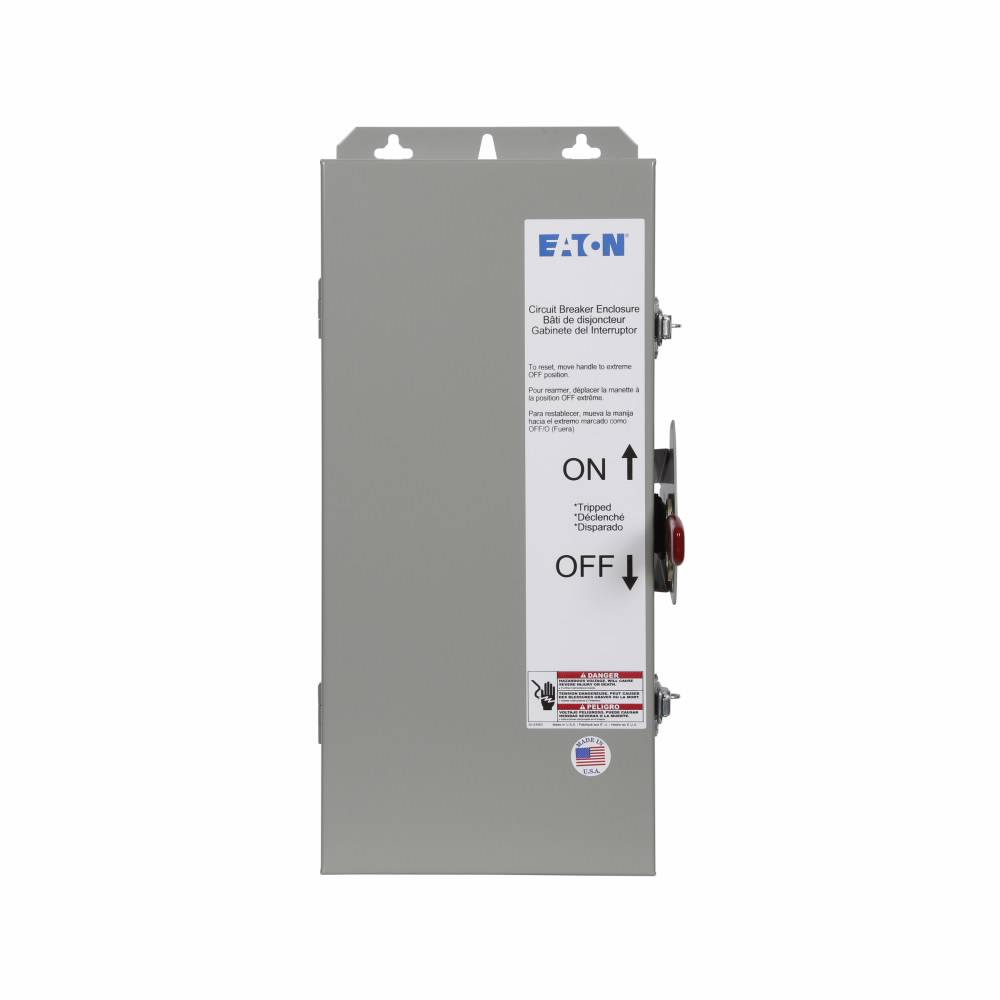

EATON JFDN100 C Series Dustproof Circuit Breaker Enclosure, 9.16 in W x 9.31 in D x 25.66 in H, NEMA 12K NEMA Rating, Steel
EATON JFDN100 C Series Dustproof Circuit Breaker Enclosure, 9.16 in W x 9.31 in D x 25.66 in H, NEMA 12K NEMA Rating, Steel
EATON JFDN100 C Series Dustproof Circuit Breaker Enclosure, 9.16 in W x 9.31 in D x 25.66 in H, NEMA 12K NEMA Rating, Steel
EATON JFDN100 C Series Dustproof Circuit Breaker Enclosure, 9.16 in W x 9.31 in D x 25.66 in H, NEMA 12K NEMA Rating, Steel
EATON JFDN100 C Series Dustproof Circuit Breaker Enclosure, 9.16 in W x 9.31 in D x 25.66 in H, NEMA 12K NEMA Rating, Steel
EATON JFDN100 C Series Dustproof Circuit Breaker Enclosure, 9.16 in W x 9.31 in D x 25.66 in H, NEMA 12K NEMA Rating, Steel
EATON JFDN100 C Series Dustproof Circuit Breaker Enclosure, 9.16 in W x 9.31 in D x 25.66 in H, NEMA 12K NEMA Rating, Steel
EATON JFDN100 C Series Dustproof Circuit Breaker Enclosure, 9.16 in W x 9.31 in D x 25.66 in H, NEMA 12K NEMA Rating, Steel
Share Share Print Print
Eaton

EATON JFDN100 C Series Dustproof Circuit Breaker Enclosure, 9.16 in W x 9.31 in D x 25.66 in H, NEMA 12K NEMA Rating, Steel

Short Description

8-27/32" x 9-5/16" x 25.66", 100 A, Surface Mount, EHD/FD/FDB/HFD, Circuit Breaker Enclosure

EATON Circuit Breaker Enclosure, Dustproof, Series: C Series, 9.16 in Width, 9.31 in D, 25.66 in Height, NEMA 12K, Interlocked Cover, EDB/EDS/ED/EDH/EHD/EDC/FDB/FD/HFD/HFDE/FDC/HFDDC/FDE Frame, 3 Pole, Lock: Padlock, 15 to 100 A, 600 VAC/500 VDC, Surface Mount, Steel

MFG #: JFDN100

EECO #: CHJFDN100

Brand: Eaton
UPC #: 786679205648
Attributes
Features
Documents
Product Information
Attributes
Frame
EDB/EDS/ED/EDH/EHD/EDC/FDB/FD/HFD/HFDE/FDC/HFDDC/FDE
UNSPSC
39121318
Approval
UL 489, CSA-C22.2
Material
Steel
Application
Industry, Service Entrance and Circuit Protection Applications
Nema Rating
NEMA 12
Mounting Type
Surface
Mounting
Surface
Size
8-27/32 Inch Width x 9-5/16 Inch Depth x 25.66 Inch Height
Type
Dustproof
Depth
9.31
Width
9.16
Height
25.66
Series
C Series
Cover Type
Interlocked
Breaker Type
EHD/FD/FDB/HFD
Breaker/Switch Current Rating
100 Amp
Features
  • Designed in line with specifications for special industry applications where unusually severe conditions involving oil, coolant, dust and other foreign materials exist in the operating atmosphere
  • The handle padlocks in the OFF position and the cover is interlocked with the handle mechanism to prevent opening the cover with the circuit breaker in the on position
