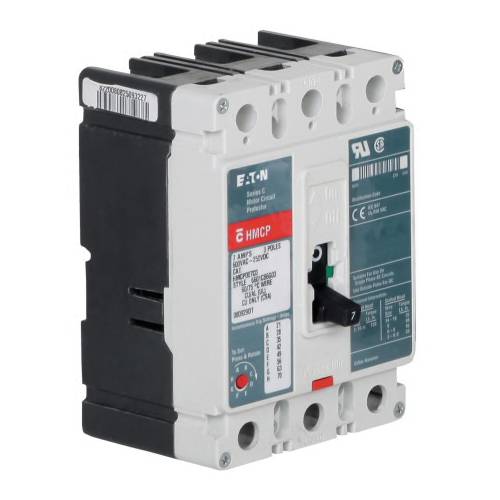

EATON HMCP100L3C C Series Type HMCP Motor Circuit Protector, 600 VAC, 250 VDC, 100 A, 3 Poles, Magnetic Trip

Short Description

Designated as EATON types GMCP and HMCP, the instantaneous only motor circuit protector (MCP). An innovative design of internal components allows higher MCP starter combination interrupting ratings. The MCP is marked to permit proper electrical application within the assigned equipment ratings.

EATON Motor Circuit Protector, Type HMCP, Series: C Series, 600 VAC, 250 VDC, 100 A, F Frame, Magnetic Trip, 160 to 240 A Trip, 3 Pole, Line/Load Lug, NEMA 3, Panel Mount, 7-1/2 x 5 x 5 in

MFG #: HMCP100L3C

EECO #: CHHMCP100L3C

Brand: Eaton
UPC #: 786679398463
Attributes
Features
Documents
Product Information
Attributes
Frame
F
UNSPSC
39121616
Approval
UL 489, CSA C22.2, CE
Trip Type
Magnetic
Application
Commercial, Institutional Buildings and Structures
Starter Size
NEMA 3
Mounting Type
Panel
Current Rating
100 Amp
Enclosure Type
NEMA 3
Voltage Rating
600 VAC, 250 VDC
Connection Type
Line/Load Lug
Number Of Poles
3
Maximum AC Voltage Rating
600 Volt
Maximum DC Voltage Rating
250 Volt
Type
Type HMCP
Series
C Series
Dimensions
7-1/2 x 5 x 5
Frame Type
F
Trip Range
160 to 240
Amperage Rating
100
Features
  • ATEX/RoHS Compliant
