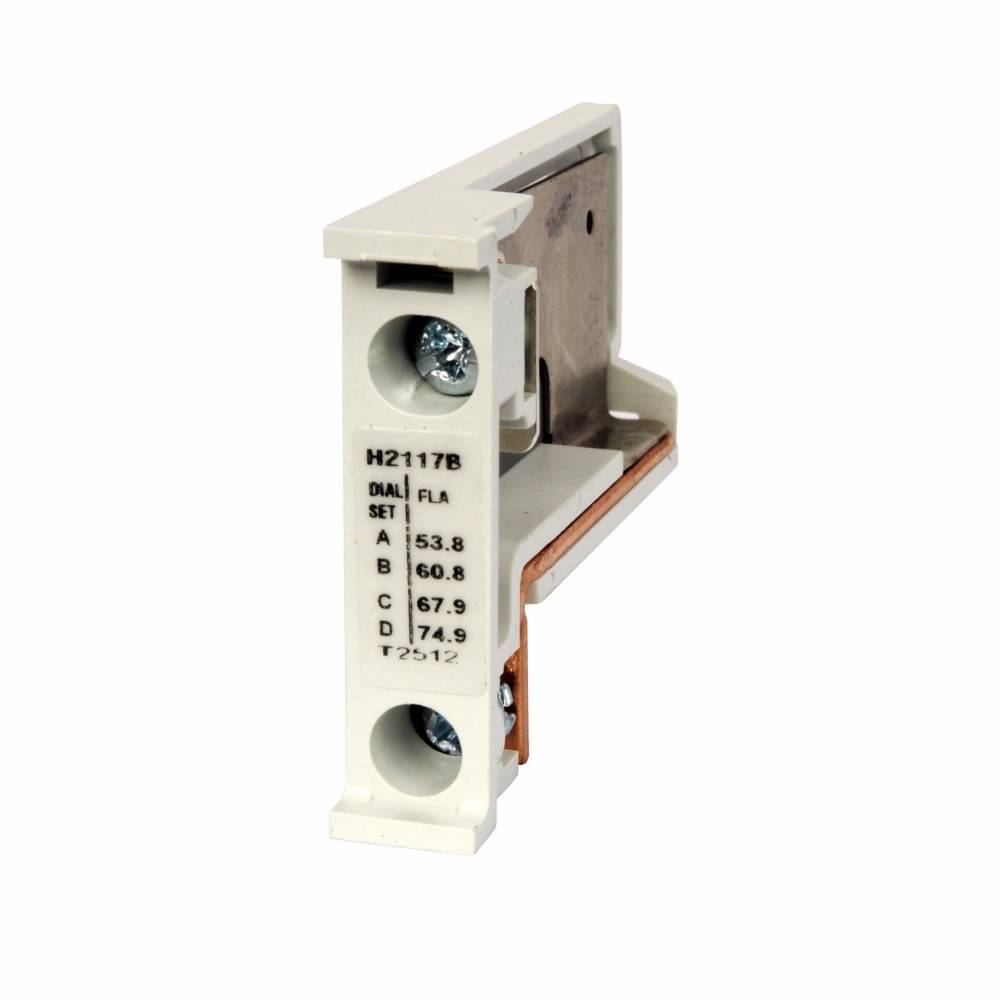

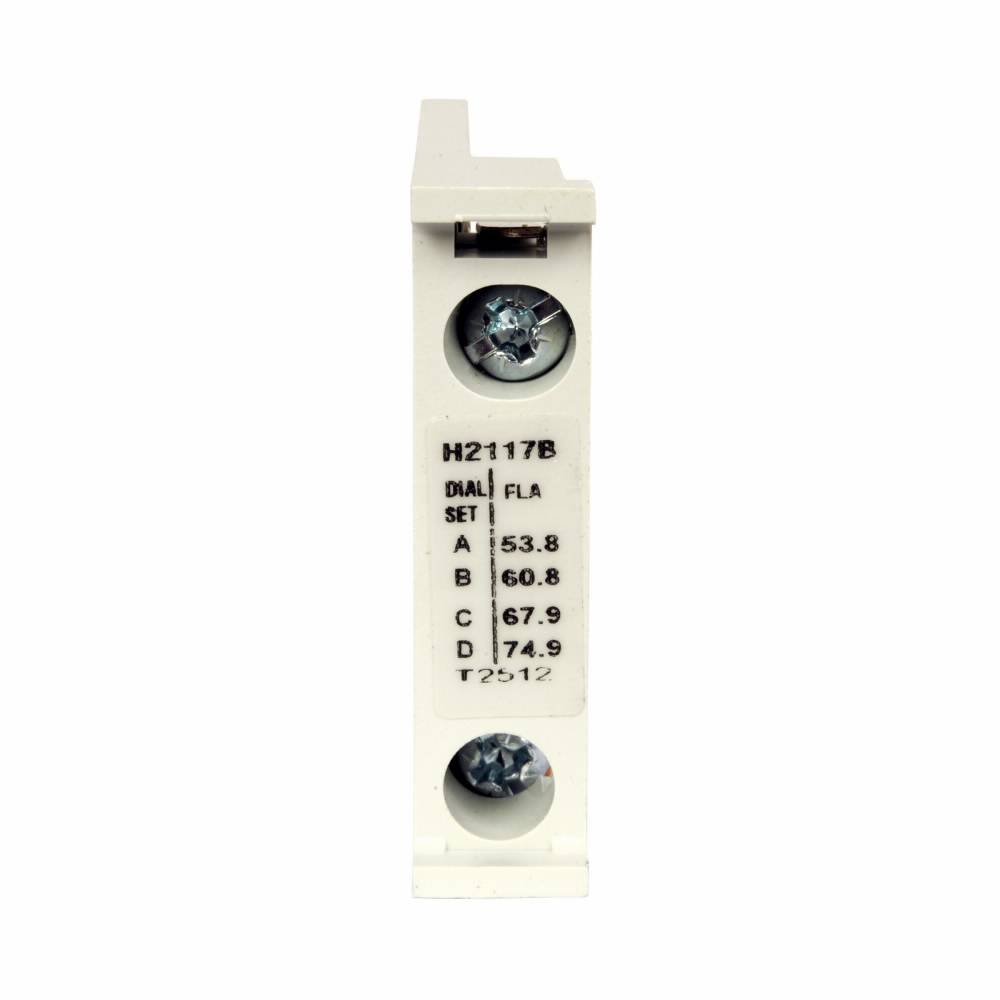

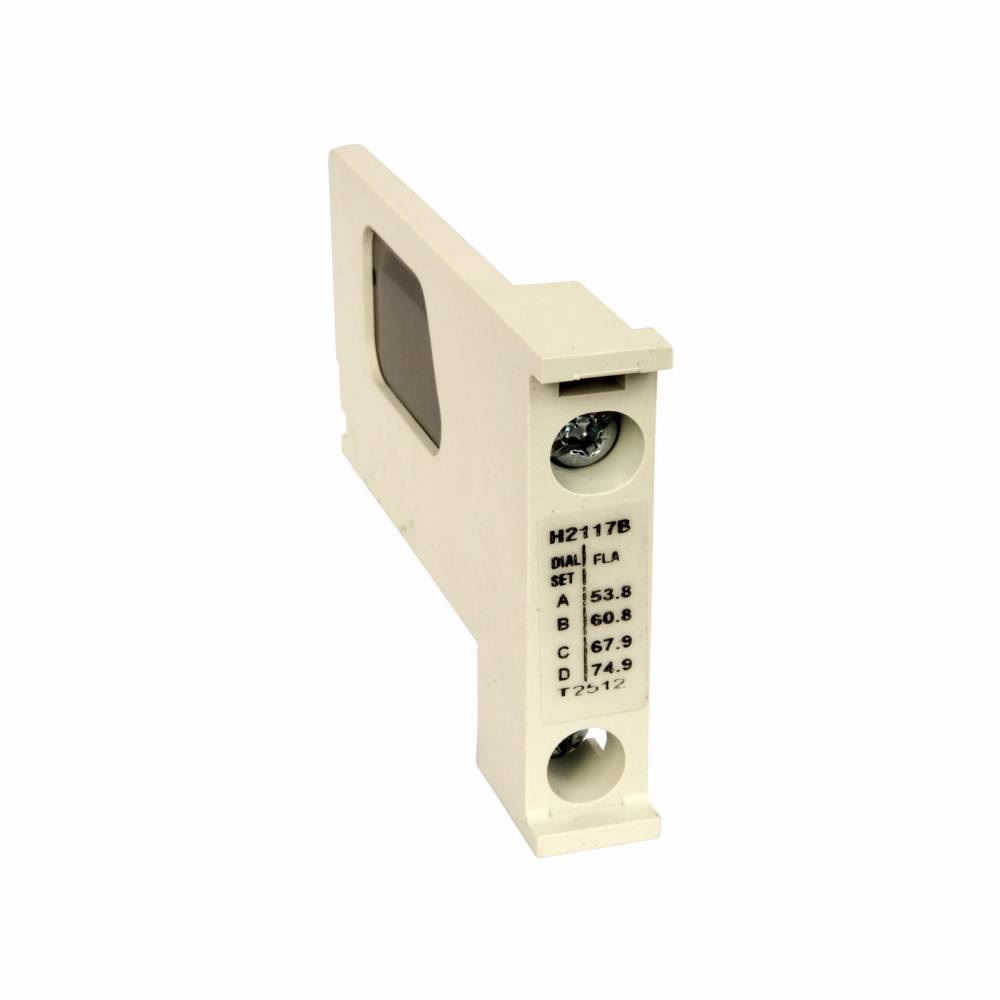

EATON H2117B-3 Freedom Definite Purpose Heater Coil Pack, 75 A

Name: EATON H2117B-3 Freedom Definite Purpose Heater Coil Pack, 75 A
Brand: Eaton
SKU: CHH2117B3
Availability: InStock

Short Description

C306 overload relays are designed for use with CE or CN non-reversing and reversing contactors. Four sizes are available for overload protection up to 144 A.

EATON Heater Coil Pack, Definite Purpose, Series: Freedom, 75 A, 53.8/60.8/67.9/74.9 A Full Load, 1NO-1NC Contact Configuration, Class 10/Fast Trip, 1.8 x 1.7 x 3.1 in Size, NEMA 2 Enclosure

MFG #: H2117B-3

EECO #: CHH2117B3 CHH2117B3

Brand: Eaton

UPC #: 782113004884

Attributes

Features

Documents

Product Information

Attributes

UNSPSC

39122330

Trip Type

Class 10/Fast

Application

Industrial Facilities and Factories Facility, Automation and Monitoring Applications

Enclosure Type

NEMA 2

Contact Configuration

1NO+1NC

Size

1.8 x 1.7 x 3.1

Type

Definite Purpose

Series

Freedom

Warranty

1 year

Amperage Rating

Features

Selectable manual or automatic reset operation
Interchangeable heater packs adjustable +/-24% to match motor FLA and calibrated for use with 1 and 1.15 service factor motors
Heater packs for 32 A overload relay will mount in 75 A overload relay - useful in derating applications such as jogging
Class 10 or 20 heater packs
Load lugs built into relay base
Electrically isolated NO-NC contacts (pull reset button to test)
Overload trip indication
Shrouded or fingerproof terminals to reduce possibility of electrical shock
Used with starter size 2, IEC sizes G-K (series B)
