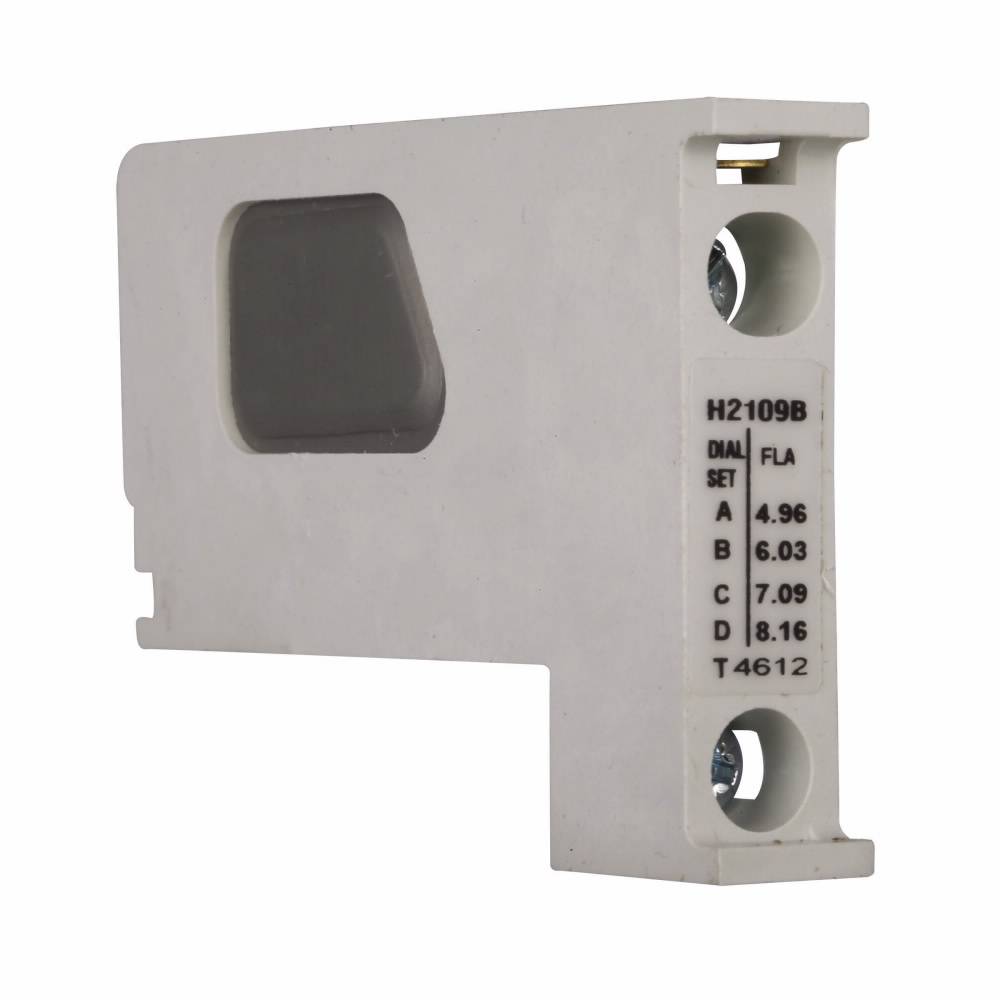

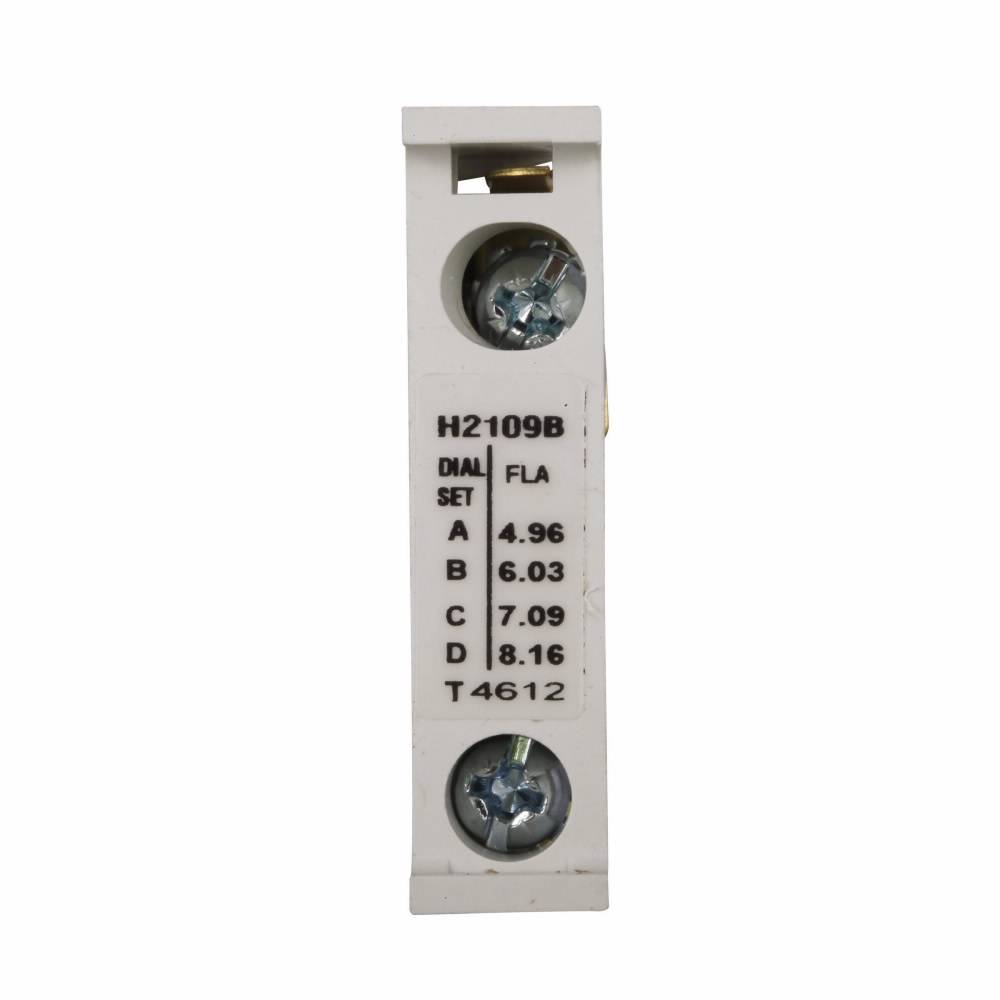

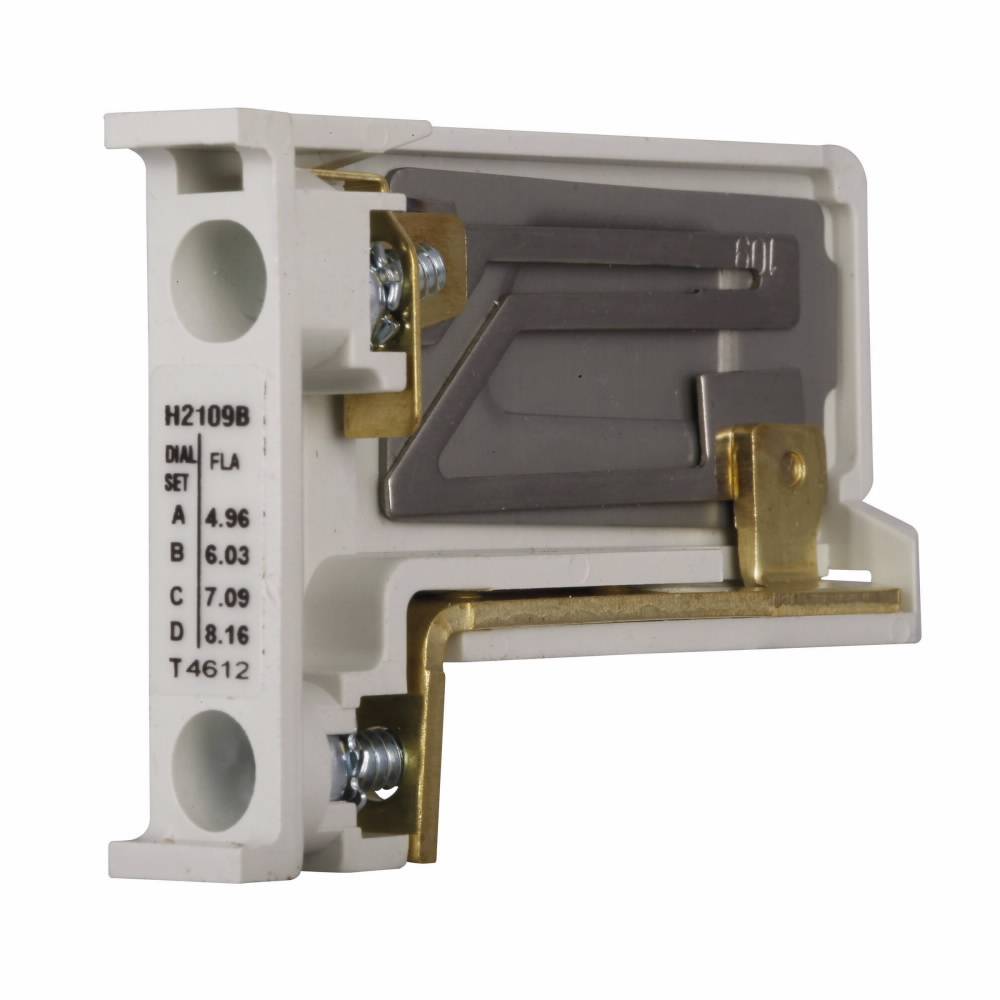

EATON H2109B-3 Freedom Definite Purpose Heater Coil Pack

Short Description

C306 overload relays are designed for use with CE or CN non-reversing and reversing contactors. Four sizes are available for overload protection up to 144 A.

EATON Heater Coil Pack, Definite Purpose, Series: Freedom, 4.96 to 8.16 A Full Load, Class 10/Fast Trip, 1.6 x 1.7 x 3.1 in Size, NEMA 00/0/1/2 Enclosure
MFG #: H2109B-3

EECO #: CHH2109B3

Brand: Eaton
UPC #: 782113004808
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122330
Trip Type
Class 10/Fast
Application
For series C size 00-0, series B size 1 to 2, series C IEC size A to F, series B IEC size G to K starter, industrial facilities and factories facility applications
Enclosure Type
NEMA 00/0/1/2
Size
1.6 x 1.7 x 3.1
Type
Definite Purpose
Series
Freedom
Warranty
1 year
Features
  • 4.96 A at dial positions A, 6.03 A at dial positions B, 7.09 A at dial positions C, 8.16 A at dial positions D full load current
  • 32 or 75 A overload relay
