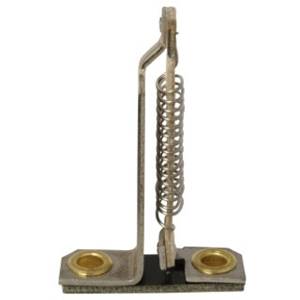

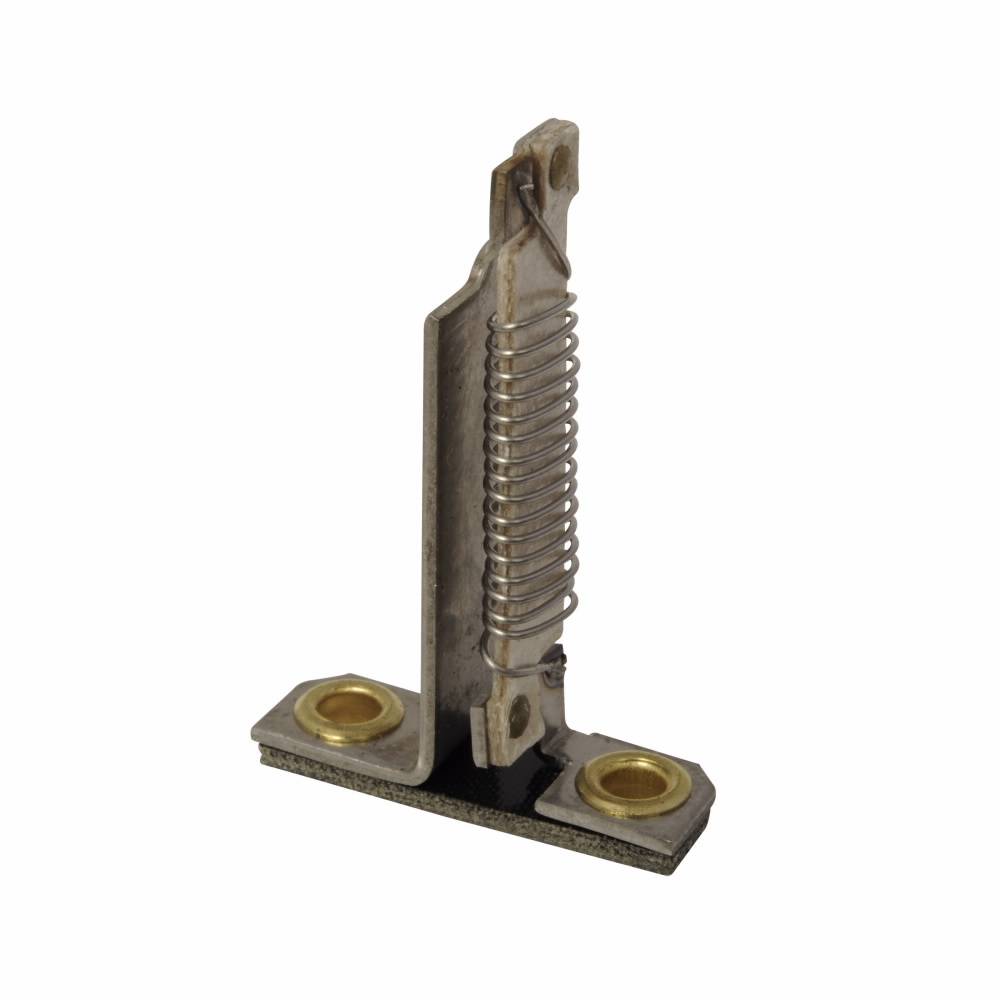

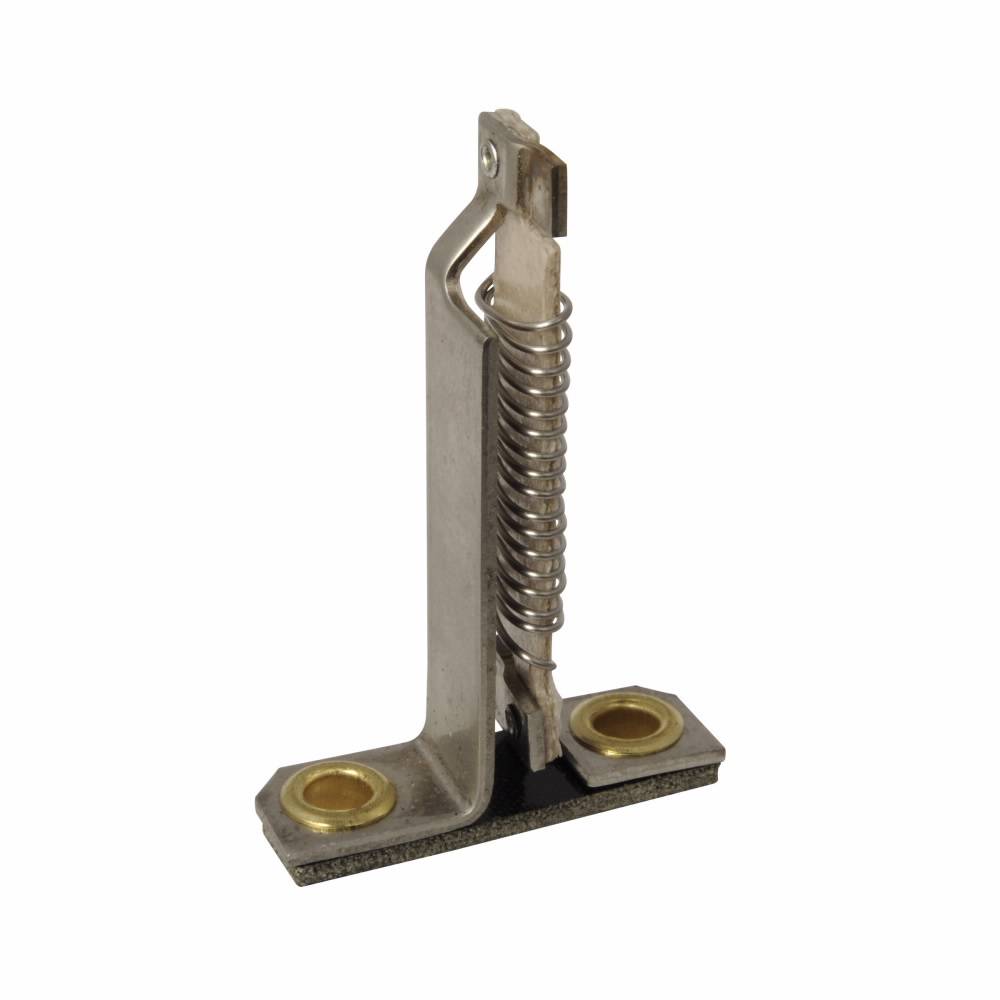

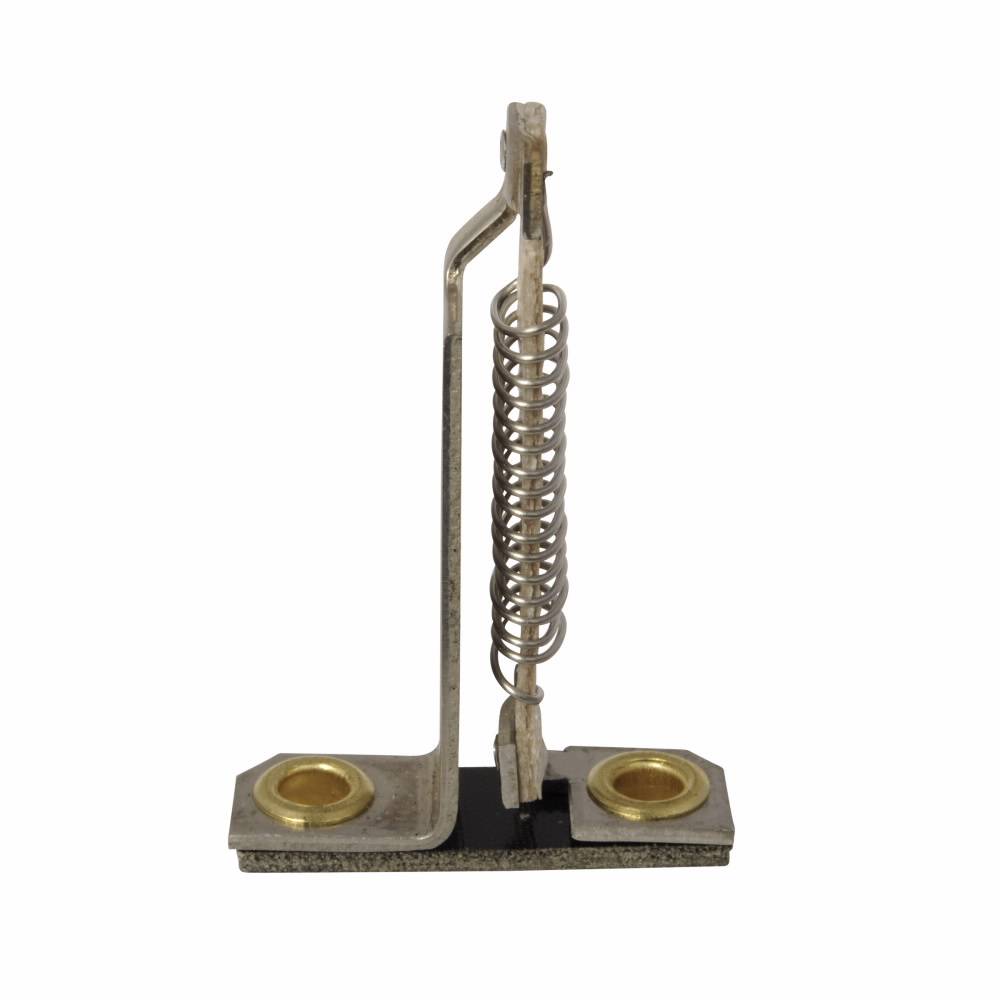

PrintEATON FH15 Type B100 Overload Relay Heater

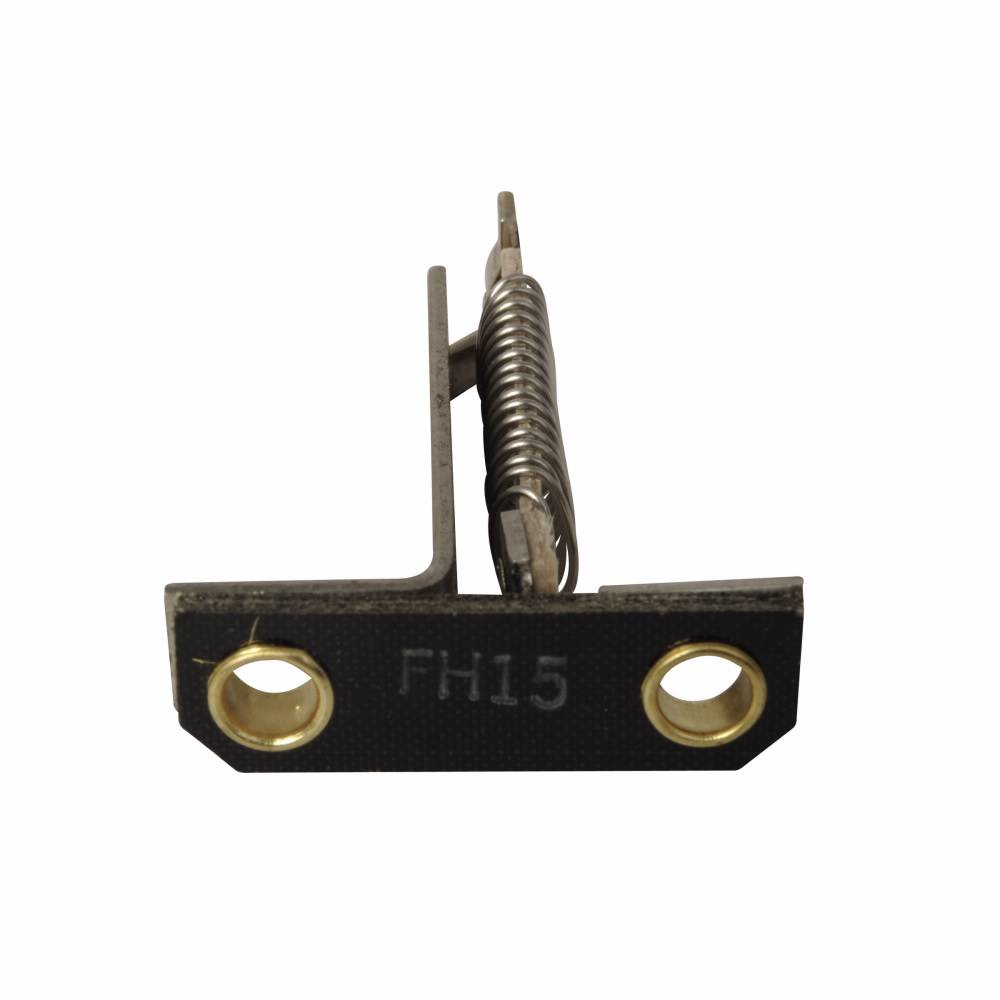

Each heater is identified by a catalog number stamped on one terminal. The heater application table indicates the range of full load motor current to which a given heater may be applied. Heaters should be selected on the basis of the actual full load current and service factor as shown on the motor nameplate or in the manufacturer's published literature. When motor and overload relay are in the same ambient and the service factor of the motor is 1.15 to 1.25, select heaters from the heater application table. If the service factor of the motor is 1 or there is no service factor shown or a maximum of 115% protection is desired, select one size smaller heater than indicated.
EATON Overload Relay Heater, Type B100, 0.84 to 0.91/0.97 to 1.06 A Ambient, 0.78 to 0.85/0.95 to 1.03 A Non-Comp Full Load, Fast/Thermal Trip, NEMA 0/1/2 Enclosure
EECO #: CHFH15
| Qty | Unit price |
|---|---|
| Ea | |
| 1 | $68.67 |
|
Slqt |
|
| 1 | $68.67 |
|
Stpk |
|
| 1 | $68.67 |
|
Unit |
|
| 1 | $68.67 |
