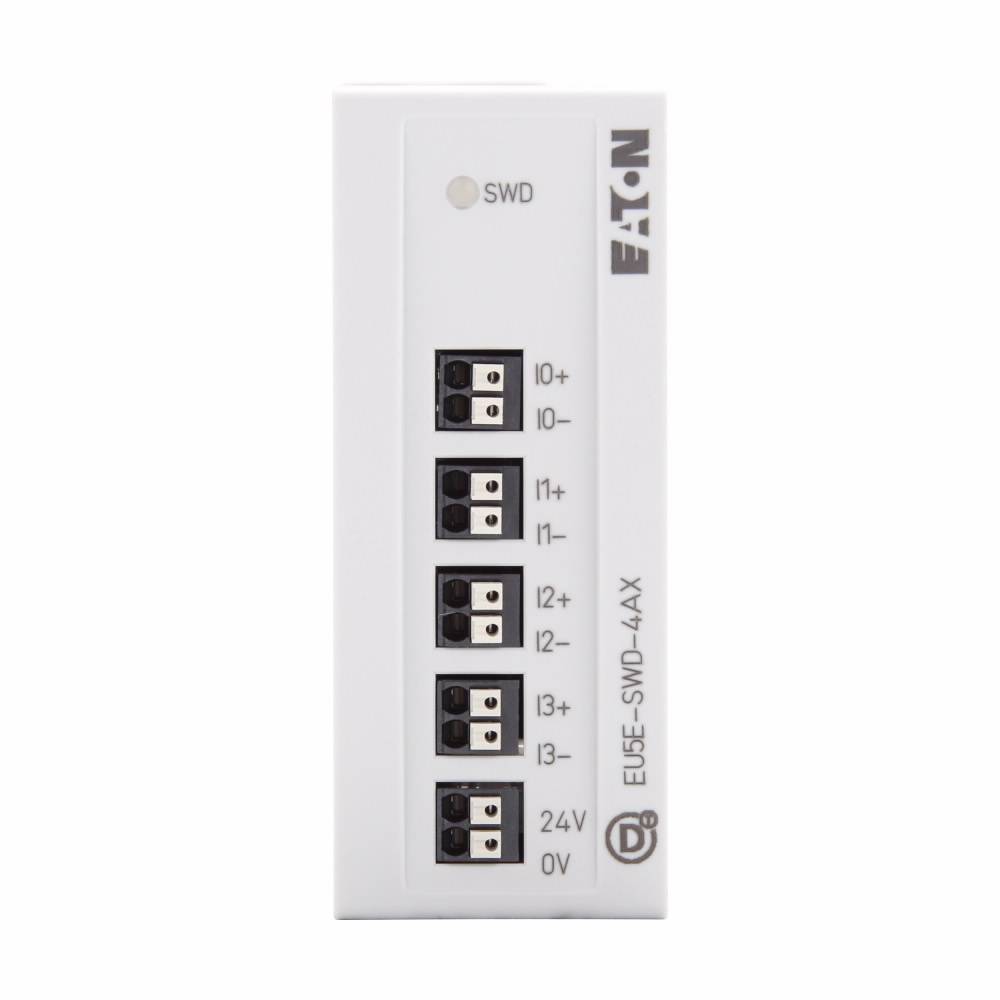

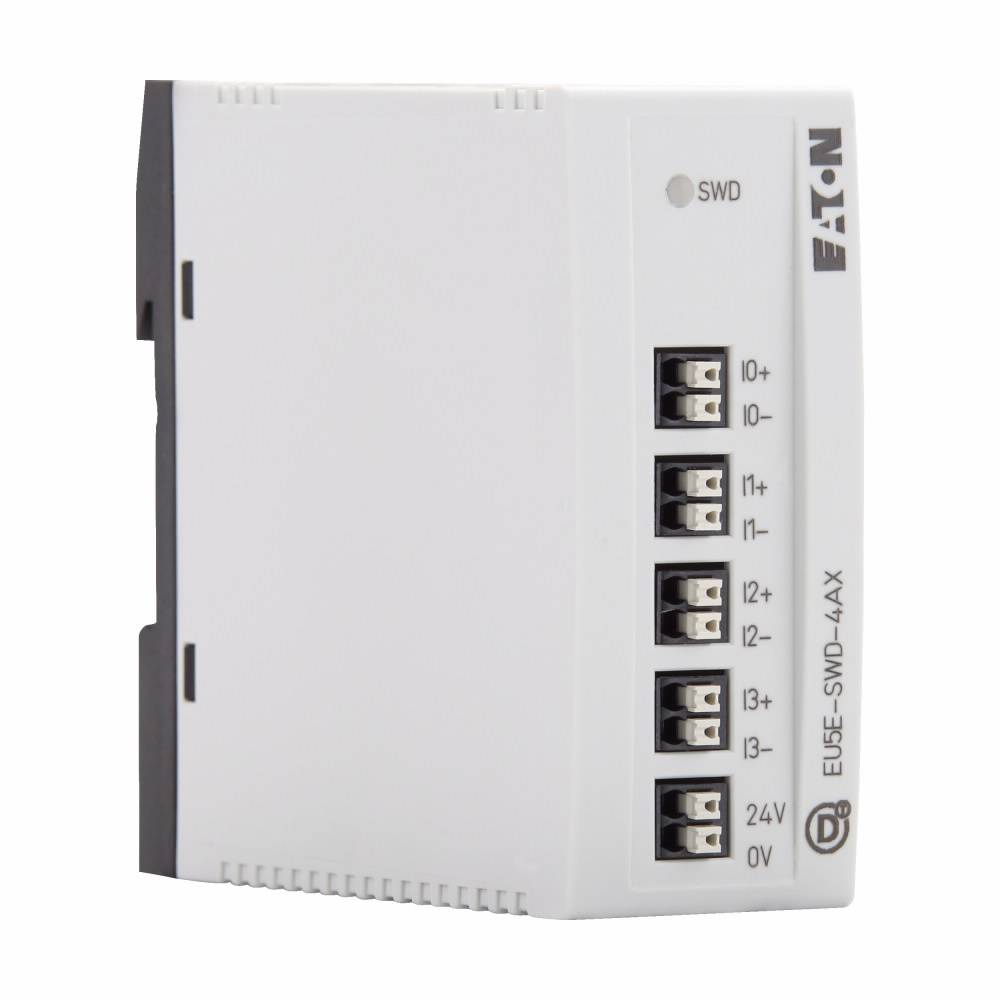

EATON EU5E-SWD-4AX 8-Pole Input/Output SmartWire Pilot Device Module, 4 Inputs, 2 kV Signal Range, 12 bit Resolution, +/-0.5 % Accuracy

Short Description

Analog input output (I/O) modules are connected as nodes on the SmartWire-DT® network and allow standard or generic devices to be connected to the SmartWire-DT® system. They can be connected anywhere along the flat cable network and can therefore be positioned in the control panel to help reduce the I/O wiring.

EATON Pilot Device Module, 8-Pole Input/Output SmartWire, Series: EU5E-SWD, 4 Inputs, 2 kV Signal, 20 ms Conversion Rate, 12 bit Resolution, +/-0.5 % Accuracy, 0 to 10 VAC, 0 to 20 mA, Screw Terminal, -25 to 55 deg C, 1.65 in L x 0.47 in W x 0.5 in H Dimensions

MFG #: EU5E-SWD-4AX

EECO #: CHEU5ESWD4AX

Brand: Eaton
UPC #: 015081405927
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151701
Accuracy
+/-0.5
Input Type
4
Resolution
12
Application
Electrical Assemblies, Panels and EOEMs Applications
Terminal Type
Screw
Voltage Rating
0 to 10
Number of Inputs
4.0000
Temperature Rating
-25 to 55
External Power Supply
24 Volt DC
Operating Temperature
13 to 131 Deg F
Type
8-Pole Input/Output SmartWire
Series
EU5E-SWD
Dimensions
1.65 in L x 0.47 in W x 0.5 in H
Signal Range
2
Input Current
0 to 20 Milliamp
Input Voltage
0 to 10 Volt
Amperage Rating
0 to 20
Features
  • Top hat rail mounting
  • Vertical mounting position
  • +/-30 VAC dielectric strength
  • <250 input impedance
  • +/-1% total error
  • Distributed I/O adapters for Ethernet/IP, Modbus® TCP, DeviceNet, PROFIBUS-DP and RS485
