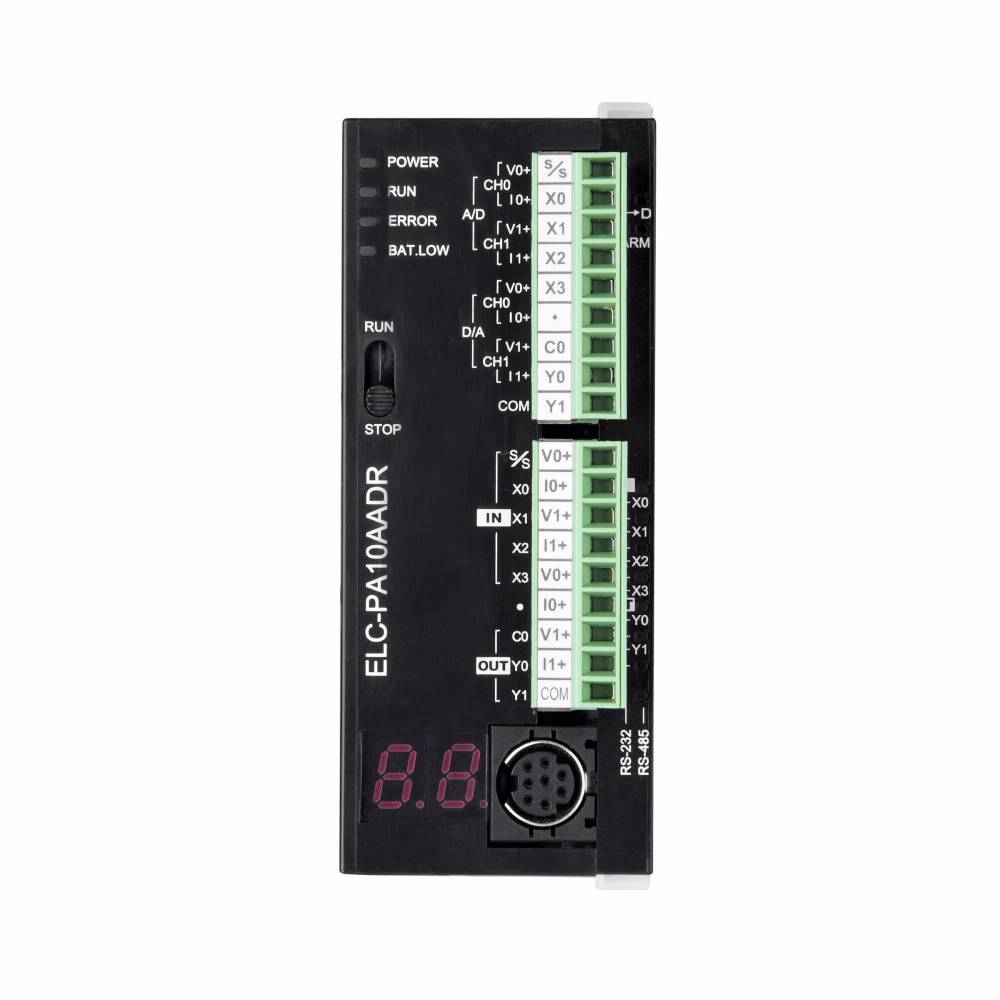

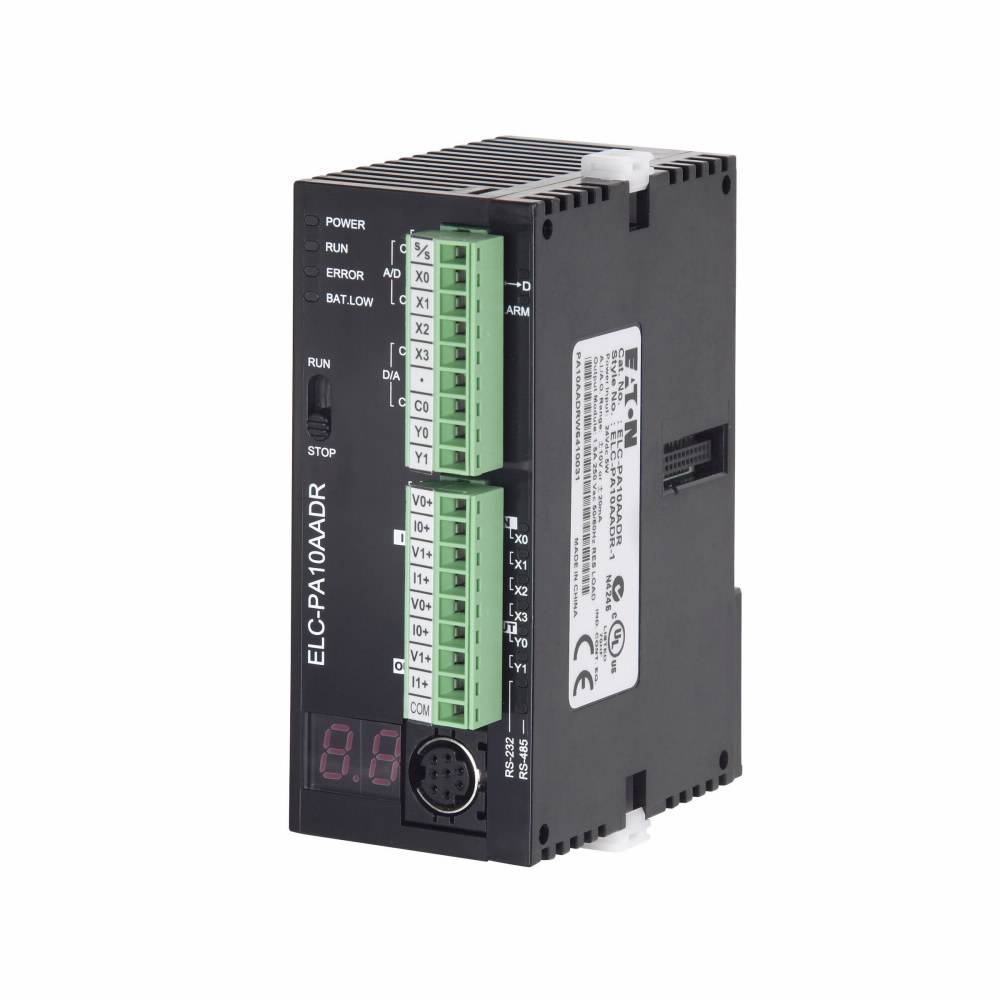

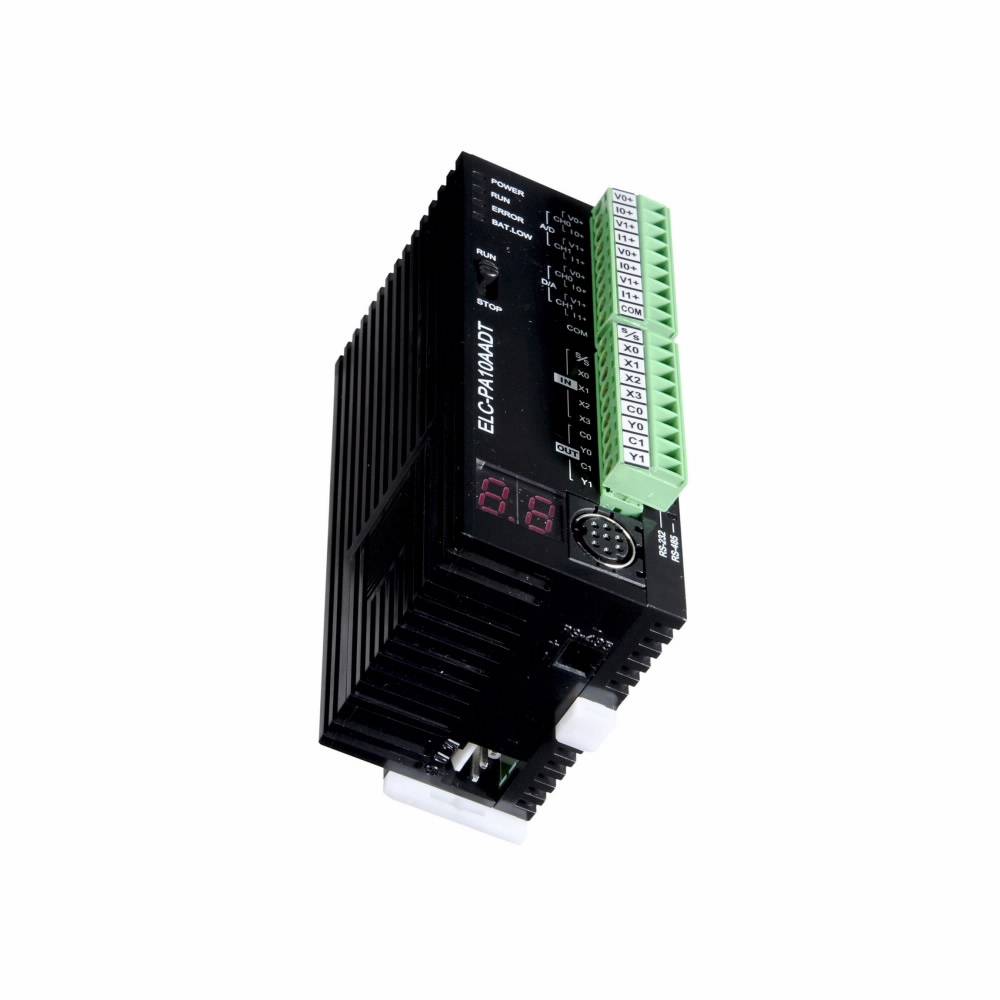

EATON ELC-PA10AADR Modular Programmable Logic Controller, 24 VDC, 1.5 A, 2-Analog/2-Digital Inputs, 2-Analog/4-Digital Outputs

Short Description

The ELC modular controllers are less than half the size of most programmable logic controllers. ELC digital input output expansion modules provide the correct amount and type of input output for application solutions. Choose 4, 8 or 16 input output with different combinations of AC and DC input and relay and transistor output. Any number of expansion modules can be added to an ELC controller to create up to 256 input output. Specialty modules like analog in, analog OUT and platinum temperature are also available.

EATON Programmable Logic Controller, Modular, Series: ELC, 24 VDC, 1.5 A, 2-Analog/2-Digital Inputs, 2-Analog/4-Digital Outputs, 2 Ports, Memory: 7920 Step Program/4096 Bits Data, ELC Soft Programming, 4-1/2 in L x 4 in W x 3 in H Dimensions
MFG #: ELC-PA10AADR

EECO #: CHELCPA10AADR

Brand: Eaton
UPC #: 782116342969
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32151705
Application
Commercial, Institutional Buildings and Structures Applications
Voltage Rating
24
Number of Ports
2
Type
Modular
Memory
7920 Step Program/4096 Bits Data
Series
ELC
Includes
Real Time Clock/27 Segment Display
Dimensions
4-1/2 in L x 4 in W x 3 in H
Amperage Rating
1.5
Number of Outputs
2-Analog/4-Digital
Features
  • Modular and expandable PLCs with distributed I/O capability
  • Digital, analog, thermocouple and RTD I/O
  • Relay or transistor outputs
  • High current relay output module
  • High speed pulse capture and high speed pulse output up to 200 kHz
  • Two RS 485 ModBus serial ports
  • Distributed I/O adapters for ethernet IP, ModBus TCP, DeviceNet, PROFIBUS DP and RS 485
  • 210 mA current consumption
  • 1024 SFC commands (steps)
  • 256 subroutines
  • 8 master control loop
