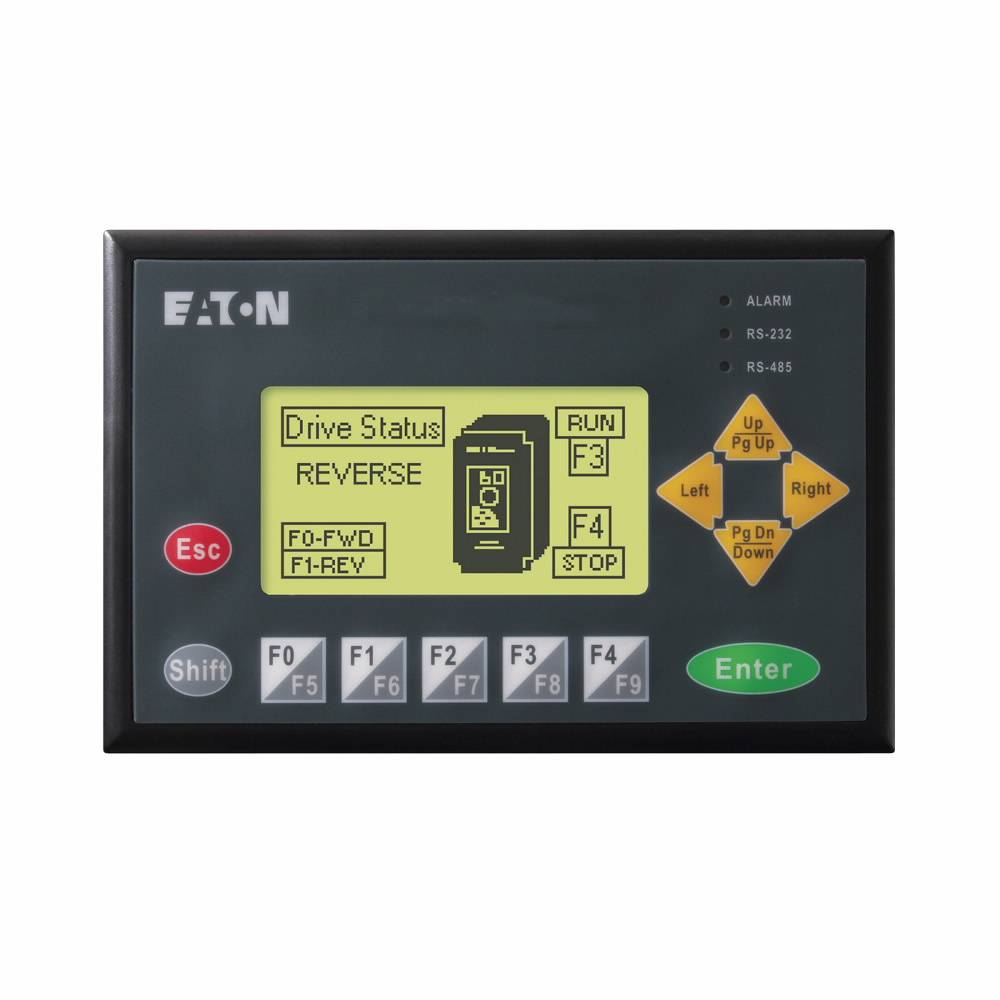

EATON ELC-GP04 Graphics Panel, 24 VDC, 4-Line Monochromatic Display, 10 Keys, RS232/422/485
Share Share Print Print
Eaton

EATON ELC-GP04 Graphics Panel, 24 VDC, 4-Line Monochromatic Display, 10 Keys, RS232/422/485

Short Description

Designed using the latest technology, the Eaton Logic Controllers (ELCs) are small and feature-rich. An abundance of module options allow users to specify their ELC solution so that it is "just right," satisfying requirements and saving space, time and money.

EATON Graphics Panel, Series: ELC, 24 VDC Power Source, 4-Line Monochromatic Display, 10 Keys, RS232/422/485 Communication Ports, 128 x 64 pixel Display Resolution, -20 to 60 deg C, 147 mm H x 97 mm W x 35.5 mm D Dimensions
MFG #: ELC-GP04

EECO #: CHELCGP04

Brand: Eaton
UPC #: 782116343126
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32101604
Display Type
4-Line Monochromatic
Temperature Rating
-20 to 60
Series
ELC
Dimensions
147 mm H x 97 mm W x 35.5 mm D
Number of Keys
10
Communication Ports
RS232/422/485
Features
  • Model: EATON ELC-GP04 Graphics Panel
  • Power Source: 24 VDC
  • Display Type: 4-Line Monochromatic Display
  • Display Resolution: 128 x 64 pixels
  • Input Method: 10 Keys
  • Communication Ports: RS232, RS422, RS485
  • Operating Temperature Range: -20 to 60 °C
  • Dimensions: 147 mm H x 97 mm W x 35.5 mm D
