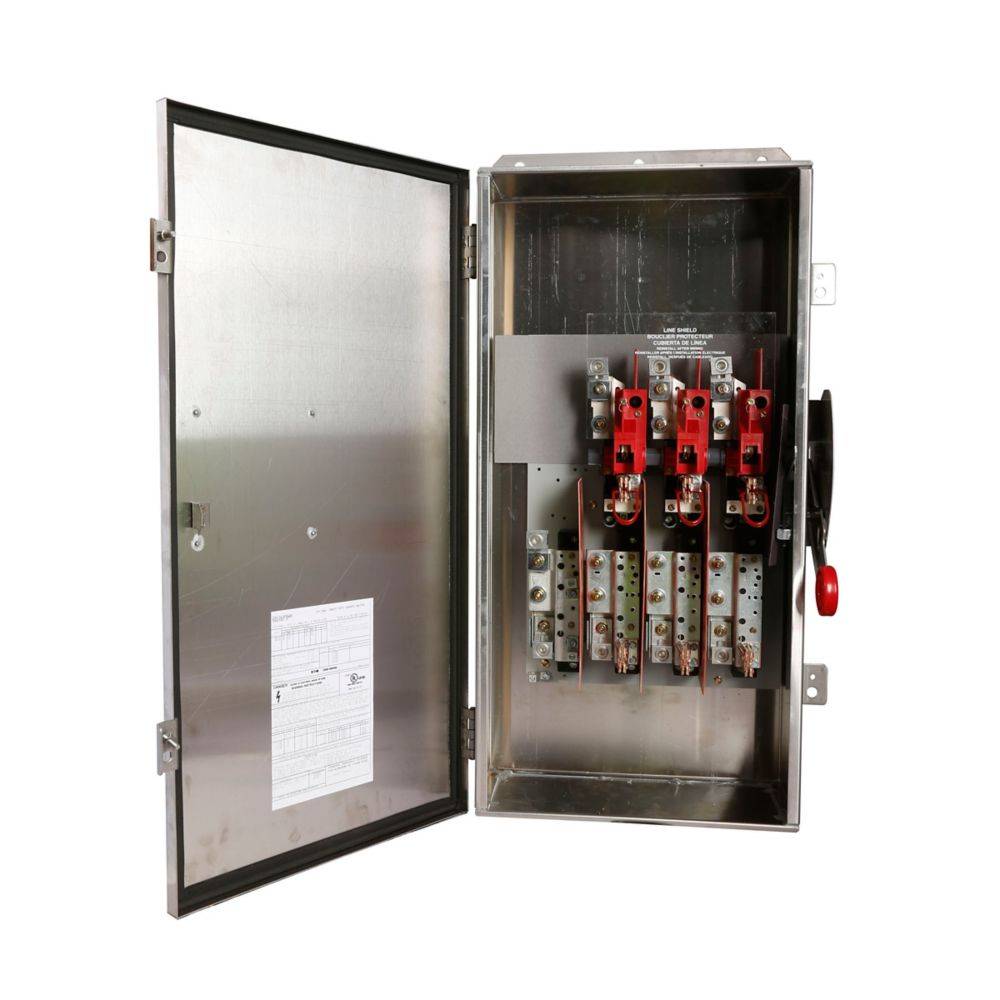

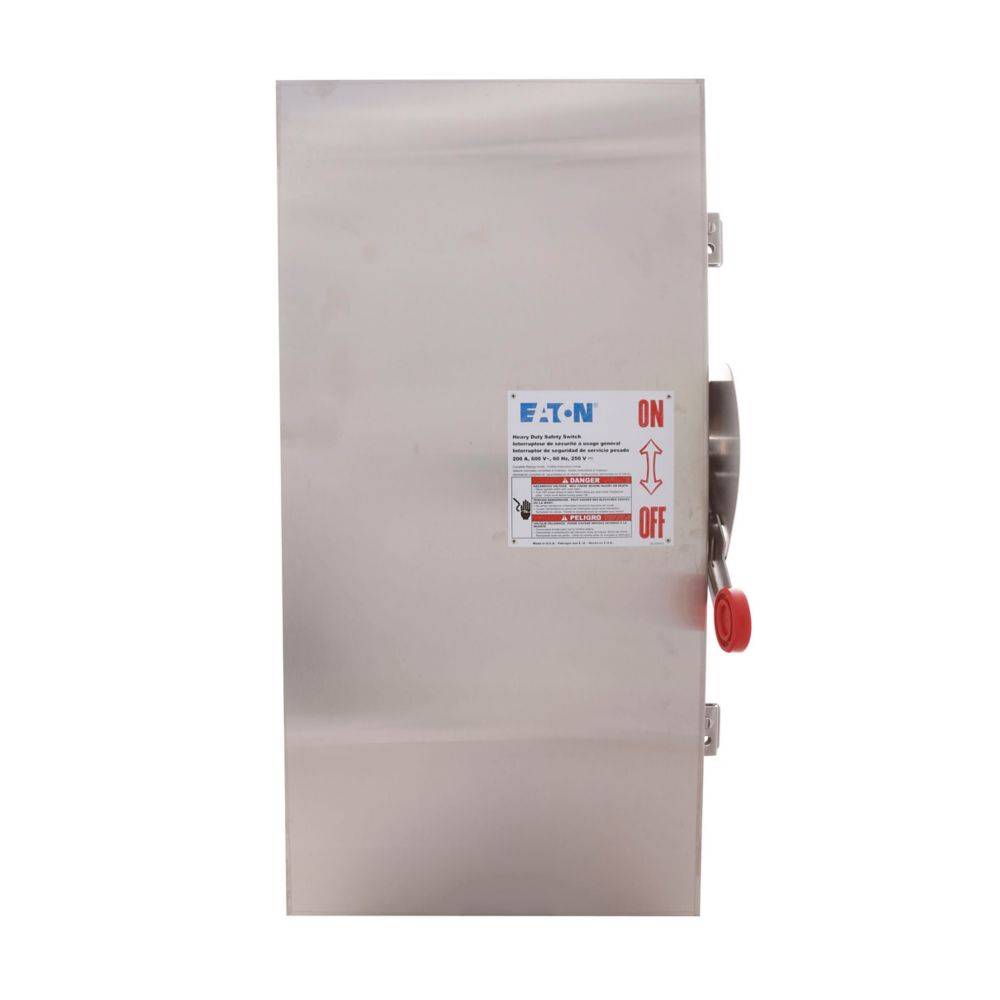

EATON DH327NWK Enhanced Visible Blade Fusible Safety Switch, 240 V, 800 A, 3 Poles

Name: EATON DH327NWK Enhanced Visible Blade Fusible Safety Switch, 240 V, 800 A, 3 Poles
Brand: Eaton
SKU: CHDH327NWK
Availability: InStock

Short Description

Eaton’s heavy-duty safety switches provide a highly visible means of disconnect to help improve personnel safety and equipment protection. Additionally, they’re Ideal for applications where reliable performance, safety, and service continuity are critical.

EATON, DH327NWK, Visible Blade Fusible Safety Switch, Enhanced, 240 V, 800 A, 3 Pole, 4 Wires, NEMA 4X Enclosure, 71.75 in H x 25 in W x 14.25 in L Dimensions

MFG #: DH327NWK

EECO #: CHDH327NWK CHDH327NWK

Brand: Eaton

UPC #: 786689397357

Attributes

Features

Documents

Product Information

Attributes

UNSPSC

39122205

Application

For Commercial,Institutional Buildings and Structures - Power Distribution and Controls

Enclosure Type

NEMA 4X

Voltage Rating

240

Number of Wires

Type

Enhanced

Dimensions

71.75 in H x 25 in W x 14.25 in L

Amperage Rating

800

Features

Enhanced visible blade can be included in a standard heavy duty safety switch (with solid front door), requires catalog suffix V
Switches with optional viewing window incorporate enhanced visible blade as a standard feature
Enables personnel to clearly see that blades are disengaged from stationary contacts when the switch handle is in the OFF position
Provides increased visibility over each pole, allowing users to clearly see the trailing edge of the blade
Updated arc shield's yellow color creates greater contrast between blades and arc shield
Provides clear path to view switch base and current carrying blades with viewing window
