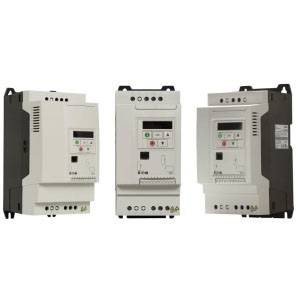

EATON PowerXL™ DC1-1D5D8NB-A20CE1 Compact Adjustable Frequency Drive, 115 V In/240 V Out, 5.8 A, 1-1/2 hp, 5-3/4 in W x 10-1/4 in D

Short Description

EATON PowerXL™ DC1 variable frequency drives are the next generation of drives specifically engineered for today's machinery applications. The DC1 is compact with only 14 basic parameters, SmartWire-DT® and Ethernet/IP connectivity and outstanding ease of mounting and installation. The newest version adds support for sensorless vector control and permanent magnet motor compatibility. The DC1 is perfect for quick commissioning and is ideal for panel builders. This drive supports single-phase motor applications and detachable terminal blocks make control wiring much easier.

EATON PowerXL™ Adjustable Frequency Drive, Compact, Series: DC1, 115 V In/240 V Out, 5.8 A, 1-1/2 hp, 5-3/4 in Width, 10-1/4 in Depth, 9 in Height, NEMA 0/IP20 Enclosure, LED Display, DIN Rail/Screw Mounting

MFG #: DC1-1D5D8NB-A20CE1

EECO #: CHDC11D5D8NBA20CE1

Brand: Eaton
UPC #: 786687019695
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32101625
Approval
UL, CUL, CE
Drive Type
Adjustable Frequency
Frame Size
FR2
Application
Industrial, HVAC, Water/Wastewater Treatment, Machinery OEM and Other Application Demands
Display Type
LED
Mounting Type
DIN Rail/Screw
Enclosure Type
NEMA 0/IP20
Voltage Rating
115 V In/240 V Out
Enclosure
NEMA 0, IP20
Size
5.75 Inch Width x 10.25 Inch Depth x 9 Inch Height
Type
Compact
Depth
10-1/4
Width
5-3/4
Height
9
Series
DC1
Includes
Brake Chopper
Warranty
1 year
Horsepower
1-1/2
Input Current
5.8 Amp
Input Voltage
115 Volt AC 50/60 Hertz 1-Phase
Amperage Rating
5.8
Constant Torque HP
1.5 HP
Constant Torque KW
1.1 Kilowatt
Variable Torque HP
1.5 HP at 115 Volt
Features
  • Compact, space-saving design
  • Rugged and reliable - 175% for 2 s, 50 deg C rated
  • Side-by-side installation
  • Industry-leading efficiency delivers energy savings to the customer
  • Temperature-controlled fan
  • SmartWire capability
  • Dual Ethernet/IP communication module
  • Removable I/O terminal blocks
  • Contactor style power wiring
  • Sensorless vector control
  • Permanent magnet motor compatibility
  • 1 ph main connection and 3 ph motor connection
  • Enhanced device
EATON_DC11D5D8NBA20CE1_Specification_Sheet
NP26LAINST
EATON_DA112011FBB66C_Catalog
Qty Unit price
Ea
1 $589.26

Slqt
1 $589.26

Stpk
1 $589.26

Unit
1 $589.26
