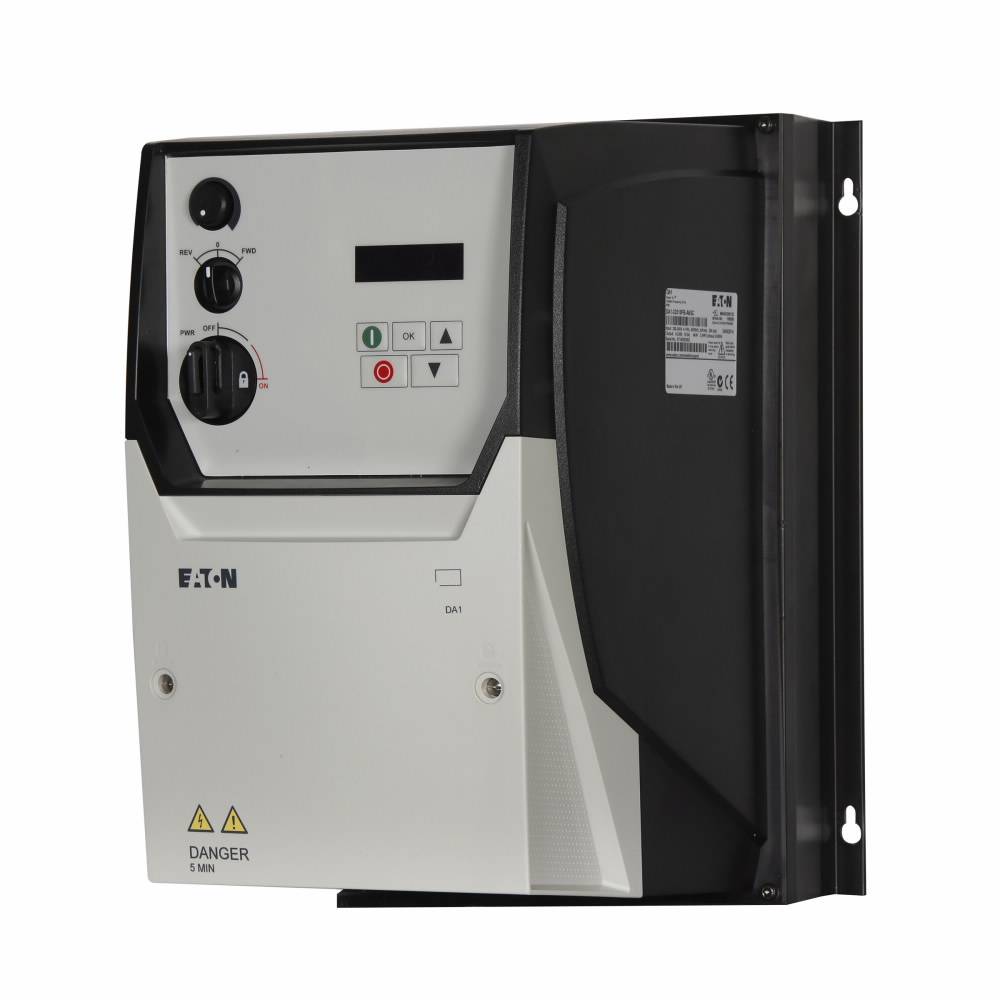

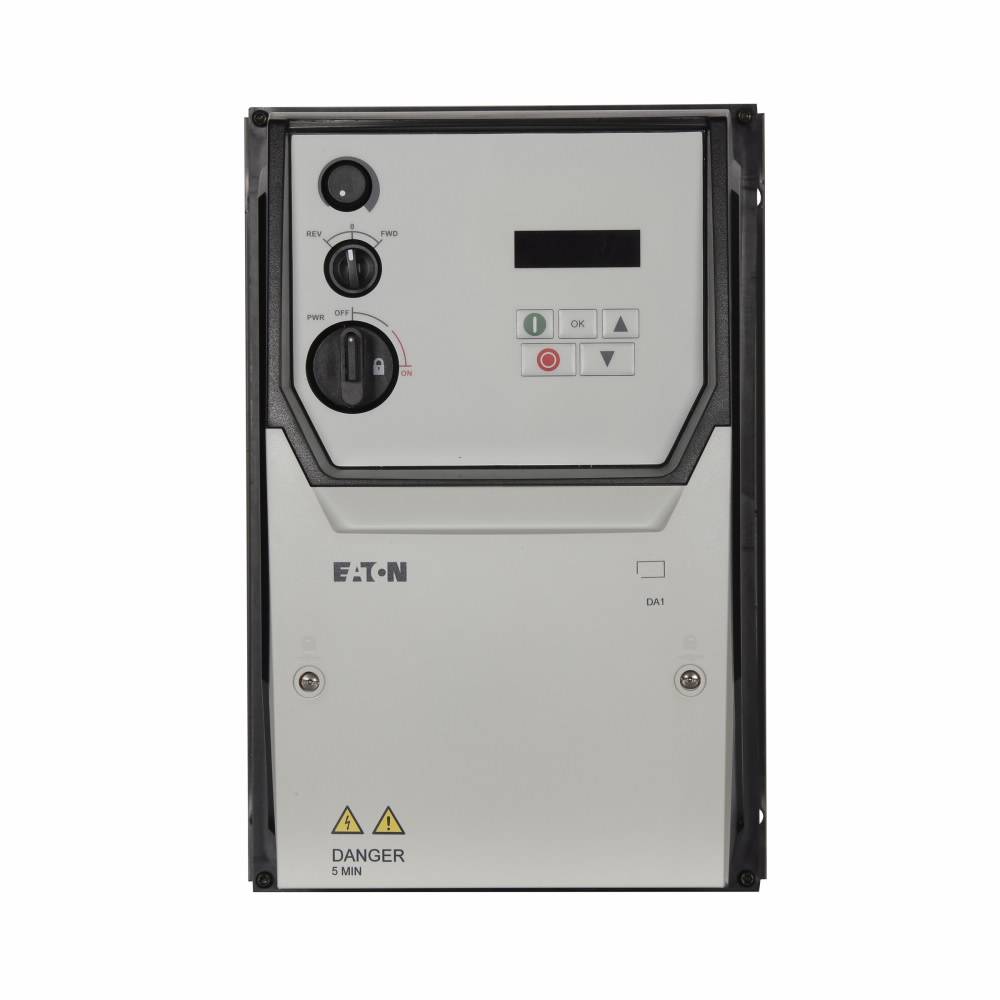

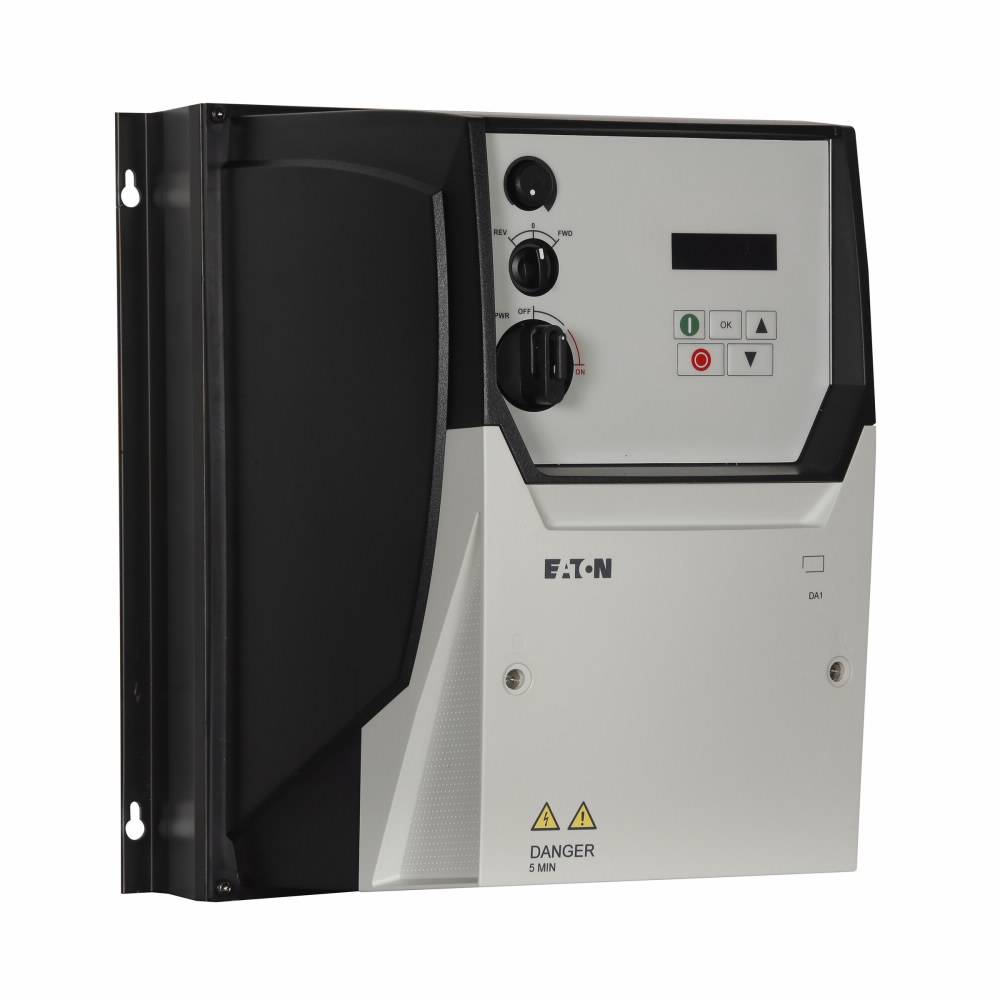

EATON PowerXL™ DA1-35012NB-A66C Advanced Adjustable Frequency Drive, 575 V, 12 A, 10 hp, 12.2 in W x 7.8 in D

Short Description

EATON PowerXL™ DA1 variable frequency drives are the next generation of drives specifically engineered for today's machinery applications. DA1 is the perfect match for demanding OEM applications. High-performance processor, safe torque off, multiple fieldbus protocols including SmartWire-DT, sensorless vector control and the possibility to operate permanent magnet motors are sure to leave a lasting impression.

EATON PowerXL™ Adjustable Frequency Drive, Advanced, Series: DA1, 575 V, 12 A, 10 hp, 12.2 in Width, 7.8 in Depth, 10-1/2 in Height, NEMA 4/4X/IP66 Enclosure, LED Display, DIN Rail/Screw Mounting
MFG #: DA1-35012NB-A66C

EECO #: CHDA135012NBA66C

Brand: Eaton
UPC #: 786685891279
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122001
Application
Industrial, HVAC, Water/Wastewater Treatment, Machinery OEM and Other Application Demands
Display Type
LED
Mounting Type
DIN Rail/Screw
Enclosure Type
NEMA 4/4X/IP66
Voltage Rating
575
Type
Advanced
Depth
7.8
Width
12.2
Height
10-1/2
Series
DA1
Includes
Brake Chopper
Warranty
1 year
Horsepower
10
Amperage Rating
12
Features
  • Compact, space-saving design
  • Rugged and reliable - 200% for 4 s 50 deg C rated
  • Side-by-side installation
  • Industry-leading efficiency delivers energy savings to the customer
  • Integrated EMC filters make the unit suitable for commercial and industrial networks
  • 3 ph main connection and 3 ph motor connection
  • Coated printed circuit boards
  • Without internal RFI filter
