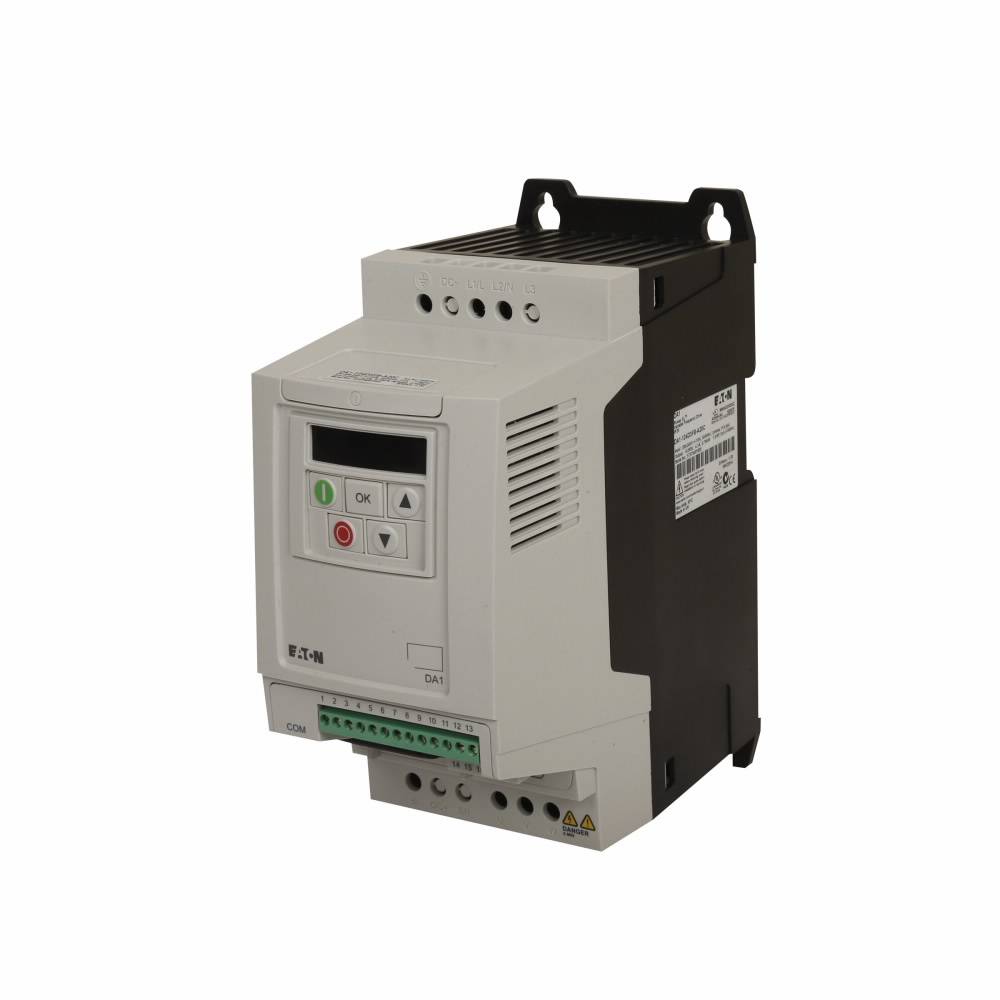

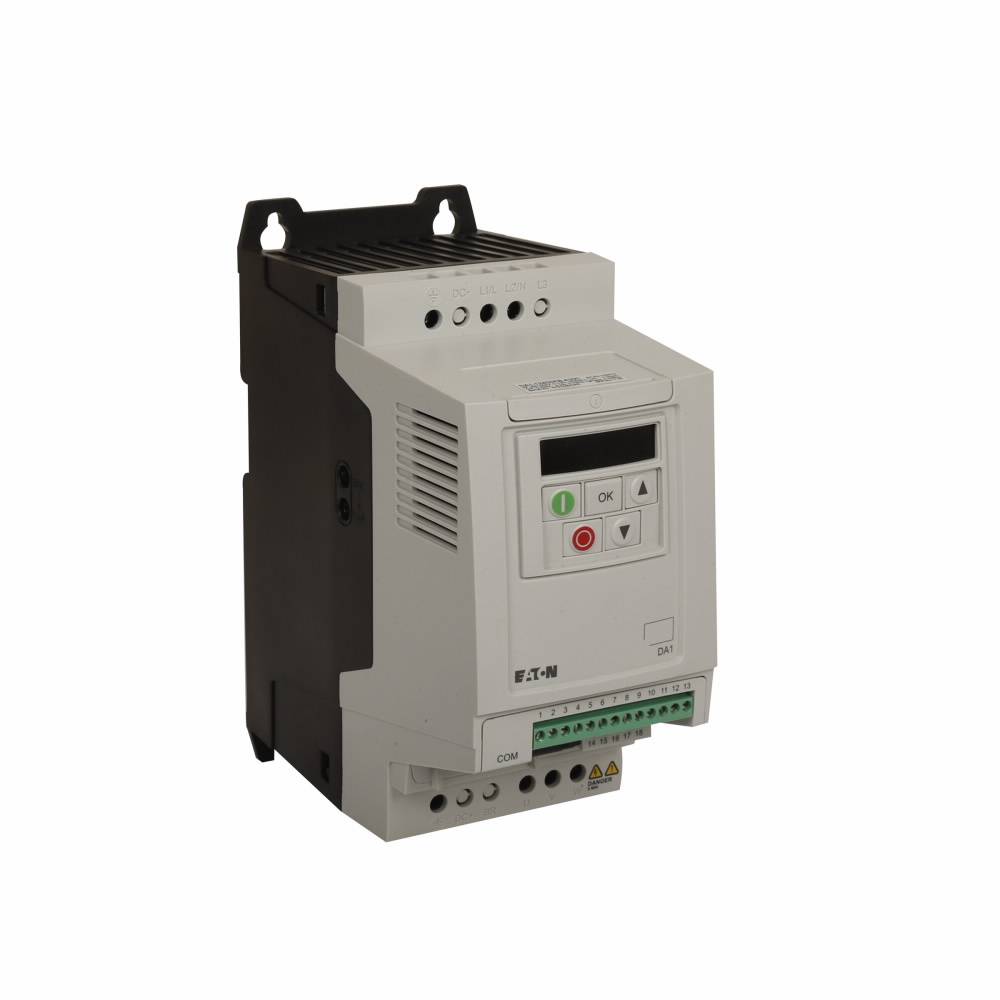

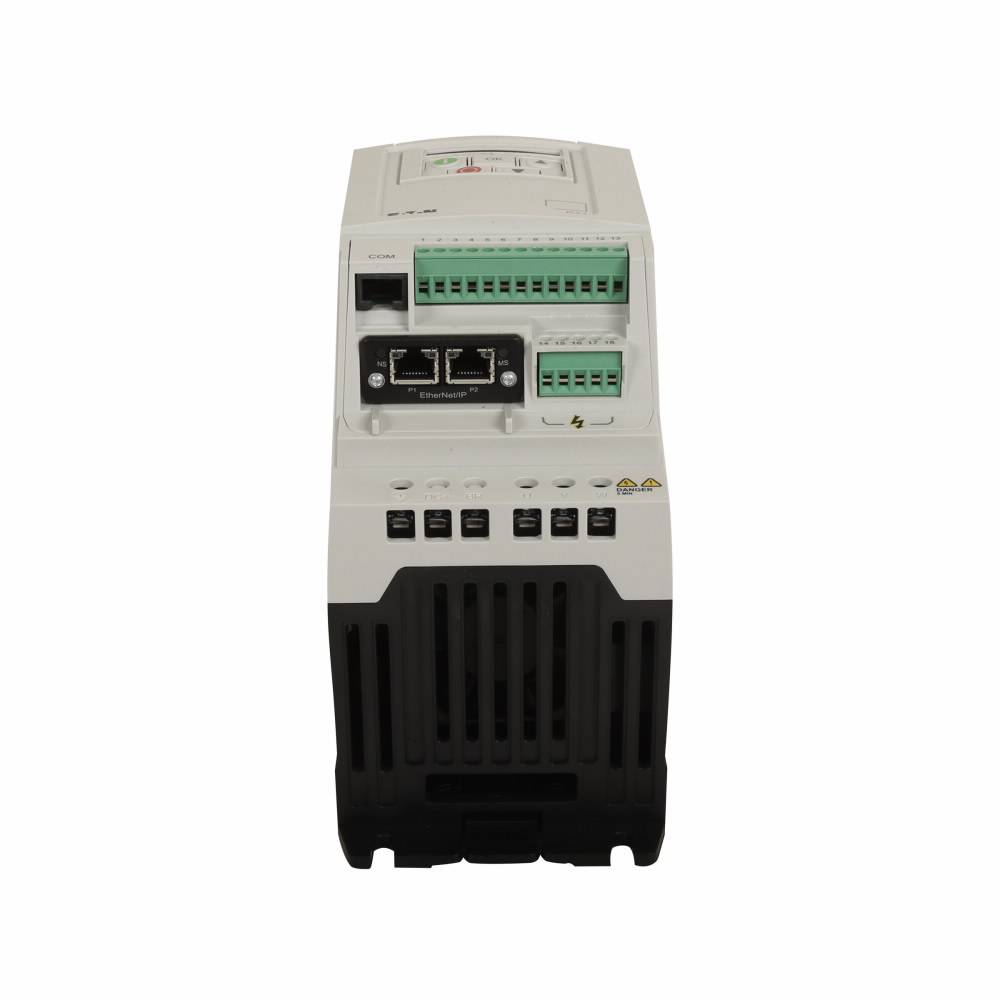

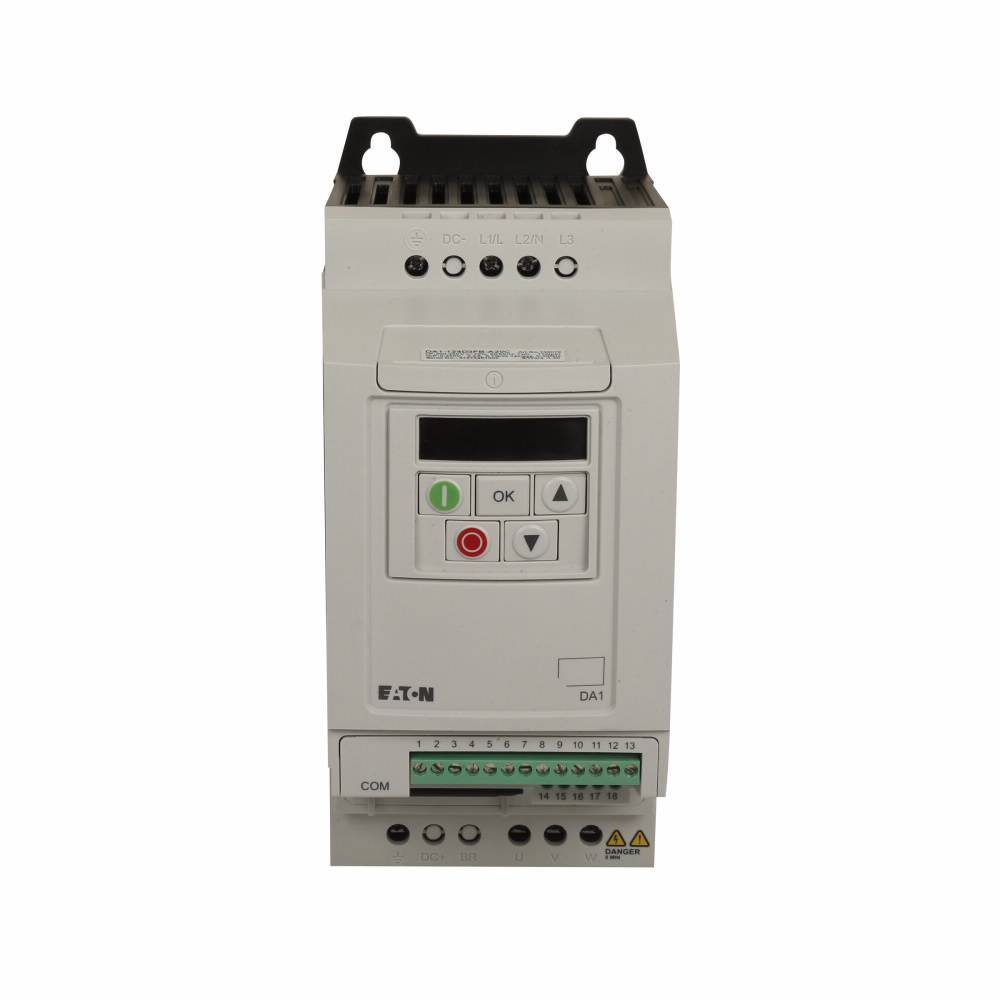

EATON PowerXL® DA1-124D3FB-A20C 1-Phase in/3-Phase Out Adjustable Compact AC Variable Frequency Drive, 200 to 240 VAC, 4.3 A, 1 hp, 4.21 in W x 7.32 in D

Short Description

EATON PowerXL® DA1 variable frequency drives are the next generation of drives specifically engineered for today's machinery applications. DA1 is the perfect match for demanding OEM applications. High performance processor, safe torque off, multiple fieldbus protocols including SmartWire-DT®, sensorless vector control and the possibility to operate permanent magnet motors are sure to leave a lasting impression. Models rated at 480 VAC, 3-phase, 50/60 Hz are available in sizes ranging from 1 to 15 hp. Models rated at 240 VAC, 1 or 3-phase, 50/60 Hz are available in sizes ranging from 0.5 to 7.5 hp. Models rated at 575 VAC, 3-phase, 50/60 Hz are available in sizes ranging from 1 to 20 hp.

EATON PowerXL® AC Variable Frequency Drive, 1-Phase in/3-Phase Out Adjustable Compact, Series: DA1, 200 to 240 VAC, 4.3 A, 1 hp, 4.21 in Width, 7.32 in Depth, 9.09 in Height, NEMA 0/IP20 Enclosure, LED Display, DIN Rail/Threaded Mounting
MFG #: DA1-124D3FB-A20C

EECO #: CHDA1124D3FBA20C

Brand: Eaton
UPC #: 786685858920
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
32101625
Application
Electrical Assemblies and Panels Applications
Display Type
LED
Mounting Type
DIN Rail/Threaded
Enclosure Type
NEMA 0/IP20
Voltage Rating
200 to 240
Type
1-Phase in/3-Phase Out Adjustable Compact
Depth
7.32
Width
4.21
Height
9.09
Series
DA1
Warranty
1 year
Horsepower
1
Amperage Rating
4.3
Features
  • Compact, space saving design
  • Rugged and reliable 200% for 4s 50 deg C rated
  • DIN rail and screw mountable (FS1 and FS2)
  • Side by side installation
  • Industry leading efficiency delivers energy savings to the customer
  • Integrated EMC filters make the unit suitable for commercial and industrial networks
  • Communication cards that integrate into the drive Ethernet/IP, DeviceNet, PROFIBUS-DP, EtherCAT, PROFINET, Modbus® TCP and BACnet
  • Brake chopper as standard
  • Temperature controlled fan
  • RS485/Modbus® and CANopen as standard
  • PID controller as standard
  • SmartWire capability
  • Removable I/O terminal blocks
  • Contactor style power wiring
  • 200% torque at zero speed
  • Designed to run surface mounted (SPM) and rotor in-built (IPM) permanent magnet motors
  • PLC programming
  • Closed loop
  • Conformal coated boards
  • With internal RFI filter and brake chopper
