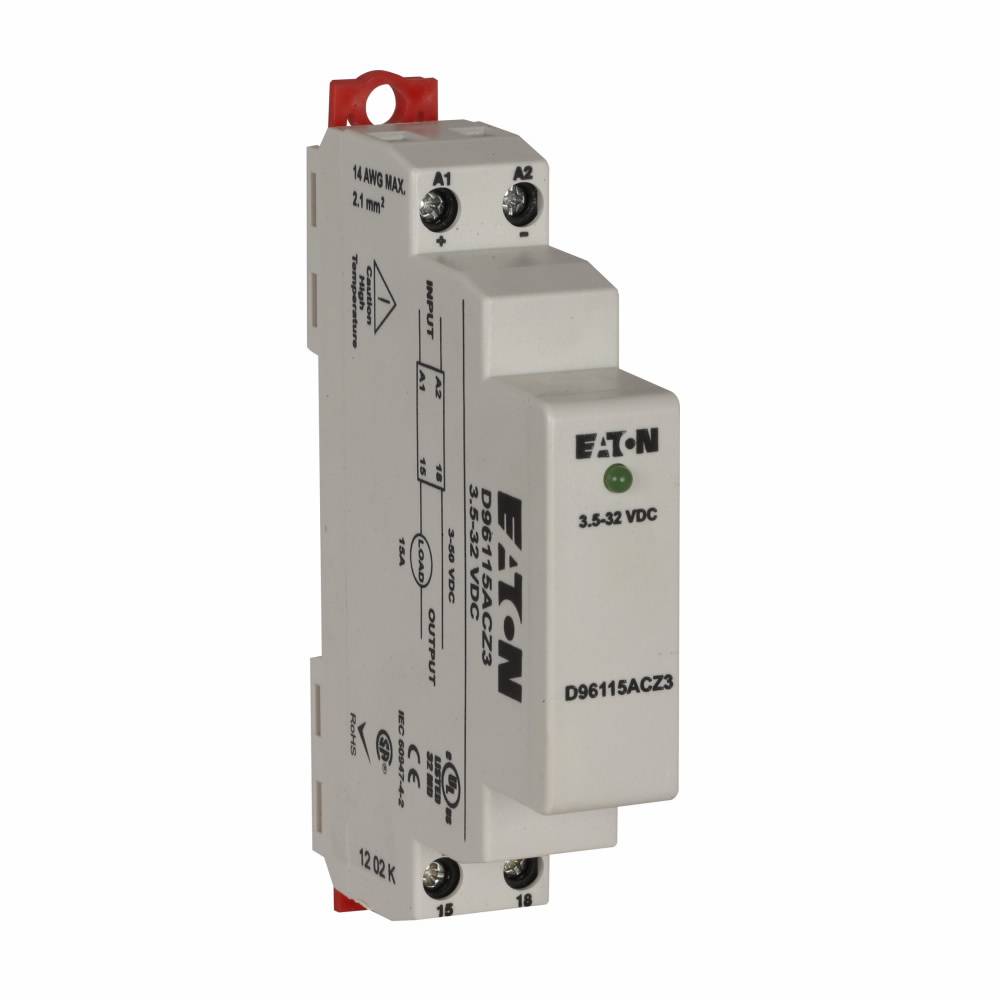

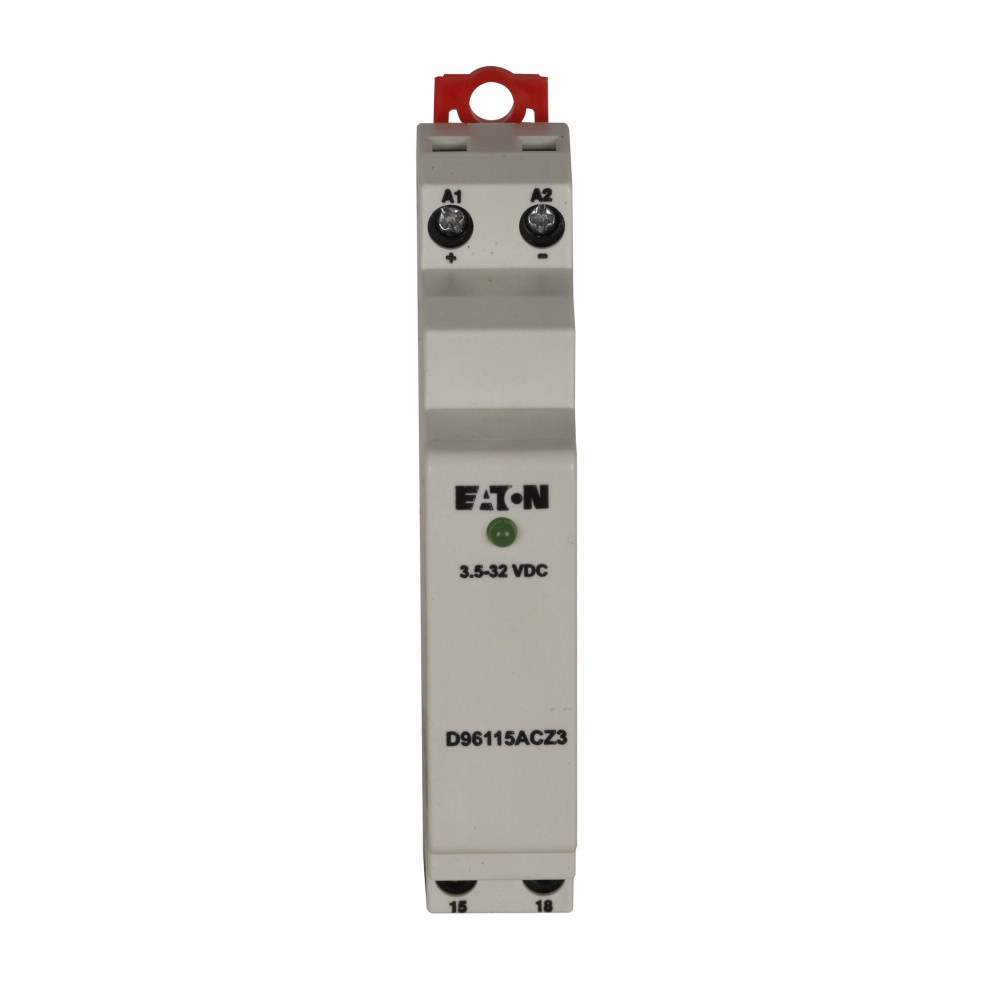

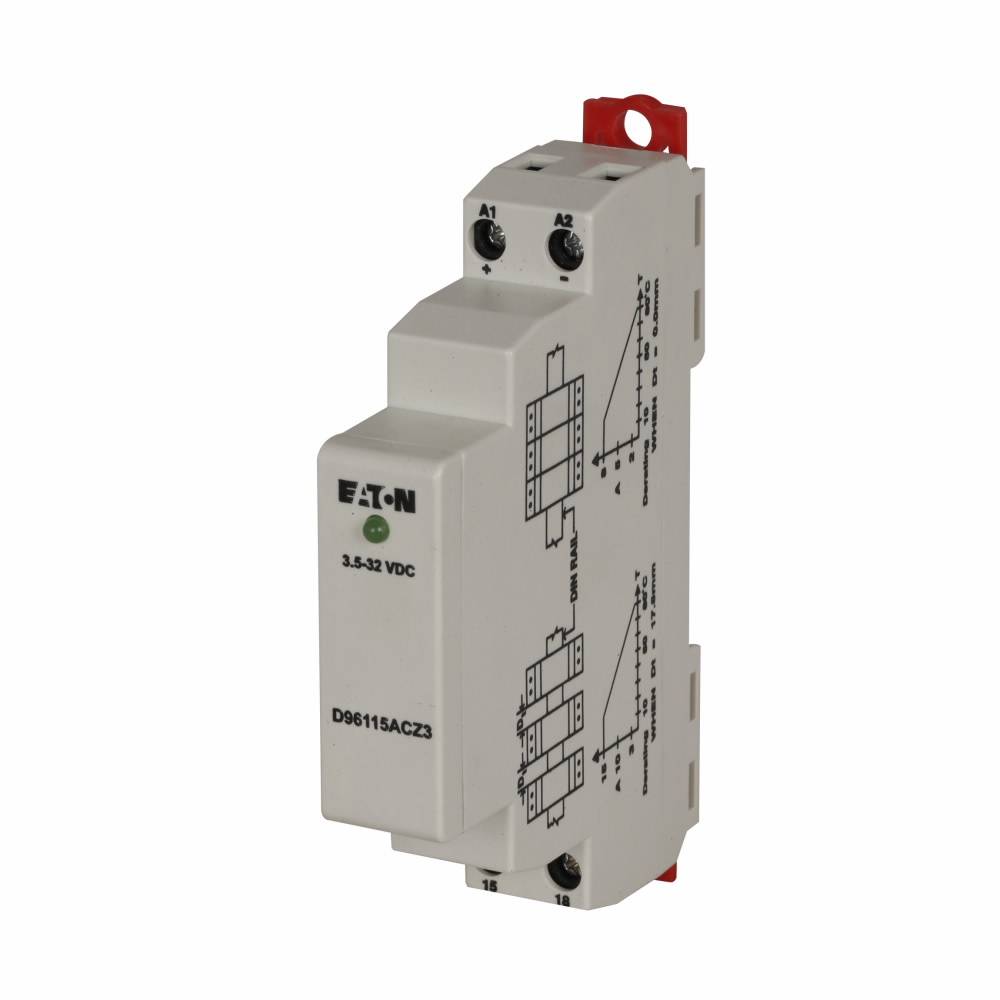

EATON D96115ACZ3 Compact DC Switch Solid State Relay, 15 A, 1NO/SPST Contact

Short Description

EATON D96 series of solid state relays is a technologically advanced set of electronic relays for tough applications and harsh environments. The compact 17.5 mm wide package with an integrated heat sink provides easy mounting in tight spaces.

EATON Solid State Relay, Compact DC Switch, Series: D96 Series, 15 A, 1NO/SPST Contact Form, 1 Pole, DIN Rail/Panel Mounting, IP20 Enclosure, -30 to 80 deg C, 3.54 in L x 0.69 in W x 2.56 in H Dimensions
MFG #: D96115ACZ3

EECO #: CHD96115ACZ3

Brand: Eaton
UPC #: 786685219226
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122333
Application
Electrical Assemblies, Panels and EOEMs Applications
Mounting Type
DIN Rail/Panel
Enclosure Type
IP20
Temperature Rating
-30 to 80
Type
Compact DC Switch
Series
D96 Series
Warranty
1 year
Dimensions
3.54 in L x 0.69 in W x 2.56 in H
Amperage Rating
15
Features
  • All solid state circuitry has no moving parts to wear
  • Integral heat sink eliminates the need for added accessories and installation
  • Flexible mounting allows DIN rail or panel mounting without additional hardware or tools
  • Isolated input and output terminals protect the system from electrical noise
  • Internal snubber circuitry protects the SSR from transients
