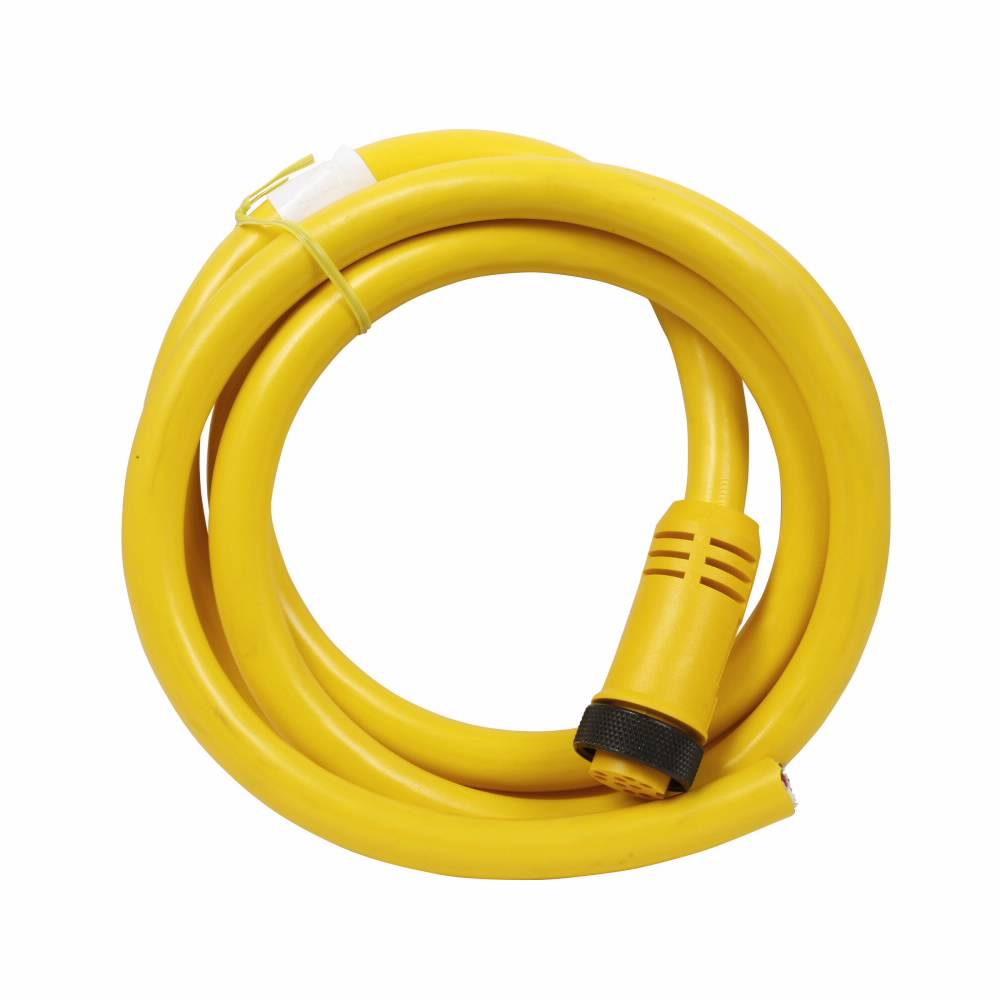

EATON CSMS9D9CY1602 Global Plus 9-Wire Standard Single End Cable Connector, 7/8-16 UN-2B 9-Pin Mini-Style Straight Female Connector, 2 m L Cable, 9 Poles, Single Keyway
Share Share Print Print
Eaton

EATON CSMS9D9CY1602 Global Plus 9-Wire Standard Single End Cable Connector, 7/8-16 UN-2B 9-Pin Mini-Style Straight Female Connector, 2 m L Cable, 9 Poles, Single Keyway

Short Description

Finish your sensor installation with high quality connector cables from EATON's electrical sector. Our global plus line is designed to give you everything you want without paying extra for the features you don't want. It includes a wide variety of single- and double-connector cables. Custom lengths are available upon request from the factory.

EATON Cable Connector, 9-Wire Standard Single End, Series: Global Plus, 9-Pin Mini-Style Straight Female Connector, 7/8-16 UN-2B Connector, Die-cast Zinc Connector, Copper/Stranded Cable, 2 m Cable Length, PVC Cable, 9 Pole, Single Keyway, 600 VAC/VDC, 7 A, Black/Blue/Green/Orange/Red/White Wire Pin, NEMA 6P NEMA Rating
MFG #: CSMS9D9CY1602

EECO #: CHCSMS9D9CY1602

Brand: Eaton
UPC #: 782116056750
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
26121636
Cable Type
Copper/Stranded
Application
Sensor, Stationary Machinery, Equipment and In Factory Applications
Cable Length
2
Connector Type
9-Pin Mini-Style Straight Female
Voltage Rating
600
Connector Material
Die Cast Zinc
Type
9-Wire Standard Single End
Series
Global Plus
Warranty
1 year
Amperage Rating
7
Features
  • Product Name: EATON CSMS9D9CY1602 Global Plus 9-Wire Standard Single End Cable Connector
  • Type: 9-Pin Mini-Style Straight Female Connector
  • Connector Size: 7/8-16 UN-2B
  • Cable Length: 2 meters
  • Wire Configuration: 9 Poles with Single Keyway
  • Material: Die-cast Zinc Connector with Copper/Stranded Cable
  • Cable Insulation: PVC Cable
  • Voltage Rating: 600 VAC/VDC
  • Current Rating: 7 A
  • Wire Colors: Black, Blue, Green, Orange, Red, White
  • NEMA Rating: NEMA 6P
