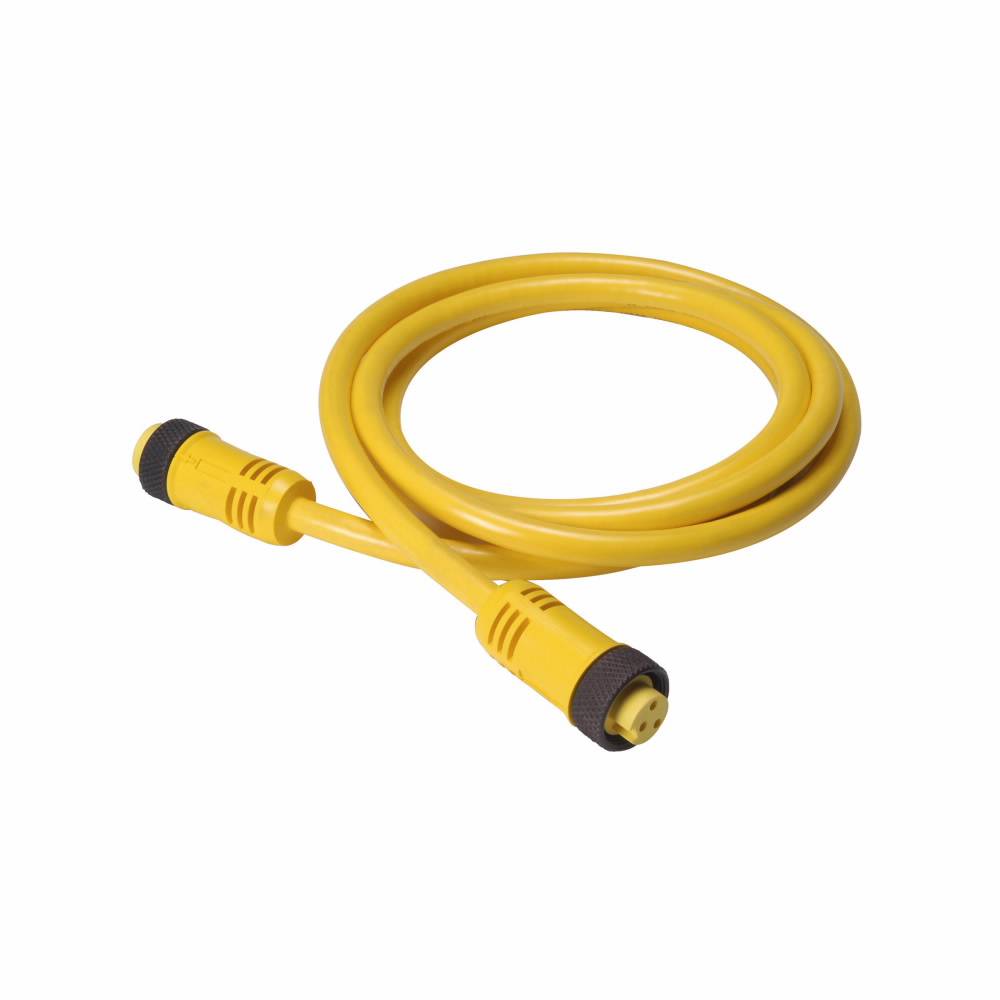

EATON CSMS3F3CY1602 Global Plus 3-Wire Standard Single End Connector Cable, 7/8-16 UN-2B 3-Pin Mini-Style Straight Female Connector, 2 m L Cable, 3 Poles, Single Keyway
Share Share Print Print
Eaton

EATON CSMS3F3CY1602 Global Plus 3-Wire Standard Single End Connector Cable, 7/8-16 UN-2B 3-Pin Mini-Style Straight Female Connector, 2 m L Cable, 3 Poles, Single Keyway

Short Description

Finish your sensor installation with high quality connector cables from EATON electrical sector. Our Global Plus line is designed to give you everything you want without paying extra for the features you don't want. It includes a wide variety of single and double connector cables. Custom lengths are available upon request from the factory.

EATON Connector Cable, 3-Wire Standard Single End, Series: Global Plus, 3-Pin Mini-Style Straight Female Connector, 7/8-16 UN-2B Connector, Die Cast Zinc Connector, Copper/Stranded Cable, 2 m Cable Length, PVC Cable, 3 Pole, Single Keyway, 600 VAC/VDC, 13 A, Black/Green/White Wire Pin, NEMA 6P NEMA Rating
MFG #: CSMS3F3CY1602

EECO #: CHCSMS3F3CY1602

Brand: Eaton
UPC #: 782116057108
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
41111926
Cable Type
Copper/Stranded
Application
Photoelectric Sensor Applications
Cable Length
2
Connector Type
3-Pin Mini-Style Straight Female
Voltage Rating
600
Connector Material
Die Cast Zinc
Type
3-Wire Standard Single End
Series
Global Plus
Warranty
1 year
Amperage Rating
13
Features
  • Type: EATON Global Plus 3-Wire Standard Single End Connector Cable
  • Connector Style: 3-Pin Mini-Style Straight Female Connector
  • Connector Size: 7/8-16 UN-2B
  • Cable Length: 2 meters
  • Wire Configuration: 3 Poles with Single Keyway
  • Material: Die Cast Zinc Connector with Copper/Stranded Cable
  • Cable Insulation: PVC
  • Voltage Rating: 600 VAC/VDC
  • Current Rating: 13 Amperes
  • Wire Colors: Black/Green/White Wire Pin
  • Environmental Rating: NEMA 6P
