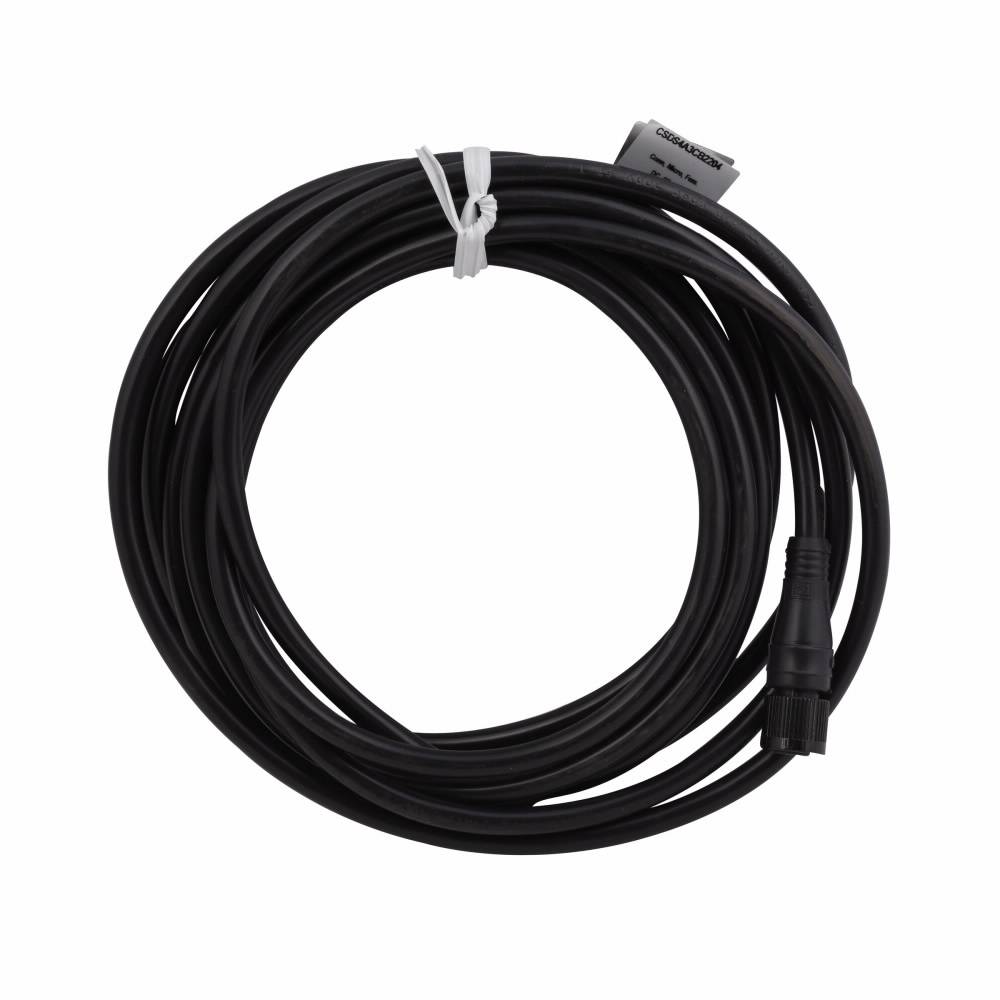

EATON CSDS4A3CB2204 Global Plus 3-Wire Standard Single End Connector Cable, M12x1 4-Pin Micro-Style Straight Female Connector, 4 m L Cable, 4 Poles, Single Keyway
Share Share Print Print
Eaton

EATON CSDS4A3CB2204 Global Plus 3-Wire Standard Single End Connector Cable, M12x1 4-Pin Micro-Style Straight Female Connector, 4 m L Cable, 4 Poles, Single Keyway

Short Description

Finish your sensor installation with high quality connector cables from EATON electrical sector. Our Global Plus line is designed to give you everything you want without paying extra for the features you don't want. It includes a wide variety of single and double connector cables. Custom lengths are available upon request from the factory.

EATON Connector Cable, 3-Wire Standard Single End, Series: Global Plus, 4-Pin Micro-Style Straight Female Connector, M12x1 Connector, Die Cast Zinc Connector, Copper/Stranded Cable, 4 m Cable Length, PVC Cable, 4 Pole, Single Keyway, 320 VDC, 4 A, Black/Blue/Brown Wire Pin
MFG #: CSDS4A3CB2204

EECO #: CHCSDS4A3CB2204

Brand: Eaton
UPC #: 782114557181
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
41111926
Cable Type
Copper/Stranded
Application
Photoelectric Sensor Applications
Cable Length
4
Connector Type
4-Pin Micro-Style Straight Female
Voltage Rating
320
Connector Material
Die Cast Zinc
Type
3-Wire Standard Single End
Series
Global Plus
Warranty
1 year
Amperage Rating
4
Features
  • Type: EATON Global Plus 3-Wire Standard Single End Connector Cable
  • Connector Style: M12x1 4-Pin Micro-Style Straight Female Connector
  • Cable Length: 4 meters
  • Number of Poles: 4 Poles
  • Keyway: Single Keyway
  • Material: Die Cast Zinc Connector with Copper/Stranded Cable
  • Cable Insulation: PVC Cable
  • Voltage Rating: 320 VDC
  • Current Rating: 4 A
  • Wire Color: Black/Blue/Brown Wire Pin
