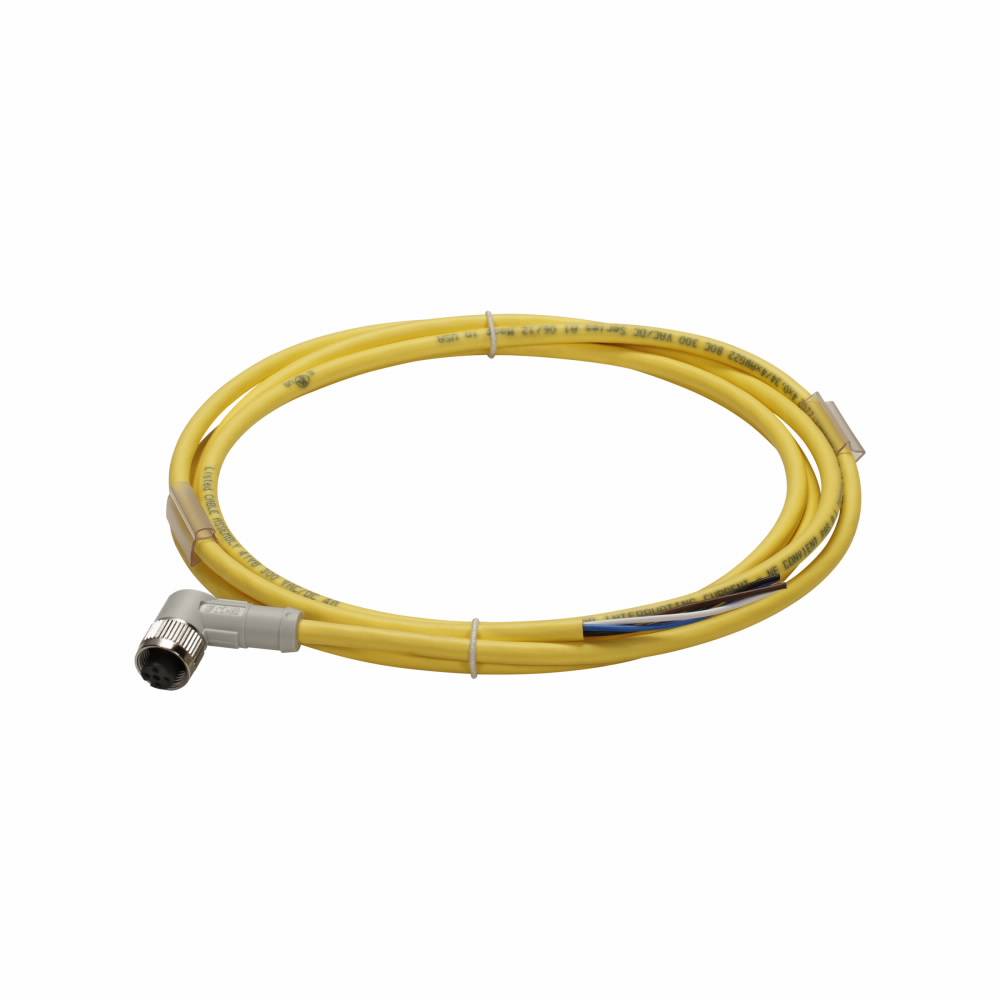

EATON CSDR4A4RY2202 Global Plus 4-Wire Standard Single End Connector Cable, M12x1 4-Pin Micro-Style Female Connector, 2 m L Cable, 4 Poles, Single Keyway
Share Share Print Print
Eaton

EATON CSDR4A4RY2202 Global Plus 4-Wire Standard Single End Connector Cable, M12x1 4-Pin Micro-Style Female Connector, 2 m L Cable, 4 Poles, Single Keyway

Short Description

Finish your sensor installation with high quality connector cables from EATON electrical sector. Our Global Plus line is designed to give you everything you want without paying extra for the features you don't want. It includes a wide variety of single and double connector cables. Custom lengths are available upon request from the factory.

EATON Connector Cable, 4-Wire Standard Single End, Series: Global Plus, 4-Pin Micro-Style Female Connector, M12x1 Connector, Die Cast Zinc Connector, Copper/Stranded Cable, 2 m Cable Length, Plastic Cable, 4 Pole, Single Keyway, 320 VDC, 4 A, 90 deg Angle, Blue/Black/Brown/White Wire Pin
MFG #: CSDR4A4RY2202

EECO #: CHCSDR4A4RY2202

Brand: Eaton
UPC #: 782116143566
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
41111926
Cable Type
Copper/Stranded
Application
Photoelectric Sensor Applications
Cable Length
2
Connector Type
4-Pin Micro-Style Female
Voltage Rating
320
Connector Material
Die Cast Zinc
Type
4-Wire Standard Single End
Angle
90
Series
Global Plus
Warranty
1 year
Amperage Rating
4
Features
  • Product Name: EATON CSDR4A4RY2202 Global Plus 4-Wire Standard Single End Connector Cable
  • Connector Type: M12x1 4-Pin Micro-Style Female Connector
  • Cable Length: 2 meters
  • Wire Configuration: 4 Poles, Single Keyway
  • Material: Die Cast Zinc Connector, Copper/Stranded Cable, Plastic Cable
  • Voltage Rating: 320 VDC
  • Current Rating: 4 A
  • Angle: 90 degrees
  • Wire Color Coding: Blue, Black, Brown, White
