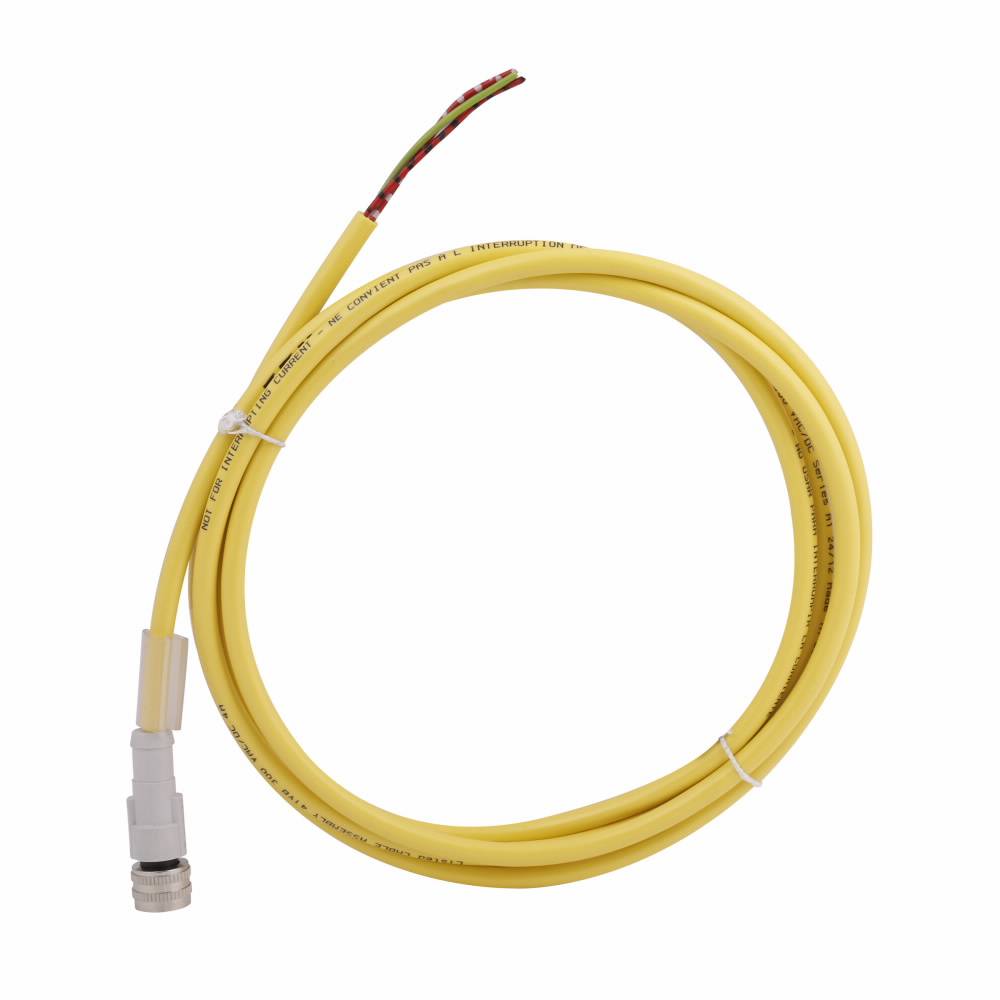

EATON CSAS3F3CY1802 Global Plus 3-Wire Standard Single End Cable Connector, 1/2-20 UNF-2B 3-Pin Micro-Style Straight Female Connector, 2 m L Cable, 3 Poles, Dual Keyway
Share Share Print Print
Eaton

EATON CSAS3F3CY1802 Global Plus 3-Wire Standard Single End Cable Connector, 1/2-20 UNF-2B 3-Pin Micro-Style Straight Female Connector, 2 m L Cable, 3 Poles, Dual Keyway

Short Description

Finish your sensor installation with high quality connector cables from EATON's electrical sector. Our global plus line is designed to give you everything you want without paying extra for the features you don't want. It includes a wide variety of single- and double-connector cables. Custom lengths are available upon request from the factory.

EATON Cable Connector, 3-Wire Standard Single End, Series: Global Plus, 3-Pin Micro-Style Straight Female Connector, 1/2-20 UNF-2B Connector, Die-cast Zinc Connector, Copper/Stranded Cable, 2 m Cable Length, PVC Cable, 3 Pole, Dual Keyway, 320 VAC, 4 A, Black/Green/Red/White Wire Pin
MFG #: CSAS3F3CY1802

EECO #: CHCSAS3F3CY1802

Brand: Eaton
UPC #: 782116143269
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
26121636
Cable Type
Copper/Stranded
Application
Stationary Machinery, Equipment and In Factory Applications
Cable Length
2
Connector Type
3-Pin Micro-Style Straight Female
Voltage Rating
320
Connector Material
Die Cast Zinc
Type
3-Wire Standard Single End
Series
Global Plus
Warranty
1 year
Amperage Rating
4
Features
  • Product Name: EATON CSAS3F3CY1802 Global Plus 3-Wire Standard Single End Cable Connector
  • Connector Type: 3-Pin Micro-Style Straight Female Connector
  • Connector Size: 1/2-20 UNF-2B
  • Material: Die-cast Zinc Connector with Copper/Stranded Cable
  • Cable Length: 2 meters
  • Cable Material: PVC
  • Number of Poles: 3 Pole
  • Keyway Design: Dual Keyway for secure connection
  • Voltage Rating: 320 VAC
  • Current Rating: 4 A
  • Wire Color Coding: Black/Green/Red/White Wire Pin
