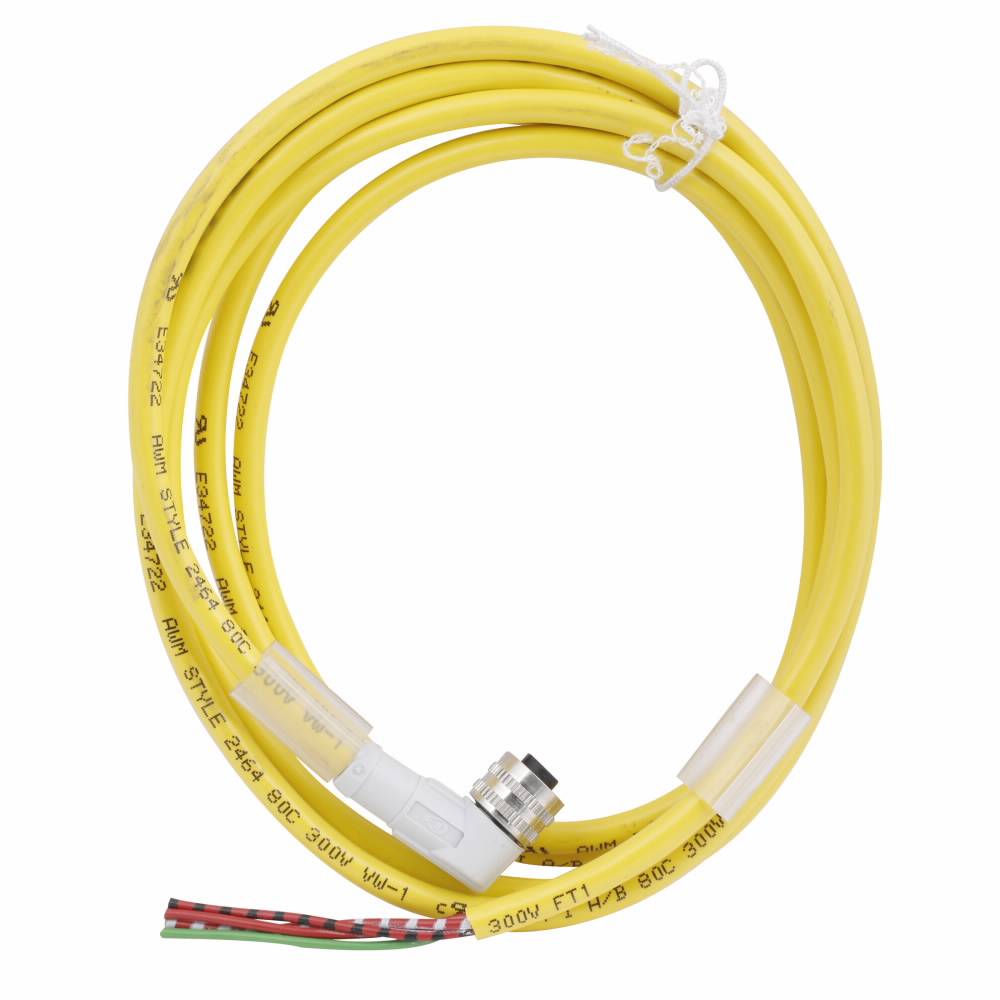

EATON CSAR4F4CY1802 Global Plus 4-Wire Standard Single End Connector Cable, 1/2-20 UNF-2B 4-Pin Micro-Style Female Connector, 2 m L Cable, 4 Poles, Dual Keyway
Share Share Print Print
Eaton

EATON CSAR4F4CY1802 Global Plus 4-Wire Standard Single End Connector Cable, 1/2-20 UNF-2B 4-Pin Micro-Style Female Connector, 2 m L Cable, 4 Poles, Dual Keyway

Short Description

Finish your sensor installation with high quality connector cables from EATON electrical sector. Our Global Plus line is designed to give you everything you want without paying extra for the features you don't want. It includes a wide variety of single and double connector cables. Custom lengths are available upon request from the factory.

EATON Connector Cable, 4-Wire Standard Single End, Series: Global Plus, 4-Pin Micro-Style Female Connector, 1/2-20 UNF-2B Connector, Die Cast Zinc Connector, Copper/Stranded Cable, 2 m Cable Length, PVC Cable, 4 Pole, Dual Keyway, 320 VAC, 4 A, 90 deg Angle, Black/Green/Red/White Wire Pin
MFG #: CSAR4F4CY1802

EECO #: CHCSAR4F4CY1802

Brand: Eaton
UPC #: 782116143351
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
41111926
Cable Type
Copper/Stranded
Application
Photoelectric Sensor Applications
Cable Length
2
Connector Type
4-Pin Micro-Style Female
Voltage Rating
320
Connector Material
Die Cast Zinc
Type
4-Wire Standard Single End
Angle
90
Series
Global Plus
Warranty
1 year
Amperage Rating
4
Features
  • Product Name: EATON CSAR4F4CY1802 Global Plus Connector Cable
  • Type: 4-Wire Standard Single End Connector
  • Connector Style: 4-Pin Micro-Style Female Connector
  • Thread Specification: 1/2-20 UNF-2B
  • Material: Die Cast Zinc Connector with Copper/Stranded Cable
  • Cable Length: 2 meters
  • Cable Insulation: PVC
  • Number of Poles: 4 Pole
  • Keyway Type: Dual Keyway
  • Voltage Rating: 320 VAC
  • Current Rating: 4 A
  • Angle: 90 degrees
  • Wire Color: Black/Green/Red/White Wire Pin
