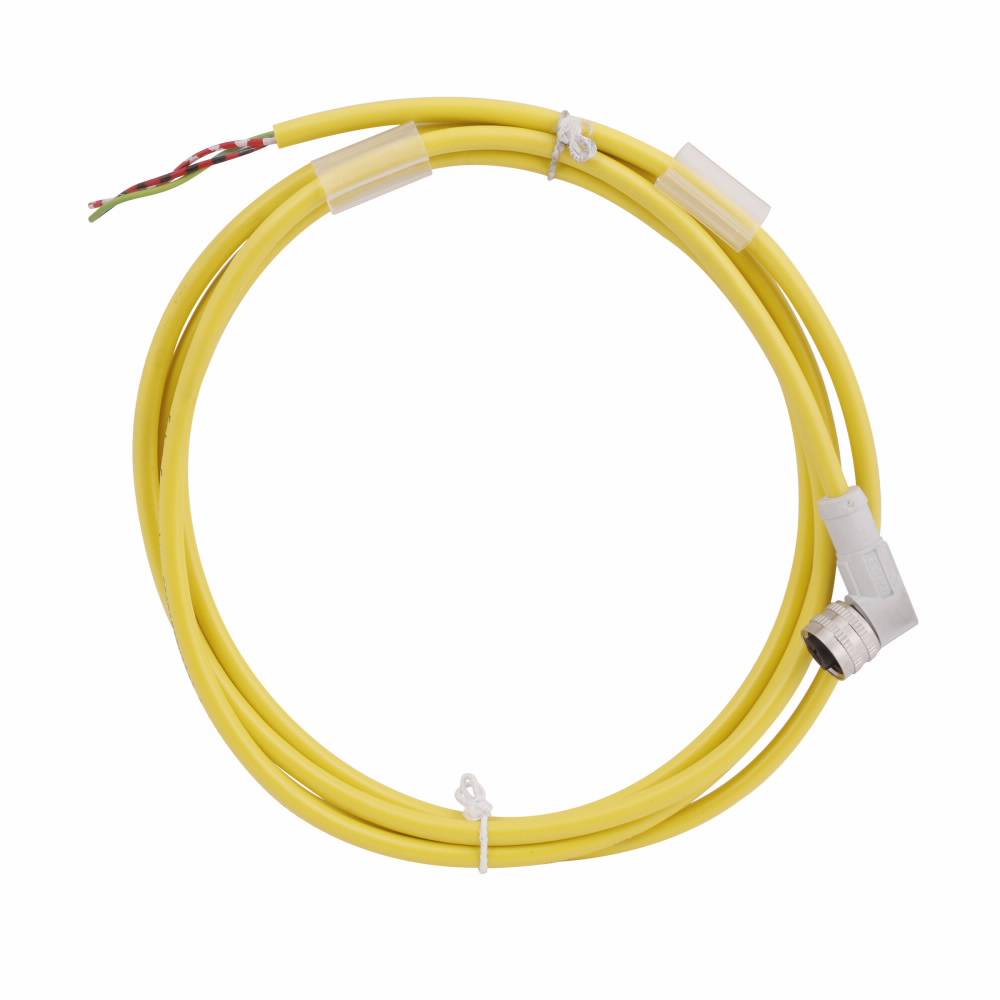

EATON CSAR3F3CY2202 Global Plus 3-Wire Single End Cable Connector, 1/2-20 UNF 3-Pin Dual Key Micro-Style Female Connector, 6-1/2 ft L Cable, 3 Poles
Share Share Print Print
Eaton

EATON CSAR3F3CY2202 Global Plus 3-Wire Single End Cable Connector, 1/2-20 UNF 3-Pin Dual Key Micro-Style Female Connector, 6-1/2 ft L Cable, 3 Poles

Short Description

Finish your sensor installation with high quality connector cables from EATON's electrical sector. Our global plus line is designed to give you everything you want without paying extra for the features you don't want. It includes a wide variety of single- and double-connector cables. Custom lengths are available upon request from the factory.

EATON Cable Connector, 3-Wire Single End, Series: Global Plus, 3-Pin Dual Key Micro-Style Female Connector, 1/2-20 UNF Connector, Copper/Stranded Cable, 6-1/2 ft Cable Length, PVC Cable, 3 Pole, 300 VAC/VDC, 4 A, Right Angle, Black/Green/Red/White Wire Pin, NEMA IP67 NEMA Rating
MFG #: CSAR3F3CY2202

EECO #: CHCSAR3F3CY2202

Brand: Eaton
UPC #: 782116056927
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
26121636
Cable Type
Copper/Stranded
Application
Stationary Machinery, Equipment and In Factory Applications
Cable Length
6-1/2
Connector Type
3-Pin Dual Key Micro-Style Female
Voltage Rating
300
Type
3-Wire Single End
Angle
Right
Series
Global Plus
Warranty
1 year
Amperage Rating
4
Features
  • 22 AWG wire size
  • -13 to 176 deg F operating temperature
  • 0.58 in L x 1 in W x 78.72 in H dimension
