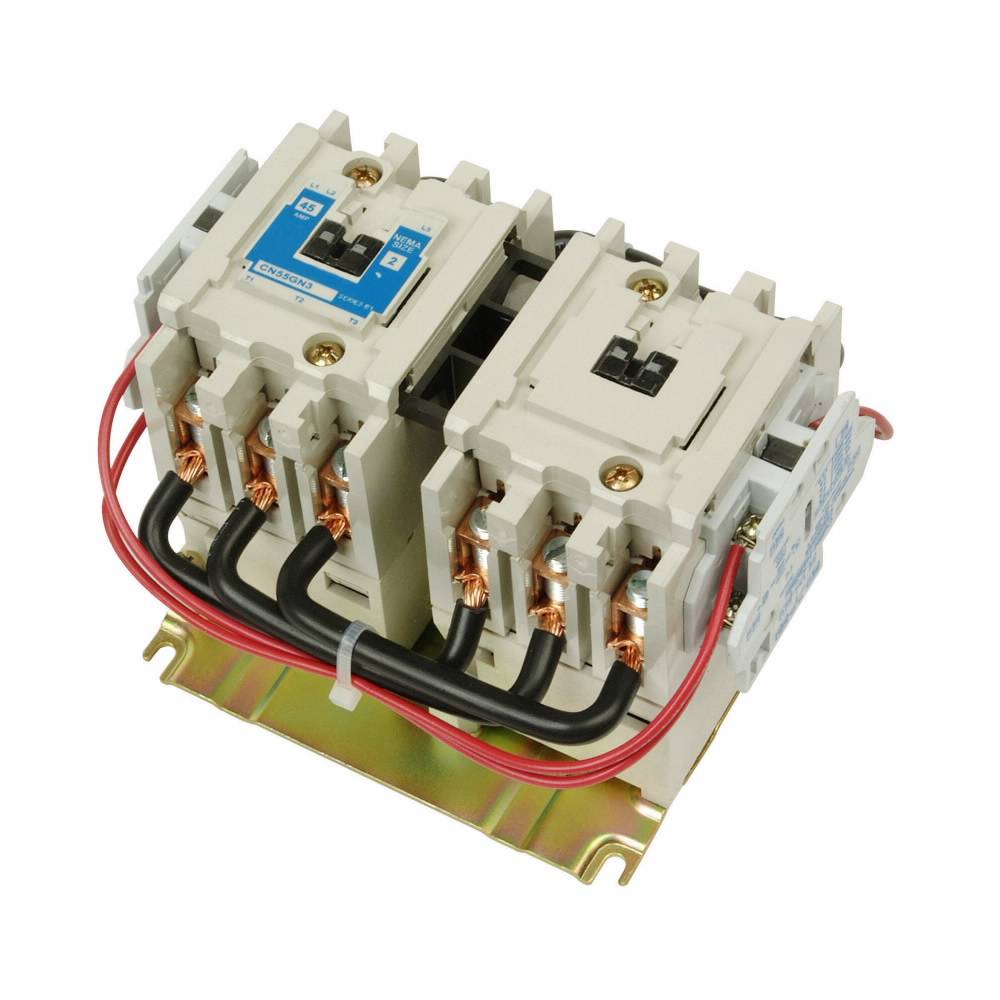

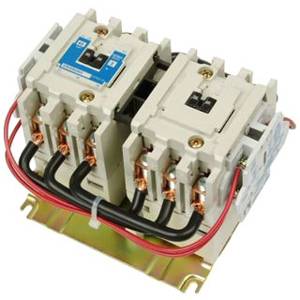

EATON CN55GN3AB Freedom 1/3-Phase G-Frame Reversing NEMA Contactor With Steel Mounting Plate, 110/120 VAC V Coil, 45 A, 1NO Contact, 3 Poles

Short Description

EATON Freedom Series™ adjustable bi-metallic ambient compensated contactors are designed for use with CE or CN non-reversing and reversing contactors. They have interchangeable heater packs and are available in four sizes for overload protection up to 900 hp, reducing the number of different contactor/overload relay combinations that have to be stocked. They also feature a full line of snap-on accessories common to both IEC and NEMA devices.

EATON NEMA Contactor, 1/3-Phase G-Frame Reversing, Series: Freedom, 110/120 VAC Coil, 45 A Maximum Load Current, 3 hp, 7-1/2 hp, 10 hp, 15 hp, 25 hp Coil, 3 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, 1 Auxiliary Contact, SZ 2 Size, Screw Terminal, Open Enclosure, 3000000 Cycles Operating Cycles, -5 to 65 deg C Operating, Panel Mounting, 7.7 in L x 7.3 in W x 6.5 in H Dimensions

MFG #: CN55GN3AB

EECO #: CHCN55GN3AB

Brand: Eaton
UPC #: 782113973586
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121529
Application
For reversing 1 or 3-ph motors in applications where running overcurrent protection is either not required or is provided separately and for power control equipment
Coil Voltage
110/120
Mounting Type
Panel
Terminal Type
Screw
Enclosure Type
Open
Frequency Rating
50/60
Contact Configuration
1NO
Operating Temperature
-5 to 65
Size
SZ 2
Type
1/3-Phase G-Frame Reversing
Series
Freedom
Warranty
1 year
Dimensions
7.7 in L x 7.3 in W x 6.5 in H
Maximum Load Current
45
Features
  • Horizontal or vertical mounting on upright pane allows for application-freedom
  • Screw type power terminals have captive, backed out self lifting pressure plates with screws result in reduced wiring time
  • Accessible terminals allow for ease of use and are convenient for simple wiring
  • Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout
  • Fingerproof shields are available to prevent electrical shock
  • No overload relay
  • 3 hp at 115 VAC, 7-1/2 hp at 230 VAC, 10 hp at 208 VAC, 15 hp at 240 VAC and 25 hp at 480/600 VAC coil power rating
CUTHMRE04436_V5T2_4_V5T2_5
MOELLEE43128_1_2
IDW_DOCUMENT_d6740d0b161ef6e66d127a61e51449b3c365cb1ffde4fb46a640d05591b5b69f
IDW_DOCUMENT_5b608f2e4d0302ff6fe71d80ca4d481df5802641dd3904649a4e947bd48b5e92
IDW_DOCUMENT_7dc3ad20cb92b867f11dcd281c8422a4ee5531976a9c11864caabd9b7a8b9bcd
Qty Unit price
Ea
1 $3,157.75

Slqt
1 $3,157.75

Stpk
1 $3,157.75

Unit
1 $3,157.75
