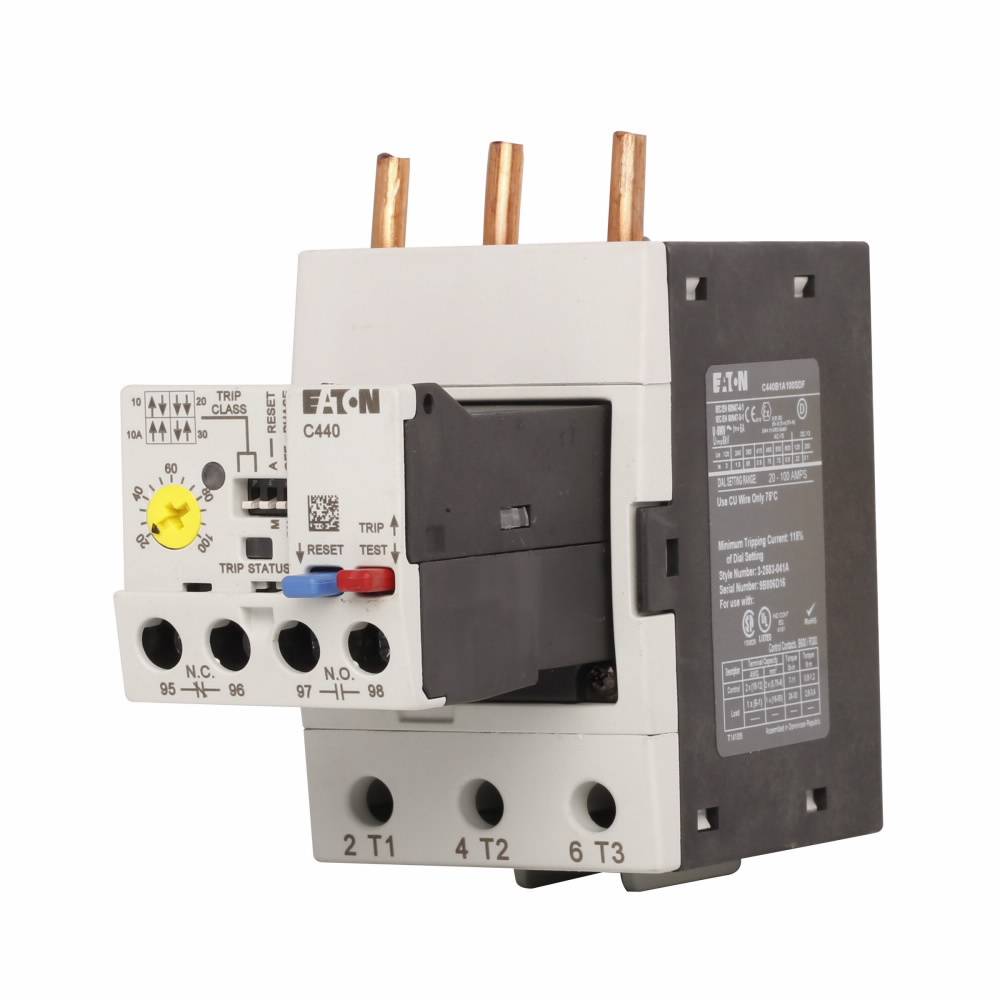

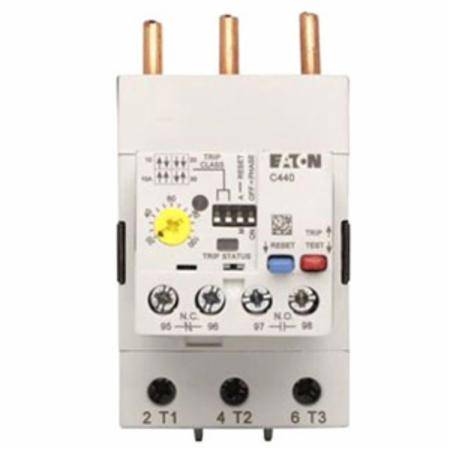

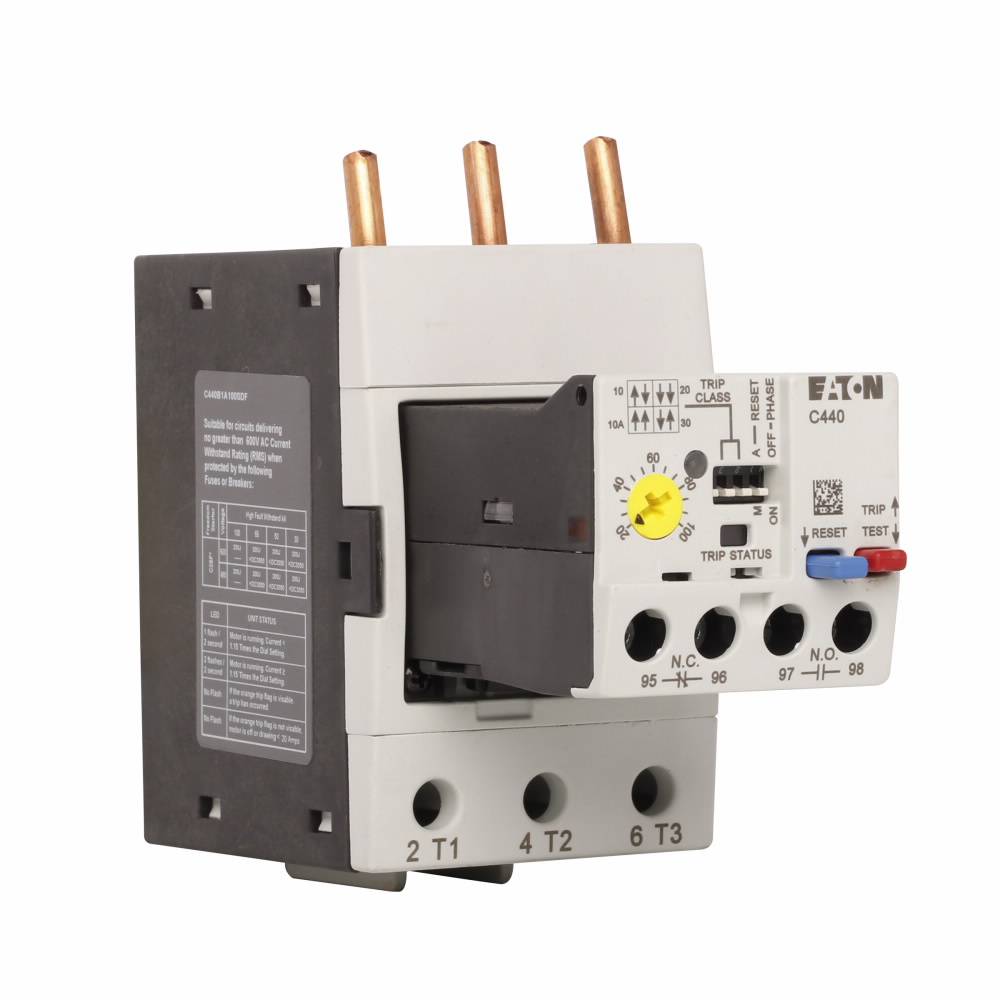

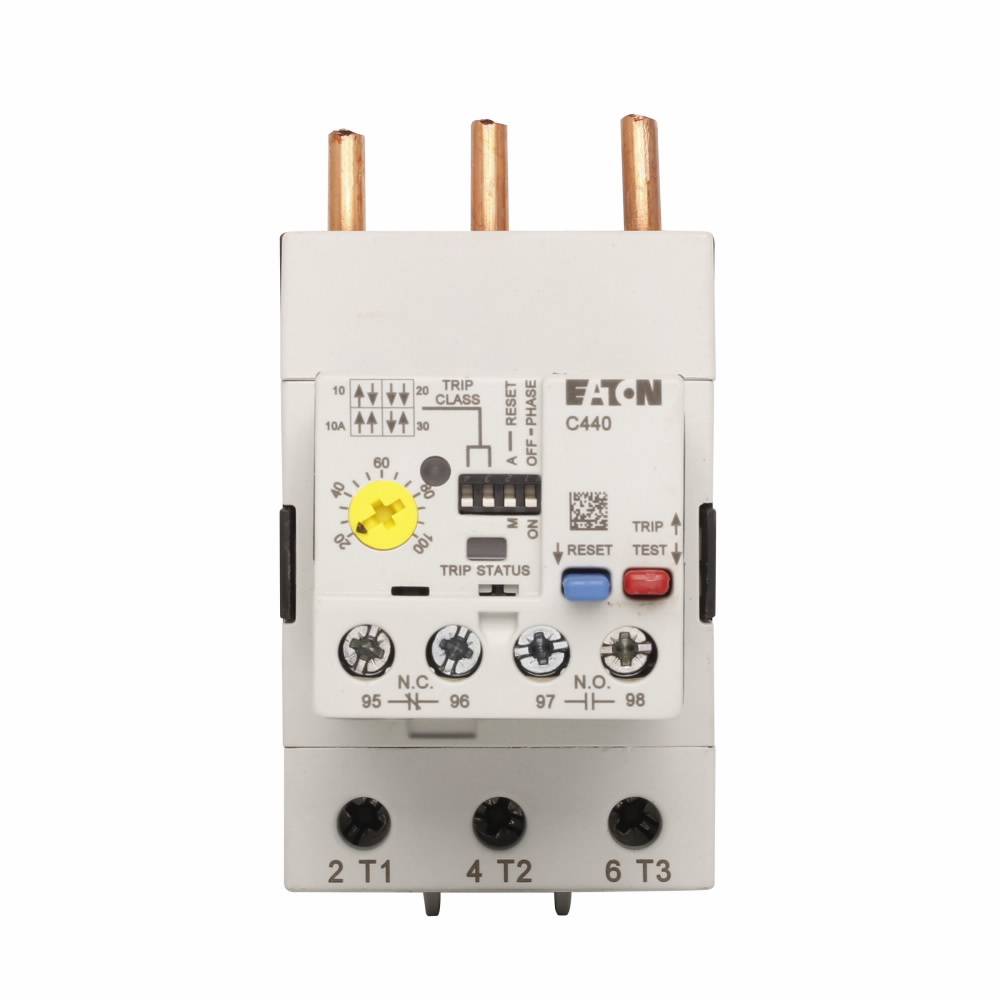

EATON C440B1A100SF3 Freedom Class 10/20/30 Standard Electronic Overload Relay, 20/100 A

Short Description

EATON new solid state overload relay (SSOL) is the most compact, high featured, economical product in its class. Designed on a global platform, the new SSOL covers the entire power control spectrum including NEMA, IEC and DP contactors. The NEMA and DP versions are offered with the C440 designation while the IEC offering includes the XTOE version. The electronic design provides reliable, accurate and value driven protection and communications capabilities in a single compact device. It is the flexible choice for any application requiring easy to use, reliable protection.

EATON Electronic Overload Relay, Class 10/20/30 Standard, Series: Freedom C440, 20/100 A, Surface Mounting, NEMA 3 Enclosure, 5.52 in L x 2.21 in W x 4.13 in H Dimensions
MFG #: C440B1A100SF3

EECO #: CHC440B1A100SF3

Brand: Eaton
UPC #: 786685411941
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39122330
Approval
UL, CSA, CE
Application
Contactors, Motor, Power Control Equipment, Commercial, Institutional Buildings, Structures - Other Applications
Mounting Type
Surface
Contact Rating
690 Volt AC at 50/60 Hertz 5 Amp
Enclosure Type
NEMA 3
Mounting
Contactor
Enclosure
IP20
Type
Class 10/20/30 Standard
Series
Freedom C440
Motor FLA
20 to 100 Amp
NEMA Size
3
Dimensions
5.52 in L x 2.21 in W x 4.13 in H
Amperage Rating
20/100
Features
  • Reliable, accurate, solid state motor protection
  • Easy to select, install and maintain
  • Compact size and flexible, intelligent design
  • Selectable auto/manual reset after trip
  • 55 mm frame
