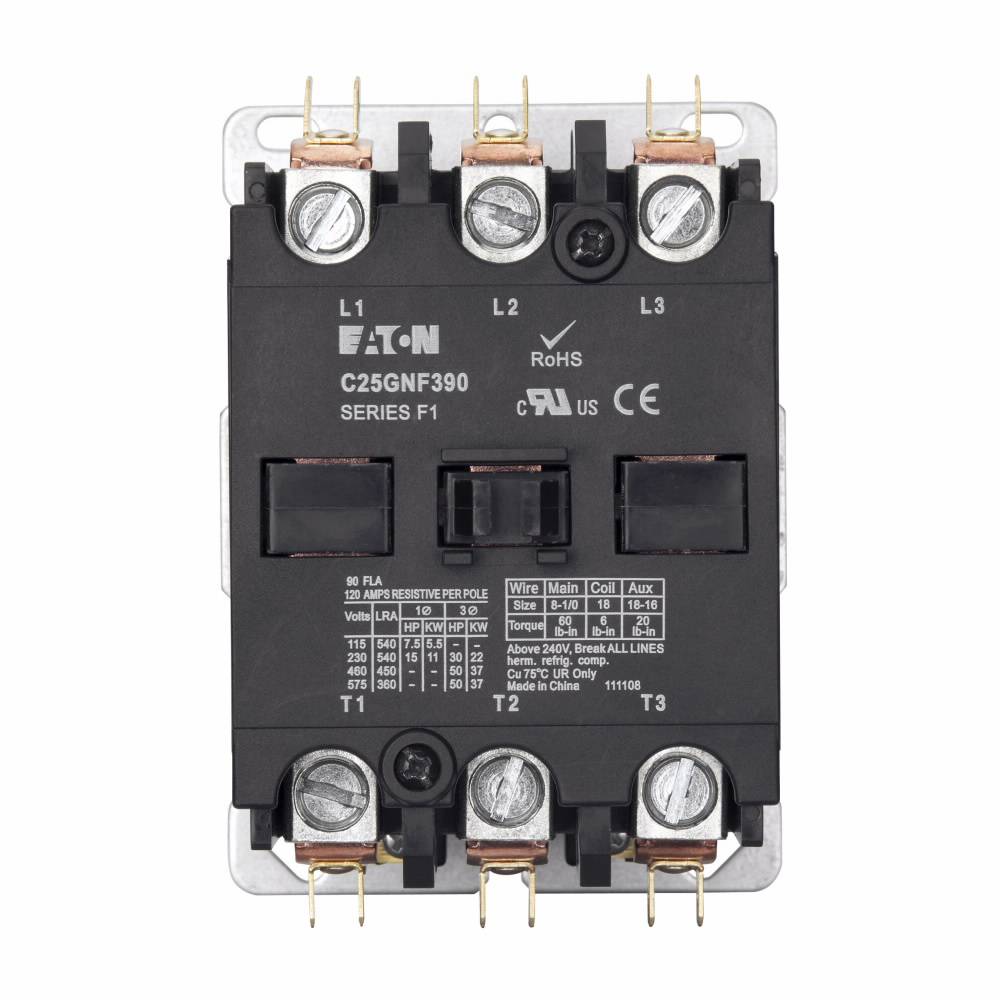

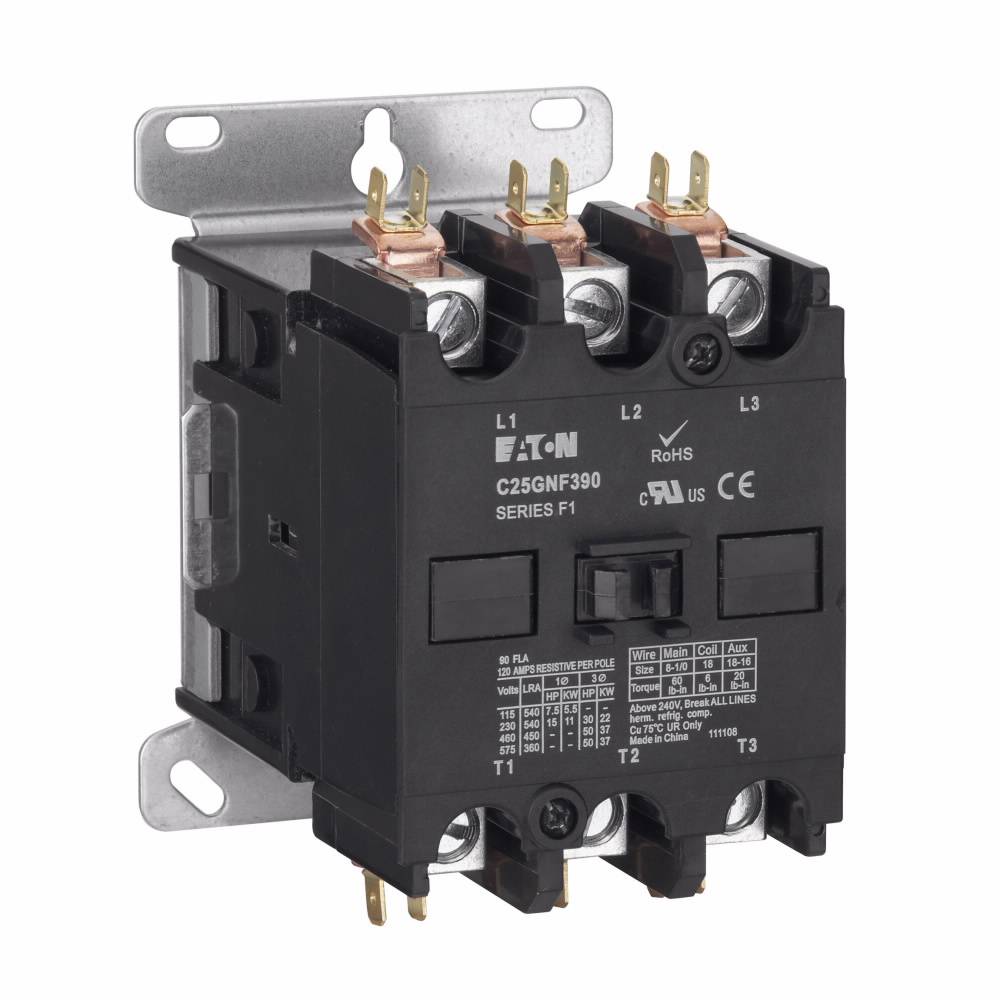

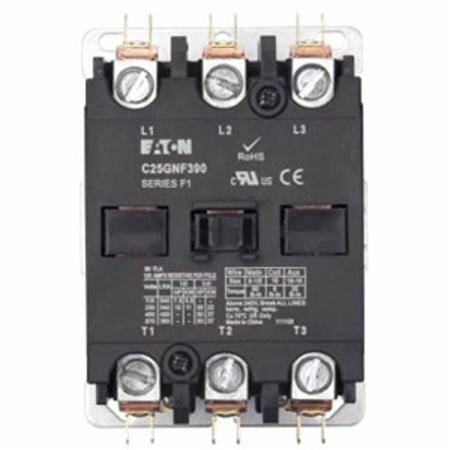

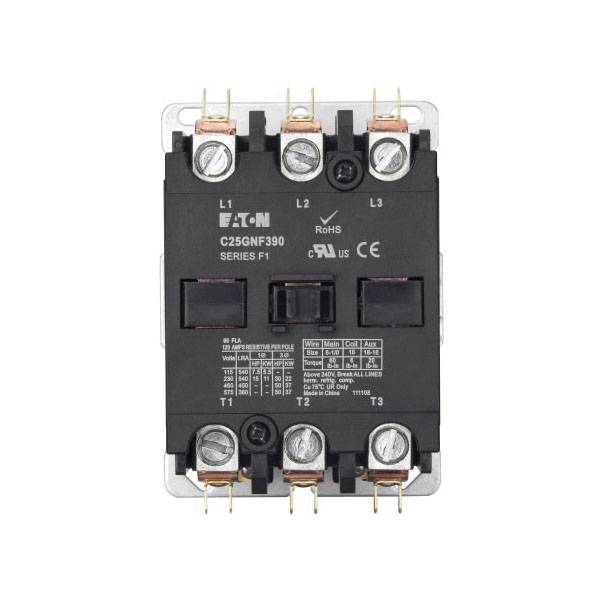

EATON C25GNF390T Non-Reversing Definite Purpose AC Contactor, 24 VAC V Coil, 90 A, 3 Poles

Short Description

Definite purpose contactors and starters are electrically operated switching devices specifically designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry.

EATON Definite Purpose AC Contactor, Non-Reversing, 24 VAC Coil, 90 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, Double Break Contact, Quick-Connect (Side by Side) Connection, Box Lug (Posi Drive Setscrew) Terminal, Open Enclosure, 150 deg F Ambient Operating, Surface Mounting, 3.97 x 2.63 x 3.75 in Dimensions

MFG #: C25GNF390T

EECO #: CHC25GNF390T

Brand: Eaton
UPC #: 782114100196
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121521
Approval
UL, CSA, CE
Application
Electrical Assemblies, Panels and EOEMs Applications
Coil Voltage
24
Contact Type
Double Break
Mounting Type
Surface
Terminal Type
Box Lug (Posidrive Setscrew)
Enclosure Type
Open
Connection Type
Quick-Connect (Side by Side)
Number Of Poles
3
Frequency Rating
50/60
Enclosure
Open
Power Rating/Voltage
15 HP at 230 Volt 1-Phase, 20/50 HP at 230/460 Volt 3-Phase
Construction Standard
IEC 60947-4-1, EN 60947-4-1
Operating Temperature
150 deg F Ambient
Size
Frame G
Type
Non-Reversing
Includes
Mounting Plate
Warranty
1 year
Dimensions
3.97 x 2.63 x 3.75
Inductive Ampere
90 Amp
Resistive Ampere
120 Amp
Maximum Load Current
90
Features
  • The universal mounting plate eliminates changing hole patterns when replacing competitive devices
  • Variety of terminal styles allows product to meet all specific application needs
  • Snap-on accessories require no tools for hassle-free installation
  • Quick coil changing ability allows for easy maintenance
  • Non-position sensitive mounting allows for fast, convenient set up
  • Shrouded or fingerproof terminals to reduce possibility of electrical shock
  • Open with metal mounting plate
EATCORE00131_V5T4_2_V5T4_3_V5T4_8_V5T4_10_V5T4_16
EATCORE19850_1
IDW_DOCUMENT_d6740d0b161ef6e66d127a61e51449b3c365cb1ffde4fb46a640d05591b5b69f
Qty Unit price
Ea
1 $963.64

Slqt
1 $963.64

Stpk
1 $963.64

Unit
1 $963.64
