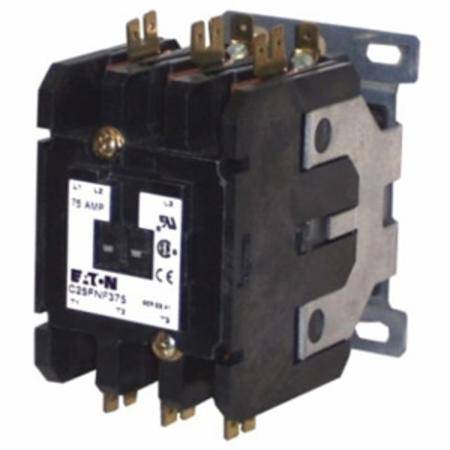

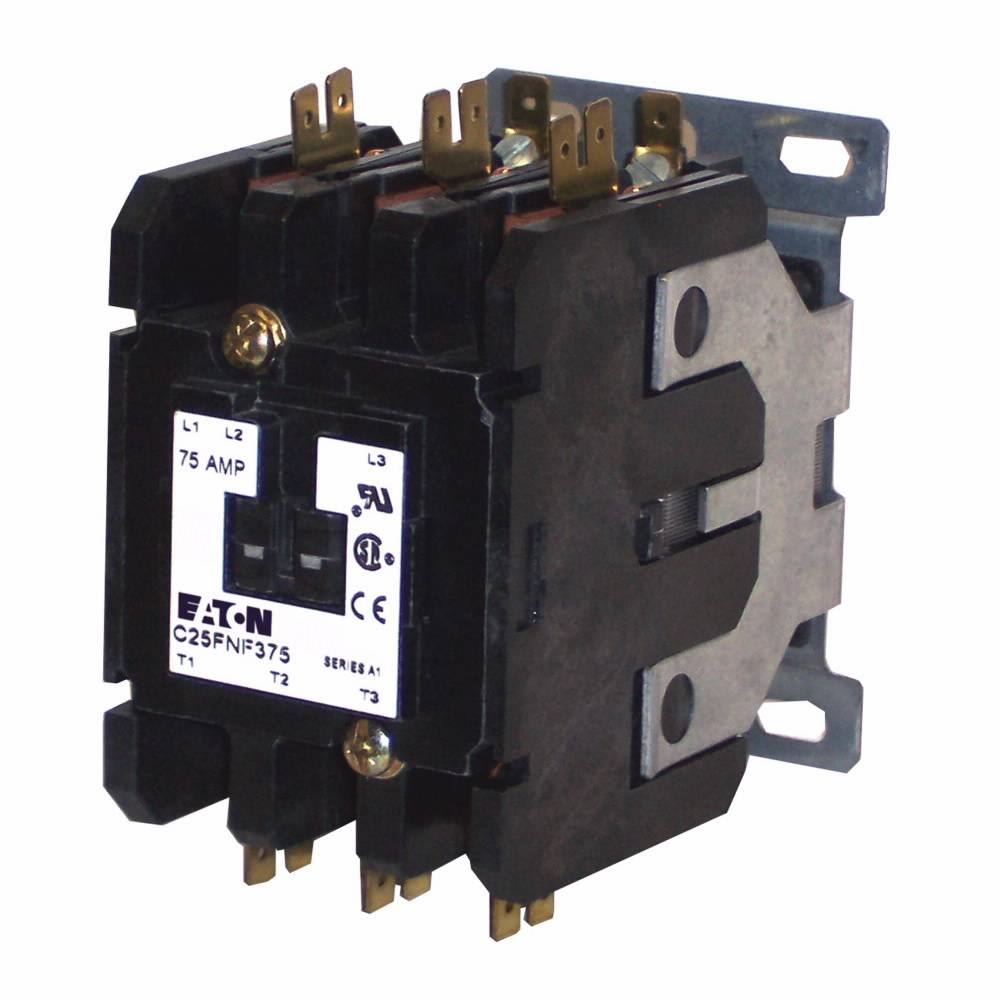

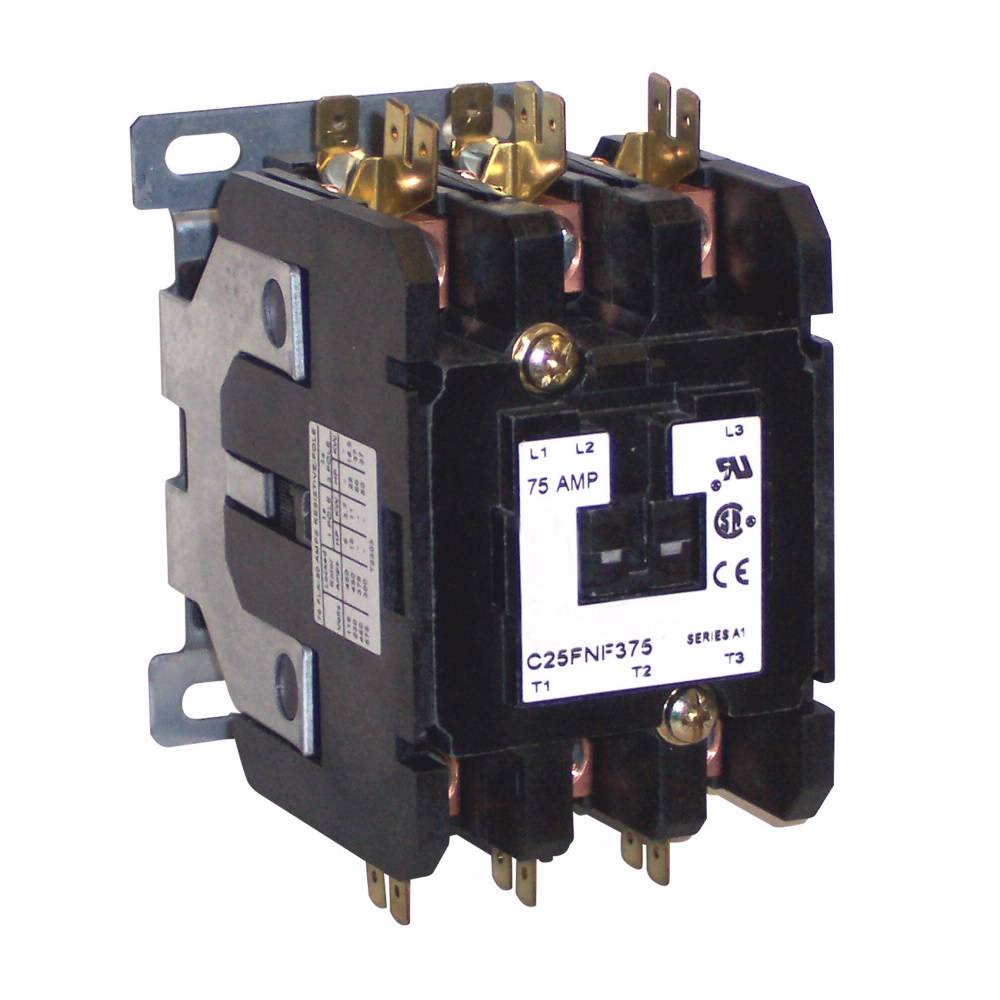

EATON C25FNF375T Definite Purpose Contactor, 24 VAC V Coil, 75 A Inductive/90 A Resistive, 3 Poles
EATON C25FNF375T Definite Purpose Contactor, 24 VAC V Coil, 75 A Inductive/90 A Resistive, 3 Poles
EATON C25FNF375T Definite Purpose Contactor, 24 VAC V Coil, 75 A Inductive/90 A Resistive, 3 Poles
EATON C25FNF375T Definite Purpose Contactor, 24 VAC V Coil, 75 A Inductive/90 A Resistive, 3 Poles
EATON C25FNF375T Definite Purpose Contactor, 24 VAC V Coil, 75 A Inductive/90 A Resistive, 3 Poles
EATON C25FNF375T Definite Purpose Contactor, 24 VAC V Coil, 75 A Inductive/90 A Resistive, 3 Poles
EATON C25FNF375T Definite Purpose Contactor, 24 VAC V Coil, 75 A Inductive/90 A Resistive, 3 Poles
EATON C25FNF375T Definite Purpose Contactor, 24 VAC V Coil, 75 A Inductive/90 A Resistive, 3 Poles
Share Share Print Print
Eaton

EATON C25FNF375T Definite Purpose Contactor, 24 VAC V Coil, 75 A Inductive/90 A Resistive, 3 Poles

Short Description

EATON offers the most complete line of definite purpose (DP) contactors in the industry. Designed for heating, ventilation, air conditioning and refrigeration (HVACR) applications, EATON DP contactors are designed to handle the most challenging installations.

EATON Definite Purpose Contactor, 24 VAC Coil, 75 A Inductive/90 A Resistive Maximum Load Current, 3 Pole, 50/60 Hz Frequency, Non-Reversing Contact, Box Lug Connection, Quick-Connect Terminal, Open Enclosure, 3.97 in L x 2.63 in W x 3.75 in H Dimensions

MFG #: C25FNF375T

EECO #: CHC25FNF375T

Brand: Eaton
UPC #: 782114117477
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121529
Approval
UL, CSA, CE
Application
Motor and Power Control Equipment Applications
Coil Voltage
24
Contact Type
Non-Reversing
Terminal Type
Quick-Connect
Enclosure Type
Open
Connection Type
Box Lug
Number Of Poles
3
Frequency Rating
50/60
Enclosure
Open
Construction Standard
IEC 60947-4-1, EN 60947-4-1
Size
Frame F
Type
Non-Reversing
Dimensions
3.97 in L x 2.63 in W x 3.75 in H
Inductive Ampere
75 amp
Resistive Ampere
90 amp
Maximum Load Current
75 A Inductive/90 A Resistive
Features
  • Completely encased design impervious to dust and other environmental elements
  • 1, 2, 3 and 4-pole configurations
  • Open components and enclosed designs
  • Resistive load rating per pole
CUTHMRE04515_V5T4_2_V5T4_3_V5T4_8_V5T4_10_V5T4_59
EATCORE19842_1
IDW_DOCUMENT_d6740d0b161ef6e66d127a61e51449b3c365cb1ffde4fb46a640d05591b5b69f
Qty Unit price
Ea
1 $783.34

Slqt
1 $783.34

Stpk
1 $783.34

Unit
1 $783.34
everwhere
EATON C25FNF375T Definite Purpose Contactor, 24 VAC V Coil, 75 A Inductive/90 A Resistive, 3 Poles
