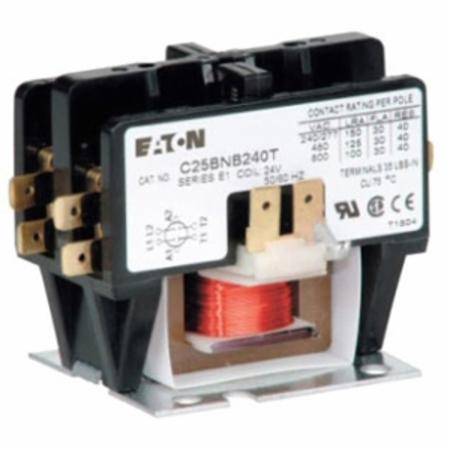

EATON C25BNB240B Compact Definite Purpose Contactor With Metal Mounting Plate, 208/240 VAC V Coil, 40/50 A, 2 Poles

Short Description

Definite purpose starters are electrically operated switching devices specifically designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry. They are controlled by automatic thermostat control or manual pushbutton interfaces.

EATON Definite Purpose Contactor, Compact, 208/240 VAC Coil, 40/50 A Maximum Load Current, 2 Pole, 50/60 Hz Frequency, Double Break/Non-Reversing Contact, Quick-Connect Connection, Binding Head Screw Terminal, Open Enclosure, -13 to 158 deg F Operating, Surface Mounting, 3.19 in L x 2.32 in W x 1.97 in H Dimensions

MFG #: C25BNB240B

EECO #: CHC25BNB240B

Brand: Eaton
UPC #: 786685116082
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121529
Approval
UL, CSA, CE
Application
Electrical Assemblies, Panels, OEMs, Heating, Ventilation, Air Conditioning, Refrigeration (HVACR), Motor, Power Control Equipment Applications
Coil Voltage
208/240
Contact Type
Double Break/Non-Reversing
Mounting Type
Surface
Terminal Type
Binding Head Screw
Enclosure Type
Open
Connection Type
Quick-Connect
Number Of Poles
2
Frequency Rating
50/60
Enclosure
Open
Power Rating/Voltage
3 HP at 115 Volt AC, 7-1/2 HP at 230 Volt AC
Construction Standard
IEC 60947-4-1, EN 60947-4-1
Operating Temperature
-13 to 158
Size
Frame B
Type
Compact
Warranty
1 year
Dimensions
3.19 in L x 2.32 in W x 1.97 in H
Inductive Ampere
40 Amp
Resistive Ampere
50 Amp
Maximum Load Current
40/50
Features
  • The universal mounting plate eliminates changing hole patterns when replacing competitive devices
  • Variety of terminal styles allows product to meet all specific application needs
  • Snap-on accessories require no tools for hassle-free installation
  • Quick coil changing ability allows for easy maintenance
  • Non-position sensitive mounting allows for fast, convenient setup
  • Shrouded or fingerproof terminals to reduce possibility of electrical shock
  • Open with metal mounting plate
  • 40 A Inductive/50 a resistive
