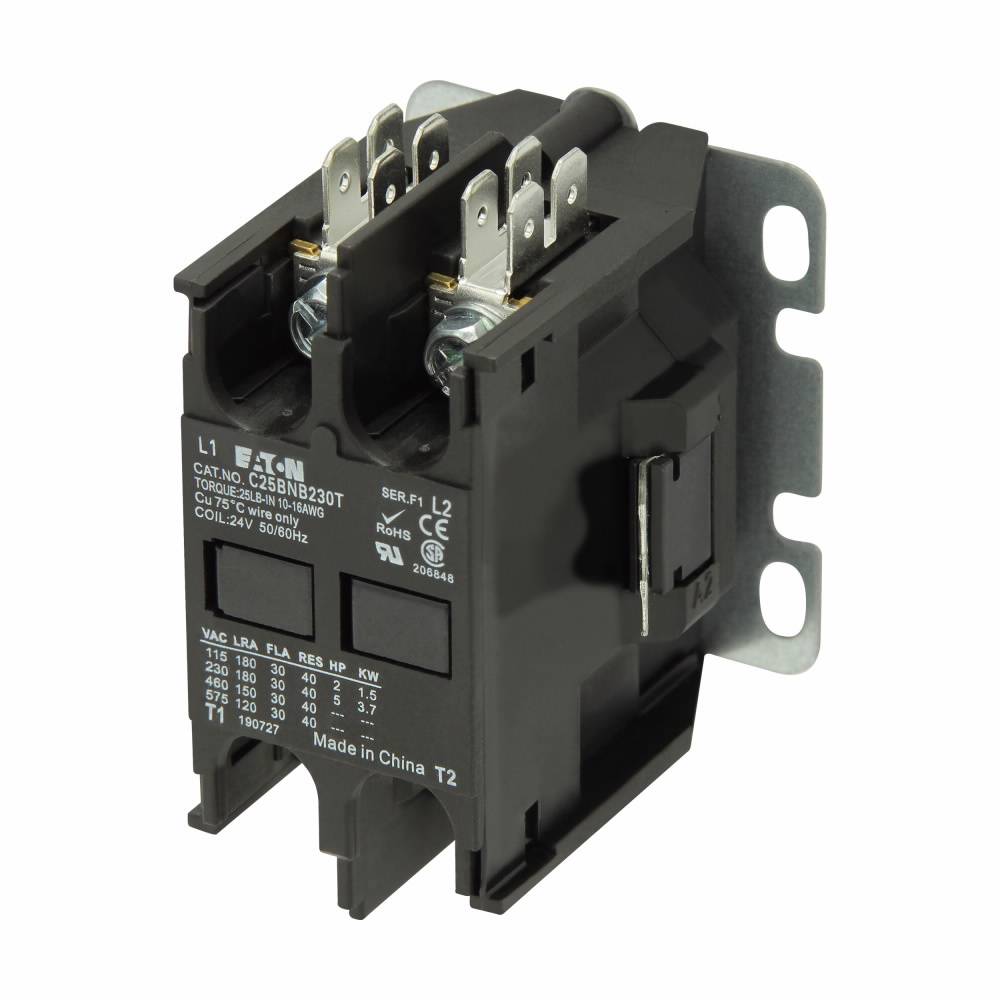

EATON C25BNB230H Compact Non-Reversing Definite Purpose Control Contactor, 277 VAC V Coil, 30 A Inductive/40 A Resistive, 2 Poles
Share Share Print Print
Eaton

EATON C25BNB230H Compact Non-Reversing Definite Purpose Control Contactor, 277 VAC V Coil, 30 A Inductive/40 A Resistive, 2 Poles

Short Description

Definite purpose starters are electrically operated switching devices specifically designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry. They are controlled by automatic thermostat control or manual pushbutton interfaces.

EATON Definite Purpose Control Contactor, Compact Non-Reversing, 277 VAC Coil, 30 A Inductive/40 A Resistive Maximum Load Current, 2 Pole, 60 Hz Frequency, Double Break Contact, Binding Head Screw/Quick-Connect Terminal, Open Enclosure, -13 to 158 deg F Operating, Surface Mounting, 3.19 in L x 2.32 in W x 1.97 in H Dimensions
MFG #: C25BNB230H

EECO #: CHC25BNB230H

Brand: Eaton
UPC #: 786685116051
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121529
Application
Heating, Ventilation, Air Conditioning, Refrigeration (HVACR), Motor and Power Control Equipment Applications
Coil Voltage
277
Contact Type
Double Break
Mounting Type
Surface
Terminal Type
Binding Head Screw/Quick-Connect
Enclosure Type
Open
Frequency Rating
60
Operating Temperature
-13 to 158
Type
Compact Non-Reversing
Warranty
1 year
Dimensions
3.19 in L x 2.32 in W x 1.97 in H
Maximum Load Current
30 A Inductive/40 A Resistive
Features
  • The universal mounting plate eliminates changing hole patterns when replacing competitive devices
  • Variety of terminal styles allows product to meet all specific application needs
  • Snap-on accessories require no tools for hassle-free installation
  • Quick coil changing ability allows for easy maintenance
  • Non-position sensitive mounting allows for fast, convenient set up
  • Shrouded or fingerproof terminals reduce possibility of electrical shock
  • Open with metal mounting plate
