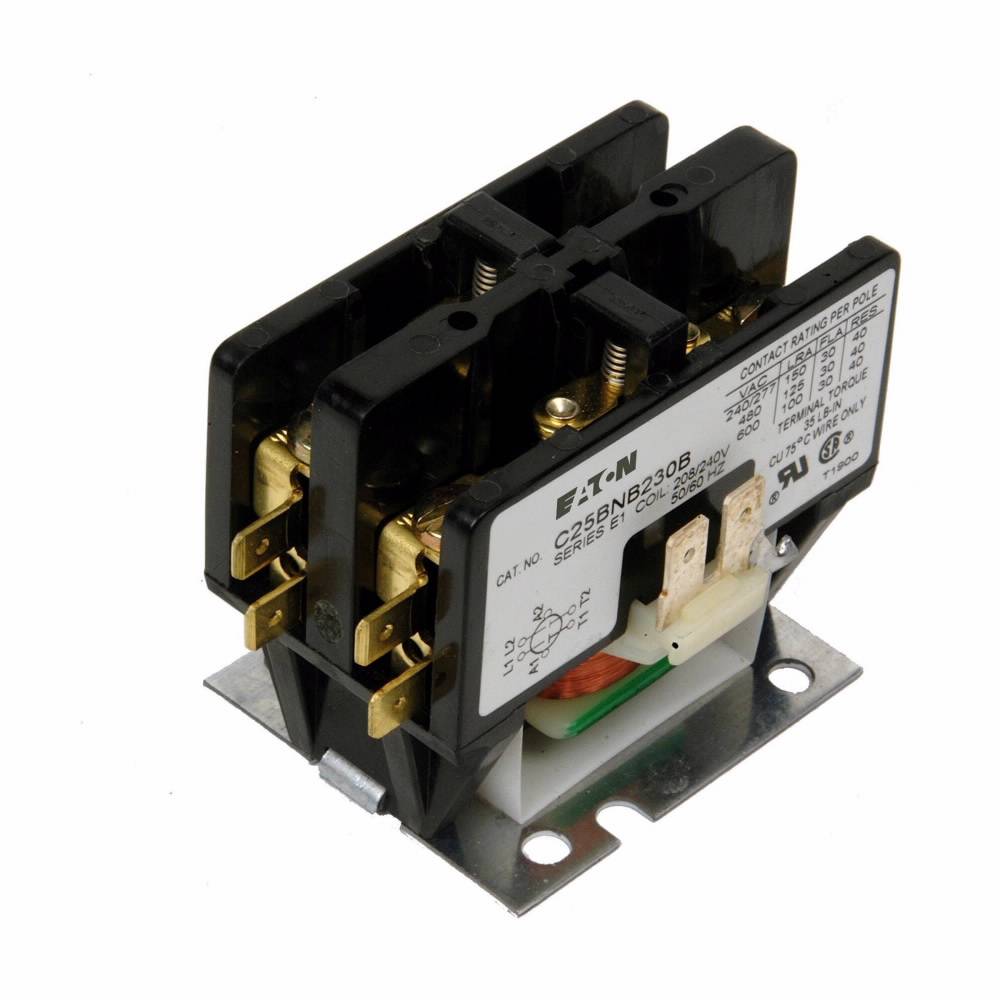

EATON C25BNB230B Non-Reversing Definite Purpose Control Contactor, 208 to 240 VAC V Coil, 30 A Inductive, 40 A Resistive, 2 Poles

Short Description

Eaton offers the most complete line of definite purpose (DP) contactors in the industry. Designed for heating, ventilation, air conditioning and refrigeration (HVACR) applications. Eaton DP contactors are designed to handle the most challenging installations.

EATON Definite Purpose Control Contactor, Non-Reversing, 208 to 240 VAC Coil, 30 A Inductive, 40 A Resistive Maximum Load Current, 2 Pole, 50/60 Hz, Quick-Joint, Binding Head Screw/Quick-Connect Terminal, Open with Metal Mounting Plate, 3.19 in L x 2.32 in W x 1.97 in H

MFG #: C25BNB230B

EECO #: CHC25BNB230B

Brand: Eaton
UPC #: 786685116037
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121529
Approval
UL, CSA, CE
Application
Motor and Power Control Equipment Applications
Coil Voltage
208 to 240
Terminal Type
Binding Head Screw/Quick-Connect
Enclosure Type
Open with Metal Mounting Plate
Connection Type
Quick-Joint
Number Of Poles
2
Frequency Rating
50/60
Enclosure
Open
Power Rating/Voltage
2 HP at 115 Volt, 5 HP at 230 Volt
Construction Standard
IEC 60947-4-1, EN 60947-4-1
Size
Frame B
Type
Non-Reversing
Dimensions
3.19 in L x 2.32 in W x 1.97 in H
Inductive Ampere
30 Amp
Resistive Ampere
40 Amp
Maximum Load Current
30 A Inductive, 40 A Resistive
Features
  • Completely encased design impervious to dust and other environmental elements
  • 1, 2, 3 and 4-pole configurations
  • Open components and enclosed designs
  • Compact frame
