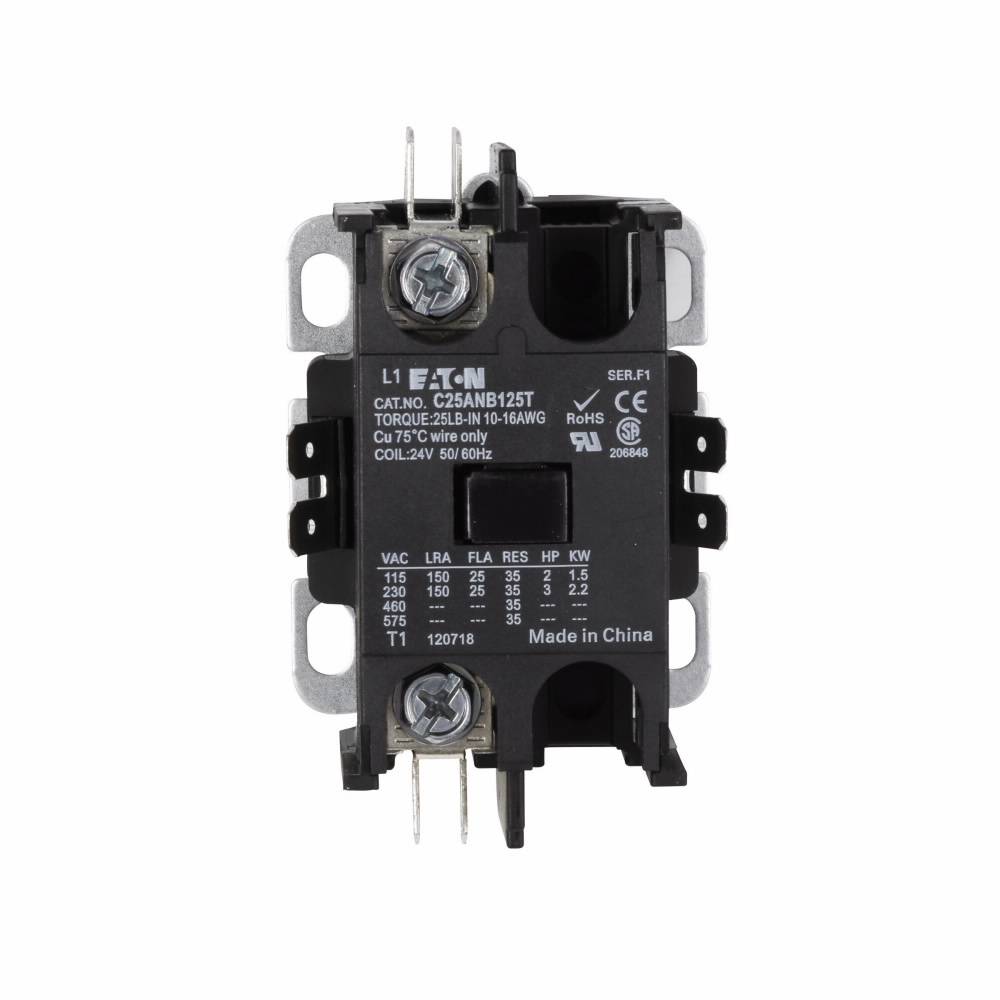

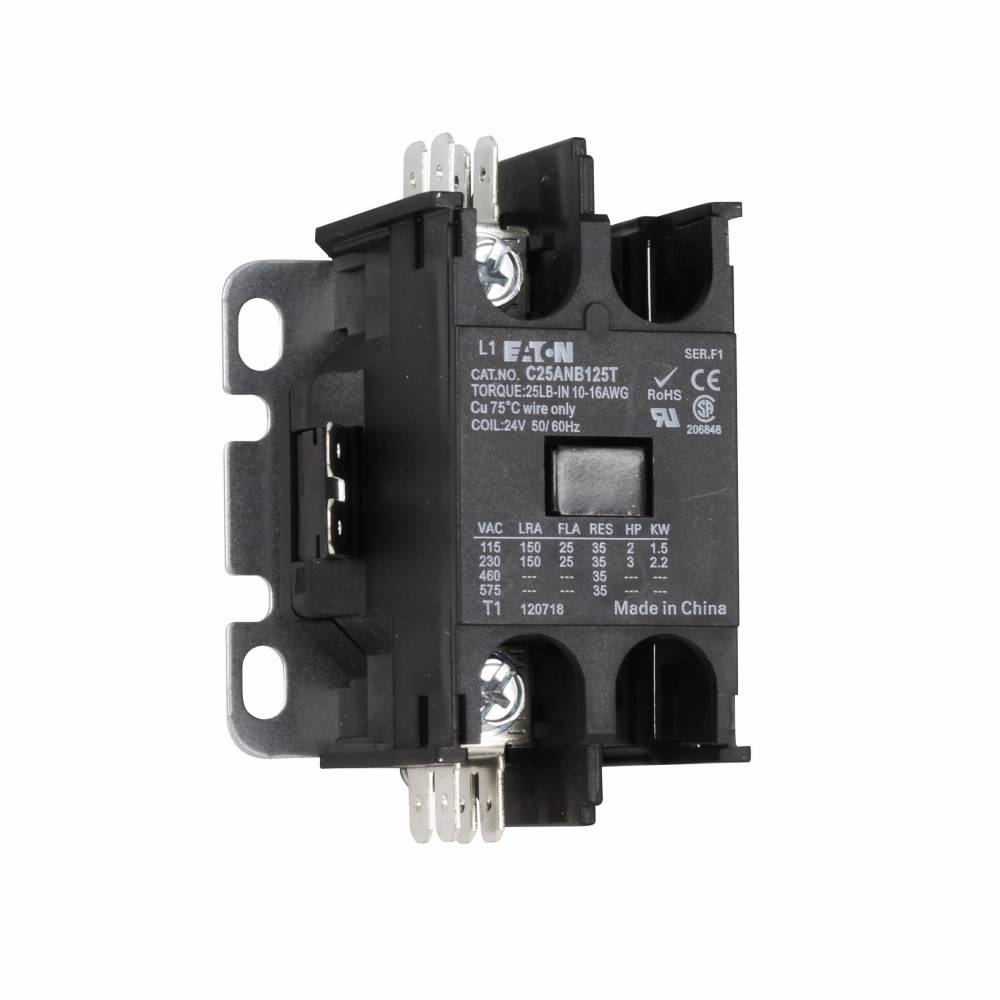

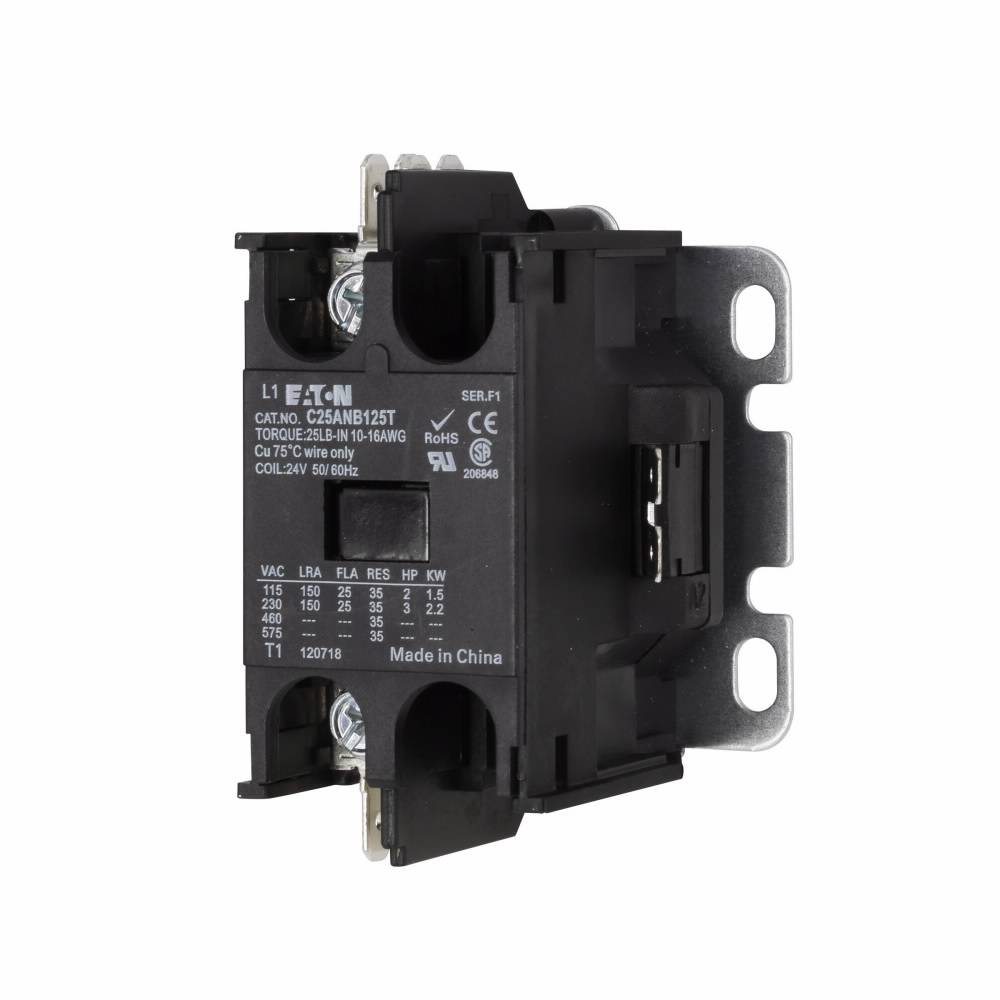

EATON C25ANB125T Compact Definite Purpose Control Contactor, 24 VAC V Coil, 25 A, 1 Pole

Short Description

Definite purpose starters are electrically operated switching devices specifically designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry. They are controlled by automatic thermostat control or manual pushbutton interfaces.

EATON Definite Purpose Control Contactor, Compact, 24 VAC Coil, 25 A Maximum Load, 1 Pole, 50/60 Hz, Double Break/Non-Reversing Contact, Quick-Connect, Binding Head Screw Terminal, Open, -13 to 158 deg F Operating, Surface Mount, 3.19 in L x 2.4 in W x 1.97 in H
MFG #: C25ANB125T

EECO #: CHC25ANB125T

Brand: Eaton
UPC #: 786685115849
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121529
Application
Heating, Ventilation, Air Conditioning and Refrigeration (HVACR), Motor and Power Control Equipment Applications
Coil Voltage
24
Contact Type
Double Break/Non-Reversing
Mounting Type
Surface
Terminal Type
Binding Head Screw
Enclosure Type
Open
Connection Type
Quick-Connect
Frequency Rating
50/60
Operating Temperature
-13 to 158
Type
Compact
Warranty
1 year
Dimensions
3.19 in L x 2.4 in W x 1.97 in H
Maximum Load Current
25
Features
  • The universal mounting plate eliminates changing hole patterns when replacing competitive devices
  • Variety of terminal styles allows product to meet all specific application needs
  • Snap-on accessories require no tools for hassle free installation
  • Quick coil changing ability allows for easy maintenance
  • Non-position sensitive mounting allows for fast, convenient setup
  • Shrouded or fingerproof terminals to reduce possibility of electrical shock
  • 35 A resistive load
