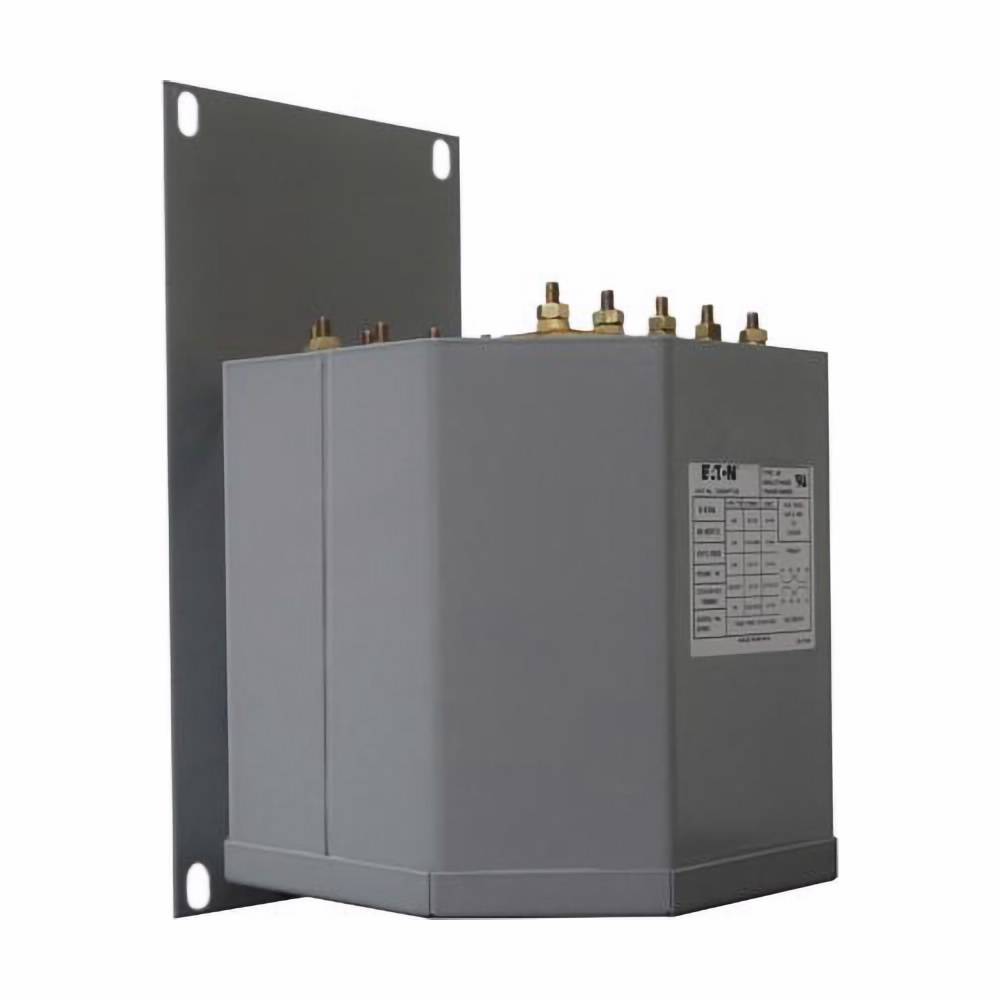

EATON C0150E2AFB Type MTE Control Transformer, 220/440, 230/460, 240/480 V Primary, 120/115/110 V Secondary, 150 VA Power Rating, 50/60 Hz, 1 ph Phase

Short Description

EATON offers a complete line of type AP, MTE and MTK industrial control transformers, which provide stepped down voltages to machine tool control devices. Each unit must pass rigid tests for turns ratio, insulation, continuity and over potential. Performance meets or exceeds ANSI/NEMA ST-1 requirements. With a 50/60 Hz operation standard, transformers are designed for loads requiring extremely good regulation. Regulation also exceeds ANSI/NEMA requirements.

EATON Control Transformer, Type MTE, 220/440, 230/460, 240/480 V Primary, 120/115/110 V Secondary, 150 VA Power, 50/60 Hz Frequency, 1 ph, Copper Magnet Wire/Molded-In Connection, 55 deg C, Silicon Steel Housing Material, 4.016 in L x 3.74 in W x 4.567 in H Dimensions

MFG #: C0150E2AFB

EECO #: CHC0150E2AFB

Brand: Eaton
UPC #: 786680420863
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121026
Approval
UL, UL (Canada and US), CSA, CUL
Application
Industrial, Motor and Power Control Equipment Applications
Power Rating
150
Terminal Type
Screw
Connection Type
Copper Magnet Wire/Molded-In
Frequency Rating
50/60
Housing Material
Silicon Steel
Insulation Class
130
Temperature Rise
55 Deg C
Temperature Rating
55
Size
3.75 Inch Width x 4.03 Inch Depth x 4.66 Inch Height
Type
Type MTE
Warranty
1 year
Dimensions
4.016 in L x 3.74 in W x 4.567 in H
Primary Voltage
220/440, 230/460, 240/480
Secondary Voltage
120/115/110
Applicable Standard
ANSI/NEMA-ST-1, IEEE
Features
  • Molded-in terminals allow for maximum durability
  • Copper magnet wire provides for high quality, efficient operation
  • Epoxy encapsulated coils provide protection from moisture and contaminants commonly found in industrial environments
  • Laminations of high quality, silicon steel minimize core losses and optimize performance
  • The use of grounded or ungrounded circuits that are independent of the power or lighting grounds affords greater safety to the operator
  • Factory mounted 2-pole primary fuse block for rejection-type fuses
  • Copper winding
  • No taps
CUTHMRE01955_V7T7_2_V7T7_4_V7T7_7_V7T7_11
EATCOR_C0150E2AFB_CAD
EATCORE59077_1_2
EATCORINST00015
EATON_C0350E5E_Manual
Qty Unit price
Ea
1 $407.16

Slqt
1 $407.16

Stpk
1 $407.16

Unit
1 $407.16
