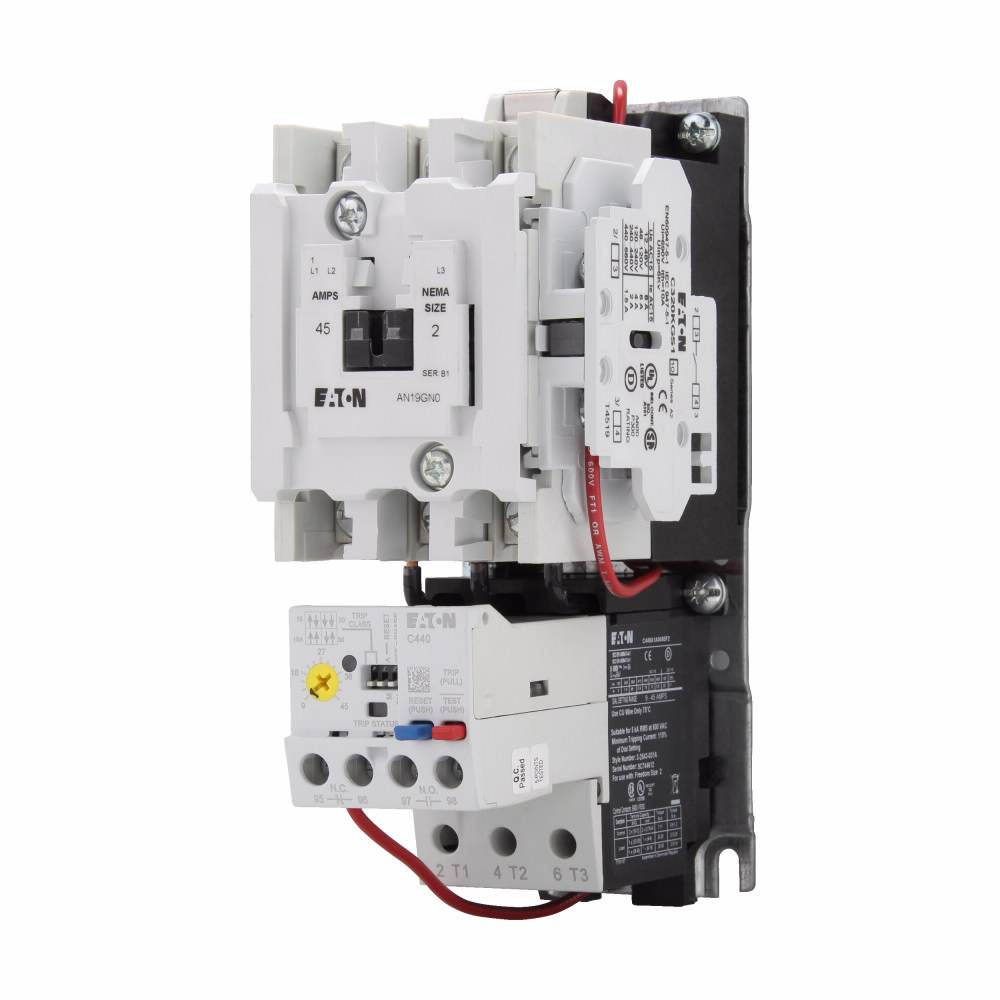

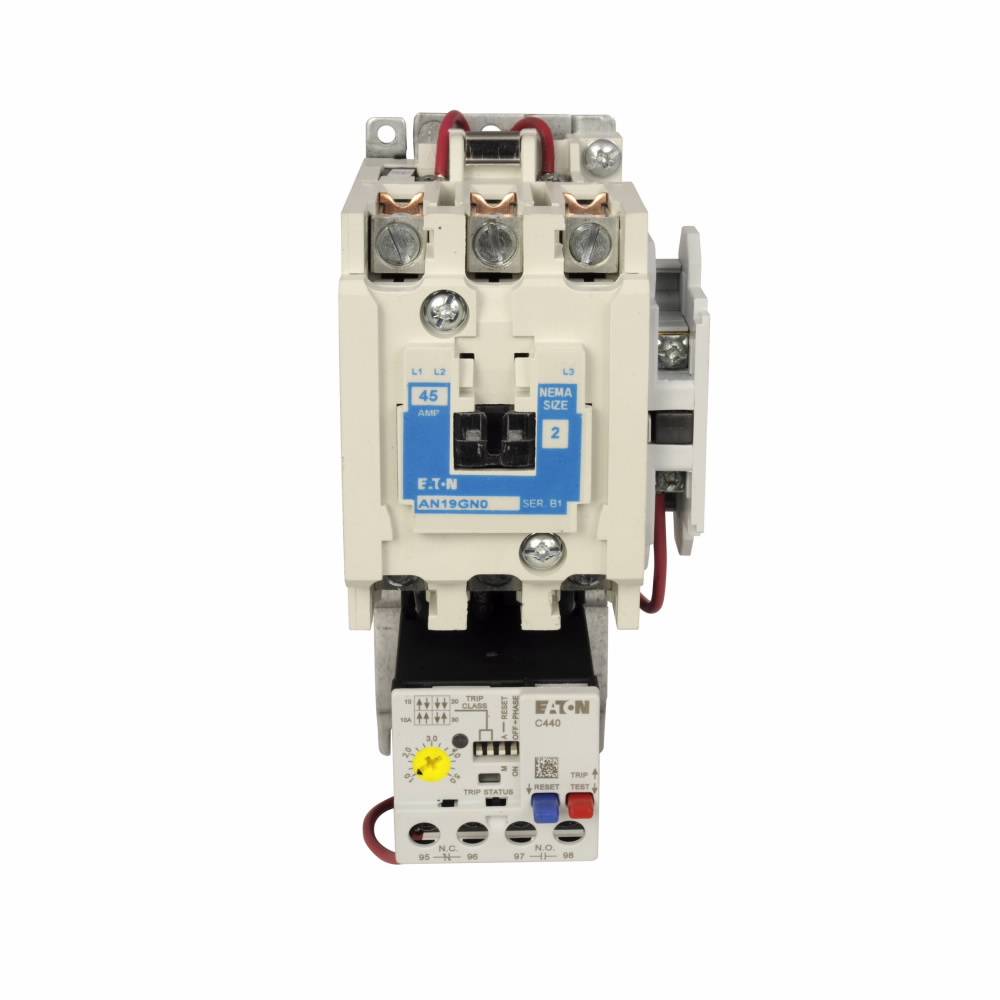

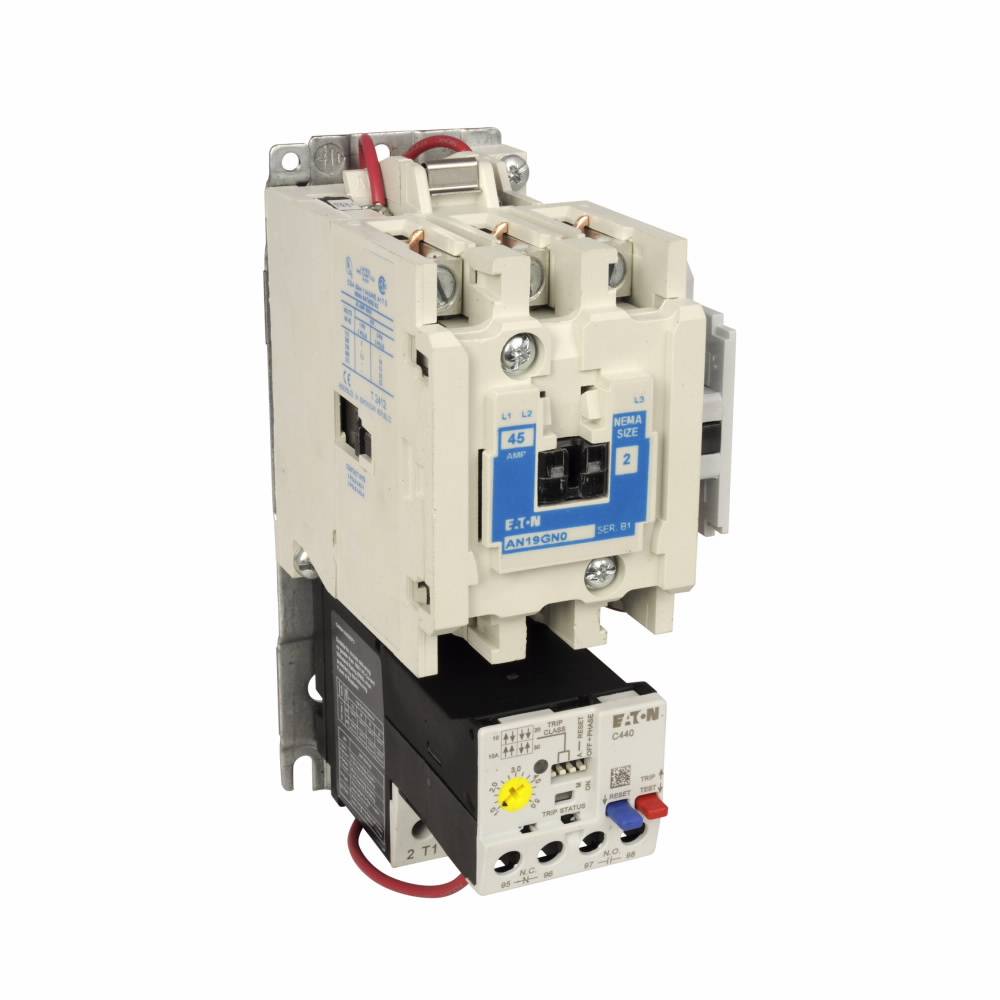

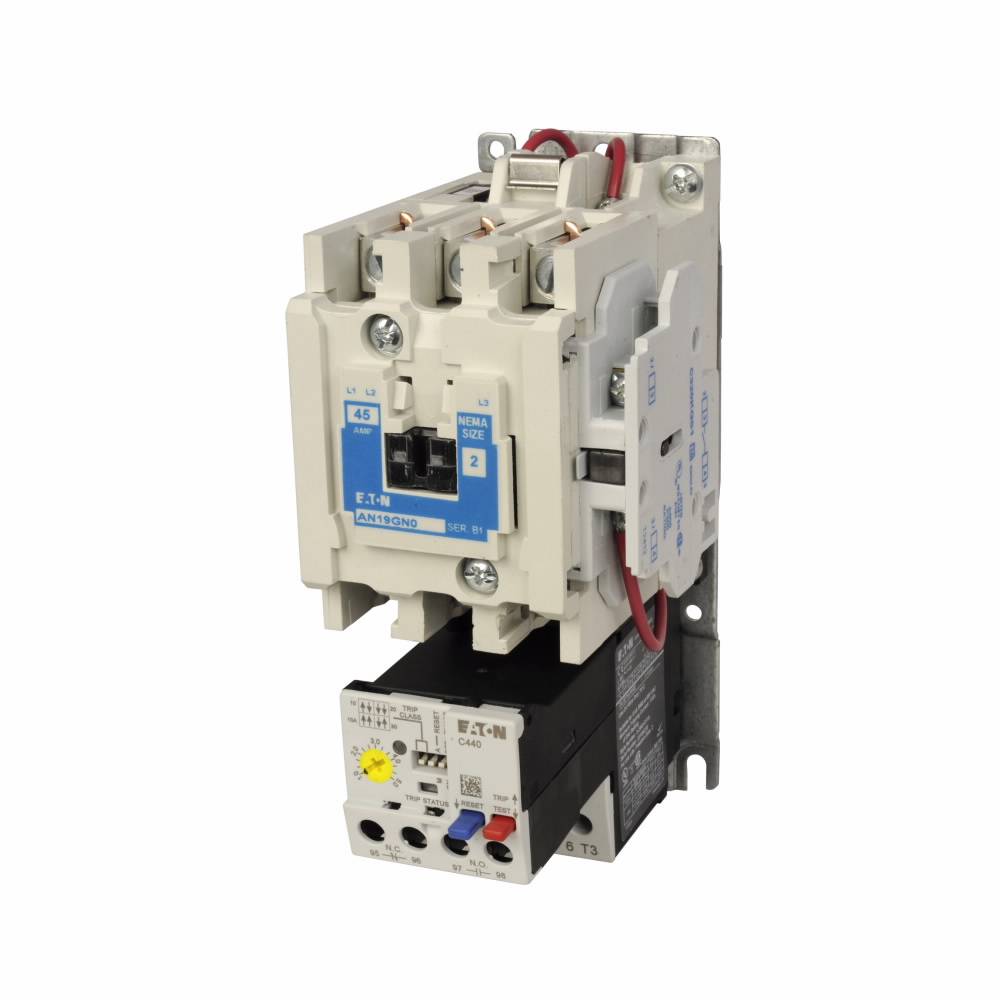

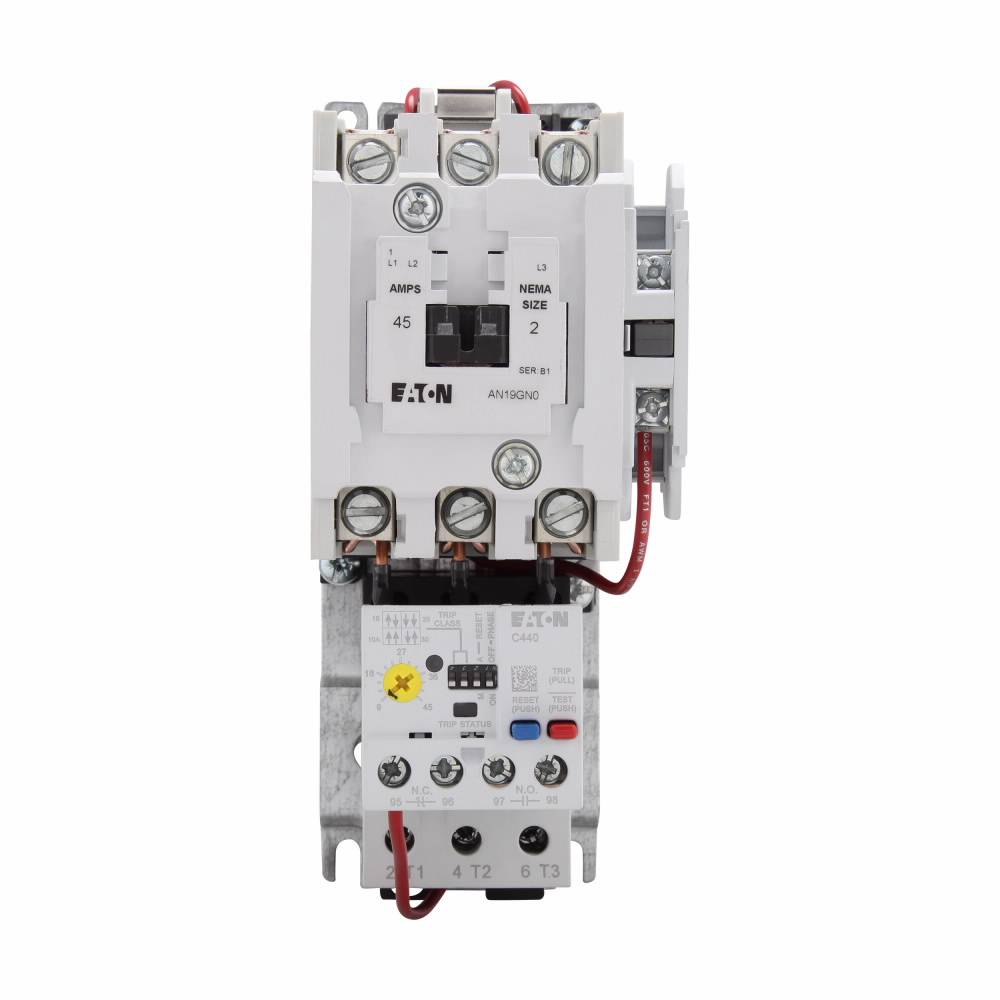

EATON AN19GN0A5E045 Freedom Full Voltage Open NEMA Starter With C440 EOLR Standard Feature Set, SEL Reset, SEL Class (10a, 10, 20, 30), 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 2 Enclosure

Short Description

EATON's Freedom series adjustable bi-metallic ambient compensated contactors are designed for use with CE or CN non-reversing and reversing contactors. they have interchangeable heater packs and are available in four sizes for overload protection up to 900 hip, reducing the number of different contactor/overload relay combinations that have to be stocked. they also feature a full line of snap-on accessories common to both IEC and NEMA devices.

EATON NEMA Starter, Full Voltage Open, Series: Freedom, 600 VAC, 45 A, 50/60 Hz, 25 hp Motor, 110/120 VAC Coil, 3 Pole, Non-Reversing, C440 Electronic Overload Relay, 9 to 45 A Full Load, NEMA 2, 4.98 x 2.6 x 7.1 in

MFG #: AN19GN0A5E045

EECO #: CHAN19GN0A5E045

Brand: Eaton
UPC #: 786685415420
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121521
Application
Electrical Assemblies, Panels and OEMs Applications
Coil Voltage
110/120
Current Rating
45 Amp
Enclosure Type
NEMA 2
Overload Relay
C440 Electronic
Voltage Rating
600
Frequency Rating
50/60
Auxiliary Contact
1NO
Construction Standard
NEMA
Type
Full Voltage Open
Series
Freedom
Warranty
1 year
Motor FLA
9 to 45 Amp
Overloads
C440 Electronic

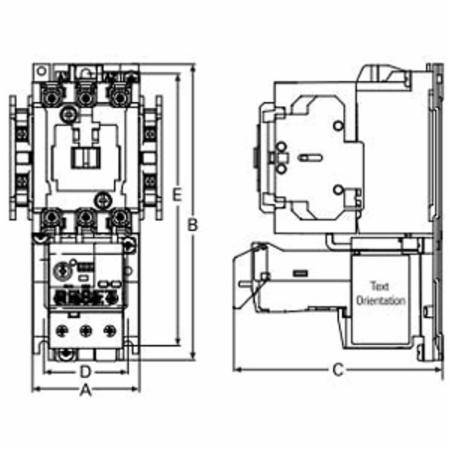

Dimensions
4.98 x 2.6 x 7.1
Motor Power
25
Amperage Rating
45
Features
  • Screw type power terminals have captive, backed out self-lifting pressure plates with +/- screws - reduced wiring time
  • Accessible terminals allow for ease of use and are convenient for simple wiring
  • Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout
  • Standard feature set, SEL reset, SEL class (10A, 10, 20, 30) C440 EOLR
  • 3 hp at 115 VAC, 7-1/2 hp at 230 VAC, 10 hp at 208 VAC, 15 hp at 240 VAC, 25 hp at 480 VAC horsepower rating
