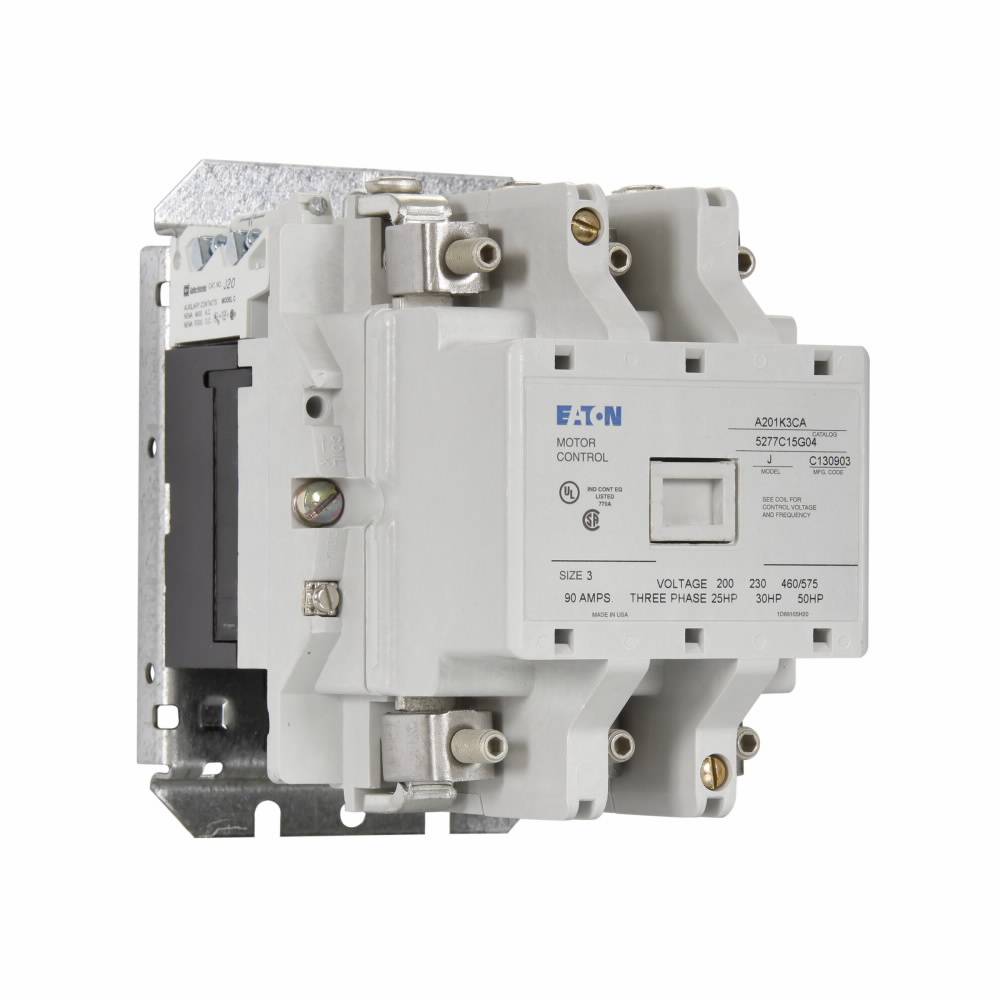

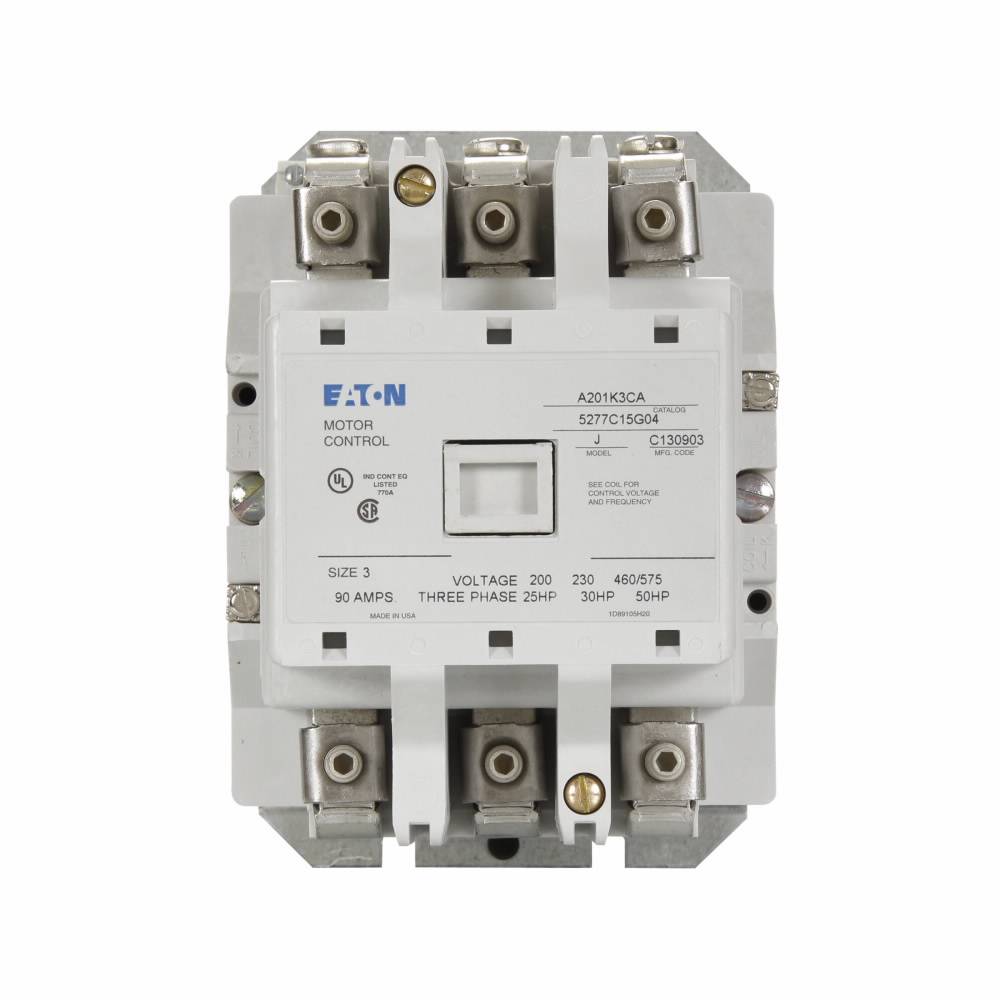

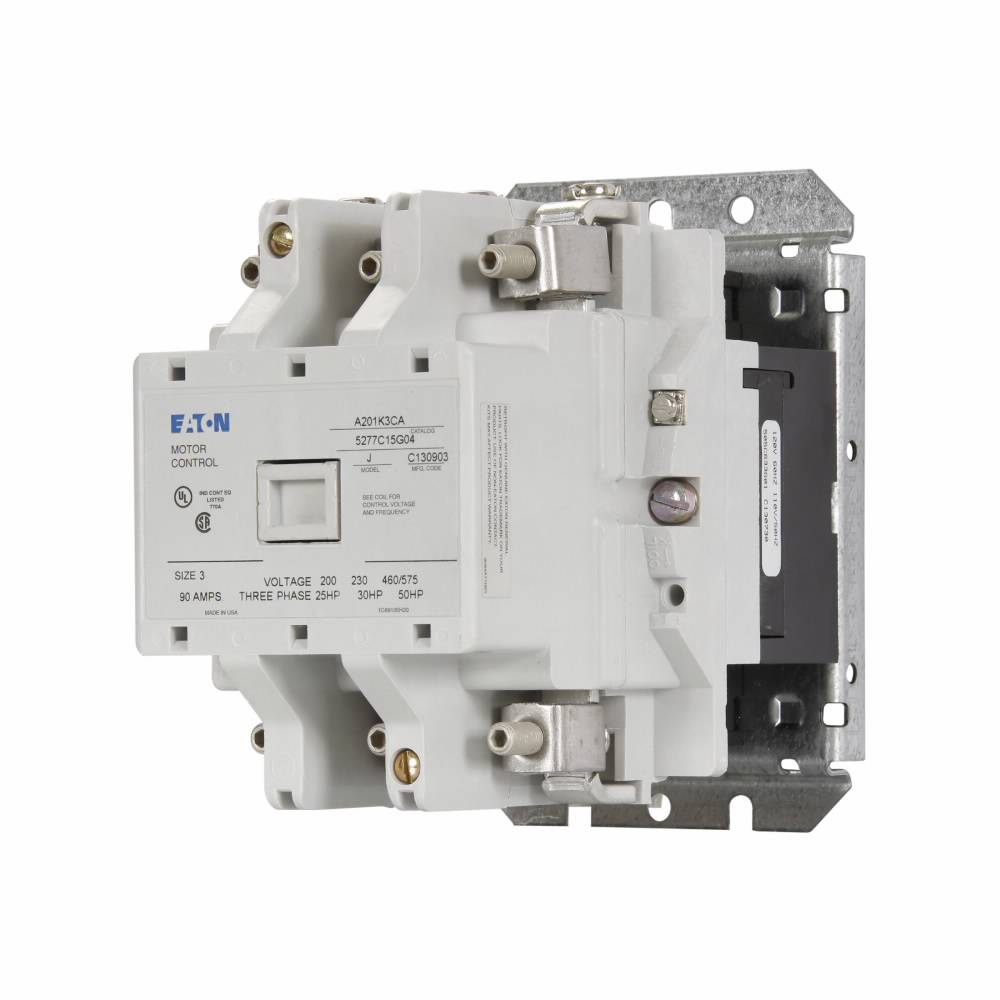

EATON A201K3CB Full Voltage Non-Reversing NEMA Contactor, 208 to 600 VAC V Coil, 90 A, 3 Poles

Short Description

All Class A200 non-reversing starters utilize Type B three-pole overload relays with optional Type A for auto reset applications. Sizes 5 and 6 include the needed current transformers. Moving and stationary contacts are front accessible for simple and easy inspection and maintenance. All Class A200 starters are UL listed and recognized and are CSA certified.

EATON NEMA Contactor, Full Voltage Non-Reversing, Series: A200, 208 to 600 VAC Coil, 90 A Maximum Load Current, 25 hp, 30 hp, 50 hp Coil, 3 Pole, 60 Hz Frequency, Front Connection, #3 Size, Open Enclosure, Surface Mounting, 6.75 in L x 6.63 in W x 4.63 in H Dimensions
MFG #: A201K3CB

EECO #: CHA201K3CB

Brand: Eaton
UPC #: 786678231686
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121529
Application
Electrical Assemblies, Panels and EOEMs Applications
Coil Voltage
208 to 600
Mounting Type
Surface
Enclosure Type
Open
Connection Type
Front
Frequency Rating
60
Size
#3
Type
Full Voltage Non-Reversing
Series
A200
Dimensions
6.75 in L x 6.63 in W x 4.63 in H
Maximum Load Current
90
Features
  • Electronic coil controller allows contactors to reduce power consumption and generate less heat, resulting in lower cooling requirements, the ability to mount more contactors/starters per cabinet and an extended life on pilot devices that carry control signals
  • AC and DC devices with the same dimensions achieved with an electronically controlled coil system allow for space savings and reduced engineering design time
  • Integrated suppressors in DC controlled contactors offers reductions in total logistics and inventory costs by limiting the number of products ordered and stocked
  • Wiring is not required, therefore increasing installation and maintenance efficiency
  • Expanded range of DC coil control voltages, allows reliable operation through fluctuations in control voltages
  • Twin terminals with separate sockets in contactors up to 400 A offer installation and application flexibility when using different size wires
  • The improved integrity of the connections reduces cabling faults
