EATON 5HCL-300E-Q Type HCL E-Rated Medium Voltage 2-Barrel Current Limiting Fuse, 300 A, 5.5 kV, 63 kA Interrupt, Class: E
Share Share Print Print
Eaton

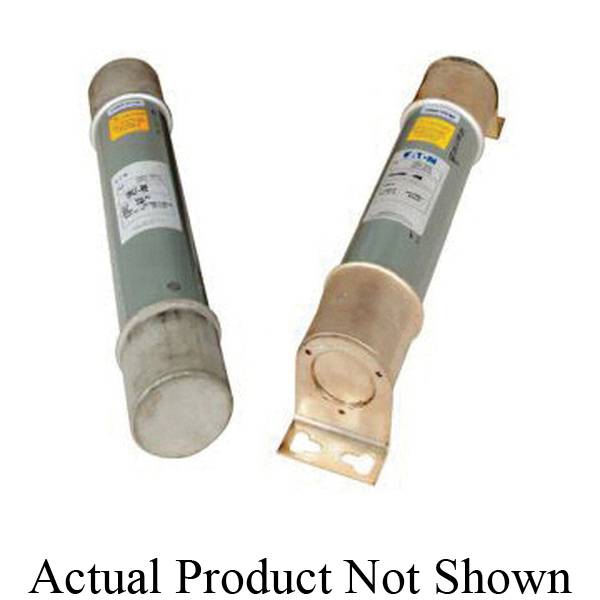

EATON 5HCL-300E-Q Type HCL E-Rated Medium Voltage 2-Barrel Current Limiting Fuse, 300 A, 5.5 kV, 63 kA Interrupt, Class: E

Short Description

Current limiting E-Rated medium voltage fuses are defined by their melting time-current characteristic that permit their electrical interchangeability with other fuses of the same E Rating. They are physically dimensioned for easy installation in existing hardware to provide positive interruption even on low fault currents. E-Rated fuse constructions are available in ferrule, bolt-on and clip-lock and specialty mount fuses for AMPGARD® motor starters Outdoor rating available on select catalog numbers and open fuse indicator speeds troubleshooting by providing a positive visual indication of fuse operation.

EATON Current Limiting Fuse, Type HCL E-Rated Medium Voltage 2-Barrel, 300 A, 5.5 kV, 63 kA Interrupt, Class: E, 50/60 Hz Frequency, 600 s Response, Clip Mounting, 22.5 in L x 7.9 in W x 4 in H Body
MFG #: 5HCL-300E-Q

EECO #: CH5HCL300EQ

Brand: Eaton
UPC #: 786685929767
Attributes
Features
Documents
Product Information
Attributes
Class
E
UNSPSC
39121627
Application
For use in medium voltage feeder circuit protection, medium voltage metal-enclosed switchgear, medium voltage transformer primary protection, medium voltage switches and indoor applications
Mounting Type
Clip
Response Time
600
Voltage Rating
5.5
Frequency Rating
50/60
Type
Type HCL E-Rated Medium Voltage 2-Barrel
Amperage Rating
300
Features
  • Current limiting e-rated medium voltage fuses are defined by their melting time-current characteristic that permit their electrical interchangeability with other fuses of the same e-rating
  • E-rated fuses must have a defined current response time specified by ANSI C37.46
  • E-rated fuses greater than 100 A must melt in 600 s at an RMS current within the range of 220 to 264% of the fuse's nameplate current rating
  • E-rated fuses are physically dimensioned for easy installation in existing hardware
  • Current limiting fuses provide positive interruption even on low fault currents
  • The fuse limits the magnitude of electro mechanical stresses in the protected apparatus
  • Open fuse indicator speeds trouble shooting by providing a positive visual indication of fuse operation
  • HCL clip-lock version
  • Non-disconnect mounting
