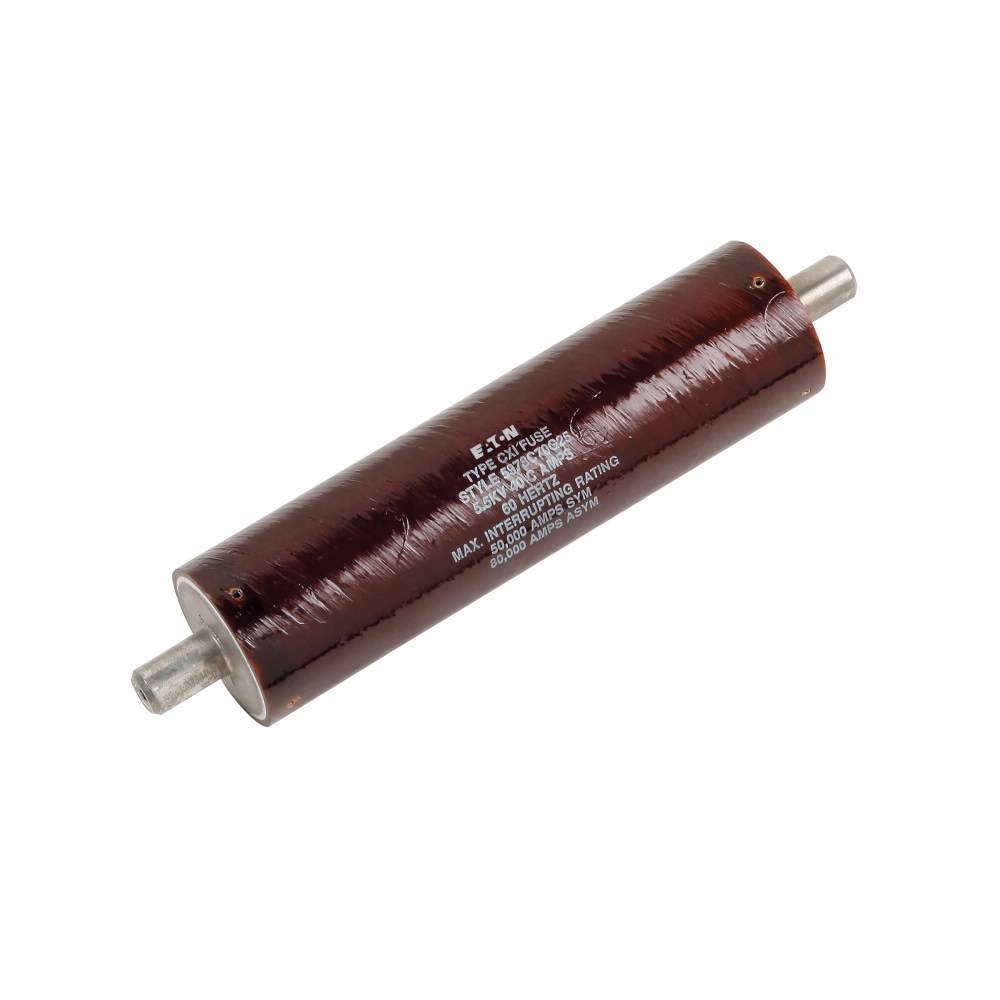

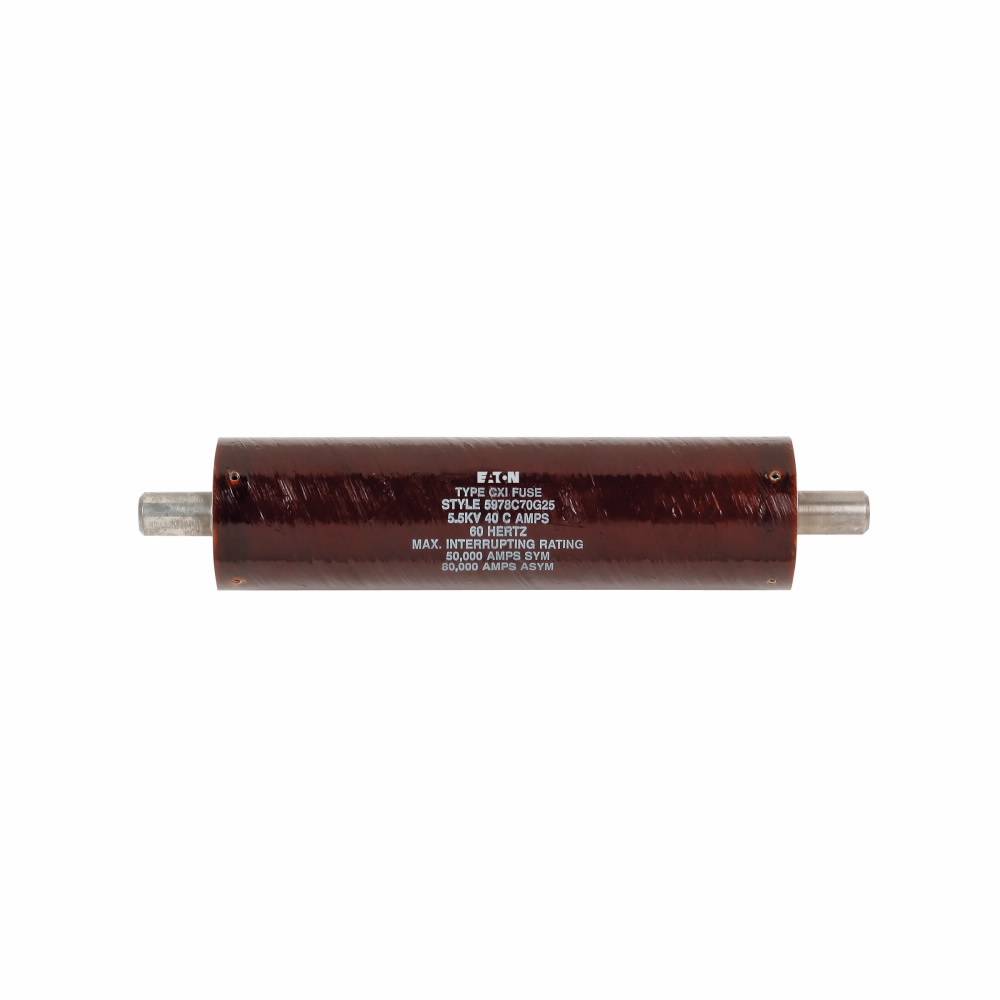

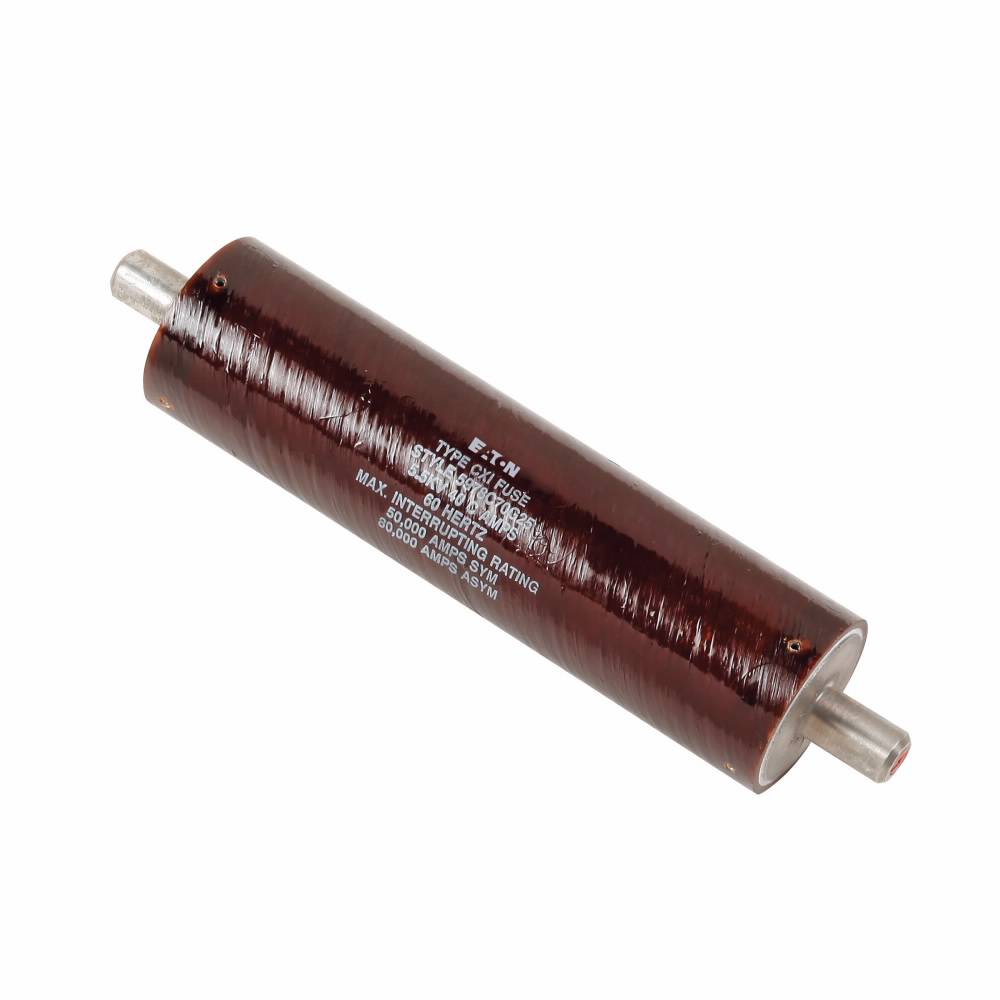

EATON 4CX-100C CX Series 1-Barrel General Purpose Current Limiting Fuse, 100 A, 4.3 kV, 50 kA Interrupt, Class: C

Short Description

Ensure reliable protection for your electrical systems with the EATON 4CX-100C CX Series Current Limiting Fuse. Designed for general purpose use, this 100 A fuse offers exceptional performance with a 4.3 kV rating and a 50 kA interrupt capacity. Its durable construction and efficient design make it an essential component for safety and reliability in your applications.Enhanced by AI

EATON Current Limiting Fuse, 1-Barrel General Purpose, Series: CX Series, Non-Indicating, 100 A, 4.3 kV, 50 kA Interrupt, Class: C, Clip Mount, Pure Silver Element, Glass Resin Casing/Silica Sand Filler, 10 in L x 2 in W Body Size

MFG #: 4CX-100C

EECO #: CH4CX100C

Brand: Eaton
UPC #: 786670501077
Attributes
Features
Documents
Product Information
Attributes
Class
C
UNSPSC
39121626
Material
Glass Resin Casing/Silica Sand Filler
Application
Indoor, Distribution, Substation Service and Transformers Applications
Mounting Type
Clip
Voltage Rating
4.3
Type
1-Barrel General Purpose
Series
CX Series
Warranty
1 year
Amperage Rating
100
Features
  • Quiet safe operation these fuses will clear all currents from their minimum melting current to their maximum interrupting rating without any external disturbance or expulsion of gas
  • Limits fault current let through the let through current for a high short circuit fault is limited to a value far below the available peak current because the current is forced to zero before the end of the first half cycle
  • Arc voltage protection CX fuses control the arc voltage that is produced during current limitation to less than 3 times the normal operating voltage rating
  • Maintains non-conductance after interruption an inorganic core with spaced arc guards prevent internal flash through when rated voltage remains across the fuse after interruption
  • Fits many mountings CX fuses can be used in disconnect and non-disconnect mountings
  • CX fuses can be used in EFD load break switches through 8.3 kV and dry well draw out fuse holders
  • Interchangeable CX fuses are a direct replacement for competitive general purpose distribution class current limiting fuses
  • C-rated power
