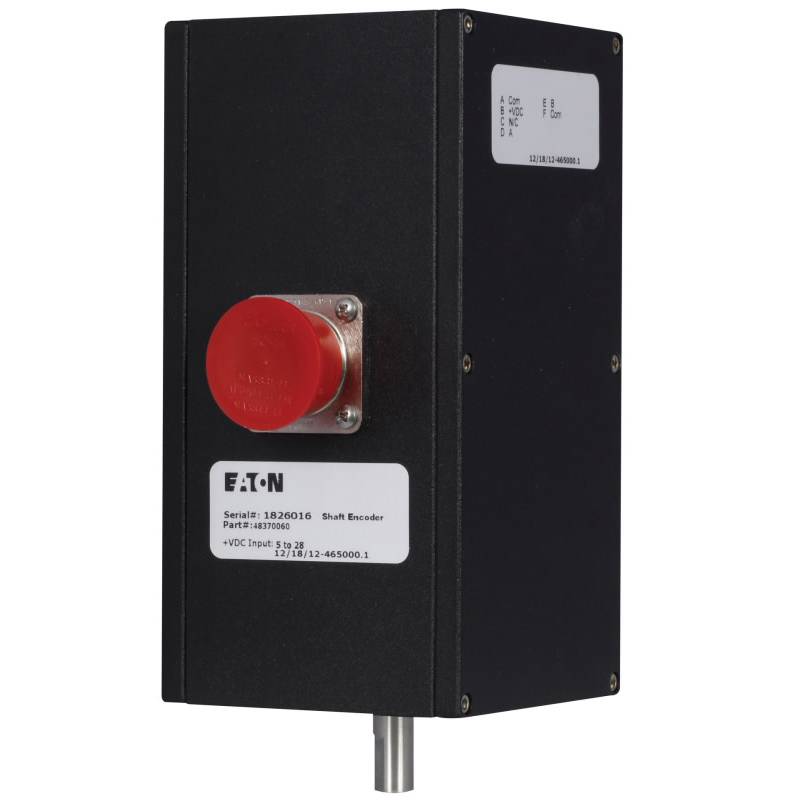

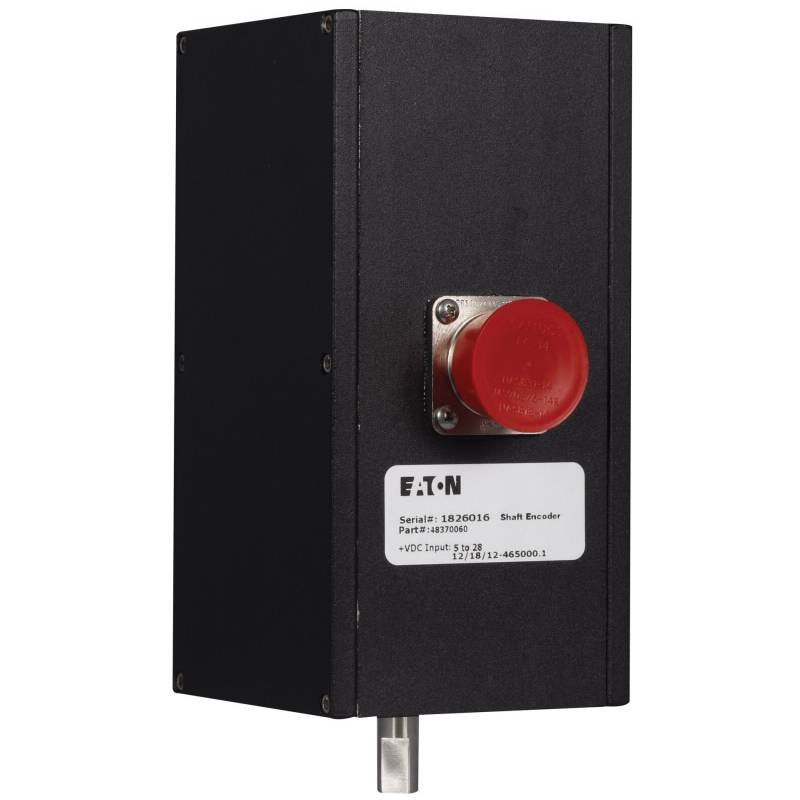

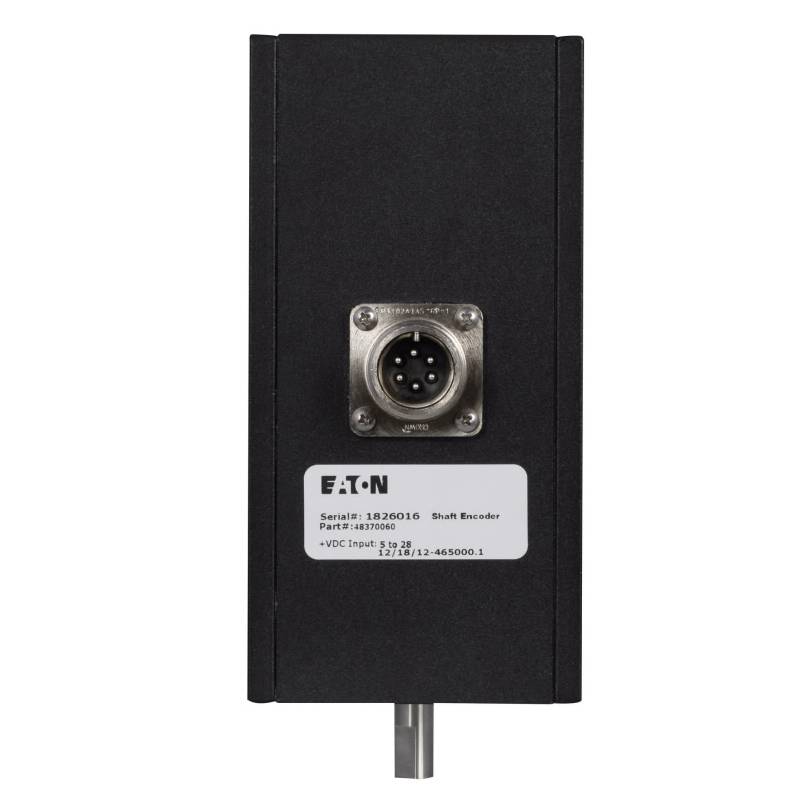

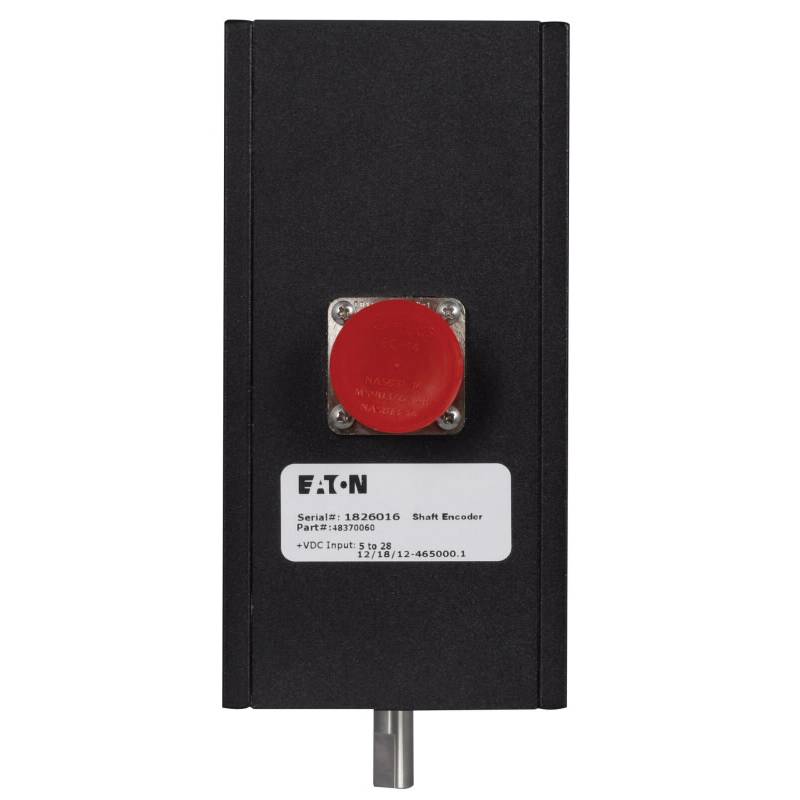

EATON 48371100 Heavy Duty Quadrature Shaft Encoder, For Use With PLCs and Counter, 5 to 28 VDC, 80 mA, 100 Pulses/Revolution

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

You use the counters, ratemeters, hour meters and other specific control & display products everyday to control single-purpose machinery and monitor process parameters in complex control schemes. These products are a perfect fit for processes where measurement needs to be controlled or displayed. Used as machine control in smaller applications, or as displays for specific parameters in larger, PLC-controlled equipment, Eaton's Specific Control & Display products are the answer to your monitoring, measurement, control and display needs.

EATON Shaft Encoder, Heavy Duty Quadrature, For Use With: PLCs and Counter, 5 to 28 VDC, 80 mA, 100 Pulses/Revolution, 4 in L x 4 in W x 4 in H
MFG #: 48371100

EECO #: CH48371100

Brand: Eaton
UPC #: 782114012208
Discontinued
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121527
Type
Heavy Duty Quadrature
Warranty
1 year
Dimensions
4 in L x 4 in W x 4 in H
Specifications
5 to 28 VDC, 80 mA, 100 Pulses/Revolution
Suitable For Use With
PLCs and Counter
Features
  • Provides accurate pulse outputs for use with PLCs and counters
  • NPN transistor output, 250 mA sinking capacity
  • Square wave output
  • 3/8 in single ended shaft
  • ABEC 3 double sealed ball bearings
  • Tapped holes for face or base mounting
  • Military style connector
