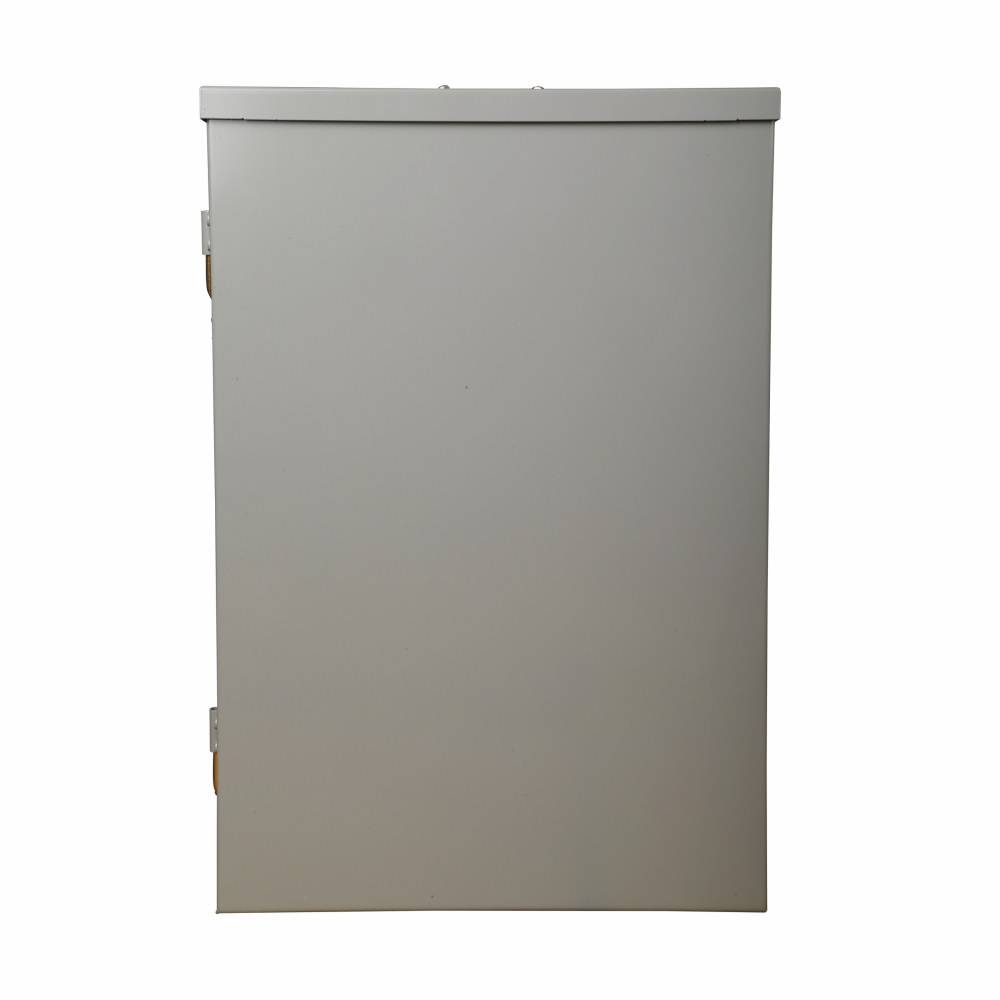

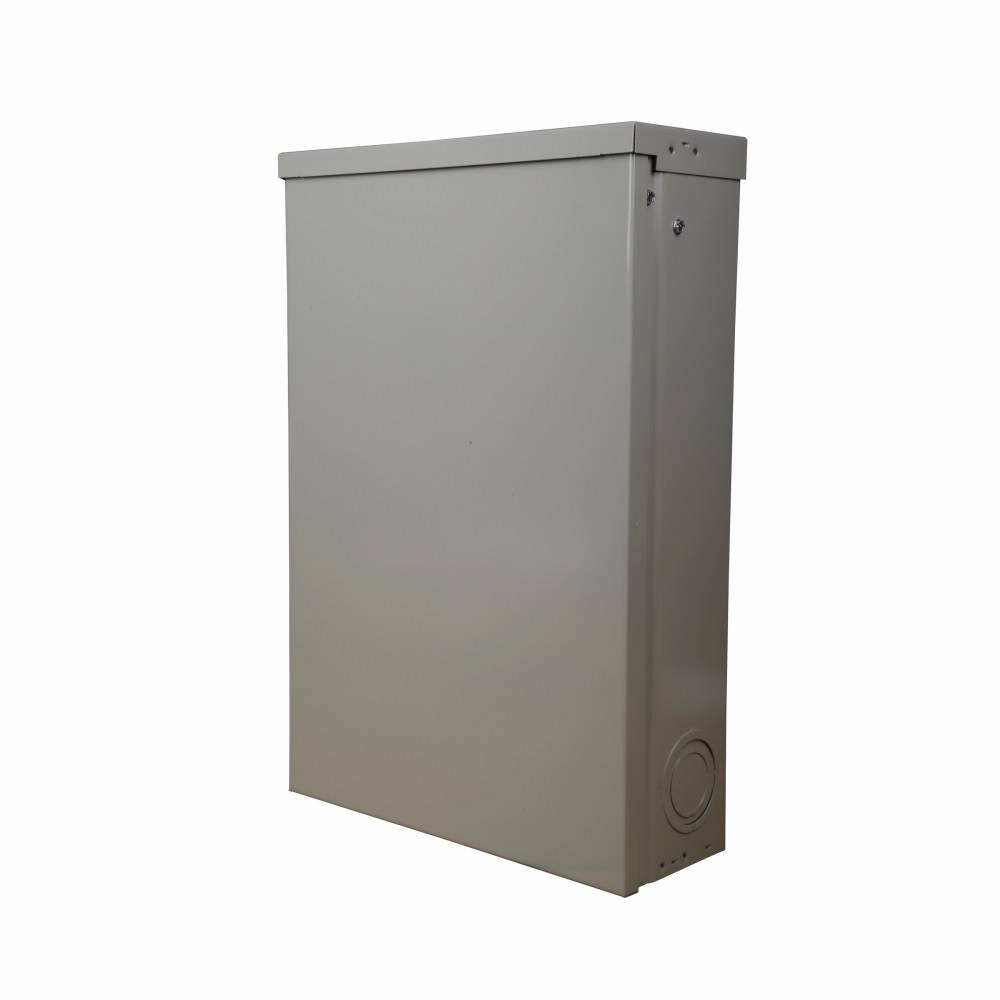

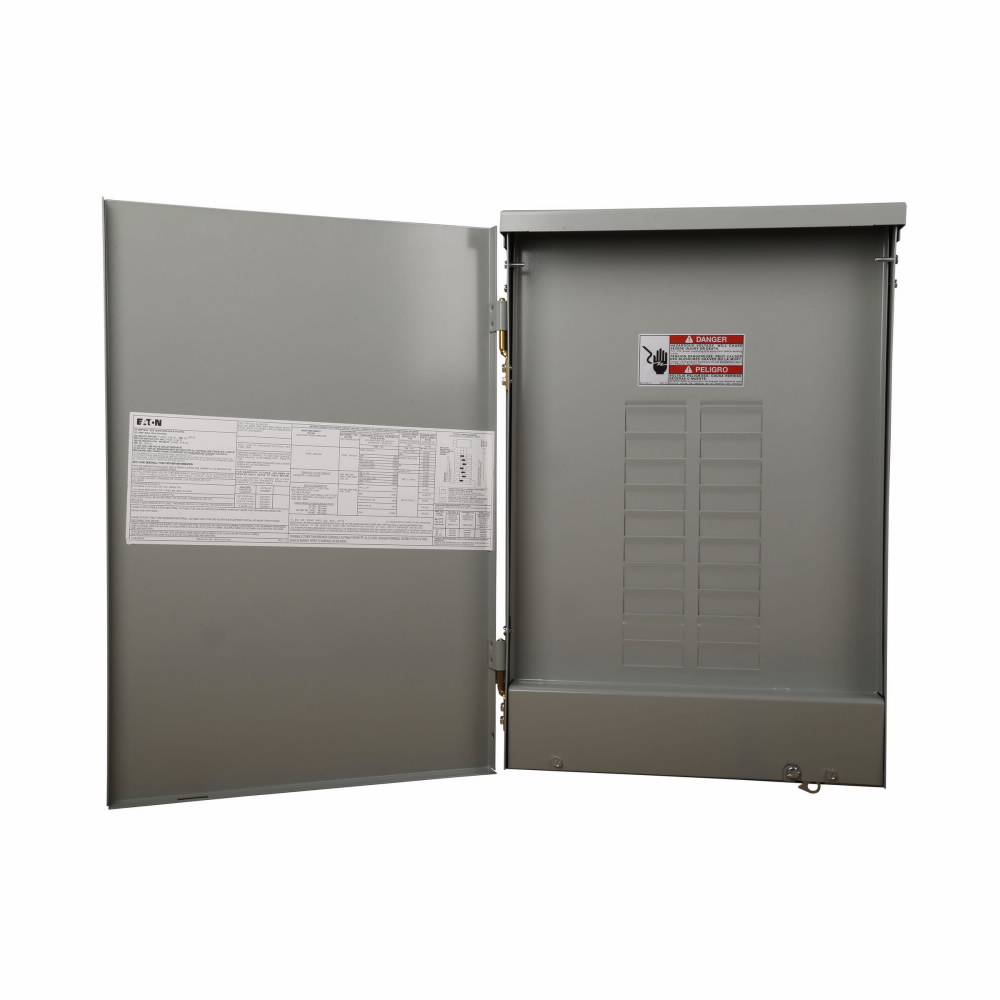

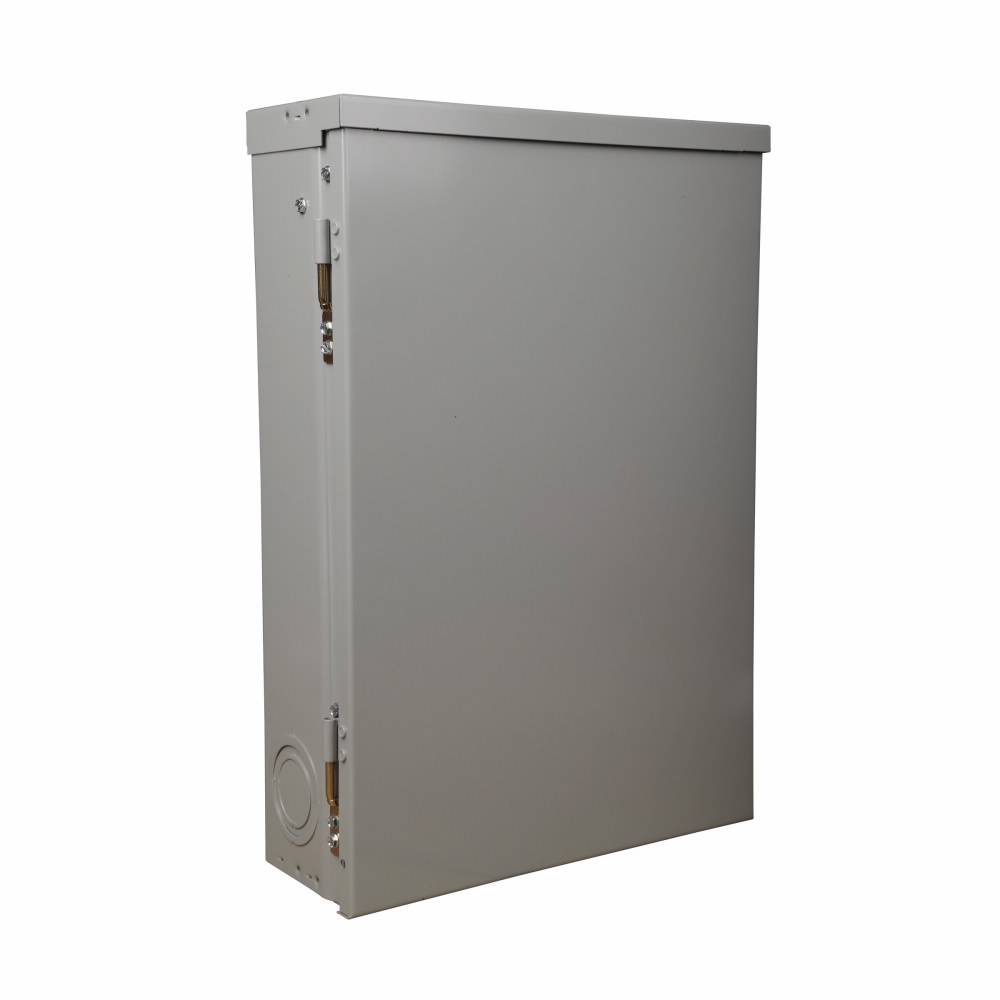

EATON 3BR1224N125R 3-Phase Convertible Main Load Center, 208Y/120 VAC, 240 VAC, 125 A, 10 kA Interrupt

Short Description

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

EATON Convertible Main Load Center, 3-Phase, 208Y/120 VAC, 240 VAC, 125 A, 10 kA Interrupt, 24 Circuits, BR Breaker, 4-Wire Wiring Configuration, 12 Spaces, Flush Mount, NEMA 3R, NEMA C1R Enclosure Box, Metal Housing, 5.19 in L x 14.31 in W x 21 in H
MFG #: 3BR1224N125R

EECO #: CH3BR1224N125R

Brand: Eaton
UPC #: 786676003537
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121101
Application
Renewable Energy, Alternative Energy, Generation, Conventional Energy, Marine Vessels and Equipment, CI and Hyper Converged, Power Distribution Applications interrupt rating
Mounting Type
Flush
Enclosure Type
NEMA 3R
Voltage Rating
208Y/120 VAC, 240 VAC
Housing Material
Metal
Type
3-Phase
Includes
BREQS125 Hold Down Screw and Cover
Dimensions
5.19 in L x 14.31 in W x 21 in H
Breaker Type
BR
Amperage Rating
125
Number of Circuits
24
Features
  • No feed-through lugs
  • Aluminum bus housing
  • Used with type BR 1 in breakers
  • Wire size depends upon main breaker kit or main lug kit chosen
  • BREQS125 hold down screw comes with loadcenter for back-fed types BR and BRH main circuit breakers
  • Rainproof loadcenters are furnished with hub closure plates, for rainproof hubs, metallic enclosure
  • Convertible to maximum of 100 A main circuit breaker and 125 A main lug
  • Suitable for use as service equipment when not more than six main disconnecting mains are provided and when not used as a lighting and appliance panelboard
  • Order main beaker kit or main lug kit separately
  • Indoor and outdoor enclosures
  • Accepts plug-on type BR breakers immediately fill project order from stock
  • The maximum rating of the panel is the main breaker rating when used as service entrance equipment
