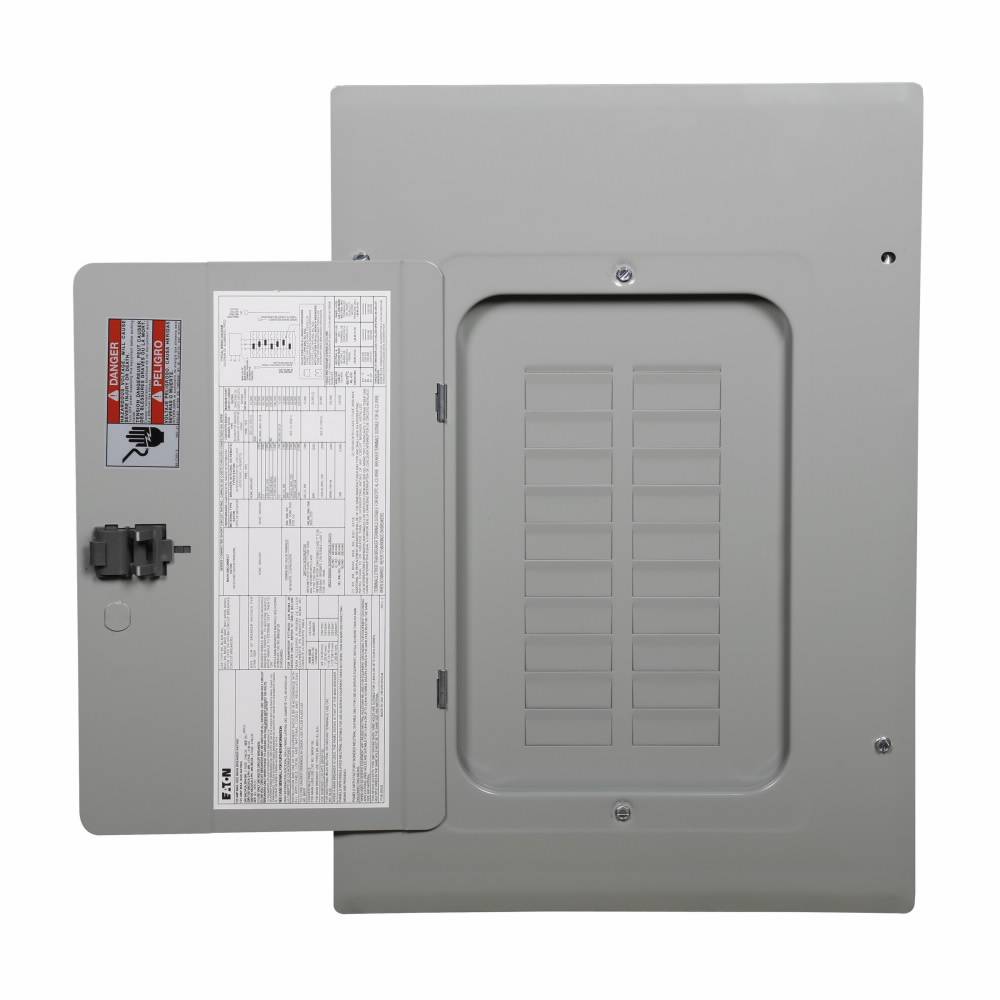

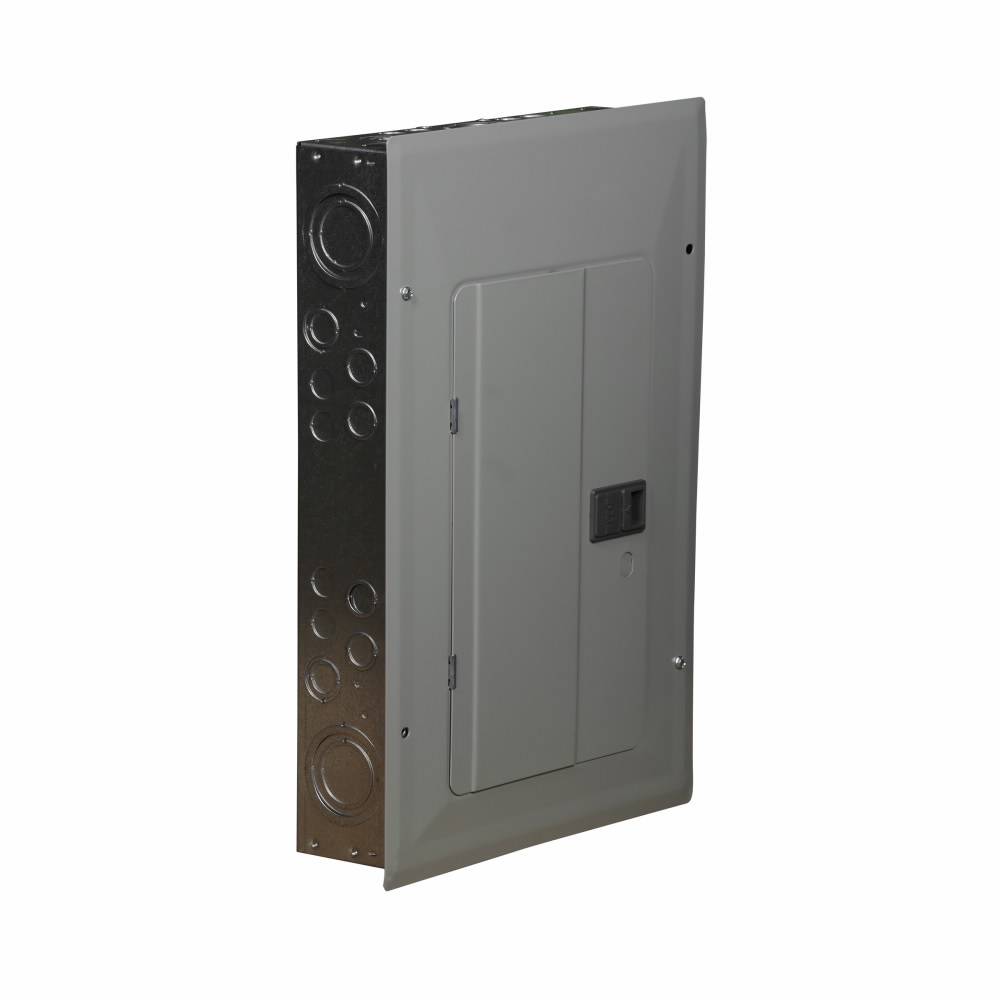

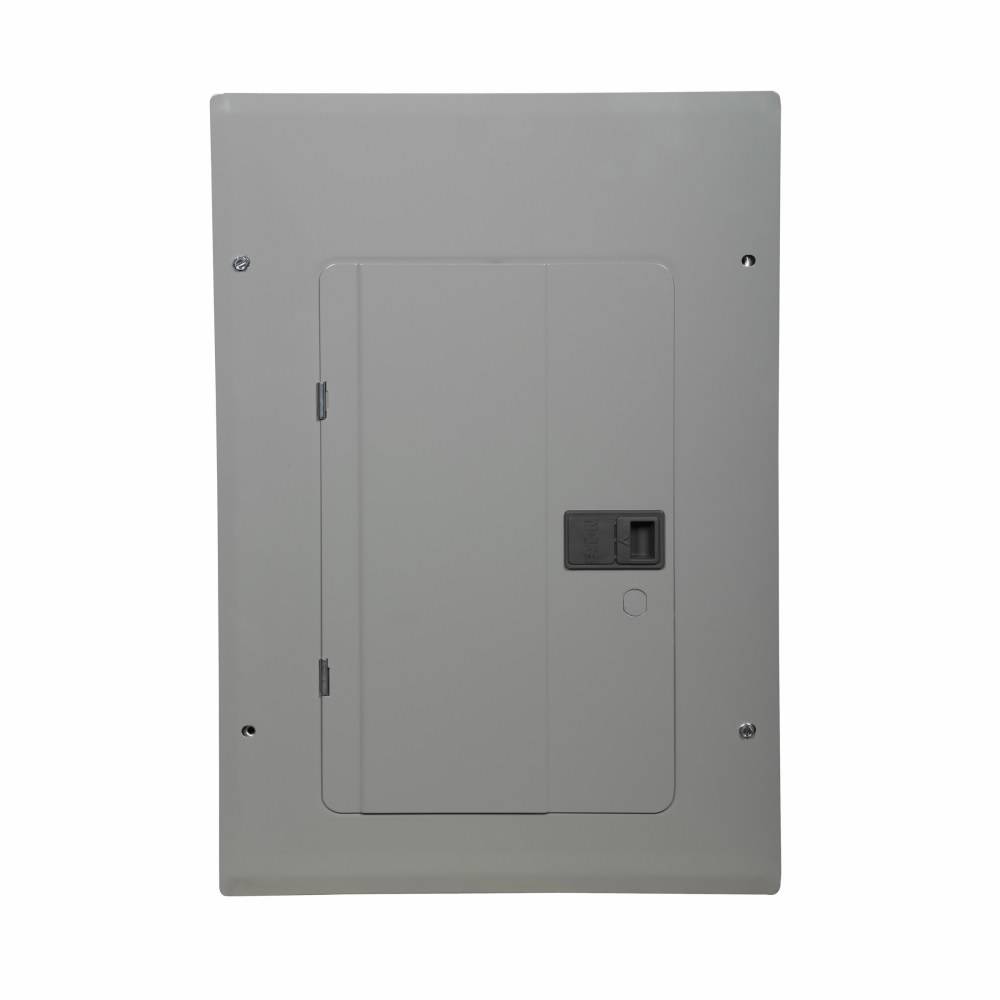

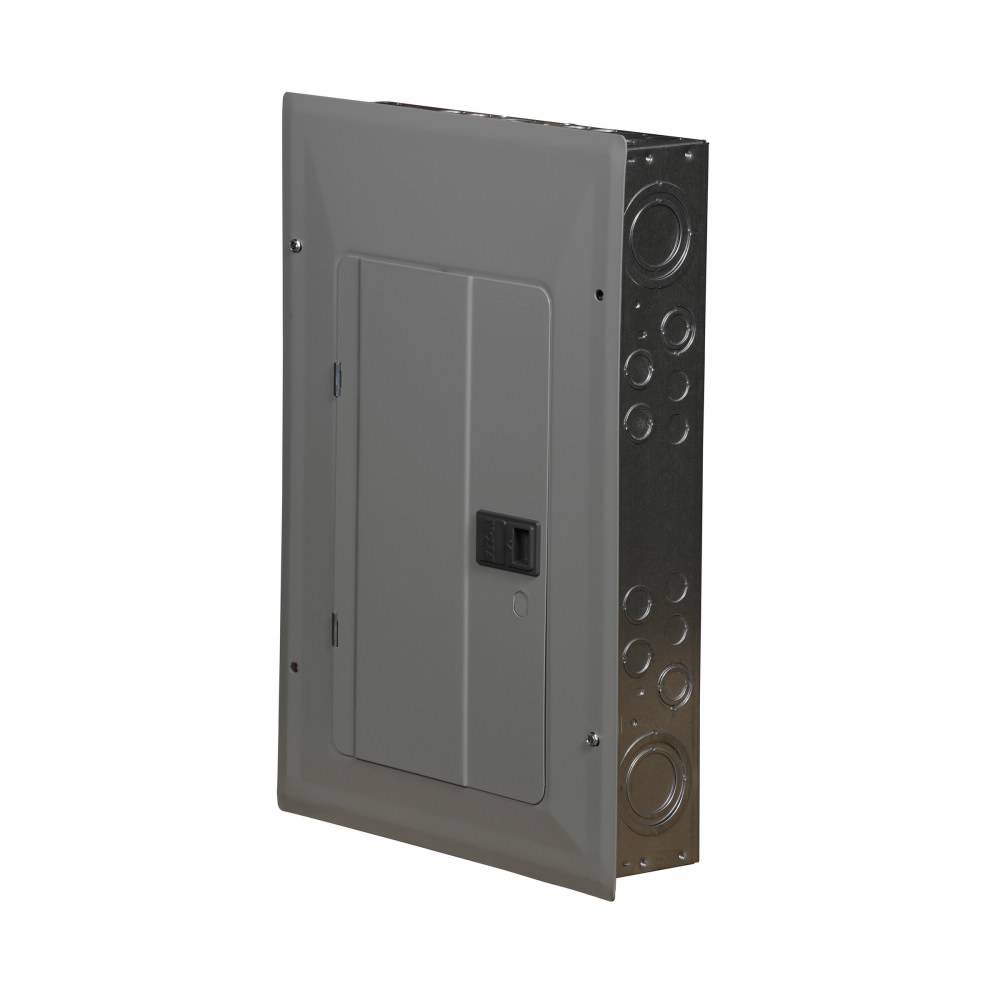

EATON 3BR1224N125 3-Phase Convertible Main Load Center, 208Y/120 VAC, 240 VAC, 125 A, 24 Poles, 10 kA Interrupt

Short Description

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

EATON Convertible Main Load Center, 3-Phase, 208Y/120 VAC, 240 VAC, 125 A, 24 Pole, 10 kA Interrupt, 24 Circuits, BR Breaker, 4-Wire Wiring Configuration, 12 Spaces, Flush Mounting, NEMA 1 Enclosure, NEMA C1 Enclosure Box, Metal Housing Material, 3.88 in L x 14.31 in W x 21 in H Dimensions
MFG #: 3BR1224N125

EECO #: CH3BR1224N125

Brand: Eaton
UPC #: 786676443159
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121101
Application
Renewable Energy, Alternative Energy, Generation, Conventional Energy, Marine Vessels and Equipment, Datacenters - IT Space, CI and Hyper Converged, For Type BR 1 In Breakers, Power Distribution and Commercial Applications Interrupt Rating
Mounting Type
Flush
Enclosure Type
NEMA 1
Voltage Rating
208Y/120 VAC, 240 VAC
Housing Material
Metal
Type
3-Phase
Includes
BREQS125 Hold Down Screw and Cover
Warranty
10 years
Dimensions
3.88 in L x 14.31 in W x 21 in H
Breaker Type
BR
Amperage Rating
125
Number of Circuits
24
Features
  • Aluminum bus housing
  • No feed-thorough lugs
