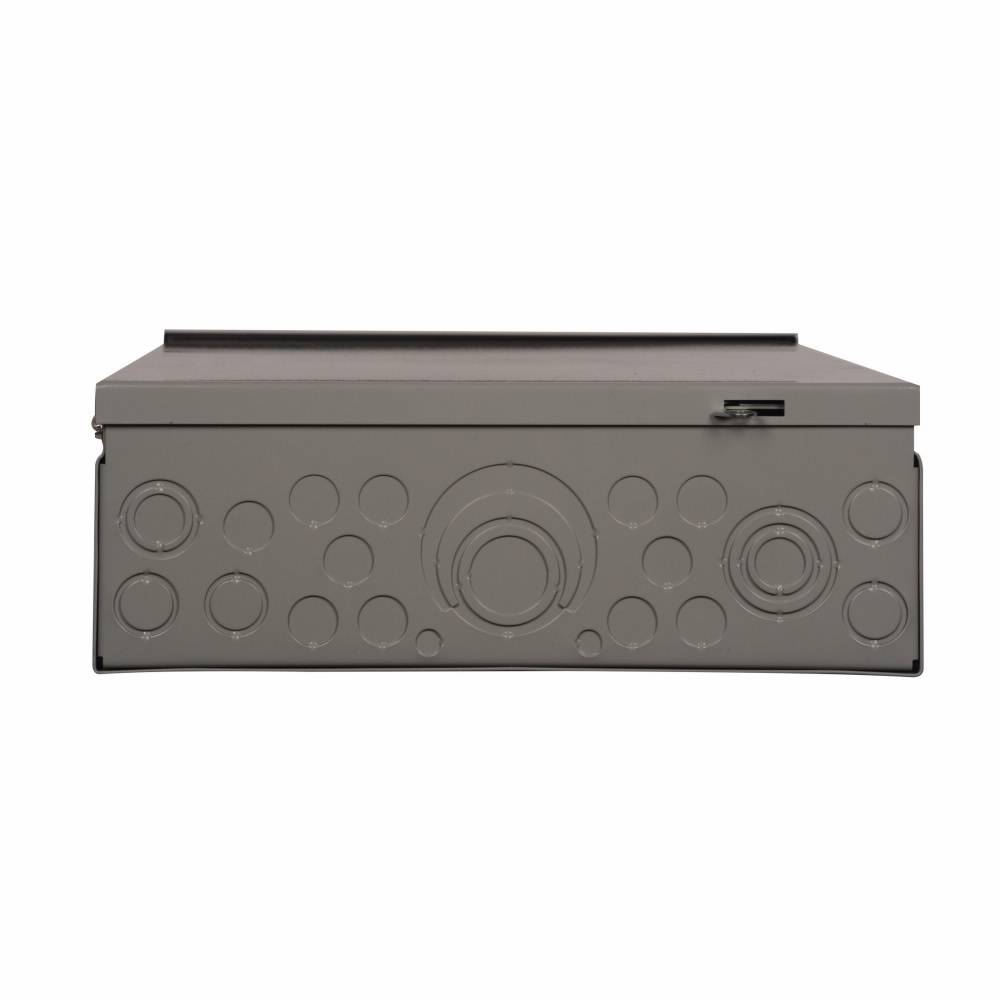

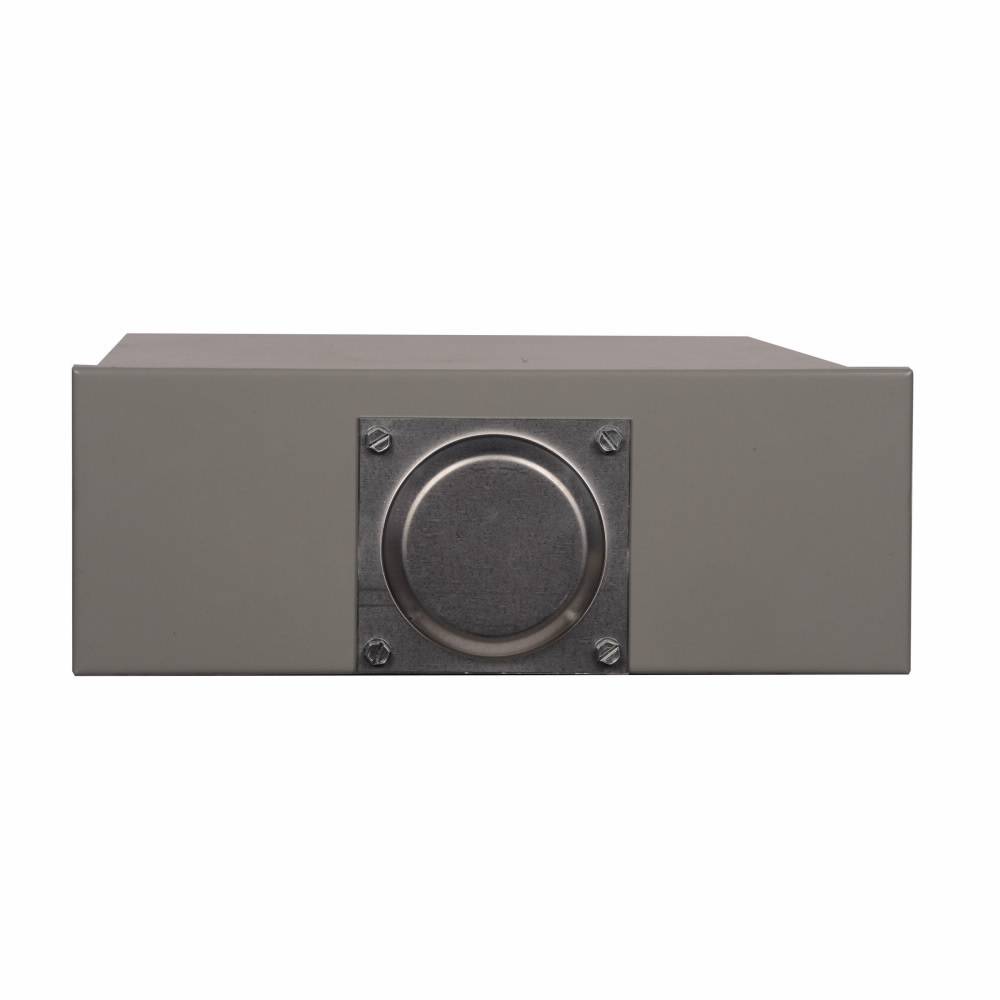

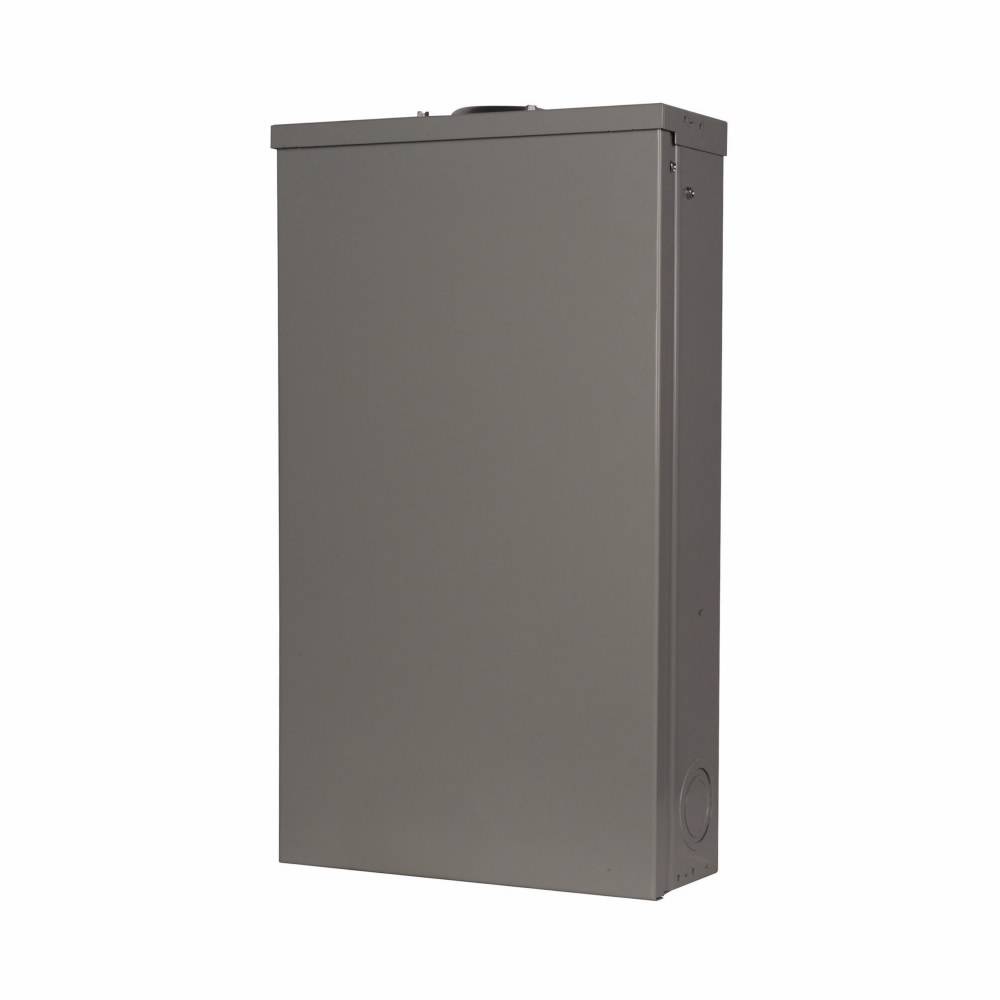

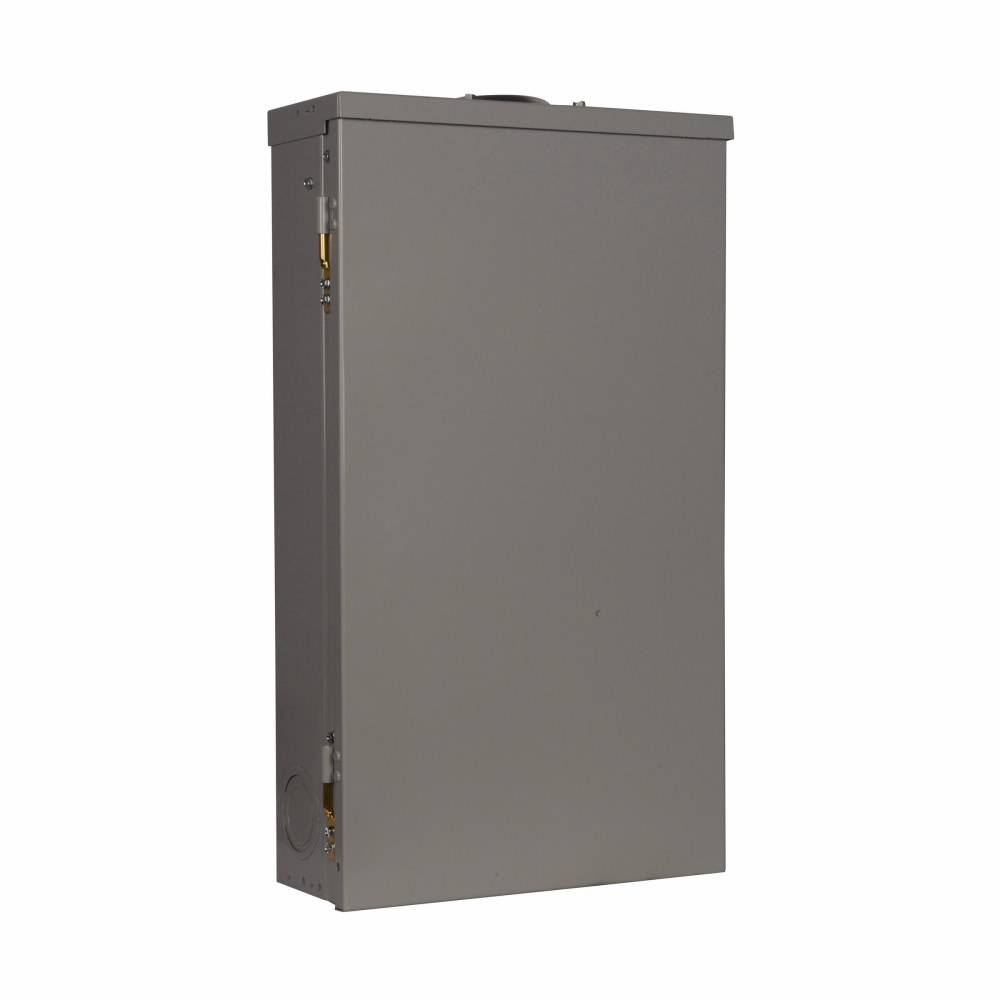

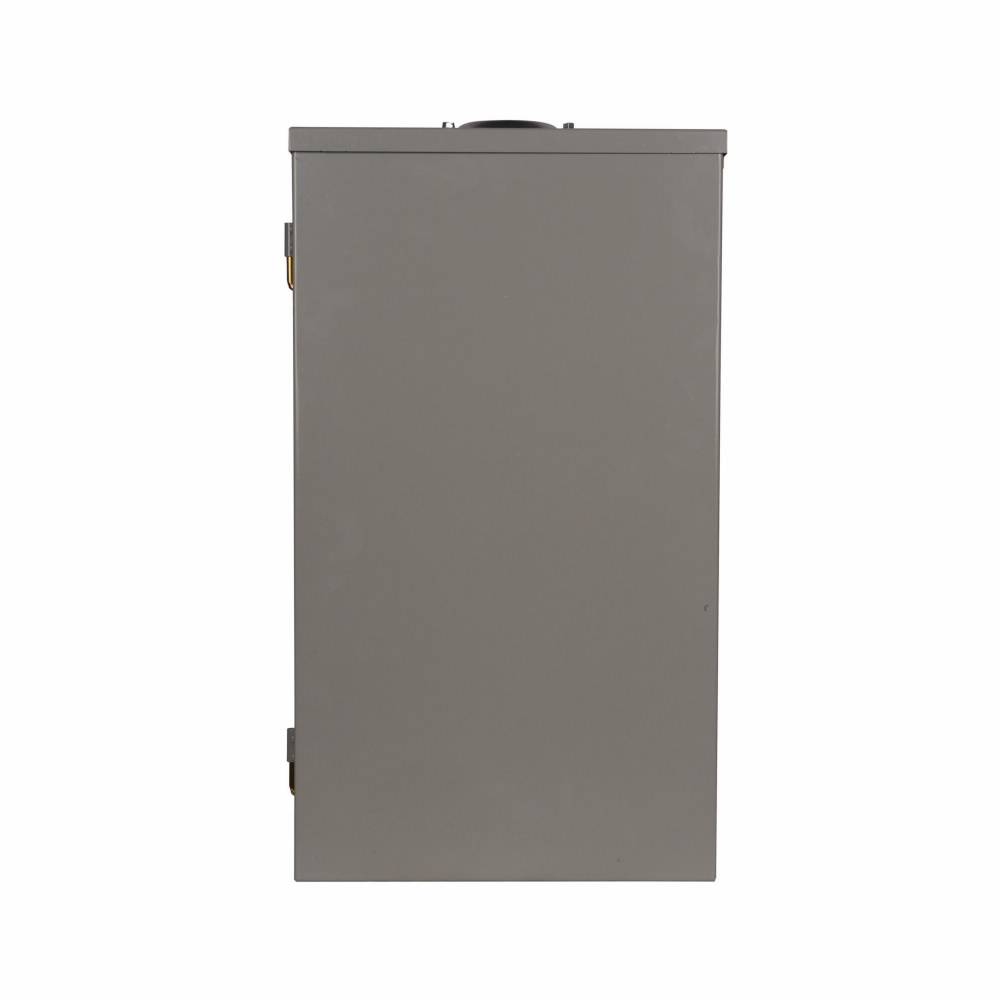

EATON 3BR1224L200R 3-Phase Metallic Main Lug Loadcenter, 120/208Y/240 VAC, 200 A, 24 Poles, 25 kA Interrupt

Short Description

Loadcenters are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

EATON Main Lug Loadcenter, 3-Phase Metallic, 120/208Y/240 VAC, 200 A, 24 Pole, 25 kA Interrupt, 24 Circuits, BR/BWH Breaker, 4-Wire Wiring Configuration, 12 Spaces, 1 AWG to 300 kcmil Wire, Surface Mount, NEMA 3R, NEMA C3R Enclosure Box, 5.19 in L x 14.31 in W x 21 in H
MFG #: 3BR1224L200R

EECO #: CH3BR1224L200R

Brand: Eaton
UPC #: 786676441902
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121101
Wire Size
1 AWG to 300 kcmil
Application
Power Distribution and Commercial Applications
Mounting Type
Surface
Enclosure Type
NEMA 3R
Voltage Rating
120/208Y/240
Type
3-Phase Metallic
Includes
Cover
Warranty
10 years
Dimensions
5.19 in L x 14.31 in W x 21 in H
Breaker Type
BR/BWH
Amperage Rating
200
Number of Circuits
24
Features
  • BR loadcenters have standard tin plated aluminum bus with a limited availability of copper bus
  • Raintight boxes are manufactured from galvanized steel, then finished using an electrostatic powder coated, baked urethane paint process
  • Flexible neutral design
  • Tangential main knockout
  • Single key hole mounting
  • Factory pre-attached neutral bonding strap
  • For use with type BR 1 in breakers
  • Outdoor rainproof enclosure
  • Copper aluminum wire at 60 to 75 deg C for main lugs
  • Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
  • No feed-through lugs
