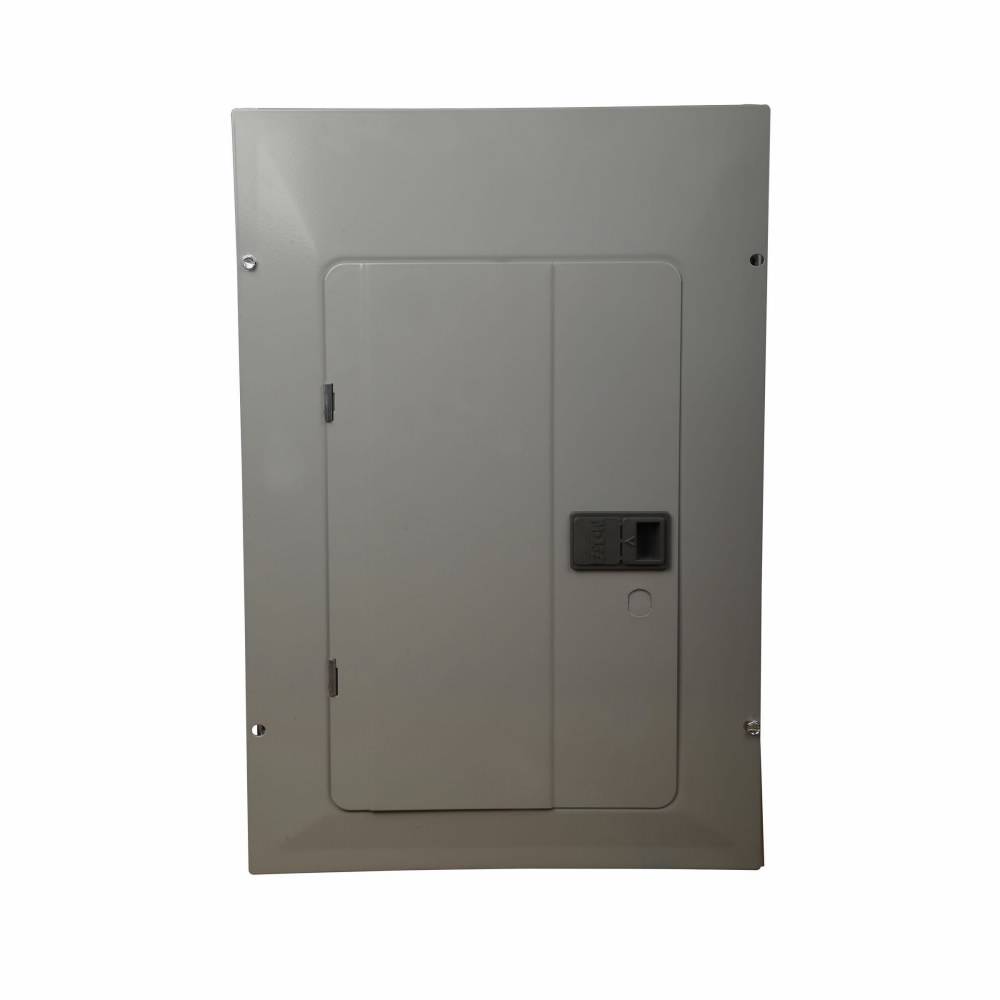

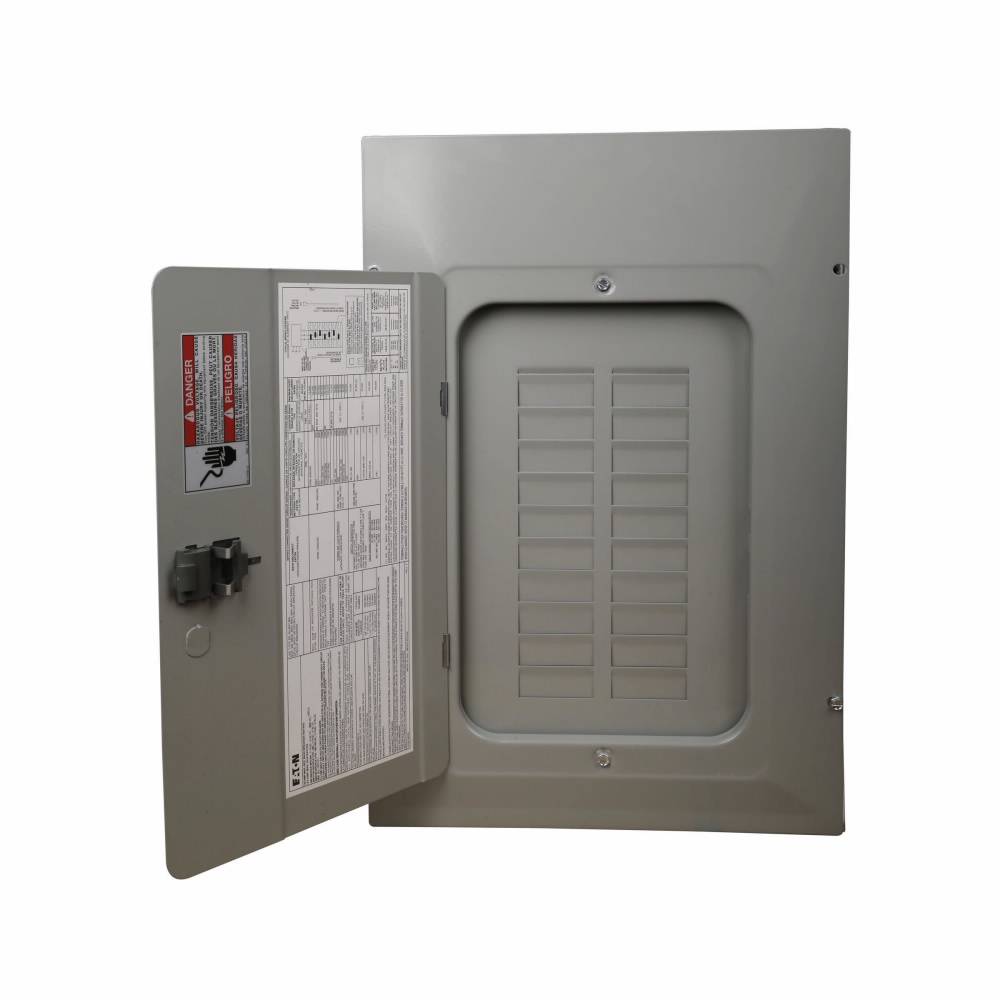

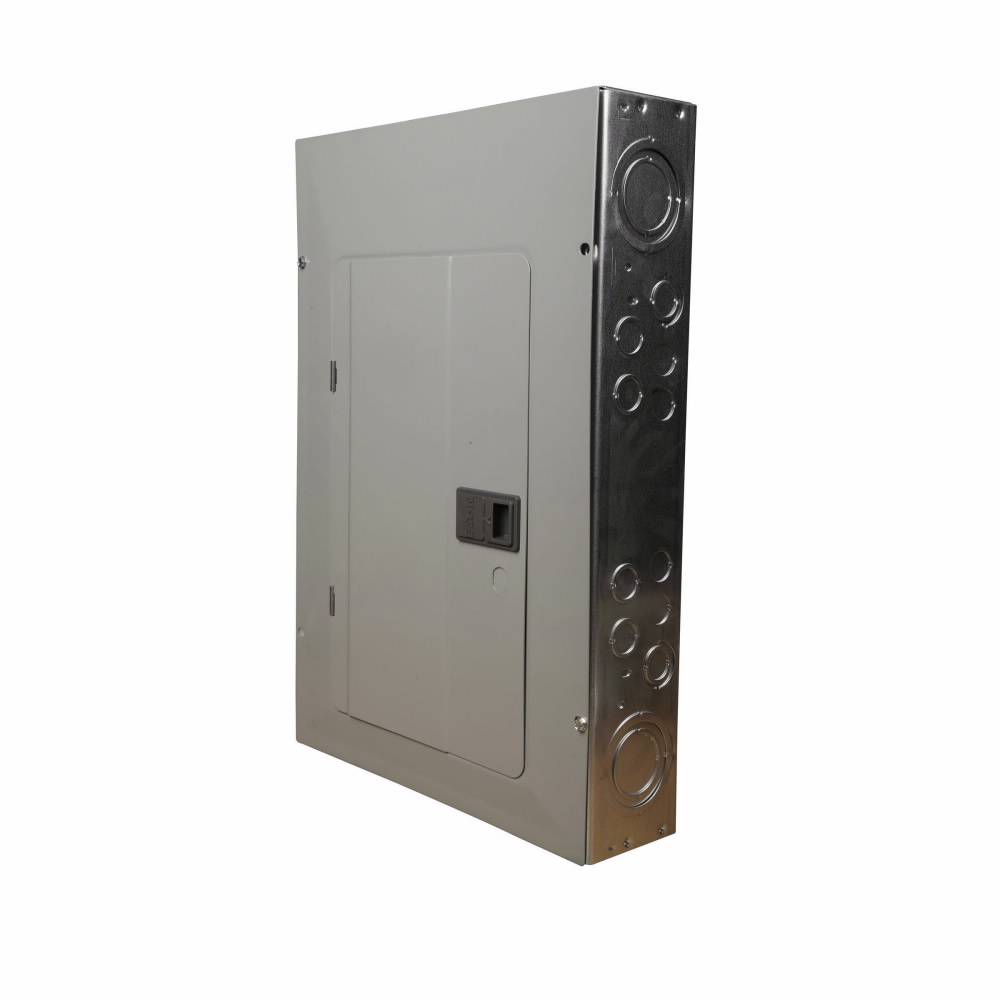

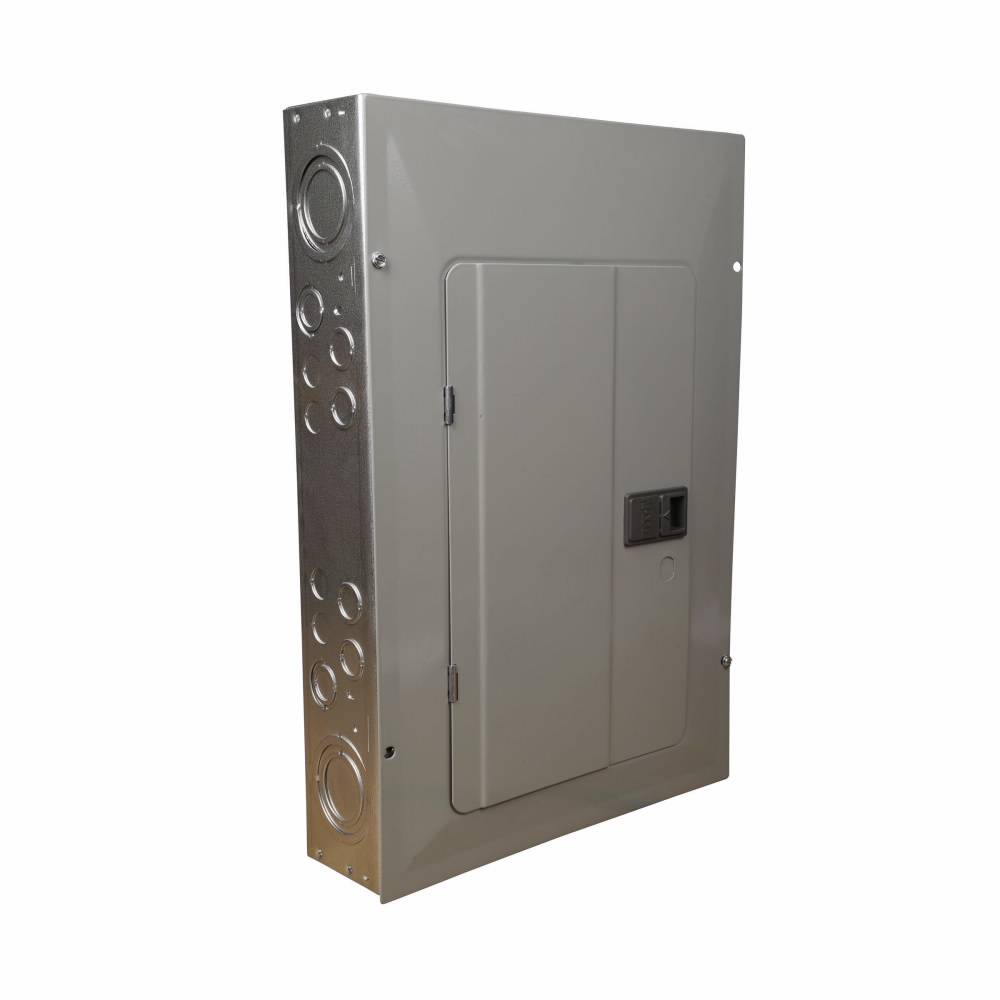

EATON 3BR1224L125S 3-Phase Main Lug Loadcenter, 120/208Y/240 VAC, 125 A, 10 kA Interrupt

Short Description

Load centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

EATON Main Lug Loadcenter, 3-Phase, 120/208Y/240 VAC, 125 A, 10 kA Interrupt, 24 Circuits, BR Breaker, 3/4-Wire Wiring Configuration, 12 Spaces, 6 to 2/0 AWG Wire, Surface Mount, NEMA 1, NEMA C1 Enclosure Box, Galvanized Steel Housing, 3.88 in L x 14.31 in W x 21 in H
MFG #: 3BR1224L125S

EECO #: CH3BR1224L125S

Brand: Eaton
UPC #: 786676441506
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121101
Wire Size
6 to 2/0
Application
Electrical Assemblies, Panels and OEMs Applications
Mounting Type
Surface
Enclosure Type
NEMA 1
Voltage Rating
120/208Y/240
Housing Material
Galvanized Steel
Type
3-Phase
Includes
Cover, BREQS125 Hold Down Screw and Surface Trim
Warranty
10 years
Dimensions
3.88 in L x 14.31 in W x 21 in H
Breaker Type
BR
Amperage Rating
125
Number of Circuits
24
Features
  • Extra 1-1/2 in knockout, larger knockout provides easier installation and time savings
  • Straight-in wiring saves labor and material
  • 1-panel for either top or bottom applications
  • 2/0 AWG lug, easily removable and can be installed in any location on the neutral bar
  • Type BR AFCI breakers, compact design for easier wiring and improved wireway access, provides a clean gutter space
  • Standard tin plated aluminum bus, excellent conductivity and corrosion resistance
  • Tangential center knockout, easier installation for conduit applications
  • Commercial grade main breaker, 25 kAIC series rated main breaker for superior protection
  • Neutral bus, easily removable for sub-panel applications
  • Bonding Z-strap, provides easy field conversion for service entrance applications
  • Steel backpan provides solid and reliable breaker mounting, single piece design for stability and durability
  • 6 to 2/0 AWG copper/aluminum wire size
  • Without feed-through lugs
