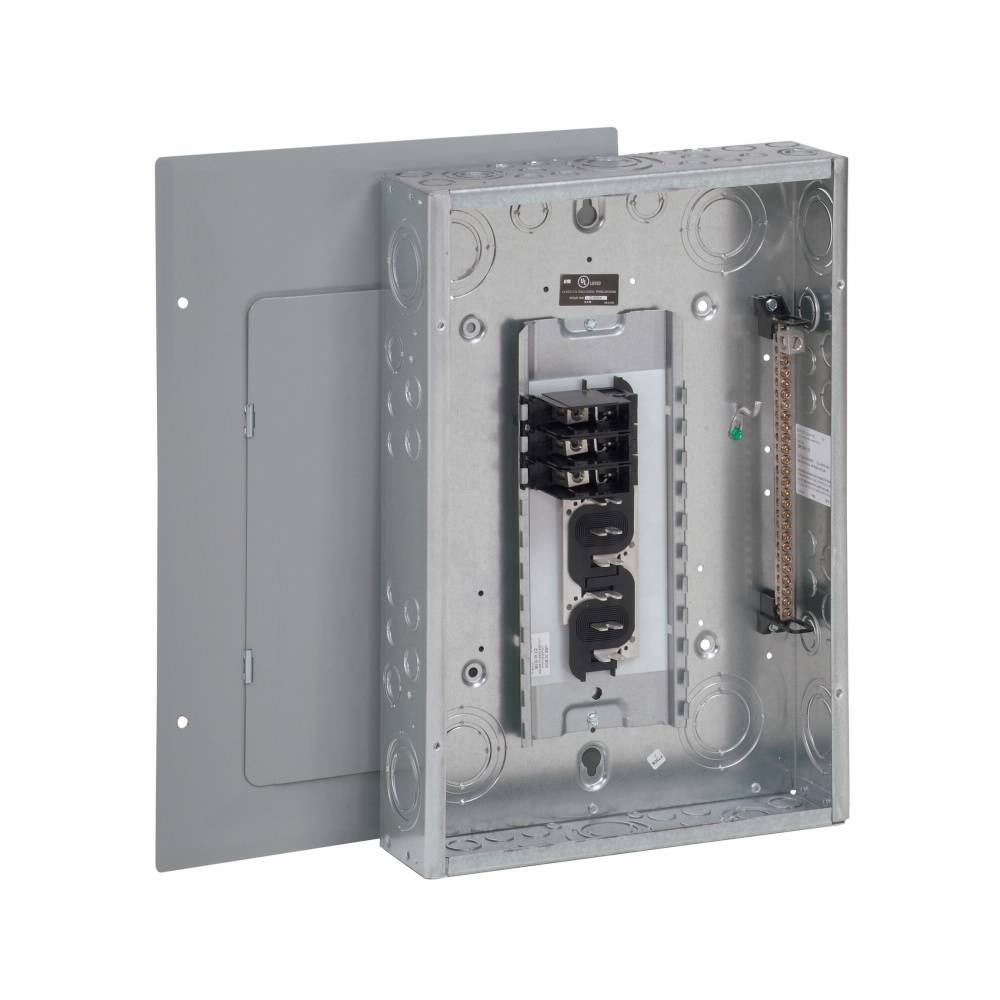

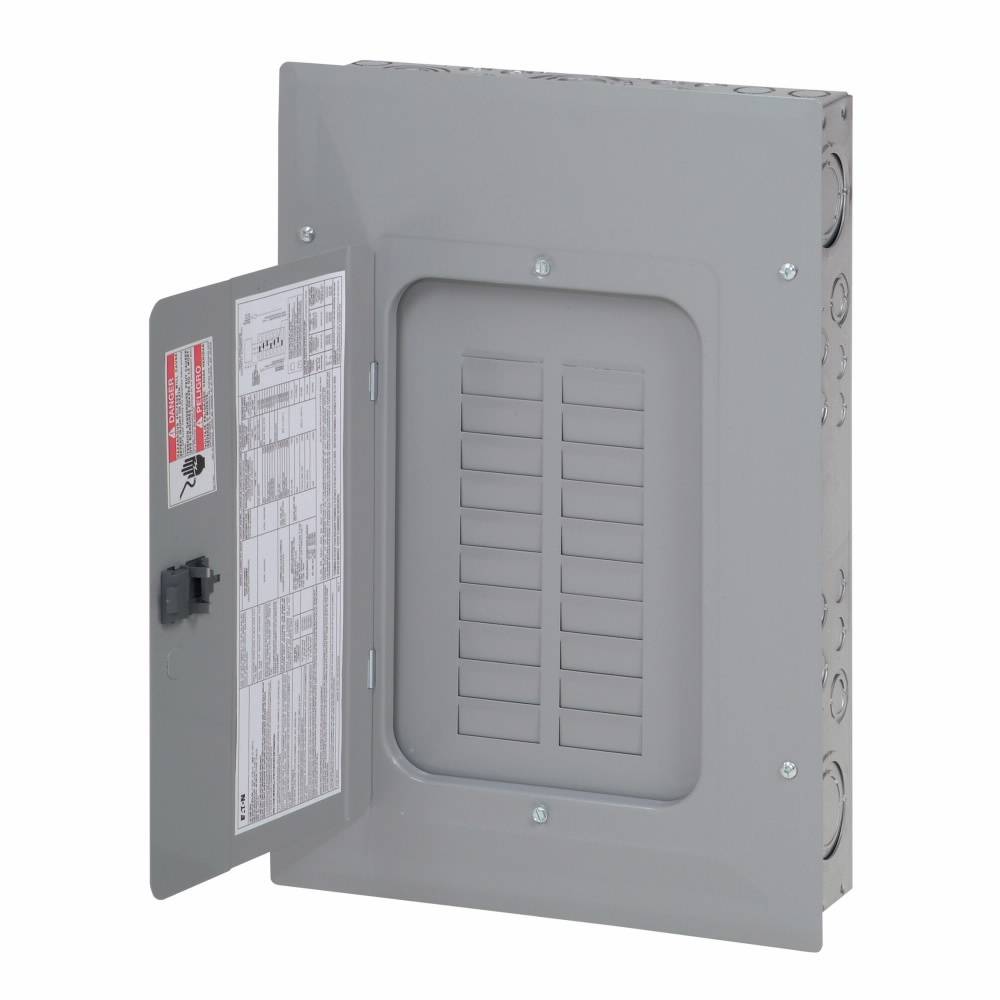

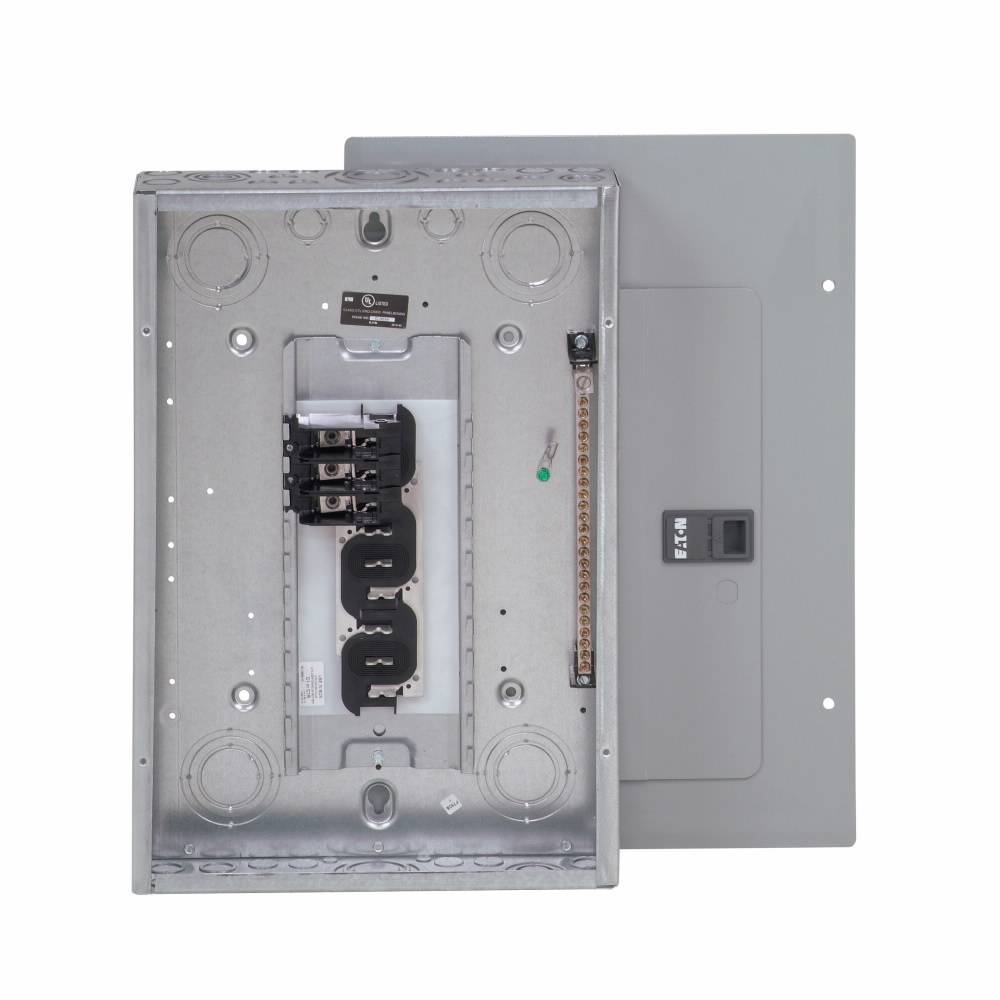

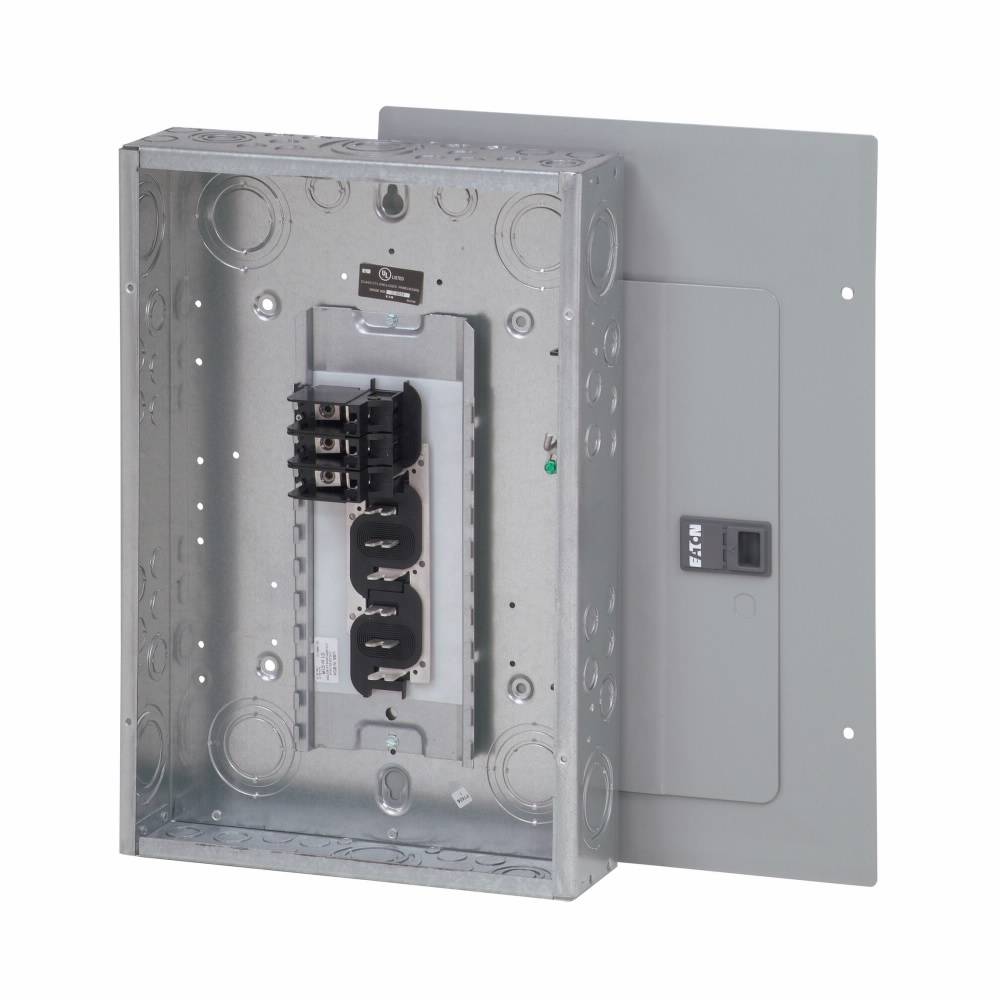

EATON 3BR1224L125 3-Phase Metallic Main Lug Loadcenter, 120/208Y/240 VAC, 125 A, 24 Poles, 10 kA Interrupt

Short Description

Specially designed for easy installation, EATON BR 1 in load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

EATON Main Lug Loadcenter, 3-Phase Metallic, 120/208Y/240 VAC, 125 A, 24 Pole, 10 kA Interrupt, 24 Circuits, BR Breaker, 4-Wire Wiring Configuration, 12 Spaces, 6 to 2/0 AWG Wire, Flush Mount, NEMA 1, NEMA C1 Enclosure Box, 3.88 in L x 14.31 in W x 21 in H

MFG #: 3BR1224L125

EECO #: CH3BR1224L125

Brand: Eaton
UPC #: 786676441407
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121101
Wire Size
6 to 2/0
Application
Electrical Assemblies, Panels and OEMs Applications
Mounting Type
Flush
Enclosure Type
NEMA 1
Voltage Rating
120/208Y/240
Type
3-Phase Metallic
Includes
BREQS125 Hold Down Screw and Cover
Dimensions
3.88 in L x 14.31 in W x 21 in H
Breaker Type
BR
Amperage Rating
125
Number of Circuits
24
Features
  • Flexible neutral design
  • Tangential main knockout
  • Single key hole mounting
  • Factory pre-attached neutral bonding strap
  • Bottom or top feed location
  • Straight in wiring saves labor and material
  • Easily removable lugs and can be installed in any location on the neutral bar
  • Drywall marking on enclosure indicates proper mounting depth for flush applications
  • Steel backpan provides solid and reliable breaker mounting single-piece design for stability and durability
  • Advanced electronics effectively reduce nuisance tripping
  • For use with type BR 1 in breakers
  • Indoor enclosure
  • Copper aluminum wire at 60 to 75 deg C for main lugs
  • Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
  • No feed through lugs
  • Combination mounting
