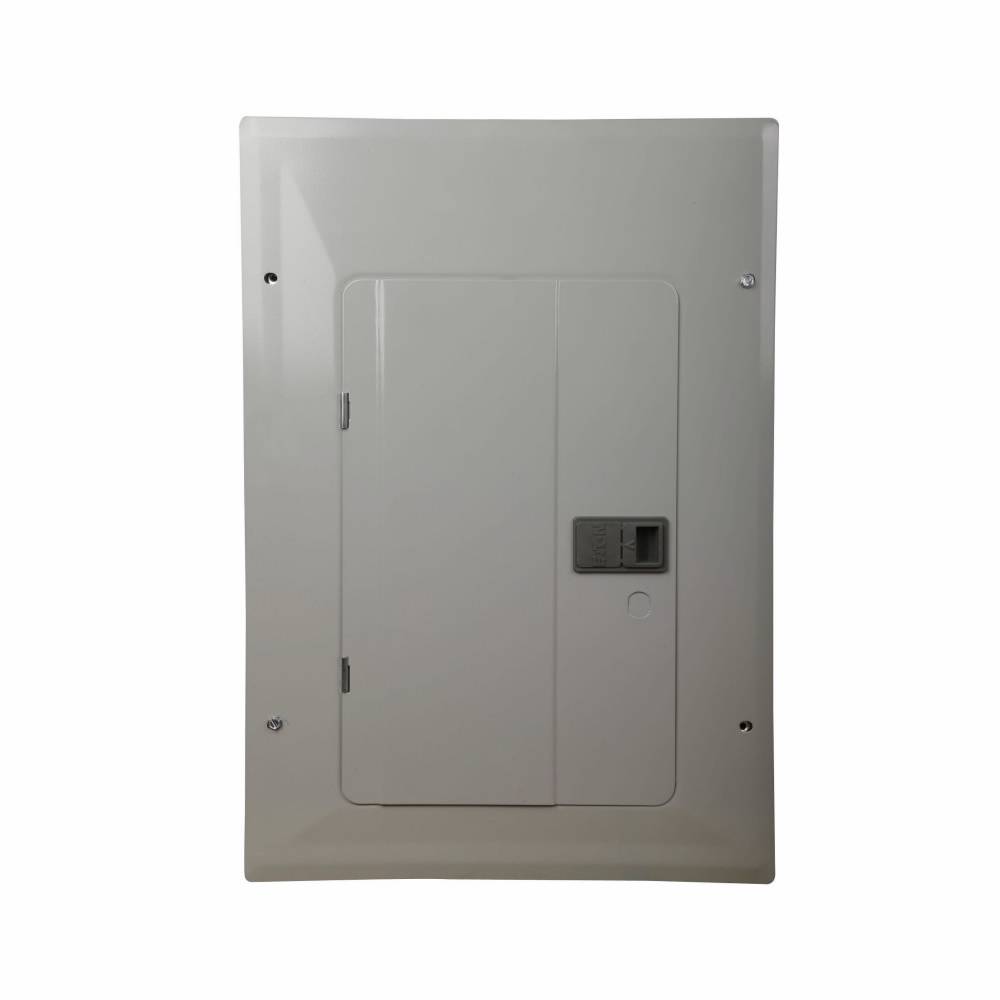

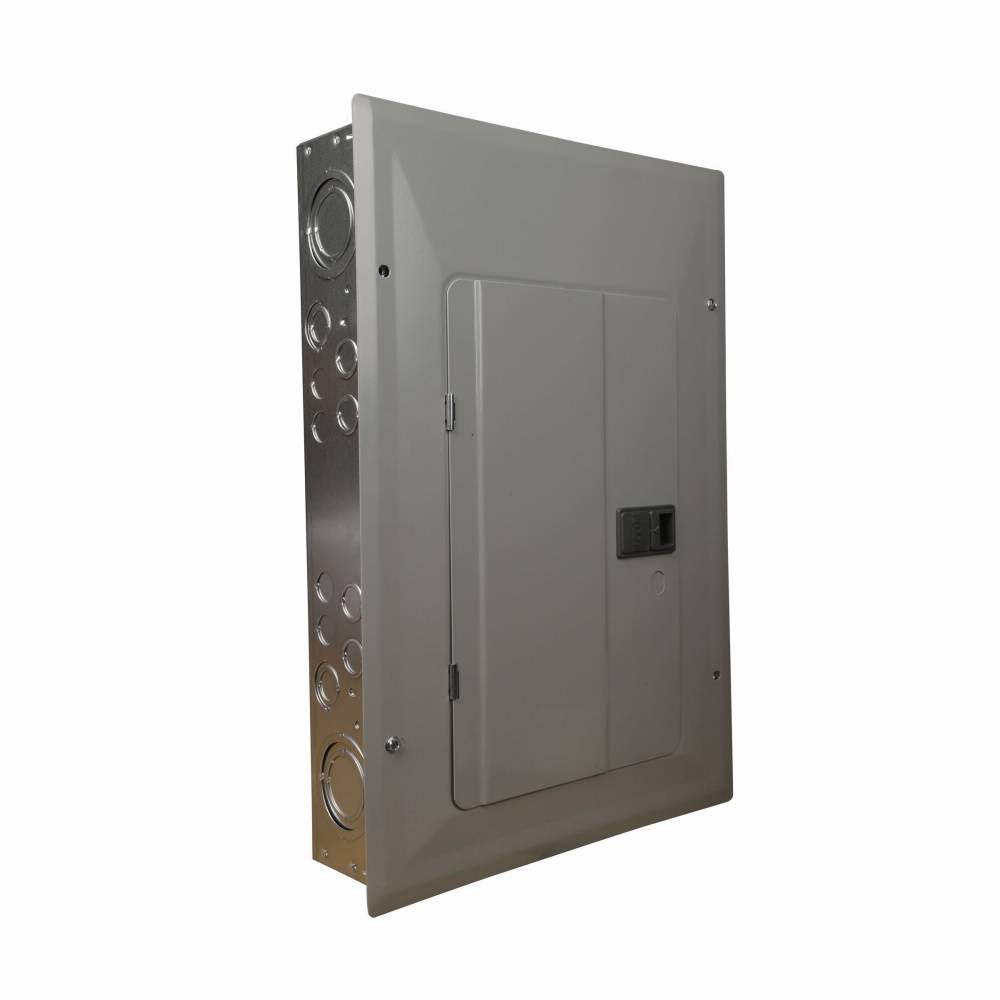

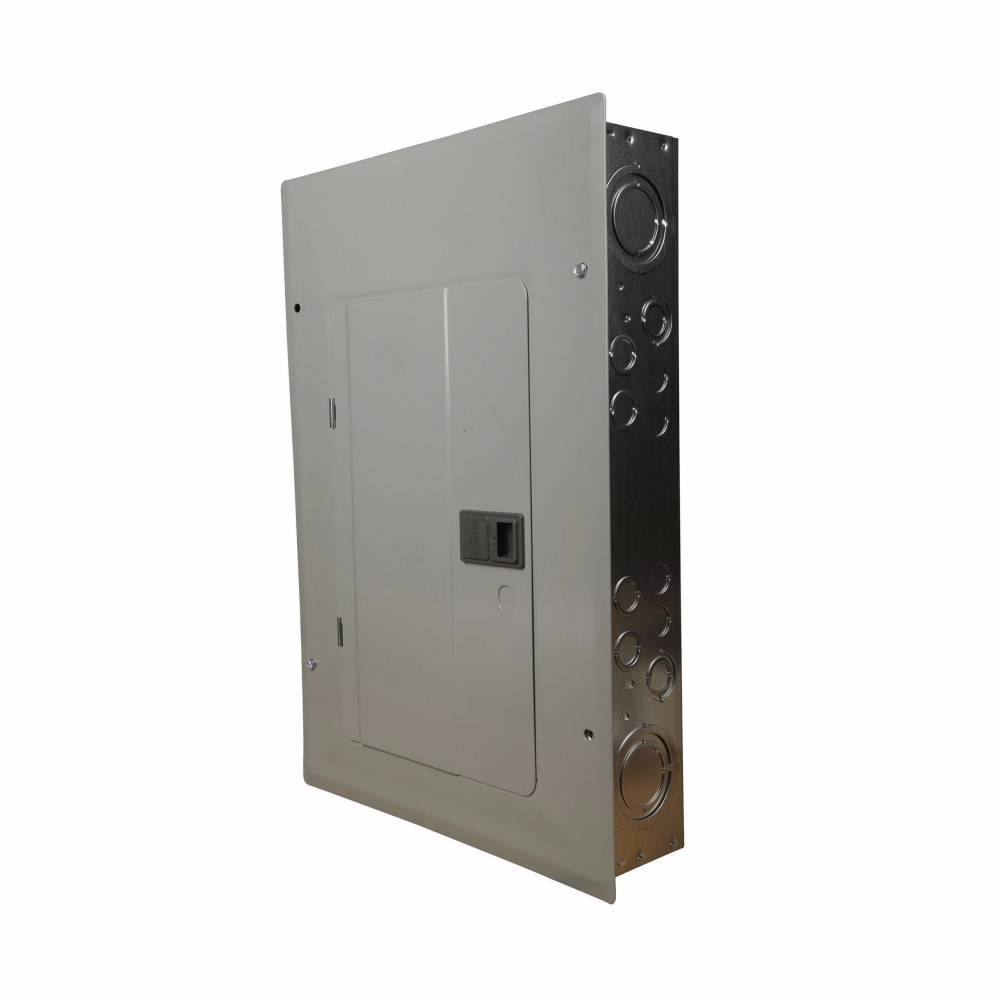

EATON 3BR1224H100S 3-Phase High Aid Main Circuit Breaker Load Center, 208Y/120/240 VAC, 100 A, 24 Poles, 22 kA Interrupt

Short Description

Loadcenters are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

EATON Main Circuit Breaker Load Center, 3-Phase High Aid, 208Y/120/240 VAC, 100 A, 24 Pole, 22 kA Interrupt, 24 Circuits, BR/BRH Breaker, 4-Wire Wiring Configuration, 12 Spaces, 4 to 1/0 AWG Wire, Surface Mounting, NEMA 1 Enclosure, NEMA C1 Enclosure Box, Metal Housing Material, 3.88 in L x 14.31 in W x 21 in H Dimensions
MFG #: 3BR1224H100S

EECO #: CH3BR1224H100S

Brand: Eaton
UPC #: 786676440059
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121101
Wire Size
4 to 1/0
Application
Type BR Breakers, Commercial, Datacenters - IT Space, CI and Hyper Converged, Conventional Energy Generation, Renewable Energy and Alternative Energy Generation, Marine Vessels and Equipment Applications
Mounting Type
Surface
Enclosure Type
NEMA 1
Voltage Rating
208Y/120/240
Housing Material
Metal
Type
3-Phase High Aid
Includes
Cover
Warranty
10 years
Dimensions
3.88 in L x 14.31 in W x 21 in H
Breaker Type
BR/BRH
Amperage Rating
100
Number of Circuits
24
Features
  • BR loadcenters have standard tin plated aluminum bus with a limited availability of copper bus
  • Raintight boxes are manufactured from galvanized steel, then finished using an electrostatic powder coated, baked urethane paint process
  • Flexible neutral design
  • Tangential main knockout
  • Single key hole mounting
  • Factory pre-attached neutral bonding strap
  • NEMA 1 enclosure rating indoor with surface trim enclosure
  • Aluminum bus housing
